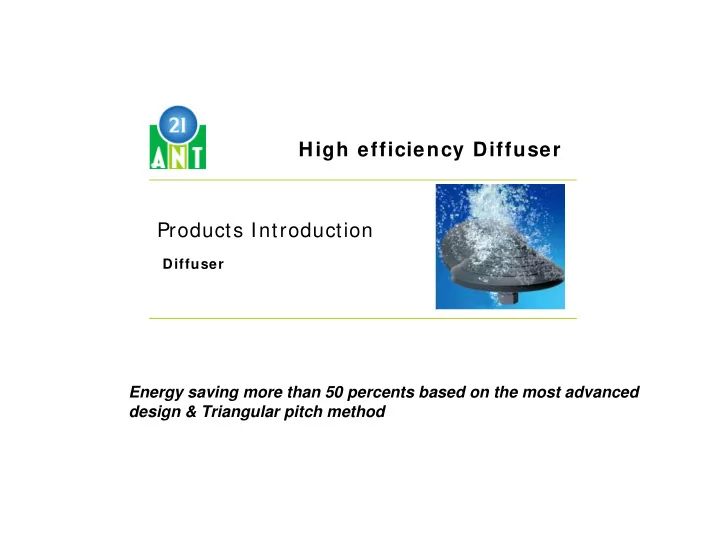

High efficiency Diffuser Products Introduction Diffuser Energy saving more than 50 percents based on the most advanced design & Triangular pitch method High efficiency Diffuser Product Feature Product Feature Excellent energy saving
SLIDE 2
SLIDE 3
Specifications Specifications
3
Aeration rate Dispersion area Foam size Pressure loss (ℓ/min) (㎠) (mm) (mmAq) UFO-160 φ160×54H 10-100 201 UFO-200 φ200×67H 20-200 314 UFO-240 φ240×80H 30-300 452 UFO-300 φ240×100H 50-500 616 Overall sides 1~5 100~150 Dispersion system Model Standard
High efficiency Diffuser
SLIDE 4
Products Introduction
High-efficiency fluidized m edia
Fluidized m edia
The high-efficiency fluidized media dissolves and removes the aerobic Microorganism, its anaerobic microorganism removes nitrogen and phosphorous as a media for purification treatment.
SLIDE 5
5
Media leakage preventive structure is not required Tough surface for easy attachment of microorganism with excellent specific surface and specific resistance Strong resistance against low density, high density and shock Excellent strength and durability : Possible to use Semi-permanent Material : ABS, Polyethylene Density(g/cm3) : 0.9 - 1.1 g/cm3 Dimension (mm) : Sphere Φ160, Height 130 Specific surface area(m2/m3) : 3000 m2/m3 Cavity ratio(%) : 91.5 – 94 % Charging by 10-25% of a capacity of aerobic tanks High-efficiency fluidized m edia Easy installation and maintenance
Product Feature Product Feature Specification Specification
Polymer material going through water-friendly treatment and chemical surface treatment
SLIDE 6
6
Drainage treatment plant Wastewater treatment system Sanitation treatment plant It's widely used to treat excretion, organic waste water and sewage integrated purification tank. Charging 10-25 percents compared to the volume of the aeration tank Livestock excretions treatment plant Sewage disposal plant
Standard Standard Application Application
Sewage treatment plant High-efficiency fluidized m edia
Media Surface Area Media to Attach Microorganism
SLIDE 7
Cake Treatment 9 Anoxic Tanks Primary Aerobic Tanks Primary settling Biochip Filter Tanks Photo catalyst Oxidation Tanks Sludge Tanks Screen Sedimentation Tanks Blower Return Sludge Return Sludge Recycle Pump Secondary Aerobic Tanks Sludge Dryers Influent Effluent Waste Sludge
ANT W ater Treatm ent Process
7
SLIDE 8
A boundary Condition
XZ cross section High Efficiency Diffuser H.W.L : 10620 mm H.W.L : 10300 mm Influent Effluent
ANT W ater Treatm ent Process
8
SLIDE 9
Diffuser of new method (Patent Number : 0228457) Cone type diffuser that apply triangular pitch method (Patent Number : 0229179) Prevention of bubbles unification phenomenon (Patent Number : 0229181) Generation of uniform microscopic bubbles (Patent Number : 0229182) Fluidized Photocatalyst Reactor (Patent Number : 0249122) Bio- Chip Filter Device (Patent Number : 0026015) ANT Water Treatment Method (Patent Number : 0256959) Fluidized Contacting Media (Patent Number : 0257981)
ANT Water Treatment Method ANT Water Treatment Method Photocatalyst Reactor Photocatalyst Reactor Bio-Chip Filter Device Bio-Chip Filter Device Fluidized Contacting Media Fluidized Contacting Media High Efficiency Diffuser High Efficiency Diffuser ANT Technology Certification
