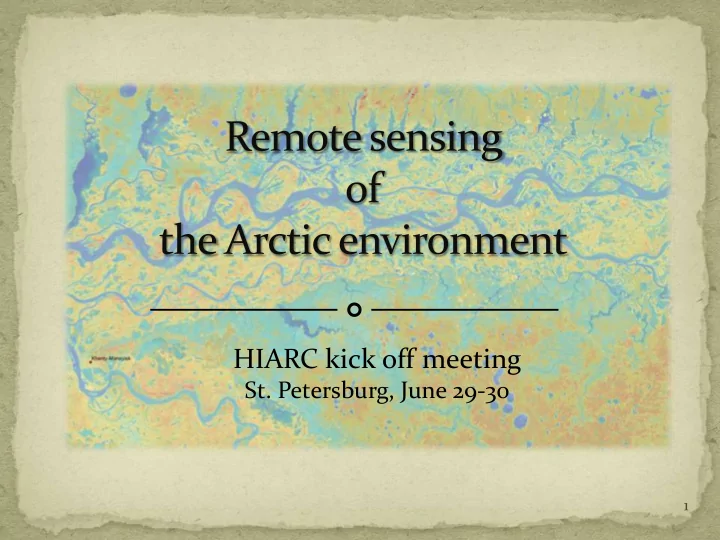

SLIDE 1

HIARC kick off meeting

  • St. Petersburg, June 29-30

1

slide-2
SLIDE 2

To provide indicators characterizing current condition

and dynamics of Arctic and sub-Arcrtic ecosystems

Indicators of Urban Effect Indicators with good spatial coverage and temporal

resolution

Indicators of quantity and quality assessment to be

comparable with other data in the project

Indicators derived from satellite remotely sensed data

Vegetation - indicator of natural or anthropogenic changes, including UHIE in the Arctic and sub-Arctic.

2

slide-3
SLIDE 3

WP1 – Documenting the climate and societal

changes.

Task 1.2 – Satellite imagery and products.

WP2 – Understanding the micro-climate and

urban development.

Task 2.2 – Building-up statistical support. Task 2.3 – Process understanding Task 2.4 – Environmental impact of urbanization Vegetation - indicator of natural or anthropogenic changes, including UHIE in the Arctic and sub-Arctic.

3

slide-4
SLIDE 4

Normalized Difference Vegetation Index NDVI=(NIR-RED)/(NIR+RED)

Proxy of vegetation productivity
