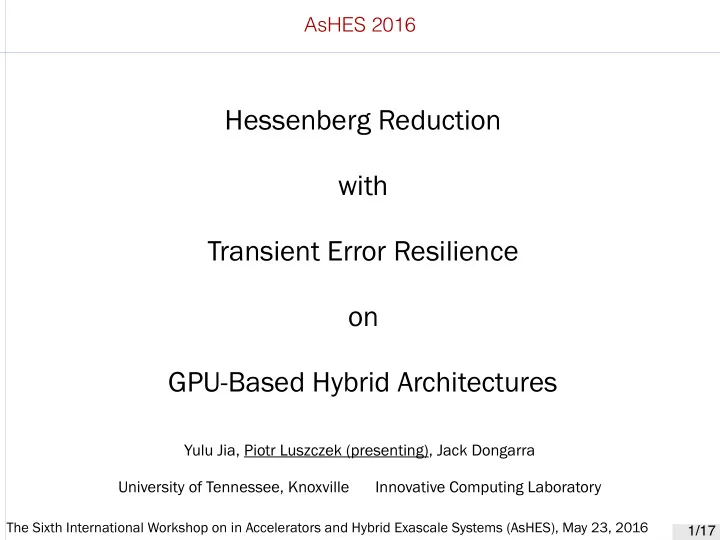

SLIDE 1 1/17
AsHES 2016
Hessenberg Reduction with Transient Error Resilience
GPU-Based Hybrid Architectures
Yulu Jia, Piotr Luszczek (presenting), Jack Dongarra University of Tennessee, Knoxville Innovative Computing Laboratory
The Sixth International Workshop on in Accelerators and Hybrid Exascale Systems (AsHES), May 23, 2016
SLIDE 2 2/17
From a Single Accelerated Node to Exascale
- MTTF of the entire machine depends on reliability of each node
- The MTTF of the entire machine can be statistically computed
based on single-node reliability for a number of distributions
– Exp(1/100) – Weibull(0.7, 1/100) – Weibull(0.5, 1/100)
- See Yves Robert's work for detailed analysis
One node ~103 cores MTTF = 1 year MTTF = 10 years MTTF = 120 years ↓ ↓ ↓ ↓ Exascale machine ~106 nodes 30 seconds 5 minutes 1 hour
SLIDE 3 3/17
Field Data on Resilience
– are caused by: cosmic rays (alpha particles, high energy and/or
thermal neutrons)
– occur in practice
- Commercial study in 2000 by Sun Microsystems
- ASC Q supercomputer at Los Alamos in 2003
- Jaguar (Cray XT5) at ORNL
– Nearly 225k cores – 1253 separate node crashes during 537 days (Aug 2008-Feb 2010) – Or 2.33 failures per day – Or less 10 hours of failure-free operation
- … and any non-ECC machine
- Accelerators are common
– In many shared-memory systems – Supercomputers
- Tianhe-1A, Titan (Cray XK7, 560k cores), Tianhe-2 (3M+ cores)
- And at Exascale ~1 billion threads and MTTF < 1 day!
SLIDE 4 4/17
Hessenberg Reduction (HRD) and Its Applications
- HRD = Hessenberg Reduction
– General (non-symmetric) eigenvalue problem – Generalized eigenvalue problem
– Structural mechanics – Spectral graph analysis – Control theory – …
–
10/3 n3 + O(n2)
– Both compute bound and memory bound
SLIDE 5 5/17
Numerical Eigenvalue Algorithm Recap
Ax = λx
Ax = λBx
- We transform matrix A into Hessenberg matrix H with the same
eigenvalues: H1 = Q1
T A Q1
H2 = Q2
T H1 Q2
… Hn = Qn
T Hn-1 Qn ≡ H
- H is in Hessenberg form:
- Iterative algorithm is used to fjnd eigenvalues of H
* * * * * * * * * * * * * * * * * * * * * * * * * *
SLIDE 6
6/17
Panel-Update Approach
Panel 2 Right Update 2 Left Update 2 Panel 3 Begin iteration 1
SLIDE 7
7/17
Propagation of Error During Hessenberg Reduction
SLIDE 8 8/17
Techniques for Error Protection and Failure Recovery
- Algorithm-Based Fault Tolerance
– Kuang-Hua Hua, Jacob Abraham, ABFT for Matrix Operations
- Implementation on systolic arrays
– Takes advantage of additional mathematical relationship(s)
- Already present in algorithm
- Introduced (cheaply, if possible) by ABFT – usually weighted sums
- Diskless checkpointing
– Additional (small) data is kept in live processes or extra memory – No need for full I/O checkpointing
SLIDE 9
9/17
From Huang and Abraham: Checksum Mat-Mat-Mul
C H E C K S U M CHECKSUM
=
C H E C K S U M CHECKSUM Cf
SLIDE 10
10/17
Fault Tolerant Hessenberg Reduction
Begin iteration Factorize panel Right update Left update Trailing update End iteration DLAHRD DGEMM DGEMM DLARFB
SLIDE 11
11/17
HRD: Extra Computation for Single-Error Protection
DGEMV DGEMV
SLIDE 12
12/17
HRD: Extra Computation for Two-Error Protection
DGETRF (solve)
SLIDE 13
13/17
Performance with Error Protection (Error in Panel)
Intel Sandy Bridge Xeon E5-2670 2.6 GHz+MKL 11.2 NVIDIA Kepler K40c+cuBLAS 7
SLIDE 14
14/17
Performance with Error Protection (Error in Upper)
Intel Sandy Bridge Xeon E5-2670 2.6 GHz+MKL 11.2 NVIDIA Kepler K40c+cuBLAS 7
SLIDE 15
15/17
Performance with Error Protection (Error in Trailing)
Intel Sandy Bridge Xeon E5-2670 2.6 GHz+MKL 11.2 NVIDIA Kepler K40c+cuBLAS 7
SLIDE 16 16/17
Numerical Accuracy
- Numerical accuracy can be measured in various forms
– Scaled residual (backward error) – Orthogonality of Q's
- Accuracy can be different depending on:
– Location of error: panel, upper, trailing – Time of error: beginning, middle, end of HRD
- Summary of numerical results for N=1k,…,10k
– Errors in non-fault tolerant code: 10-18 – 10-17 – Errors in upper and trailing on the order of 10-18 – 10-17 – Errors in panel on the order of 10-15 – 10-14
SLIDE 17 17/17
Conclusions and Future Work
– Presented design and analysis of fault-tolerant Hessenberg
reduction
– The methods used: ABFT, diskless checkpointing – Hardware used: GPU accelerator – Minimal overhead in performance – About 2-digit loss for some scenarios but still accurate in working
precision
– Address all two-sided factorizations within a single framework – Support for upcoming accelerators:
- Intel KNL and Sky Lake
- NVIDIA Pascal, Tegra, Jetson, Denver2
- AMD Polaris, Zen
- Google TPU
