slide-1

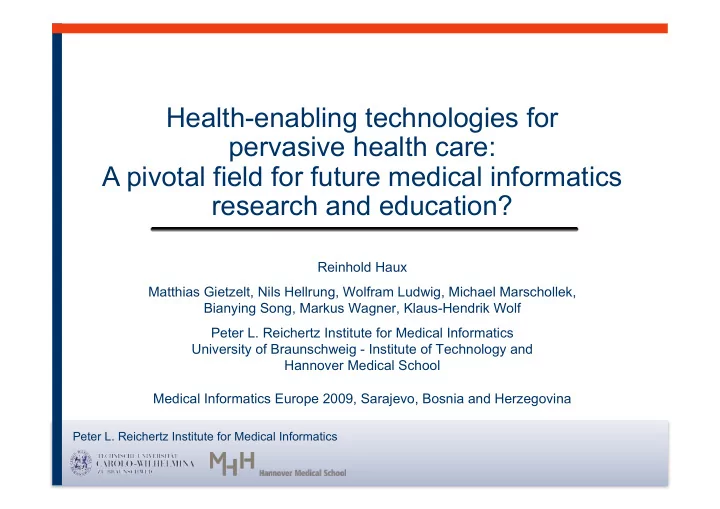

SLIDE 1

Peter L. Reichertz Institute for Medical Informatics

Reinhold Haux Matthias Gietzelt, Nils Hellrung, Wolfram Ludwig, Michael Marschollek, Bianying Song, Markus Wagner, Klaus-Hendrik Wolf Peter L. Reichertz Institute for Medical Informatics University of Braunschweig - Institute of Technology and Hannover Medical School Medical Informatics Europe 2009, Sarajevo, Bosnia and Herzegovina

Health-enabling technologies for pervasive health care: A pivotal field for future medical informatics research and education?

slide-2
SLIDE 2

Peter L. Reichertz Institute for Medical Informatics

structure

  • background: the demographic change
  • health-enabling technologies

and pervasive health care

  • examples
  • health-enabling technologies

and medical informatics

slide-3
SLIDE 3

Peter L. Reichertz Institute for Medical Informatics

structure

  • on the Peter L. Reichertz Institute
  • background: the demographic change
  • health-enabling technologies

and pervasive health care

  • examples
  • health-enabling technologies

and medical informatics

slide-4
SLIDE 4

Peter L. Reichertz Institute for Medical Informatics

  • Bardram JE. Pervasive healthcare as a scientific discipline.

Methods Inf Med. 2008; 47: 178-85.

  • Haux R et al. Health-enabling technologies for pervasive health care.

Inform Health Soc Care. 2008; 33: 77-89.

  • Koch S et al. On Health-enabling and ambient-assistive technologies.

Methods Inf Med. 2009; 48: 29-37.

  • Saranummi N. IT applications for pervasive, personal, and

personalized health. IEEE Trans Inf Technol Biomed. 2008; 12: 1-4.

  • Saranummi N, Woctlar H, editors. Pervasive Healthcare.

Methods Inf Med. 2008; 47: 175-240.

  • GAL: www.altersgerechte-lebenswelten.de
  • PLRI: www.plri.de

references

slide-5
SLIDE 5

Peter L. Reichertz Institute for Medical Informatics

  • n the


Peter L. Reichertz Institute

slide-6
SLIDE 6

Peter L. Reichertz Institute for Medical Informatics

the Peter L. Reichertz Institute (PLRI)

  • Prof. Reichertz

1930 - 1987

  • since more than three decades medical

informatics with Professor Peter L. Reichertz as pioneer

  • in 2007: University of Braunschweig -

Institute of Technology (TU Braunschweig) and Hannover Medical School (MHH) unite their medical informatics institutes as a joint institute, named Peter L. Reichertz Institute for Medical Informatics with two locations Braunschweig and Hannover

  • aim: regional ‘center of excellence‘
  • 2 locations, PLRI staff is member of both universities
slide-7
SLIDE 7

Peter L. Reichertz Institute for Medical Informatics

the PLRI

  • fields of research
  • health-enabling technologies
  • eLearning in medicine and dentistry
  • health information systems and management
  • medical imaging and visualization
  • education
  • medical informatics courses
  • medical informatics program (B.Sc, M.Sc., Ph.D)
slide-8
SLIDE 8

Peter L. Reichertz Institute for Medical Informatics

background:


the demographic change

slide-9
SLIDE 9

Peter L. Reichertz Institute for Medical Informatics

the demographic change

adolescenting („aging“) societies „the number of persons aged 60 years or older is estimated to be 629 million in 2002 and is projected to grow to almost 2 billion by 2050, at which time the population of older persons will be larger than the population of children (0-14 years) for the first time in human history“ (UN Population Division)

slide-10
SLIDE 10

Peter L. Reichertz Institute for Medical Informatics

the demographic change

source: UN, Population Division 1950 2000 2050 12 9 4 year Potential Support Ratio 1950-2050 World

slide-11
SLIDE 11

Peter L. Reichertz Institute for Medical Informatics

the demographic change

source: UN, Population Division 1950 2000 2050 12 9 4 year Potential Support Ratio 1950-2050 World / Europe

8 5 2

slide-12
SLIDE 12

Peter L. Reichertz Institute for Medical Informatics

health-enabling technologies


and pervasive health care

slide-13
SLIDE 13

Peter L. Reichertz Institute for Medical Informatics

  • n health-enabling technologies (HET)
  • HET are information and communication

technologies for creating sustainable conditions for self-sufficient and self-determined lifestyles

  • sensor-enhanced health information systems

play a major role in this context, aiming to enable ambient-assisted living

  • by utilizing advanced HET, individual quality of

life is intended to be enhanced, while sustaining the efficiency of health care

slide-14
SLIDE 14

Peter L. Reichertz Institute for Medical Informatics

  • n pervasive health care (from Jacob Bardram):

acute  continuous hospitalization  home & outpatient reactive  proactive & preventive IT  assistive technology centralizend  pervasive sampling  monitoring doctor-centric  patient-centric

Bardram J. Pervasive Healthcare as Discipline Methods Inf Med. 2008; 47: 178-185.

slide-15
SLIDE 15

Peter L. Reichertz Institute for Medical Informatics

  • n HET & pervasive helth care:

Niilo Saranummi’s 3‘P‘s

  • pervasive technologies

shall enable semantically interoperable platforms to communicate and store health data and the use of health-enabling technologies

  • personal services

using sensor technologies for continuously measuring health related data of an individual; to support her or him at specific health problems

  • personalized decision support

adapted, ‘tuned’ to the individual’s norm, not to averages in populations

slide-16
SLIDE 16

Peter L. Reichertz Institute for Medical Informatics

  • n HET: financial considerations
  • example for possible cost savings through

health-enabling technologies for Germany:

  • if elder citizens can stay for three month

longer in their homes, we will save 315 million € / year

slide-17
SLIDE 17

Peter L. Reichertz Institute for Medical Informatics

  • n HET: opportunities
  • in our adolescenting/ageing societies, advanced

HET may permit active, self-sufficient and autonomous lifestyles at high quality for increasing numbers of fellow citizens

  • sensor-enhanced health information systems for

ambient-assisted living will be critical for early detection and prevention of diseases in the pre- clinical stage, as well as for alleviating chronic diseases

slide-18
SLIDE 18

Peter L. Reichertz Institute for Medical Informatics

the double circle

Informatics for Health and Social

  • Care. 2008;

33, 77 - 89.

slide-19
SLIDE 19

Peter L. Reichertz Institute for Medical Informatics

examples

slide-20
SLIDE 20

Peter L. Reichertz Institute for Medical Informatics

Demonstration

  • ECG and triaxial accelerometer
  • long-term monitoring of ECG/HRV with respect to
  • activity intensity
  • different activities of daily living (ADL)

under real-life conditions

  • deduction: physiologic reaction of the cardio-

vascular system to physical stress

  • long-term changes?
slide-21
SLIDE 21

Peter L. Reichertz Institute for Medical Informatics

Measuring movement - accelerometers

  • cheap, small, mobile/wearable

standing up walking turning walking sitting down

slide-22
SLIDE 22

Peter L. Reichertz Institute for Medical Informatics

Long-term activity monitoring

  • N=1, young and healthy
  • Device: Sensewear Pro2 (multisensor)
  • duration: 6 months
  • data: 201.984 minutes, 100.087 annotated

(=1,668 hrs.)

  • 28 activities, no preselection
  • activity classification with pattern recognition

algorithms OneR, Naive Bayes, C4.5

slide-23
SLIDE 23

Peter L. Reichertz Institute for Medical Informatics

Long-term activity monitoring - results

activity classification accuracy for data sets classifier 9s 21s 60s OneR 78.0% 71.9% 69.2% Naive Bayes 81.1% 80.5% 80.6% C4.5 94.7% 92.4% 90.0%

Marschollek et al., 2006

slide-24
SLIDE 24

Peter L. Reichertz Institute for Medical Informatics

class number of instances classification accuracy sleeping while supine 286,732 99.3% working at the computer 155,763 95.6% watching TV 73,958 95.0% working at a constr. site 10,872 95.0% dancing 1,176 94.9% walking 24,824 94.3% sleeping while sitting 303 93.7% party 2,564 92.7% driving a vehicle 624 90.4% watching movie at a cinema 1,581 90.3% lying down 25,420 90.1% teaching 4,732 89.0% packing and moving 1,544 88.4% class number of instances classification accuracy gardening 1,973 85.4% standing still 1,073 85.3% telephoning 2,212 84.6% eating 14,628 84.6% household cleaning 2,389 83.3% folding laundry 149 80.5% meeting 22,727 80.3% going to the bathroom 3,118 79.8% working at the office 8,998 79.6% sitting 7,666 75.5% waiting at traffic light 336 73.8% shopping 1,027 71.5% reading 2,535 69.1% traveling in a vehicle 1,546 64.0%

Activities

slide-25
SLIDE 25

Peter L. Reichertz Institute for Medical Informatics

Activity profiles of elderly persons

  • N=5, ∅ 67 years
  • Device: Sensewear Pro2
  • data: 69.808 minutes
  • 17 activities (with >100min.)
  • activity classification with pattern recognition

algorithm C4.5

  • evaluation:
  • 10x 10-fold cross-validation (intraindividual)
  • „leave-one-out“ cross-validation (interindividual)
slide-26
SLIDE 26

Peter L. Reichertz Institute for Medical Informatics

Activity profiles – results

person no. classification accuracy 1 93.1% 2 90.9% 3 78.6% 4 99.2% 5 95.4% mean 91.4%

intraindividual classification interindividual classification

person no. classification accuracy 1 32.8% 2 52.3% 3 27.8% 4 87.9% 5 67.8% mean 53.7%

SmarTel Best Paper Award

Marschollek et al., 2007

slide-27
SLIDE 27

Peter L. Reichertz Institute for Medical Informatics

Activities in detail

activity number of instances mean classification accuracy sleeping 16872 98.4% riding a bike 1265 95.6% watching TV 4199 89.3% physiotherapy 114 86.8% taking a walk 135 83.4% reading 1537 82.6% preparing meal 620 80.2% shopping 633 79.9% telephoning 413 76.5% eating 1421 76.3% plant care 553 74.3% personal hygiene 465 72.3% doing one’s laundry 130 70.6% sewing 237 65.4% ironing 174 60.1% writing 345 46.1% inhaling 196 37.8%

slide-28
SLIDE 28

Peter L. Reichertz Institute for Medical Informatics

Detecting falls

  • enabling fall alarms without

patient interaction

  • many lab experiments, very few studies,

reliability?

slide-29
SLIDE 29

Peter L. Reichertz Institute for Medical Informatics

Predicting falls

  • Can we measure individual fall risk automatically

by analyzing movement/gait patterns?

  • cohort study, N=50, duration: 1 year
  • aim: prediction of falls at home
  • results: ∼80% classification accuracy
  • „activity“ most important parameter
  • further studies necessary
slide-30
SLIDE 30

Peter L. Reichertz Institute for Medical Informatics

„Smart Homes“

  • heart rate
  • blood pressure
  • oxygen saturation
  • breath rate, peak flow
  • ECG
  • body temperature
  • serum glucose
  • weight, body fat/composition
  • NO
  • …

 activity profiles  gait parameters  sleeping pattern  …  home appliance usage:

  • shower, toilet
  • oven/ refridgerator
  • rooms
  • …
slide-31
SLIDE 31

Peter L. Reichertz Institute for Medical Informatics

Feedback and motivation – participation

slide-32
SLIDE 32

Peter L. Reichertz Institute for Medical Informatics

health-enabling technologies


and medical informatics

slide-33
SLIDE 33

Peter L. Reichertz Institute for Medical Informatics

HET and medical informatics

  • research, education and practise of medical

informatics has always changes and will need to change!

  • What are the consequences with respect to

HET?

slide-34
SLIDE 34

Peter L. Reichertz Institute for Medical Informatics

HET and medical informatics

  • first we need to ask if we want to haveHET as a

part of medical informatics

  • consequences
  • for research …
  • for education …
  • for health care practice …
slide-35
SLIDE 35

Peter L. Reichertz Institute for Medical Informatics

Information and communication technologies for promoting and sustaining quality of life, health and self-sufficiency in the second half of life

Lower Saxony Research Network Design of Environments for Aging

example for HET research: GAL

slide-36
SLIDE 36

Peter L. Reichertz Institute for Medical Informatics

example for HET research: GAL

  • GAL objective: quality of life in the ageing society
  • independence within one’s own residence
  • development of systems for assisting elderly

people, relatives and caregivers

  • GAL approach: interdisciplinary research
  • synergy of geriatrics, gerontology, economics,

informatics, engineering, medicine, nursing

  • development, evaluation and assessment of

exemplary assisting systems

slide-37
SLIDE 37

Peter L. Reichertz Institute for Medical Informatics

example for HET research: GAL GAL: project structure

slide-38
SLIDE 38

Peter L. Reichertz Institute for Medical Informatics

example for HET education:


  • ur HET course at TU Braunschweig

for M.Sc. students – lectures & exercises – 6 ECTS credits

  • 1. introduction: health care of the future
  • 2. disease patterns and parameters
  • 3. measurement engineering and sensor data
  • 4. representation of sensor data
  • 5. fusion and analysis of biomedical data
  • 6. application systems for continuous data
  • 7. sensor-enhanced health information systems
  • 8. examples
  • 9. perspectives: new ways of health care
slide-39
SLIDE 39

Peter L. Reichertz Institute for Medical Informatics

HET and health care practice: recall the double circle

Informatics for Health and Social

  • Care. 2008;

33, 77 - 89.

slide-40
SLIDE 40

Peter L. Reichertz Institute for Medical Informatics

Health-enabling technologies for pervasive health care: A pivotal field for future medical informatics research and education?

slide-41
SLIDE 41

Peter L. Reichertz Institute for Medical Informatics

Health-enabling technologies for pervasive health care: A pivotal field for future medical informatics research and education!

see you next year in Cape Town at MEDINFO 2010
