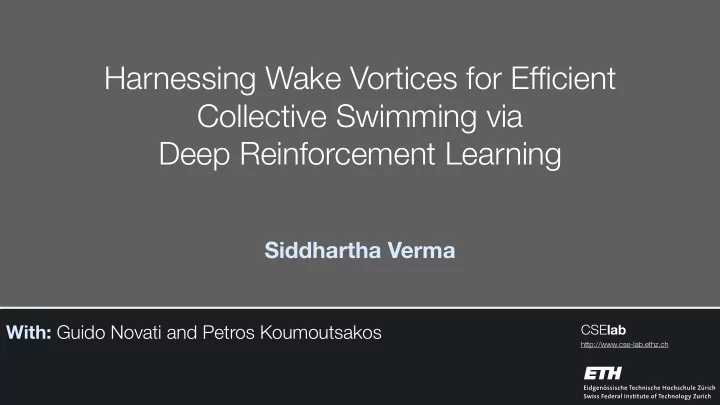

Harnessing Wake Vortices for Efficient Collective Swimming via
 Deep Reinforcement Learning

Siddhartha Verma

With: Guido Novati and Petros Koumoutsakos

Credit: Artbeats

• Theoretical work on Schooling & Formation Swimming


Breder (1965), Weihs (1973,1975), Shaw (1978)

• Experiments: Abrahams & Colgan (1985), Herskin & Steffensen (1998),

Svendsen (2003), Killen et al. (2011)

• Simulations: Pre-assigned, fixed formations


Hemelrijk et al. (2015), Daghooghi & Borazjani (2015), Maertens et al. (2017)

Breder (1965) Weihs (1973), Shaw (1978)

Collective Swimming

• Are Wake Vortices exploited by fish for propulsion?
• Hydrodynamic benefit of swimming in groups
• But schools evolve dynamically

• Autonomous decision making capability, based on learning from experience

THIS TALK: Adaptive Collective Swimming

• Goal: Maximize energy-efficiency

No positional or formation constraints

The Need for Control

• Without control, trailing fish may get ejected from leader’s wake
• Coordinated Swimming through unsteady flow field requires:
• Ability to observe the environment
• Decision to react appropriately
• The swimmers learn how to interact with

the environment

• HERE: Deep Reinforcement Learning - GOAL : Energy Extraction from Vortex Wake

Prior Work @CSE Lab: “Vanilla” Reinforcement learning - Goal: Follow the Leader (Novati et al., Bioinspir. Biomim. 2017)

Reinforcement Learning

• Credit assignment:
• Agent receives feedback
• An agent learning the best action, through trial-

and-error interaction with environment

• Actions have consequences
• Reward (feedback) is delayed
• Goal
• Maximize cumulative future reward:
• Specify what to do, not how to do it

Qπ(st, at) = E ⇥ rt+1 + γrt+2 + γ2rt+3 + . . . | ak = π(sk) ∀k > t ⇤ = E [rt+1 + γQπ(st+1, π(st+1)] Qπ(st, at) = Bellman (1957)

• Q-learning
• POLICY for taking the best

ACTION in a given STATE

• Expected reward updated in previously

visited states

Credit: https:// www.cs.utexas.edu/ ~eladlieb/RLRG.html

Deep Reinforcement Learning

• V. Mnih et al. "Human-level control through deep reinforcement learning." Nature (2015)

at each iteration:

• agent is in a state s
• select action a:
• greedy: based on max Q(s,a,w)
• explore: random
• bserve new state s’ and reward r
• store in memory tuple { s, a, s’, r }

Acting

• Stable algorithm for training NN surrogates of Q
• Sample past transitions: experience replay
• Break correlations in data
• Learn from all past policies
• "Frozen" target Q-network to avoid oscillations

at each iteration

• sample tuple { s, a, s’, r } (or batch)
• update wrt target with old weights:
• Periodically update fixed weights

Learning ∂ ∂w ⇣ r + γ max

a0 Q(s0, a0, w) − Q(s, a, w)

⌘2 w− ← w

Actions, States, Reward

• Orientation relative to leader: Δx, Δy, θ

States:

Δx Δy θ

• Current shape of the body (manoeuvre)
• Time since previous tail beat: Δt

Actions:

• Decrease curvature
• Increase curvature

Turn and modulate velocity by controlling body deformation

Reward: based on swimming efficiency

After training: Efficiency-maximizing ‘Follower’

• Smart-follower stays in-line with leader
• Compared to solitary swimmer with

identical muscle movements

• Presence/absence of wake is the only difference

Leader Smart Follower

• Decides on its own the best strategy
• Free to swim outside wake’s influence
• Energetics: smart-follower exploits wake
• Head synchronised with lateral flow-velocity

η Speed CoT PDef Smart 1.32 1.11 0.64 0.71 Solo 1 1 1 1

• How does smart follower’s behaviour

evolve during training?

First 10,000 transitions Last 10,000 transitions

• Why the peaks in distribution?

After training: Efficiency-maximizing ‘Follower’

Leader Smart Follower

• Smart-follower stays in-line with leader
• Decides on its own the best strategy
• Free to swim outside wake’s influence
• Energetics: smart-follower exploits wake
• Head synchronised with lateral flow-velocity

Sequence of events

11

• Snapshot when η is maximum
• Lifted vortex generates secondary

vortex (S1)

• Secondary vortex - high speed region

=> suction due to low pressure

• Flow-induced force + body deformation

determine Pdef (muscle use)

• Low Pdef values preferable

W1 L1 S1

• Wake-vortex (W1) lifts-up the boundary

layer on the swimmer’s body (L1)

Implementing the Learned Strategy in 3D

• Target coordinates - maxima in velocity correlation:

12

• PID controller:
• Modulate follower’s undulations (curvature + amplitude)
• Maintain the target position specified

13

LR

3D Wake Interactions

• Wake-interactions benefit the follower
• 11.6% increase in efficiency - 5.3% reduction in CoT

14

0.4 0.6 0.8 1 17.5 18 18.5 19 19.5 η t

• Oncoming wake-vortex ring intercepted
• Generates a new ‘lifted-vortex’ ring (LR)
• Similar to the 2D case

LR

Follower Leader

15

11% increase in efficiency for each follower

Summary

• Autonomous swimmer learns to exploit unsteady fluctuations in the velocity field
• Decides to interact with the wake, even when free to swim clear
• Large energetic savings, without loss in speed (Improvements: 30% and 11%)

16

Swimming via Reinforcement Learning : An effective and robust method for harnessing energy from unsteady flow NEXT: Energy Efficient Swarms of Drones ?

Backup

Reacting to an erratic leader

Two fish swimming together in Greece Two fish swimming together in the Swiss supercomputer

Note: Reward allotted here has no connection to relative displacement

Robustness: Responds Effectively to Perturbations

• Agent never experienced deviations in the leader’s behaviour during training

19

• But analogous situations encountered during training (random actions during learning)
• Agent reacts appropriately to maximise cumulative reward

Numerical methods

• 2D: Wavelet-based adaptive grid
• Cost-effective compared to uniform grids

Rossinelli et al., J. Comput. Phys. (2015) Angot et al., Numerische Mathematik (1999)

• Brinkman penalization
• Accounts for fluid-solid interaction
• Remeshed vortex methods (2D)
• Solve vorticity form of incompressible Navier-Stokes

∂ω ∂t + u · rω = ω · ru + νr2ω + λr ⇥ (χ (us u))

Diffusion Advection Penalization 0 in 2D

• 3D: Finite Difference - pressure projection

(Chorin 1968)

Rossinelli et al., SC'13 Proc. Int. Conf. High Perf. Comput., Denver, Colorado

Goal #1: learn to stay behind the leader

R>0 R<0

Reward: vertical displacement

R∆y = 1 − |∆y| 0.5L

• Failure condition
• Stray too far or collide with leader

Rend = −1

Goal #2: learn to maximise swimming-efficiency

Reward: efficiency

Rη = Pthrust Pthrust + max(Pdef, 0)

Thrust power

Deformation power

Rη = T |uCM| T |uCM| + max( R

∂Ω F(x) · udef(x) dx, 0)

Reinforcement Learning: Reward

Reinforcement Learning: Basic idea

A

• Credit assignment:
• Agent receives

feedback

• 1

A A

• 2 -1
• 2
• 3
• 4
• 5
• 6
• 7
• 7
• 8
• 9
• 10
• 12
• 11
• 11
• 12
• 13
• 14 -15

A

Example: Maze solving State Agent’s position (A) Actions go U, D, L, R Reward

• 1 per step taken

0 at terminal state

• An agent learning the best action, through trial-

and-error interaction with environment

• Actions have long term consequences
• Reward (feedback) is delayed
• Goal
• Maximize cumulative future reward:
• Specify what to do, not how to do it

Qπ(st, at) = E ⇥ rt+1 + γrt+2 + γ2rt+3 + . . . | ak = π(sk) ∀k > t ⇤ = E [rt+1 + γQπ(st+1, π(st+1)] Qπ(st, at) = Bellman (1957)

• Now we have a policy
• Expected reward

updated in previously visited states

Credit: https:// www.cs.utexas.edu/ ~eladlieb/RLRG.html

Recurrent Neural Network

LSTM Layer 2 LSTM Layer 1 LSTM Layer 3

• n

(a3)

qn

(a1)

qn

(a2)

qn

(a4)

qn

(a5)

qn

A flexible maneuvering model

• Modified midline kinematics preserves travelling wave:
• Each action prescribes a point of the spline:

Traveling wave Traveling spline c

{

c

{

Decrease Curvature

c c+¼ c+½ c+¾ c+1

Increase Curvature

c c+¼ c+½ c+¾ c+1

Examples

Reducing local curvature Increasing local curvature Chain of actions Effect of action depends on when action is made

Simulation Cost (2D)

26

• Production runs (Re=5000)
• Domain : [0,1] x [0,1]
• Resolution : 8192 x 8192
• 1600 points along fish midline
• Running with 24 threads (12 hyper

threaded cores - Piz Daint)

• 10 tail-beat cycles : 27000 time steps
• Approx. 96 core hours: 1 second/step
• Wavelet-based adaptive grid
• https://github.com/cselab/MRAG-I2D

Rossinelli et al., JCP (2015)

• Training simulations (lower resolution)
• Resolution : 2048 x 2048
• 10 tail-beat cycles : 36 core hours
• Learning converges in : 150,000 tail-beats
• 0.54 Million core hrs per learning episode

Simulation Cost (3D)

27

• Production runs (Re=5000)
• Domain : [0, 1] x [0, 0.5] x [0, 0.25]
• Resolution : 6144 x 3072 x 768
• 600 points along fish midline
• Running on 128 nodes, 24 threads each

(Hybrid MPI + OpenMP : Piz Daint)

• 10 tail-beat cycles : 21000 time steps
• Approx. 37,000 core hours:


3 seconds/timestep

• Uniform grid Finite Volume solver
• Rossinelli et al., SC'13 Proc. Int. Conf. High
• Perf. Comput., Denver, Colorado
• Training simulations (lower resolution)
• Resolution : 2048 x 1024 x 512
• Expected : 1.2 Million core hours per
