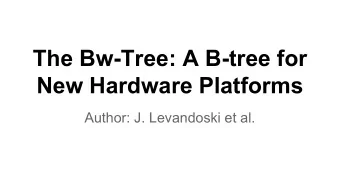

The BW-Tree: A B-tree for New Hardware Platforms

Presented by: Sidharth Raj

An Alternate Title

“The BW-Tree: A Latch-free, Log- structured B-tree for Multi-core Machines with Large Main Memories and Flash Storage” BW = “Buzz Word”

Bw-Tree Architecture

B-Tree

Layer

Cache

Layer

Flash

Layer

• API
• B-tree search/update logic
• In-memory pages only
• Logical page abstraction for

B-tree layer

• Brings pages from flash to

RAM as necessary

• Sequential writes to log-

structured storage

• Flash garbage collection

Focus of this talk

• 1. “Uni-core speed will at best increase modestly, thus we need to get better at

exploiting a large number of cores by addressing at least two important aspects:….” What are the aspects that have to be addressed with multi-cores? Why are the aspects not discussed in the KV stores we’ve studied so far?

• The two aspects discussed in the paper are:
• Multi-core CPUs mandate high concurrency.
• Good multi-core processor performance depends on high cache hit ratios.

• 6. Read Section II.C “Delta Updating”, and explain how a tree node is updated.
• Creation of delta record and prepending it to the existing page state.
• Installation of new memory address using CAS.
• If successful, delta record address become new physical address.
• Same technique used for both data changes (insert a record) and management changes (flushing

a page to storage).

Delta Updates

Page P

PID Physi sical Address ss

P

Mapping Table

Δ: Insert record 50

• Each update to a page produces a new address (the delta)
• Delta physically points to existing “root” of the page
• Install delta address in physical address slot of mapping

table using compare and swap

Δ: Delete te reco cord 48

• 2. “Having the new node state at a new storage location permits us to use the atomic

compare and swap instructions to update state.” Study the CAS instruction and explain how it enables latch-free (lock-free) memory access?

• In BW-tree design, thread almost never block.
• Instead of Latches, BW-tree uses state change using Compare and Swap (CAS) instruction.
• The node update is performed using delta update.
• When new address is installed using CAS instruction, CAS compares the current address P to the

current address in the mapping table – if they match, the instruction over-writes the delta record

• n the current address.
• All pointer are via PID, CAS operation on the mapping table is the ONLY physical pointer change.

Compare and Swap

• Atomic instruction that compares contents of a memory

location M to a given value V

• If values are equal, installs new given value V’ in M
• Otherwise operation fails

M

Compa mpareAn AndSwa dSwap(& (&M, M, 20, 30)

Address Compare Value New Value

Compar mpareAndSwap AndSwap(&M (&M, 20, 40)

20 20 30 30

X

• 3. “Further, the Bw-tree performs node updates via ”delta updates” (attaching the

update to an existing page), not via update-in-place (updating the existing page memory).” What does the delta actually refer to?

• Update-in-place:
• Read the page
• Process the change
• Write back
• Bw-tree uses delta update, prepending update to the existing page and installing it using CAS.
• Delta – describing the change.
• Avoiding update-in-place reduces CPU cache invalidation resulting in higher cache hit ratio.

• 5. “The mapping table severs the connection between physical location and inter-

node links.” Explain the benefit of introducing the indirection (the mapping table).

• Cache layer maintains Mapping table – maps logical pages to physical pages.
• Logical pages identified as ”Page Identifier” PID
• Mapping table translates PID into either:
• Flash Offset
• Memory Pointer
• Enabling physical location of the Bw-tree change without requiring location change to proporgate

to the root of the tree.

• 4. “We use PIDs in the Bw-tree to link the nodes of the tree. For instance, all

downward “search” pointers between Bw-tree nodes are PIDs, not physical pointers.” Explain how the tree is stored on the disk or/and in the memory.

• PIDs bridge the gap between logical pages and physical pages.
• Mapping table translates the PID as required.
• Bw-tree nodes are logical – do not occupy fixed physical location.
• All pointers between nodes are via PIDs.
• PIDs denote the node of the tree.
