Hardening PGP using GnuPG and Yubikey hybrid multifactor authentication and cryptography John Roman Linux System Administrator RAND Corporation SCALE 2017 Roman, John PGP PGP 101 public/private keyrings Roman, John PGP PGP 101

slide-1
SLIDE 1

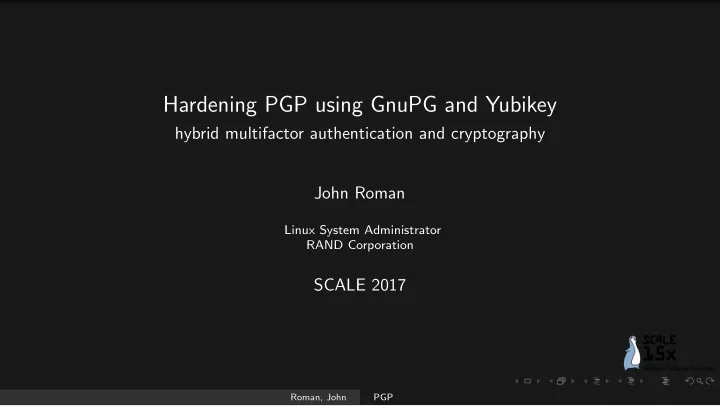

Hardening PGP using GnuPG and Yubikey

hybrid multifactor authentication and cryptography John Roman

Linux System Administrator RAND Corporation

SCALE 2017

Roman, John PGP

slide-2
SLIDE 2

PGP 101

public/private keyrings

Roman, John PGP

slide-3
SLIDE 3

PGP 101

public/private keyrings public keys go to the world, generated on machine

Roman, John PGP

slide-4
SLIDE 4

PGP 101

public/private keyrings public keys go to the world, generated on machine key types: signing, authentication, cryptography

Roman, John PGP

slide-5
SLIDE 5

pitfalls

private keyring. . . but how private?

Roman, John PGP

slide-6
SLIDE 6

pitfalls

private keyring. . . but how private? portability

Roman, John PGP

slide-7
SLIDE 7

pitfalls

private keyring. . . but how private? portability standards compliance

Roman, John PGP

slide-8
SLIDE 8

conventional example, the CAC/PIV

Common Access Card, in service since 2005

Roman, John PGP

slide-9
SLIDE 9

conventional example, the CAC/PIV

Common Access Card, in service since 2005 FIPS201 PIV Federal Information Processing Standard (FIPS) 201,Personal Identity Verification

Roman, John PGP

slide-10
SLIDE 10

OpenPGP: we we’re JUST thinking that!

OpenPGP Card: in service since 2004

Roman, John PGP

slide-11
SLIDE 11

OpenPGP: we we’re JUST thinking that!

OpenPGP Card: in service since 2004 9 different vendors, multiple form factors

Roman, John PGP

slide-12
SLIDE 12

OpenPGP: we we’re JUST thinking that!

OpenPGP Card: in service since 2004 9 different vendors, multiple form factors relatively unknown outside of FSF Europe.

Roman, John PGP

slide-13
SLIDE 13

Our focus: Yubikey

supports hybrid mode

Roman, John PGP

slide-14
SLIDE 14

Our focus: Yubikey

supports hybrid mode hermetic, crushproof, scaleable pricing

Roman, John PGP

slide-15
SLIDE 15

Our focus: Yubikey

supports hybrid mode hermetic, crushproof, scaleable pricing NFC option.

Roman, John PGP

slide-16
SLIDE 16

general concepts

card has a CPU, firmware.

Roman, John PGP

slide-17
SLIDE 17

general concepts

card has a CPU, firmware. keys are loaded into slots, or generated by the card

Roman, John PGP

slide-18
SLIDE 18

general concepts

card has a CPU, firmware. keys are loaded into slots, or generated by the card encryption, decryption, signature are all commands

Roman, John PGP

slide-19
SLIDE 19

general concepts

card has a CPU, firmware. keys are loaded into slots, or generated by the card encryption, decryption, signature are all commands

  • nce loaded, private keys are sacrosanct.

Roman, John PGP

slide-20
SLIDE 20

general concepts

card has a CPU, firmware. keys are loaded into slots, or generated by the card encryption, decryption, signature are all commands

  • nce loaded, private keys are sacrosanct.

Yubikey only accepts commands, only returns data. NEVER KEYS.

Roman, John PGP

slide-21
SLIDE 21

HSM Specific concepts

pin number similar to european credit cards

Roman, John PGP

slide-22
SLIDE 22

HSM Specific concepts

pin number similar to european credit cards 3 strikes, your pin is locked

Roman, John PGP

slide-23
SLIDE 23

HSM Specific concepts

pin number similar to european credit cards 3 strikes, your pin is locked pin can be unlocked with a security officer pin.

Roman, John PGP

slide-24
SLIDE 24

HSM Specific concepts

pin number similar to european credit cards 3 strikes, your pin is locked pin can be unlocked with a security officer pin. 3 strikes against the SO pin? card is bricked. keys lost. game over.

Roman, John PGP

slide-25
SLIDE 25

HSM Specific concepts

pin number similar to european credit cards 3 strikes, your pin is locked pin can be unlocked with a security officer pin. 3 strikes against the SO pin? card is bricked. keys lost. game over. pin length 6-8 characters, some implementations more than 128 char.

Roman, John PGP

slide-26
SLIDE 26

placing the card into ’hybrid’ mode

ykpersonalize -d -m82 Firmware version 4.3.1 Touch level 527 Program sequence 3 The USB mode will be set to: 0x82 Commit? (y/n) [n]: n

Roman, John PGP

slide-27
SLIDE 27

OpenPGP card overview

keys were loaded from an airgapped system using the keytocard command.

Roman, John PGP

slide-28
SLIDE 28

OpenPGP card programming

gpg –card-edit mode, admin commands enabled

Roman, John PGP

slide-29
SLIDE 29

applications

anything GPG enabled

Roman, John PGP

slide-30
SLIDE 30

applications

anything GPG enabled anything PAM enabled

Roman, John PGP

slide-31
SLIDE 31

applications

anything GPG enabled anything PAM enabled defense in depth: OTP/Cert/PW? sure

Roman, John PGP

slide-32
SLIDE 32

applications

anything GPG enabled anything PAM enabled defense in depth: OTP/Cert/PW? sure multiple cards per key, each has a unique subkey (code signing!)

Roman, John PGP

slide-33
SLIDE 33

applications

Roman, John PGP

slide-34
SLIDE 34

NFC option: here be dragons

easy integration with Openkeychain in Android/IPhone

Roman, John PGP

slide-35
SLIDE 35

NFC option: here be dragons

easy integration with Openkeychain in Android/IPhone keys need to be generated by the user

Roman, John PGP

slide-36
SLIDE 36

NFC option: here be dragons

easy integration with Openkeychain in Android/IPhone keys need to be generated by the user

  • nly supports a 2048 bit key

Roman, John PGP

slide-37
SLIDE 37

deploying 450 (thousand?) of these things.

Roman, John PGP

slide-38
SLIDE 38

Entropy.

GPG relies on kernel, not userland entropy.

  • Flying Stone FST01 from the FSF store!
  • RTL digital TV dongle and a tractor paper copy of phrack

Roman, John PGP

slide-39
SLIDE 39

OpenPGP not included...

Red Hat Enterprise Linux 7 does not include opensc GnuPG

Roman, John PGP

slide-40
SLIDE 40

y tho...

NFC user fatigue. not all NFC devices are “great” at picking up NFC lack of a yubikey might cause lack of communication.

Roman, John PGP

slide-41
SLIDE 41

“destroyed” cards...

– try not to trigger a SO/Reset pin lock!! – to reissue or reset?

Roman, John PGP

slide-42
SLIDE 42

cardware considerations

processing rate is a function of USB IO and CPU. generating keys on the card = Entropy+CPU.

Roman, John PGP

slide-43
SLIDE 43

Questions?

Roman, John PGP
