hands on intro to developing vision and lidar classifier
play

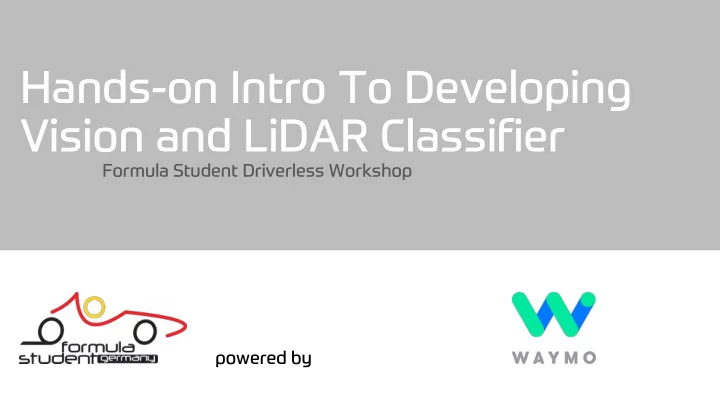

Hands-on Intro To Developing Vision and LiDAR Classifier Formula - PowerPoint PPT Presentation

Feb 15, 2023 •248 likes •869 views

Hands-on Intro To Developing Vision and LiDAR Classifier Formula Student Driverless Workshop powered by Introduction Sibo Zhu Zhijian Liu Haotian Tang Perception Lead at Perception Lead at Perception Lead at MIT Driverless

  1. Hands-on Intro To Developing Vision and LiDAR Classifier Formula Student Driverless Workshop powered by

  2. Introduction Sibo Zhu Zhijian Liu Haotian Tang ▪ Perception Lead at ▪ Perception Lead at ▪ Perception Lead at MIT Driverless MIT Driverless MIT Driverless ▪ Research Assistant at ▪ PhD student at MIT ▪ PhD student at MIT MIT HAN Lab HAN Lab HAN Lab https://fsg.one/academy Author: Sibo Zhu, Zhijian Liu, Haotian Tang 30.08.2020 2

  3. Introduction https://fsg.one/academy Author: Sibo Zhu, Zhijian Liu, Haotian Tang 30.08.2020 3

  4. Vision Perception Task Wide Angle Wide Angle VIO VIO Camera Camera Camera Camera Stereovision Pair Stereovision Pair https://fsg.one/academy Author: Sibo Zhu, Zhijian Liu, Haotian Tang 30.08.2020 4

  5. System Requirement ▪ Latency ▪ Maximum view-to-actuation time for emergency stop from top speed during an acceleration run ▪ Mapping Accuracy ▪ Driven by downstream mapper ▪ Horizontal Field-of-View (FOV) ▪ perceive landmarks on the inside apex of a hairpin turn ▪ Look-ahead Distance ▪ depends on the full-stack-latency and vehicle deceleration rate https://fsg.one/academy Author: Sibo Zhu, Zhijian Liu, Haotian Tang 30.08.2020 5

  6. Depth Estimation Step2 Step3 ` ` ` Mono Step 1 ` ` ` Ankit. et al. IV’19 Keypoints Detection Perspective-n-Point (PnP) Step2 Stereo Object Detection + Stereo Matching Algorithm Al https://fsg.one/academy Author: Sibo Zhu, Zhijian Liu, Haotian Tang 30.08.2020 6

  7. Hands-on Tutorial To Train Your Own Cone Detection Network colab.research.google.com https://fsg.one/academy Author: Sibo Zhu, Zhijian Liu, Haotian Tang 30.08.2020 30.08.2020 7

  8. Colab Tutorial ： colab.research.google.com https://fsg.one/academy Author: Sibo Zhu, Zhijian Liu, Haotian Tang 30.08.2020 8

  9. Software Design - Keypoints Detection ▪ Detects seven keypoints on each YOLOv3 detection ▪ A residual NN that leverages the geometric relationship between keypoints ▪ Seven detected key points will be then used in a Perspective-n-Point (PnP) to get depth https://fsg.one/academy Author: Sibo Zhu, Zhijian Liu, Haotian Tang 30.08.2020 30.08.2020 9

  10. Hands-on Tutorial To Train Your Own Keypoints Detection Network colab.research.google.com https://fsg.one/academy Author: Sibo Zhu, Zhijian Liu, Haotian Tang 30.08.2020 30.08.2020 10

  11. Colab Tutorial ： colab.research.google.com https://fsg.one/academy Author: Sibo Zhu, Zhijian Liu, Haotian Tang 30.08.2020 11

  12. Validation - Accuracy https://fsg.one/academy Author: Sibo Zhu, Zhijian Liu, Haotian Tang 30.08.2020 30.08.2020 12

  13. Validation - Latency Open Sourced here: github.com/cv-core https://fsg.one/academy Author: Sibo Zhu, Zhijian Liu, Haotian Tang 30.08.2020 30.08.2020 13

  14. Beyond This Computer Vision Tutorial… ▪ Change the object detection backbone from YOLOv3 to YOLOv4/ EfficientNet/etc ▪ Adding temporal information for more stable and accurate detection ▪ Temporal Shift Module: hanlab.mit.edu/projects/tsm/ ▪ Inference with TensorRT in C++ ▪ Open sourced here: github.com/cv-core ▪ Prune the full YOLO architecture for cone detection task ▪ Quantization (int8) for even faster inference https://fsg.one/academy Author: Sibo Zhu, Zhijian Liu, Haotian Tang 30.08.2020 30.08.2020 14

  15. LiDAR Perception https://fsg.one/academy Author: Sibo Zhu, Zhijian Liu, Haotian Tang 30.08.2020 30.08.2020 15

  16. Thank you for your attention https://fsg.one/academy Author: Sibo Zhu, Zhijian Liu, Haotian Tang 30.08.2020 16

  17. Hands-on Intro to Developing Vision and LiDAR Classifiers Formula Student Driverless Workshop powered by

  18. Speaker Introduction Sibo Zhu Zhijian Liu Haotian Tang ▪ RA at MIT HAN Lab ▪ PhD student at MIT ▪ PhD student at MIT ▪ Perception Lead at ▪ Perception Lead at ▪ Perception Lead at MIT Driverless MIT Driverless MIT Driverless https://fsg.one/academy Author: Sibo Zhu, Zhijian Liu, Haotian Tang 30.08.2020

  19. LiDAR Perception Song Han Feb 22, 2018 3D LiDAR Sensor 3D Point Cloud 500k+ points: (x, y, z, intensity) https://fsg.one/academy Author: Sibo Zhu, Zhijian Liu, Haotian Tang 30.08.2020

  20. LiDAR Perception Task Velodyne 32C LiDAR https://fsg.one/academy Author: Sibo Zhu, Zhijian Liu, Haotian Tang 30.08.2020

  21. Autonomous Racing Vehicle: Objectives Low Latency High Accuracy (Drive Faster) (Prevent Collisions) https://fsg.one/academy Author: Sibo Zhu, Zhijian Liu, Haotian Tang 30.08.2020

  22. Autonomous Racing Vehicle: Challenges Self-Driving Cars A whole trunk of computers! We need more efficient algorithms that do not consume intensive computations. https://fsg.one/academy Author: Sibo Zhu, Zhijian Liu, Haotian Tang 30.08.2020

  23. Autonomous Racing Vehicle: Challenges Fewer Laser Fewer Longer Distance Rings on Objects Laser Points Too many Laser Too many Shorter Distance Rings on Objects Laser Points https://fsg.one/academy Author: Sibo Zhu, Zhijian Liu, Haotian Tang 30.08.2020

  24. Efficient LiDAR Perception: Bottleneck Bandwidth (GB/s) Sequential Memory Access 668 8 20x slower 167 30 Random Memory Access 8 Mult and Add SRAM MemoryDRAM Memory Off-chip DRAM access is much Random memory access is more expensive than inefficient due to the potential arithmetic operation! bank conflicts! https://fsg.one/academy Author: Sibo Zhu, Zhijian Liu, Haotian Tang 30.08.2020

  25. Voxel-Based Models: Cubically-Growing Memory 8 0 128 x 128 x 128 resolution 83 GB (Titan XP x 7 ) GPU Memory (GB) 7% information loss 6 0 4 64 x 64 x 64 resolution 0 11 GB (Titan XP x 1 ) 42% information loss 2 0 3D ShapeNets [CVPR’15] 0 VoxNet [IROS’15] 20 40 60 80 100 120 3D U-Net [MICCAI’16] Voxel Resolution https://fsg.one/academy Author: Sibo Zhu, Zhijian Liu, Haotian Tang 30.08.2020

  26. Point-Based Models: Sparsity Overheads DGCNN PointCNN SpiderCNN Ours 95,1 57,4 51,8 51,5 45,3 36,3 27,0 Runtime (%) 15,6 12,2 PointNet [CVPR’17] 4,9 2,9 0,0 PointCNN [NeurIPS’18] Irregular Access Dynamic Kernel Actual Computation DGCNN [SIGGRAPH’19] https://fsg.one/academy Author: Sibo Zhu, Zhijian Liu, Haotian Tang 30.08.2020

  27. Point-Voxel Convolution (PVConv) Voxelize Convolve Devoxelize Fuse Normalize Multi-Layer Perceptron https://fsg.one/academy Author: Sibo Zhu, Zhijian Liu, Haotian Tang 30.08.2020

  28. Point-Voxel Convolution (PVConv) Multi-Layer Perceptron Point-Based Feature Transformation (Fine-Grained) https://fsg.one/academy Author: Sibo Zhu, Zhijian Liu, Haotian Tang 30.08.2020

  29. Point-Voxel Convolution (PVConv) Voxel-Based Feature Aggregation (Coarse-Grained) Voxelize Convolve Devoxelize https://fsg.one/academy Author: Sibo Zhu, Zhijian Liu, Haotian Tang 30.08.2020

  30. Point-Voxel Convolution (PVConv) Voxel-Based Feature Aggregation (Coarse-Grained) Voxelize Convolve Devoxelize Fuse Normalize Multi-Layer Perceptron Point-Based Feature Transformation (Fine-Grained) https://fsg.one/academy Author: Sibo Zhu, Zhijian Liu, Haotian Tang 30.08.2020

  31. Low Resolution with Constrained Memory Original Scene Downsampled Scene https://fsg.one/academy Author: Sibo Zhu, Zhijian Liu, Haotian Tang 30.08.2020

  32. Sparse Point-Voxel Convolution (SPVConv) Sparse Voxelize Devoxelize Convolution ×N Sparse Convolution Branch Fuse Multi-Layer Perceptron Point Branch https://fsg.one/academy Author: Sibo Zhu, Zhijian Liu, Haotian Tang 30.08.2020

  33. Sparse Point-Voxel Convolution (SPVConv) Sparse Voxelize Devoxelize Convolution ×N Sparse Convolution Branch Fuse Multi-Layer Perceptron Point Branch https://fsg.one/academy Author: Sibo Zhu, Zhijian Liu, Haotian Tang 30.08.2020

  34. Designing Efficient 3D Modules (SPVConv) trunk traffic sign trunk person cyclist person https://fsg.one/academy Author: Sibo Zhu, Zhijian Liu, Haotian Tang 30.08.2020

  35. Searching Efficient 3D Architectures (3D-NAS) Dynamic ResBlock Dynamic ResBlock Elastic Trans. Channel Elastic Res. Channel Elastic Res. Channel … Elastic Mid. Channel Elastic Mid. Channel Elastic Res. Channel Elastic Res. Channel Sparse Voxelize Devoxelize Convolution ×N Sparse Convolution Branch Fuse Multi-Layer Perceptron Point Branch https://fsg.one/academy Author: Sibo Zhu, Zhijian Liu, Haotian Tang 30.08.2020

  36. Searching Efficient 3D Architectures (3D-NAS) Dynamic ResBlock Dynamic ResBlock Elastic Trans. Channel Elastic Res. Channel Elastic Res. Channel … Elastic Mid. Channel Elastic Mid. Channel Elastic Res. Channel Elastic Res. Channel Sparse Voxelize Devoxelize Convolution ×N Sparse Convolution Branch Fuse Multi-Layer Perceptron Point Branch https://fsg.one/academy Author: Sibo Zhu, Zhijian Liu, Haotian Tang 30.08.2020

  37. Searching Efficient 3D Architectures (3D-NAS) Dynamic ResBlock Dynamic ResBlock Elastic Trans. Channel Elastic Res. Channel Elastic Res. Channel … Elastic Mid. Channel Elastic Mid. Channel Elastic Res. Channel Elastic Res. Channel Sparse Voxelize Devoxelize Convolution ×N Sparse Convolution Branch Fuse Multi-Layer Perceptron Point Branch https://fsg.one/academy Author: Sibo Zhu, Zhijian Liu, Haotian Tang 30.08.2020
