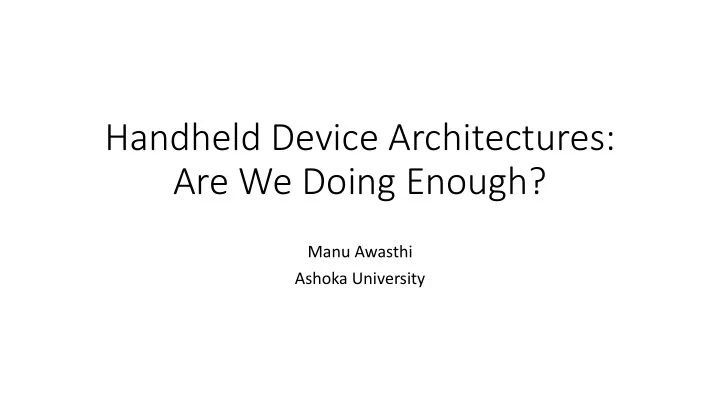

Handheld Device Architectures: Are We Doing Enough?
Manu Awasthi Ashoka University
Handheld Device Architectures: Are We Doing Enough? Manu Awasthi - - PowerPoint PPT Presentation
Handheld Device Architectures: Are We Doing Enough? Manu Awasthi - - PowerPoint PPT Presentation
Handheld Device Architectures: Are We Doing Enough? Manu Awasthi Ashoka University Handheld Devices Android Versions https://www.counterpointresearch.com/can-android-o- de-fragment-android/ Memory Usage
SLIDE 2
SLIDE 3
Android Versions
https://www.counterpointresearch.com/can-android-o- de-fragment-android/
SLIDE 4
Memory Usage
https://eitik.com/17-android-browser-tested-for-memory-usage-in-2018/
SLIDE 5
A Few Trends
5
SLIDE 6
Mobile Architecture Research
- Mobile computing research: 1% of research papers published each
focus on mobile computing.
- Lack of tools
- V. J. Reddi, H. Yoon, and A. Knies, “Two billion devices and counting,” IEEE Micro, vol. 38, no. 1, pp. 6–21, January/February 2018.
SLIDE 7
What is needed?
- Tool and Simulators
- Benchmarks
BBench (Michigan) AsimBench (ICT, China)
SLIDE 8
Current Status
SLIDE 9
Android Emulator
Android Open Source Project (AOSP)
Android Virtual Device (AVD)
Android Emulator
Device Behavior
How do we leverage the existing ecosystem to study memory behavior of Android apps?
SLIDE 10
META: Tool Design
MobiCom 2018
SLIDE 11
Tracer Module - Modifications in QEMU
Modified Translation Path
SLIDE 12
Raw Traces
SLIDE 13
META: Tool Design : Cache Module
SLIDE 14
Cache Simulation Module
L1 and L2 Cache hit rates available after running a calculator on a range of android versions from Android 4 (Kitkat) to Android 7 (Nougat).
SLIDE 15
META: Tool Design: Memory Module
SLIDE 16
NVMain Integration
- NVMain : cycle-level main memory
simulator
- Can simulate DRAM, emerging non-
volatile memories at the architectural level.
○
Phase change memory, STT-RAM
SLIDE 17
Potential Use-cases
- Trace Generation
○
The traces can also be used to analyze instruction distribution profile.
○
Creation of synthetic inputs to models based on real instruction profiles
- Cache Hierarchy Modeling
○
A custom, N-level cache hierarchy
- DRAM, Non-volatile, Hybrid Memory Simulation
○
NVMain can model most technologies
SLIDE 18
Trends in Handheld Devices
18
https://thehackernews.com/2015/09/6gb-ram-smartphone.html
http://www.es.ele.tue.nl/~kgoossens/Chandrasekar14PHD.pdf https://www.pwc.com/gx/en/technology/mobile-innovation/assets/pwc-dram-memory.pdf
SLIDE 19
Handhelds and Smartphones
19 Hexagon DSP: An Architecture Optimized for Mobile Multimedia and Communications, IEEE Micro, Vol 34, 2014
SLIDE 20
Main Memory in Handhelds
20 20
MC Core 1 Core 2 Core 3 Core 4 Fabric Fabric GPU Camera Display
Audio
Sensors Modem
DRAM DRAM
SLIDE 21
Handheld Applications
21
If frequently accessed data can be concentrated to the fastest regions of a hybrid memory hierarchy, memory system’s energy consumption can be reduced significantly, without any significant loss in performance and user experience.
SLIDE 22
Hybrid Memory Architectures for Handhelds
Total Physical Address Space 0 GB 4 GB Sub Address Space Sub Address Space Sub Address Space
DRAM Mem Tech 2 NVM
SLIDE 23
Hybrid Main Memory in Handhelds
23 23
MC Core 1 Core 2 Core 3 Core 4 Fabric Fabric GPU Camera Display
Audio
Sensors Modem
DRAM NVM
MC
DATE 2018
SLIDE 24
Hybrid Main Memory in Handhelds
24
MC
Core 1 Core 2 Core 3 Core 4 Fabric Fabric GPU Camera Display
Audio
Sensors Modem
DR AM
N V M
MC MC MC
N V M
DR AM
DATE 2018
SLIDE 25
Results
25
SLIDE 26
Results – 4 Controllers
26
SLIDE 27
Key Takeways
- Research into handheld devices architectures is important, more so in
the era of wearables
- Memory sub-system is becoming increasingly important, even in handheld
- Need tools, benchmarks to carry research forward
- META – one step in that direction
- NVMs will eventually be integrated into memory hierarchy
- Mechanisms to provide access to high capacity, low latency memories might
require intelligent data management
- H/W – S/W co-design is better than one or the other.
27
