GW170817: gravitational waves from the merger of two neutron stars Photo credit: Mike Fyffe NSF/LIGO/Sonoma State University/A. Simonnet Dr. Jess McIver for the LIGO-Virgo Collaboration Caltech/JPL Association for Gravitational-Wave Research

slide-1

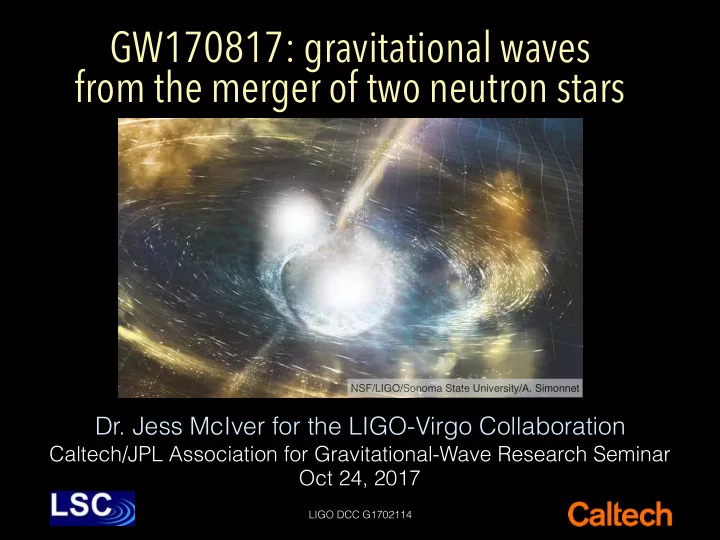

SLIDE 1

Photo credit: Mike Fyffe

GW170817: gravitational waves

LIGO DCC G1702114

  • Dr. Jess McIver for the LIGO-Virgo Collaboration

Caltech/JPL Association for Gravitational-Wave Research Seminar Oct 24, 2017

from the merger of two neutron stars

NSF/LIGO/Sonoma State University/A. Simonnet

slide-2
SLIDE 2

2

NASA

Gravitational waves

Ripples in the fabric of spacetime

generated by the acceleration of matter

slide-3
SLIDE 3

3

Indirect evidence of gravitational waves

LIGO/Caltech

Weisburg, Nice & Taylor, 2010

Hulse-Taylor Binary Pulsar PSR B1913+16

GR prediction

slide-4
SLIDE 4

4

Gravitational wave propagation

Spacetime strain h(t) measured as

slide-5
SLIDE 5

LIGO DCC P1500072

Observing GWs with interferometry

5 McIver

slide-6
SLIDE 6

6

How does LIGO detect gravitational waves?

LIGO/Caltech

slide-7
SLIDE 7

7

Kai Staats

slide-8
SLIDE 8

8

LIGO/Caltech

How sensitive is the LIGO experiment?

slide-9
SLIDE 9

Where are the LIGO detectors?

LIGO/Caltech

9

slide-10
SLIDE 10

10

Matched Filter Analysis

ˆ L ~ S1 ~ S2 1,2 ∝ ~ S1,2 · ˆ L

Matched filter signal-to-noise ratio

  • Phys. Rev. X 6 (2016)

Template Bank

Slide adapted from S. Caudill

  • B. P. Abbott et al. Phys. Rev. X (2016)

10

slide-11
SLIDE 11

O1 results

2σ 3σ 4σ 5σ > 5σ 2σ 3σ 4σ 5σ > 5σ

8 10 12 14 16 18 20 22 24

Detection statistic ˆ ρc

10−8 10−7 10−6 10−5 10−4 10−3 10−2 10−1 100 101 102 103 104

Number of events

GW150914 Search Result Search Background Background excluding GW150914

  • B. P. Abbott et al. Phys. Rev. X (2016)

GW150914 GW151226 LVT151012

11

slide-12
SLIDE 12

12

Observed black hole mergers to date

LIGO/Caltech/MIT/LSC

slide-13
SLIDE 13

13

LIGO/Caltech

slide-14
SLIDE 14

14

Sky localization

arXiv 1304.0670

slide-15
SLIDE 15

15

Sky localization of BBHs with LIGO

LIGO/Caltech/MIT/Singer/Mellinger

slide-16
SLIDE 16

A three interferometer network

LIGO/Caltech

and EM observer partners

16

slide-17
SLIDE 17

17

Sky localization with three detectors

LIGO/Caltech/MIT/Singer/Mellinger

slide-18
SLIDE 18

18

Prior to the Advanced LIGO’s second observing run (O2), no BNS mergers were observed.

The first observing run (O1) placed upper limits on the rate of BNS mergers that did not yet rule out any astrophysical predictions (as high as ~ 10,000 Gpc yr )

  • 1
  • 3
slide-19
SLIDE 19

19

NASA/Goddard Space Flight Center/CI Lab

130 million years ago, two neutron stars merged

slide-20
SLIDE 20

20

LIGO/Virgo/Lovelace, Brown, Macleod, McIver, Nitz

GW170817: Gravitational waves from a binary neutron star merger

slide-21
SLIDE 21

21

B.P. Abbott et al PRL. (2017)

A glitch in LIGO-Livingston

slide-22
SLIDE 22

22

LIGO/University of Oregon/Ben Farr

GW170817 and GWs from binary black holes

slide-23
SLIDE 23

23

B.P. Abbott et al PRL. (2017)

From GWs: inferring the component masses

slide-24
SLIDE 24

24

LIGO-Virgo/Frank Elavsky/Northwestern University

slide-25
SLIDE 25

25

B.P. Abbott et al PRL. (2017)

From GWs: constraining NS EoS

Tidal deformability

slide-26
SLIDE 26

26

B.P. Abbott et al. PRL (2017)

From GWs: sky localization

slide-27
SLIDE 27

27

LIGO-Virgo

Sky localization with GWs and gamma rays

slide-28
SLIDE 28

28

LIGO-Virgo/Greco, Arnaud, Vicerè

Virgo’s role in localization

slide-29
SLIDE 29

29

B.P. Abbott et al. Ap. J. Letters (2017)

Prompt emission: GWs and gamma rays

t(seconds) t(days)

slide-30
SLIDE 30

30

B.P. Abbott et al. Ap. J. Letters (2017)

GW γ-ray X-ray

LIGO, Virgo Fermi, INTEGRAL, Astrosat, IPN, Insight-HXMT, Swift, AGILE, CALET, H.E.S.S., HAWC, Konus-Wind

SALT ESO-NTT SOAR ESO-VLT 7000o 4000o t-tc

(days)

1.2 1.4 2.4

wavelength (A) normalized Fλ 4000 6000 10000 20000

  • INTEGRAL/SPI-ACS

Fermi/GBM

t-tc (s)

  • 12
  • 10
  • 8
  • 6
  • 4
  • 2

2 4 6 counts/s (arb. scale) frequency (Hz) 500 400 300 200 100 50

LIGO - Virgo

Prompt emission: GWs and gamma rays

t(seconds) t(days)

slide-31
SLIDE 31

31

B.P. Abbott et al. Ap. J. Letters (2017)

  • 100 -50

50

GW γ-ray X-ray UV Optical IR Radio

10-2 t-tc (s) t-tc (days) 10-1 100 101

LIGO, Virgo Fermi, INTEGRAL, Astrosat, IPN, Insight-HXMT, Swift, AGILE, CALET, H.E.S.S., HAWC, Konus-Wind Swift, MAXI/GSC, NuSTAR, Chandra, INTEGRAL Swift, HST Swope, DECam, DLT40, REM-ROS2, HST, Las Cumbres, SkyMapper, VISTA, MASTER, Magellan, Subaru, Pan-STARRS1, HCT, TZAC, LSGT, T17, Gemini-South, NTT, GROND, SOAR, ESO-VLT, KMTNet, ESO-VST, VIRT, SALT, CHILESCOPE, TOROS, BOOTES-5, Zadko, iTelescope.Net, AAT, Pi of the Sky, AST3-2, ATLAS, Danish Tel, DFN, T80S, EABA REM-ROS2, VISTA, Gemini-South, 2MASS,Spitzer, NTT, GROND, SOAR, NOT, ESO-VLT, Kanata Telescope, HST ATCA, VLA, ASKAP, VLBA, GMRT, MWA, LOFAR, LWA, ALMA, OVRO, EVN, e-MERLIN, MeerKAT, Parkes, SRT, Effelsberg

Chandra 9d J VLA 16.4d Radio Las Cumbres 11.57h w DECam 11.40h iz MASTER 11.31h W VISTA 11.24h YJKs X-ray DLT40 11.08h h 1M2H Swope 10.86h i

Electromagnetic follow-up

SALT ESO-NTT SOAR ESO-VLT 7000o 4000o t-tc

(days)

1.2 1.4 2.4

wavelength (A) normalized Fλ 4000 6000 10000 20000

  • 6

counts/s (arb. scale)

slide-32
SLIDE 32

32

What we’ve learned from GW170817

From gravitational waves:

  • Astrophysical rate of BNS mergers R = 1540 Gpc yr
  • Stochastic background from BNS and BBH mergers should be

detectable with current generation of detectors at design sensitivity!

  • Limits on dynamical ejecta in the associated kilonova.
  • To come: improved constraints on deviations from general relativity

using much longer duration waveform.

  • To come: insight on the remnant object from the post-merger GW

signal.

Companion papers:

1. GW170817: Observation of Gravitational Waves from a Binary Neutron Star Inspiral. B.P. Abbott et al. PRL 119 161101 (2017) 2. GW170817: Implications for the Stochastic Gravitational-Wave Background from Compact Binary Coalescences. arXiv 1710.05837 3. Estimating the Contribution of Dynamical Ejecta in the Kilonova Associated with

  • GW170817. arXiv 1710.05836
  • 3
  • 1

+3200

  • 1220
slide-33
SLIDE 33

33

What we’ve learned from GW170817

From multi-messenger observations:

  • Confirmation of association between short GRBs and BNS mergers.
  • Independent measurement of the Hubble constant consistent with

prior measurements.

  • Speed of gravity is consistent with speed of light to one part in 10 .
  • Improved Lorentz invariance limits; constrained to one part in 10 .
  • New insights into physics of gamma-ray burst events.
  • Constraints on progenitors and the evolution of the BNS pair.
  • BNS mergers as producers of heavy elements confirmed.
  • More to come - see Kasliwal/Hallinan CaJAGWR seminar on Nov 7!

Companion papers:

1. Multi-Messenger Observations of a Binary Neutron Star Merger. B.P. Abbott et al. Ap. J. Letters 848, 2 (2017) 2. Gravitational Waves and Gamma-Rays from a Binary Neutron Star Merger: GW170817 and GRB

  • 170817A. B.P. Abbott et al. Ap. J. Letters 848, 2 (2017)

3. A gravitational-wave standard siren measurement of the Hubble constant. B.P. Abbott et al. Nature (2017) 4. On the Progenitor of Binary Neutron Star Merger GW170817. arXiv 1710.05838 5. Search for High-energy Neutrinos from Binary Neutron Star Merger GW170817 with ANTARES, IceCube, and the Pierre Auger Observatory. arXiv 1710.05839

13 15

slide-34
SLIDE 34

34

B.P. Abbott et al. Nature (2017)

Independent measurement of the Hubble constant

slide-35
SLIDE 35

35

Future challenges: targeting transient noise

gravityspy.org

Zevin et al, CQG (2017)

slide-36
SLIDE 36

36

LIGO-Livingston h(t)

LIGO-Livingston transient noise during the second observing run

slide-37
SLIDE 37

37

Understanding the impact of transient noise on estimation of source properties

Minimum 90% confidence sky area (2 seconds before the scattering noise feature): 300 sq. deg. Maximum 90% confidence sky area: (During the first 0.5 seconds of the scattering noise): 540 sq. deg. Parameter estimation produced with the lalinference pipeline: arXiv 1409.7215

McIver et al. (in prep)

slide-38
SLIDE 38

gravitational wave astronomy

The future of

SXS

38

slide-39
SLIDE 39

Roadmap to design sensitivity

39 arXiv 1304.0670

slide-40
SLIDE 40

Future prospects: the global GW network

LIGO/Caltech

2020 2021 2022 2025

40

slide-41
SLIDE 41

Future prospects for terrestrial gravitational wave astronomy

41

  • B. P. Abbott et al. CQG 34 (2017)
slide-42
SLIDE 42

42

Beyond terrestrial detectors

ESA

slide-43
SLIDE 43

43

Pulsar Timing Arrays

David J Champion

slide-44
SLIDE 44

44

The International Pulsar Timing Array

IPTA

slide-45
SLIDE 45

45

LIGO Scientific Collaboration

slide-46
SLIDE 46

46

The future of gravitational wave astrophysics is bright!

NSF/LIGO/Sonoma State University/A. Simonnet

slide-47
SLIDE 47

LIGO/Caltech

47
