Groundwater Gunnedah Basin NSW What water information can tell us Sedimentary basins in NSW that contain coal NSW cross sections Section through both the Gunnedah and Clarence Moreton Basins Cross Section B Distribution of groundwater extraction

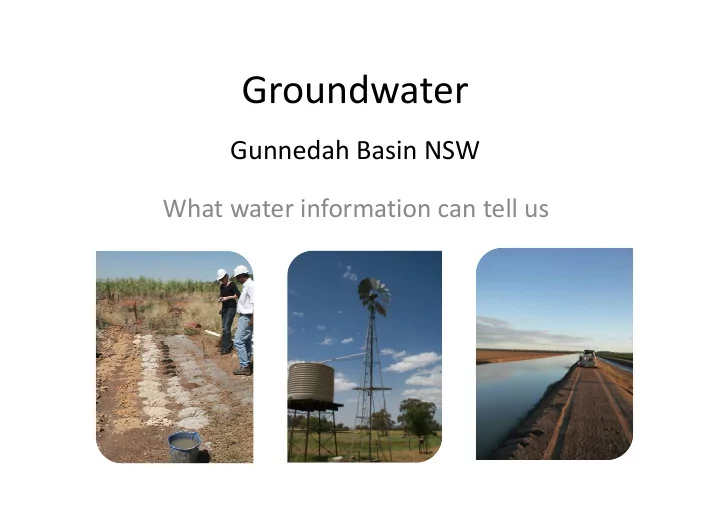

SLIDE 1

Groundwater

Gunnedah Basin NSW

What water information can tell us

SLIDE 2

Sedimentary basins in NSW that contain coal

SLIDE 3

NSW cross sections

SLIDE 4

Section through both the Gunnedah and Clarence Moreton Basins

Cross Section B

SLIDE 5

Distribution of groundwater extraction

SLIDE 6

Gunnedah Basin: Distribution and purpose of groundwater rights

Total rights ~ 340 GL

Upper and Lower Namoi Alluvial Water Sources (~215 GL/yr) NSW MDB Porous Rock Groundwater Source (Gunnedah Oxley Basin) (~22 GL/yr) Lower Gwydir Alluvial Water Source (~28 GL/yr) Other alluvial (total) (~4 GL/yr) Macquarie and Bogan Alluvial Groundwater Sources (~22 GL/yr) Great Artesian Basin (total) (~35 GL/yr) NSW MDB Fractured Rock Water Sources (basalt) (~3 GL/yr)

SLIDE 7

Gunnedah Basin: Areas of Permian outcrop

Cross Section 1 Cross Section 2

SLIDE 8

GunnedahBasin: vertical distribution of groundwater rights

~3,500 stock and domestic ~150 high yield ~4,500 stock and domestic ~1,500 high yield ~3,500 stock and domestic ~200 high yield Approximately 850 gas wells proposed

Total rights 340 GL Cross Section 1

SLIDE 9

Gunnedah Basin: Cross section (south western basin)

Cross Section 2

SLIDE 10

Available water in and overlying the Gunnedah Basin

500 1,000 1,500 2,000 2,500 3,000 Groundwater Surface water Water available (GL/yr) Environmental Unassigned water Current rights

SLIDE 11

100 200 300 400 500 600 700 800 900 1,000

Alluvial Great Artesian Basin Gunnedah Basin Fractured Basalts Namoi Regulated River Gwydir Regulated River Macquarie and Cudgegong Regulated Border Rivers ‐ Regulated Unregulated rivers

Water available (Gl/yr) Environmental Unassigned water Current rights

Available water in and overlying the Gunnedah Basin

Surface water Groundwater

Note: Environmental water in groundwater systems in this chart does not include storage, which in the Gunnedah Basin is approximately 8,000,000 GL

SLIDE 12

CSG Narrabri Project average

take estimated at 2 GL/yr. This represents:

1.8% of the porous rock

extraction limit

Licences have to be
btained

GunnedahBasin Groundwater Regional volumetric risk quantified

Average long term annual volume from the Gunnedah Oxley Basin porous rock required by Santos at Narrabri

1.8%

SLIDE 13

GunnedahBasin: Groundwater monitoring sites

SLIDE 14

Monitoring of 65 sites since the early 1970s

Baseline water level data ‐ Lower Gwydir

SLIDE 15

SLIDE 16

SLIDE 17

SLIDE 18

Groundwater level monitoring ‐ GAB

SLIDE 19

Baseline water level data ‐ Gunnedah Basin

Monitoring ~ 10 bores in the Gunnedah Basin – Spring Ridge area since late 1970s

SLIDE 20

Groundwater level monitoring ‐ CastlereaghAlluvium

SLIDE 21

Relative comparison of basin size

Gloucester Basin Clarence Moreton Basin Gunnedah Basin Murray Basin
