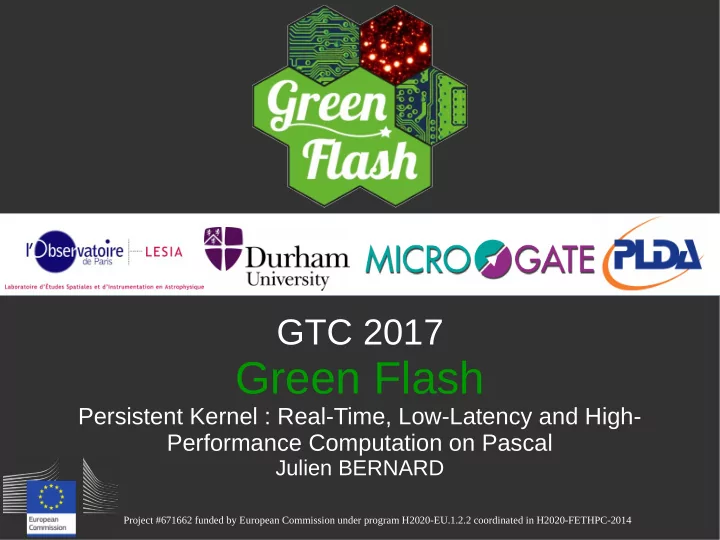

GTC 2017 Green Flash Persistent Kernel : Real-Time, Low-Latency and High- Performance Computation on Pascal Julien BERNARD Project #671662 funded by European Commission under program H2020-EU.1.2.2 coordinated in H2020-FETHPC-2014 Green Flash

SLIDE 1

Project #671662 funded by European Commission under program H2020-EU.1.2.2 coordinated in H2020-FETHPC-2014

GTC 2017

Green Flash

Persistent Kernel : Real-Time, Low-Latency and High- Performance Computation on Pascal

Julien BERNARD

SLIDE 2

Green Flash

Public and private actors

– Paris Observatory – University of Durham – Microgate – PLDA

Part of Horizon 2020 : EU Research

and Innovation programme

3 years project
3,8 million €
Involve about 30 people
Research axes

– Real time HPC with accelerators and smart interconnects – Energy efficient platform based on FPGA – Real Time Controller (RTC) prototype for European – Extremely Large Telescope Adaptive

Optics (AO) system

SLIDE 3

GTC 2017

Contributors

Maxime Lainé : software engineer Denis Perret : FPGA expert Arnaud Sevin : software lead Damien Gratadour : project lead Christophe Rouaud : PLDA project lead Gaetan Dufourcq : QuickPlay expert

SLIDE 4

GTC 2017

E-ELT : Adaptive Optics

Compensate in real-time the

wavefront perturbations

Using a wavefront sensor - WFS to

measure them

Using a deformable mirror – DM to

reshape the wavefront

Commands to the mirror must be

computed in real-time (~ms rate)

SLIDE 5

GTC 2017

RTC concept for ELT AO

SLIDE 6

GTC 2017

RTC concept for ELT AO

SLIDE 7

GTC 2017 RTC

Real Time controller

Legacy architecture

IE. SPARTA architecture

– DSP & CPU – VXS backplane Instrument WFS meas. DM com. Freq (Hz) Performance (GMAC/s) Sphere 1 2.6K 1 1.3k 1.5k 5.2 AOF 4 2.4k 1 1.2k 1k 11.8 Active elements Sensor Switch

SLIDE 8

GTC 2017 RTC Node 0 RTC Node N-1 RTC Node ...

Real Time controller

Cluster network architecture

Instrument WFS meas. DM com. Freq (Hz) Performance (GMAC/s) Sphere 1 2.6K 1 1.3k 1.5k 5.2 AOF 4 2.4k 1 1.2k 1k 11.8 ELT 6 80k 3 15k 500

1.2k

Sensor 0 Active elements 0 Active elements 1 Sensor 2 Sensor 3 Sensor 4 Sensor 5 Sensor 1 Active elements 2 Switch

SLIDE 9

GTC 2017

Legacy GPU programming

GPU GPU RAM CPU CPU RAM PCIe 10GbE NIC main { setup(); while(run){ recv(…); cudaMemcpy(…, HostToDevice); computing_kernel<<<>>>(…); cudaMemcpy(…, DeviceToHost); send(…); } }

SLIDE 10

GTC 2017

Legacy GPU programming

cudaMemcopy() overhead times (5.12Mo in, 64Ko out) Kernel launches overhead times Both cases : jitter of 20 to 30 µsec (40 µsec sometimes)

SLIDE 11

GTC 2017

Legacy GPU programming

Leaves not enough time for computations

SLIDE 12

GTC 2017

Improvement

GPU direct & I/O Memory mapping Persistent Kernel

SLIDE 13

GTC 2017

GPU direct & I/O Memory mapping

SLIDE 14

GTC 2017

GPU direct & I/O Memory mapping

FPGA writes/reads directly to/from GPU memory
CPU free for other kind of computations

FPGA NIC

Host ram CPU app

Camera control FPGA control

Meas. Comp.

GPU ram

GPU

Camera protocol handler DMA DMC protocol handler DMA

UDP Offmoad Engine

Pixels bufger DM com bufger

DMA start

P C I- e 3 .

DMA

answers

Latency measurement DMA

measures

Pixels bufger

compute kernels

SLIDE 15

GTC 2017

FPGA Development platform

Eased devel. Process using the QuickPlay tool from PLDA

SLIDE 16

GTC 2017

FPGA Development platform

Single generic design /

multiple target boards

– ExpressK-US board

(hosting a Kintex UltraScale from Xilinx)

– ExpressGX V board

(hosting a Stratix V from Altera)

– μXlink board from

microgate (hosting a Arria 10 board from Altera)

SLIDE 17

GTC 2017

Persistent Kernel

SLIDE 18

GTC 2017

Classic implementation

SLIDE 19

GTC 2017

Persistent kernel implementation

SLIDE 20

GTC 2017

GPU direct, I/O Memory mapping & Persistent kernel

GPU GPU RAM CPU CPU RAM PCIe 10GbE FPGA NIC

start

main { setup(); persistent_kernel <<<>>>(…); … } persistent_kernel(…){ while(run){ pollMemory(…); computation(...); startDMATransfer(…); } }

SLIDE 21

GTC 2017

Pipelining I/O and compute

FPGA PLDA XPressG5 GPU Tesla C2070 OS Debian wheezy Camera EVT HS-2000M 10GbE network

µsec iterations

No GPUDirect GPUDirect + persistent kernel SCAO Pyramid case: 240 x 240 pixels, encoded on 16b

SLIDE 22

GTC 2017

Pipelining I/O and compute

SLIDE 23

GTC 2017

DGX-1 benchmark

FPGA is replace by

CPU

Each node master

receive frame data

Work is shared between

all devices

RTC master send back

final resut

Node masters RTC Master Slaves

SLIDE 24

GTC 2017

Result 1/2 : Time and jitter

Histogram

4 devices case with 10,048 slopes x 15,000 commands Average : 0.45ms Jitter peak to peak : 17µs

Variation : 1.8 %

Time in ms

SLIDE 25

Result 2/2 : Sync & Intercom time

Intercommunication time Synchronize time

Average : 15µs Jitter : 8.8µs Average : 24µs Jitter : 12µs

SLIDE 26

Conclusion & future work

Conclusion

– Using GPUDirect and a

persistent kernel allow efficient data delivery to the RTC

– Lower jitter – Simpler execution stream – QuickPlay tool from PLDA

Eased FPGA development cycle
Mix communication protocols and

data processing into the same streams

Expandable ecosystem, with

QuickStore / QuickAliance

Future

–

Test on AO bench (with DM and WFS)

–

Use multi nodes architecture

–

Test with fp16

SLIDE 27

Project #671662 funded by European Commission under program H2020-EU.1.2.2 coordinated in H2020-FETHPC-2014

Thank you

Question ?

SLIDE 28

GTC 2017

DGX-1 benchmark
Result 1/2 : Time and jitter
Result 2/2 : Sync & Intercom time
Conclusion & future work
Thank you
RTC AO prototype for E-ELT
Test pipeline
Time measurement strategies
Conclusion : Persistent kernel
future work
New features
Test architecture
