SLIDE 1

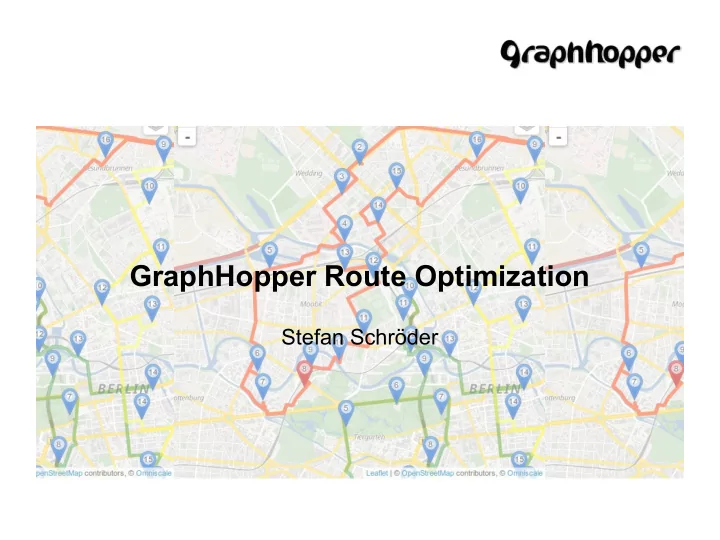

GraphHopper Route Optimization

Stefan Schröder

SLIDE 2

Fast and Flexible Directions API
Lightweight API to solve heavy routing problems

What is GraphHopper?

SLIDE 3

04/2012 – Peter Karich published OS GraphHopper routing

based on OSM

06/2013 – Stefan Schröder published jsprit, a toolkit to solve

vehicle routing problems

04/2015 – we joined forces to develop the GraphHopper

Directions API

Brief history

SLIDE 4

Directions API

SLIDE 5

Route Optimization API

Difference between Routing and Route

Optimization API

Least cost path from A to B Least cost paths with via points A B A B C D E A B C D E Least cost route by

rdering of via points

SLIDE 6

Route Optimization API

1. Geocode
2. Snap Geocodes to

networks

3. Calculate n x n travel

times/distances

4. Optimize

Friedrichstraße 52 lon,lat

1 n 1 n

SLIDE 7

Vehicle Routing Problem

VRP: Given m vehicles with capacity restrictions and n

customers, find vehicle routes that minimize transportation costs.

TSP: Round trip visiting every location once
Last mile deliveries, health care, garbage collection,

technicians, ...

Challenges: Search space, Example 50 L-TSP

SLIDE 8

Search algorithms

Exact methods – Branch & Bound
Meta-Heuristics – Tabu Search, Simulated

Annealing, etc.

Ruin and Recreate – Large Neighborhood

Search Threshold Acceptance and Simulated Annealing

SLIDE 9

Route Optimization Editor

Switch to Route Editor and solve problems live
TSP
TSP-Relation
VRP
VRP-Relation
VRP-Bike
VRP-Min-Max

SLIDE 10

Problem Berlin

SLIDE 11

Sufficient capacity - TSP

SLIDE 12

Direct sequence of 37 & 38

SLIDE 13

VRP

SLIDE 14

VRP with relation

SLIDE 15

VRP – min-max compl. time

SLIDE 16

VRP – min-max by foot

SLIDE 17

Shortest route through Dublin avoiding pubs?

SLIDE 18

Dublin – “avoid pubs”

SLIDE 19

Dublin – “avoid pubs”

SLIDE 20

Publicity?

handful retweets
<100 blog readers
pointer to this: “there's someone trying to drink in

every pub in Dublin, might be another interesting demo for you.”

SLIDE 21

Shortest route through Dublin visiting all pups?

SLIDE 22

Dublin – “visit all pubs”

SLIDE 23

Publicity?

many retweets from all over the world
>3000 readers
on reddit
a day on the front page of hacker news with 84

points

SLIDE 24

Dublin – “visit all pubs”

SLIDE 25

GraphHopper.com stefan.schroeder@graphhopper.com
