GL GLGB GB30 30 R The Specialist in Value-based Fastening & Assembly Solutions GLGB3 B30 Lin Linear ear R Rolle oller r Guid uide e Ra Rail il System tem LINEAR GUIDES Features Bearing roller used in guide block allows


slide-1
SLIDE 1

R

www.gripwell.com.sg

1

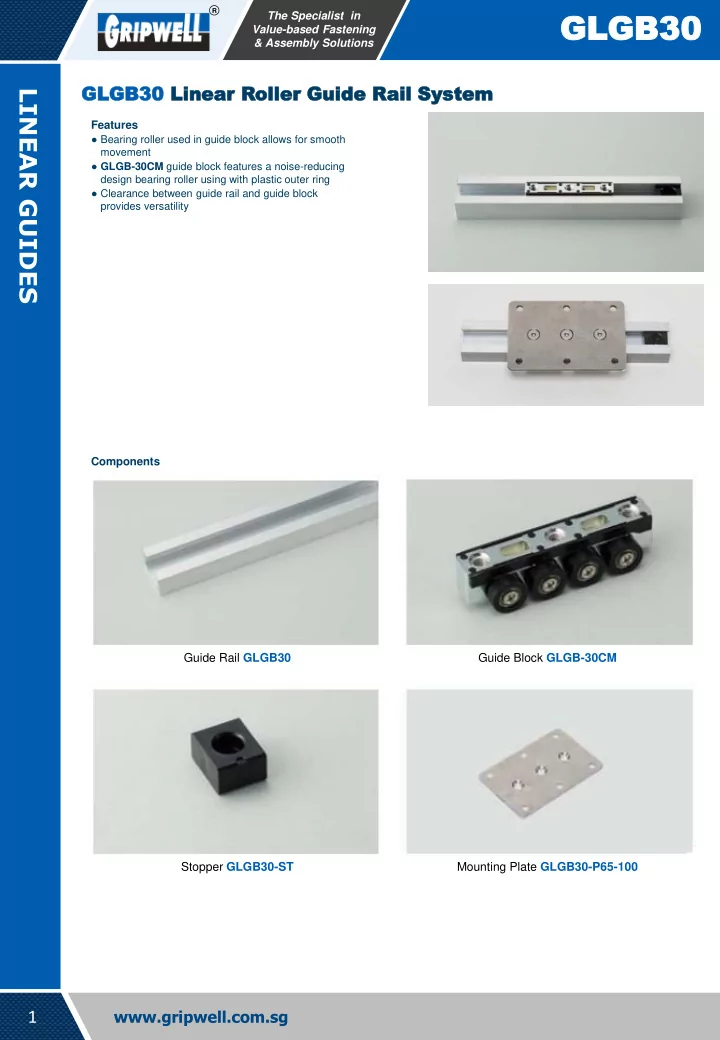

GL GLGB GB30 30

The Specialist in Value-based Fastening & Assembly Solutions

LINEAR GUIDES

GLGB3 B30 Lin Linear ear R Rolle

  • ller

r Guid uide e Ra Rail il System tem

Features

  • Bearing roller used in guide block allows for smooth

movement

  • GLGB-30CM guide block features a noise-reducing

design bearing roller using with plastic outer ring

  • Clearance between guide rail and guide block

provides versatility Components

Guide Rail GLGB30 Stopper GLGB30-ST Guide Block GLGB-30CM Mounting Plate GLGB30-P65-100

slide-2
SLIDE 2

R

www.gripwell.com.sg

2

The Specialist in Value-based Fastening & Assembly Solutions

GL GLGB GB30 30

LINEAR GUIDES

GLGB3 B30 Guid uide R e Rail ail

Recommended Screws

  • Hexagon socket button head screw M4
  • Binding head screw M4
  • Binding head tapping screw 4

Notes

  • Mounting holes and both ends are not surface treated.
  • Do not use under moment load

GLGB30CM B30CM Guide Bloc uide Block

Features

  • Bearing roller used in guide block allows for silent and

smooth movement

  • Plastic outer ring type bearing roller

Notes

  • Do not use under moment load

Load Direction Part No. A B Material Finish GLGB30-400 400 8 Aluminium Alloy Anodised Silver GLGB30-800 800 16 GLGB30-2000 2000 40 Part No. Load Capacity (per piece) GLGB-30CM 294 N 30kg

slide-3
SLIDE 3

R

www.gripwell.com.sg

3

GL GLGB GB30 30

The Specialist in Value-based Fastening & Assembly Solutions

LINEAR GUIDES

GLGB3 B30-ST ST Stop topper per

Notes

  • Used for preventing guide block GLGB-30CM from coming off
  • Install to guide rail GLGB30 with screws, mounting screws not

included

  • Not to be used for stopping guide block collision

GLGB30 B30-P65 65-100 100 Mounting

  • unting Pla

late te

Notes

  • Install to guide block GLGB-30CM with supplied screws

(3 pcs stainless steel hexagon socket countersunk head screw M5 x 16 3 pcs) Part No. Material Colour GLGB30-ST POM Black Part No. Material Colour GLGB30-P65-100 Stainless Steel 304 Barrel Polished

slide-4
SLIDE 4

R

www.gripwell.com.sg

4

The Specialist in Value-based Fastening & Assembly Solutions

GL GLGB GB30 30

LINEAR GUIDES

Illus llustr tration tion

Guide rail + Guide block + Stopper Guide rail + Guide block + Stopper + Mounting plate
