SIS 100 Pre-Collaboration Meeting GSI Darmstadt/Germany, 15th September, 2008 German EoI for Power Converters of SIS100 - SIS100 Dipole Power Converter 1678 k - DC-Circuit Breaker for SIS100 Dipole System 270 k - Adaptive Control


slide-1
SLIDE 1

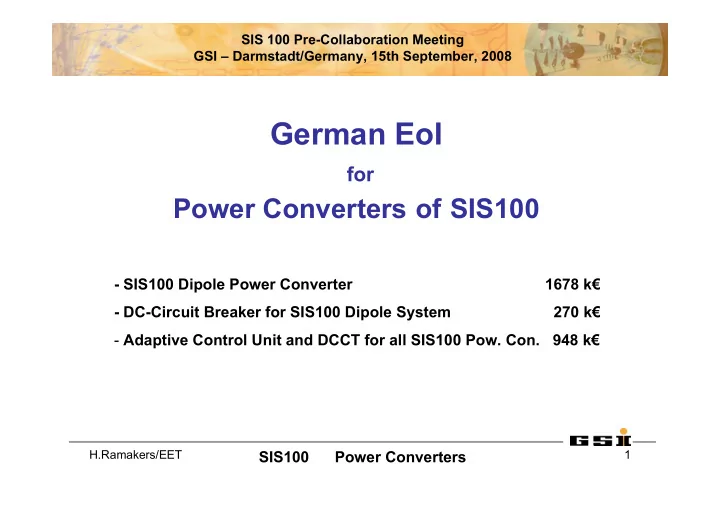

SIS100 Power Converters

H.Ramakers/EET 1

SIS 100 Pre-Collaboration Meeting GSI – Darmstadt/Germany, 15th September, 2008

German EoI

for

Power Converters of SIS100

  • SIS100 Dipole Power Converter

1678 k€

  • DC-Circuit Breaker for SIS100 Dipole System

270 k€

  • Adaptive Control Unit and DCCT for all SIS100 Pow. Con. 948 k€
slide-2
SLIDE 2

SIS100 Power Converters

H.Ramakers/EET 2

SIS 100 Pre-Collaboration Meeting GSI – Darmstadt/Germany, 15th September, 2008

2

Topology of Power Converters Systems

SIS100 Dipole Power Converter :

System of Power Units PU and Dump Units DU in series connection

Dipole SIS100

109 Magnets in series 0.56 mH each +/- 1568V ramping voltage 12750A rated current

+

  • PU

Power Unit

DU

Dump Unit

DU DU DU Building 1

  • +

PU

Building 3 Building 2

PU +

  • DU

DU

Dump Unit

+

  • PU

Power Unit

109 Magnets in series 0.56 mH each +/- 1568V ramping voltage 12750A rated current

slide-3
SLIDE 3

SIS100 Power Converters

H.Ramakers/EET 3

SIS 100 Pre-Collaboration Meeting GSI – Darmstadt/Germany, 15th September, 2008

3 an active parallel filter PE. This component takes care of the current ripple and current dynamics.

Design of dedicated Power Converters

SIS100 Dipole Power Converter :

Type SCR_ramped A power unit PU has basically 3 major components: a quench protection circuit. This component absorbs the magnet energy and disconnects the magnet string from the active power part of the converter. For the SIS 100 power converters a circuit breaker with an opening time of <1ms is necessary. a twelve pulse SCR with controlled freewheeling thyristors. This component handles the large power.

PE

CB RD ThD L1 L2 L3 20kV T1 T2

slide-4
SLIDE 4

SIS100 Power Converters

H.Ramakers/EET 4

SIS 100 Pre-Collaboration Meeting GSI – Darmstadt/Germany, 15th September, 2008

Description on EoI for SIS100 Dipole Power Converters :

Included in the delivery is :

  • two power converter groups
  • two active parallel filters (PE)
  • the dump units without DC-circuit breakers
  • the internal cabling
  • the integration of additional EoI-components
  • 6 DC-circuit breakers for quench protection
  • 1 Adaptive Control Unit (ACU)

Not included in the delivery is :

  • the 20kV circuit breakers for the main transformers
  • the 20kV cables to the transformers
  • the warm cables to the feed boxes of the magnet system
slide-5
SLIDE 5

SIS100 Power Converters

H.Ramakers/EET 5

SIS 100 Pre-Collaboration Meeting GSI – Darmstadt/Germany, 15th September, 2008

5

Schedule of EoI for SIS100 Dipole Power Converters :

2009 Call for tender and order Precondition: magnet and system data are verified 2010 Design and design review 2011 Production and Factory acceptance Precondition: ACU and DCCT are available test of components 2012 Installation and integration on site Precondition: buildings are ready, DC-circuit breakers are available 01/2013 First test with real load Precondition: magnets are ready, quench detection is tested 06/2013 Final acceptance test

slide-6
SLIDE 6

SIS100 Power Converters

H.Ramakers/EET 6

SIS 100 Pre-Collaboration Meeting GSI – Darmstadt/Germany, 15th September, 2008

Adaptive Control Unit (ACU) and DCCT Because of standardization in FAIR the implementation of a digital control unit is foreseen for all power converters (German In-kind contribution ACU) Because of standardization in FAIR all high precision load current measuring devices in power converters, the DCCTs, are In-kind contributions of Germany.

slide-7
SLIDE 7

SIS100 Power Converters

H.Ramakers/EET 7

SIS 100 Pre-Collaboration Meeting GSI – Darmstadt/Germany, 15th September, 2008

  • Power Converter Control:

Adaptive Control Unit and DCCT:

Pow er Converter

Power Converter Control AD C Unit C on trol U nit Mu lti Fu nction Unit

Acquisition of up to 8 D igital Signals and Protection Pulse L ogic for Power Part including Protection

U SI 1 U SI 2

Si gnals for C ircuit B reakers and Contactors

Firing P uls es Powe r E lec tronic S ta tus Signals

Power P art

Fast Analogue Signa ls Interloc k S ignals Sta tus S igna ls C omma nd S ignals Slow Analogue S ignals

Acquisition of up to 4 An alogue Signals Monito ring and Protection

USB 4 x D AC

service and diagno sis co mp uter Remote/Local Op eration U SI Cascade Sequence Control Parameters Mon ito ring System Expansion if applic able

External Control System

Back plane with Interface System, Basic I/O Graphical Displ ay H igh Sp eed A cquisition of up to 4 Analogue Signals a nd Protection C ircuits For example: the load c urrent Further Special Function Modules D igital Con trol Loop US I Cont rol

U SI 3

Further Special Function Modules

U SI 6

Possible Expansions

The digital control algorithm is based on analogue control strategies enhanced by the possibilities of digital signal processing. All parameters of the control algorithm can be loaded and read by the external control system. ACU

Adaptive Control Unit

ACU

  • Multifunction unit
  • control unit
  • [ADC unit]

In-kind contribution In-kind contribution DCCT (with digital output)

ACU is second generation of digital control hardware and is used in new Alvarez Power Converters 09/2008

slide-8
SLIDE 8

SIS100 Power Converters

H.Ramakers/EET 8

SIS 100 Pre-Collaboration Meeting GSI – Darmstadt/Germany, 15th September, 2008

Adaptive Control Unit and DCCT:

Multifunctional Unit ADC DCCT

USI USI USI

add. module

Control Unit Power Part delivered by Manufacturer German In-Kind Example 1

Manufacturer will be responsible for the functionality of the complete system in both cases. In-kind components have to be used like other commercial components on the market.

Multifunctional Unit ADC DCCT

USI USI USI

add. module

Control Unit Power Part delivered by Manufacturer

Use of ACU

Example 2

slide-9
SLIDE 9

SIS100 Power Converters

H.Ramakers/EET 9

SIS 100 Pre-Collaboration Meeting GSI – Darmstadt/Germany, 15th September, 2008

Adaptive Control Unit and DCCT: Use of ACU

Multifunctional Unit

USI

delivered by Manufacturer German In-Kind

USI USI

Control Unit / DAC Power Part Power Part Power Part Control Unit / DAC Control Unit / DAC Control Unit Control Unit Control Unit

The analogue current regulation and current measurement is included in the delivery of the Manufacturer. Up to six devices can be supplied by one multifunctional unit.

Example 3

slide-10
SLIDE 10

SIS100 Power Converters

H.Ramakers/EET 10

SIS 100 Pre-Collaboration Meeting GSI – Darmstadt/Germany, 15th September, 2008

Description on EoI for ACU and DCCT for all power converters of FAIR:

Included in the delivery is :

  • backplane
  • multi function unit
  • control unit
  • ADC board (if necessary)
  • DCCT (with digital output)
  • graphical user interface
  • drivers and interface protocol
  • documentation and interface description
  • support for integration into the power converter

Not included in the delivery is :

  • more than 1 ACU and DCCT for one power converter
  • adaption to exotic control strategies
  • support for new user development
slide-11
SLIDE 11

SIS100 Power Converters

H.Ramakers/EET 11

SIS 100 Pre-Collaboration Meeting GSI – Darmstadt/Germany, 15th September, 2008

11

Schedule of EoI for ACU and DCCT:

11/2008 First series in operation in Alvarez power converters 08/2009 Operational experience during accelerator runs 12/2009 Redesign with improvements (if any) 2010 Start of series production and delivery 05/2010 Documentation available, detailed interface description, drivers

slide-12
SLIDE 12

SIS100 Power Converters

H.Ramakers/EET 12

SIS 100 Pre-Collaboration Meeting GSI – Darmstadt/Germany, 15th September, 2008

12
