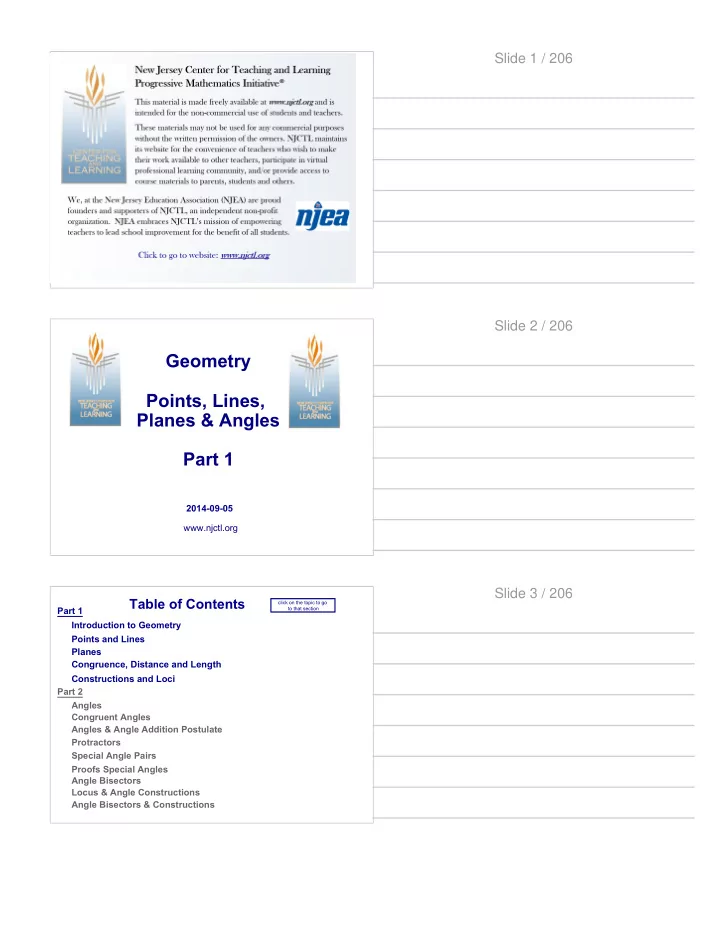

SLIDE 1 Slide 1 / 206
Geometry Points, Lines, Planes & Angles Part 1
www.njctl.org 2014-09-05
Slide 2 / 206 Table of Contents
Introduction to Geometry
click on the topic to go to that section
Points and Lines Planes Congruence, Distance and Length Constructions and Loci Part 1 Part 2 Angles Congruent Angles Angles & Angle Addition Postulate Protractors Special Angle Pairs Proofs Special Angles Angle Bisectors & Constructions Locus & Angle Constructions Angle Bisectors
Slide 3 / 206
SLIDE 2 Introduction to Geometry
Return to Table
Slide 4 / 206 The Origin of Geometry
About 10,000 years ago much of North Africa was fertile farmland. The area around the Nile river was too marshy for agriculture, so it was sparsely populated.
Slide 5 / 206 The Origin of Geometry
But over thousands of years the climate changed, and most of North African became desert. The banks of the Nile became prime farmland.
Slide 6 / 206
SLIDE 3 The Origin of Geometry
The land along the Nile became crowded with people. Farming was done on the land near the river because it had: · Water for irrigation · Fertile soil due to annual flooding, which deposited silt from upriver. But, since the land flooded each year, how could they keep track
Slide 7 / 206
About 4000 years ago an Egyptian pharaoh, Sesostris, is said to have invented geometry in order to keep track of the land and tax it's owners. Reestablishing land ownership after each annual flood required a practical geometry. "Geo" means Earth and "metria" means measure, so geometry meant to measure land.
Egyptian Geometry Slide 8 / 206
You know more geometry than the Egyptians knew 4000 years ago, so let's do a lab to see how you would solve this problem.
Land Boundaries Lab
You'll work in groups and each group will solve this problem before we move on to how the Greek's built on the Egyptian solution.
Slide 9 / 206
SLIDE 4 Before the annual flood
- f the Nile three plots of
land might be as shown. The orange dots are to indicate stakes that were placed above the flood level. The stakes would remain in the same location from year to year. A
Plot 1 C B D E Plot 3 Plot 2
Pre- Flood Boundary Map
Land Boundaries Lab Slide 10 / 206
Before flooding, three plots of land might be look like these.
Land Boundaries Lab
A Plot 1 C B D E Plot 3 Plot 2
Pre- Flood Boundary Map
A C B D E
Post-Flood Map of River and Markers
Afterwards, only the stakes above the flood level remained, and the river had moved in its course.
Slide 11 / 206
The pharaoh had to: · Reestablish new boundaries so farmers knew which land to farm. · Adjust the taxes to match the new amount of land owned.
Land Boundaries Lab
The Egyptians only had stakes and rope, you only have tape and string.
Slide 12 / 206
SLIDE 5 After the flood, the pharaoh would send out geometers with ropes that had been used to measure each plot of land in prior years. How did they do it? (You can't use the edges
because these were
- pen fields of great size.)
Land Boundaries Lab
A C B D E Post-Flood Map of River and Markers
Slide 13 / 206
Egyptian mathematics was very
- practical. What practical
applications do you think the Egyptians used mathematics for? They did not develop abstract
- mathematics. That was left to the
Greeks, who built upon what they had learned from the Egyptians, Babylonians and others.
Egyptian Geometry
Teacher Notes
Slide 14 / 206 Greek Geometry
The Greeks developed an approach to thinking about these earth measures that allowed them to be generalized. They kept their assumptions to the minimum, and showed how all else followed from those assumptions. Those assumptions are called definitions, postulates and axioms. That analytical thinking became the logic that allows us to not only measure land, but also measure the validity of ideas.
Slide 15 / 206
SLIDE 6 Euclidean Geometry
Euclid's book, The Elements, summarized the results of Greek geometry: Euclidean Geometry. Euclidean geometry is the basis of much of western mathematics, philosophy and science. It also represents a great place to learn that type of thinking.
Slide 16 / 206 Euclidean Geometry
Euclidean Geometry dates prior to 400 BC. That makes it about 1000 years older than algebra, and about 2000 years older than calculus. The fact that it is still taught in much the way it was more than 2000 years ago tells us what about Euclid's ideas?
Slide 17 / 206 Euclidean Geometry
This statement was posted above Plato's Academy, in ancient Athens, about 2500 years ago. This renaissance painting by Raphael depicts that academy. "Let none who are ignorant of geometry enter here."
Slide 18 / 206
SLIDE 7
Euclidean Geometry
When the Roman empire declined, and then fell, about 1800 years ago, most of the writings of Greek civilization were lost. This included most of the plays, histories, philosophical, scientific and mathematical works of that era, including The Elements by Euclid. These works were not purposely destroyed, but deteriorated with age as there was no central government to maintain them.
Slide 19 / 206 Euclidean Geometry
Euclidean Geometry was lost to Europe for a 1000 years. But, it continued to be used and developed in the Islamic world. In the 1400's, these ideas were reintroduced to Europe. These, and other rediscovered works, led to the European Renaissance, which lasted several centuries, beginning in the 1400's.
Slide 20 / 206 Euclidean Geometry
Much of the thinking of modern science and mathematics developed from the rediscovery of Euclid's Elements. The thinking that underlies Euclidean Geometry has held up very well. Many still believe it is the best introduction to analytical thinking.
Slide 21 / 206
SLIDE 8 Euclidean Geometry
About 100 years ago, Charles Dodgson, the Oxford geometer who wrote Alice in Wonderland, under the name Lewis Carroll, argued Euclid was still the best way to understand mathematical thinking.
Slide 22 / 206 Euclidean Geometry
Geometry is used directly in many tasks such as measuring lengths, areas and volumes; surveying land, designing optics, etc. Geometry underlies much of science, technology, engineering and mathematics (STEM).
Slide 23 / 206 Euclidean Geometry
This course will use the basic thinking developed by Euclid. We will attempt to make clear and distinguish between: · What we have assumed to be true, and cannot prove · What follows from what we have previously assumed or proven That is the reasoning that makes geometric thinking so valuable. Always question every idea that's presented, that's what Euclid and those who invented geometry would have wanted.
Slide 24 / 206
SLIDE 9 Euclidean Geometry
This also represents a path to logical thinking, which British philosopher Bertrand Russell showed is identical to mathematical thinking. Click on the image to watch a short video of Bertrand Russell's message to the future which was filmed in 1959. Did you hear anything that sounded familiar? What was it?
Slide 25 / 206 Euclidean Geometry
Euclid's assumptions are axioms, postulates and definitions. You won't be expected to memorize them, but to use them to develop further understanding. Major ideas which are proven are called Theorems. Ideas that easily follow from a theorem are called Corollaries.
Slide 26 / 206 Euclidean Geometry
The five axioms are very general, apply to the entire course, and do not depend on the definitions or postulates, so we'll review them in this unit. The postulates and definitions are related to specific topics, so we will introduce them as required. Also, additional modern terms which you will need to know will be introduced as needed.
Slide 27 / 206
SLIDE 10 Euclid called his axioms "Common Understandings." They seem so obvious to us now, and to him then, that the fact that he wrote them down as his assumptions reflects how carefully he wanted to make clear his thinking. He didn't want to assume even the most obvious understandings without indicating that he was doing just that.
Euclid's Axioms (Common Understandings) Slide 28 / 206
This careful rigor is what led to this approach changing the world. Great breakthroughs in science, mathematics, engineering, business, etc. are made by people who question what seems
- bviously true...but turns out to not always be true.
Without recognizing the assumptions you are making, you're not able to question them...and, sometimes, not able to move beyond them.
Euclid's Axioms (Common Understandings) Slide 29 / 206
Things which are equal to the same thing are also equal to one another.
Euclid's First Axiom
For example: if I know that Tom and Bob are the same height, and I know that Bob and Sarah are the same height...what other conclusion can I come to?
Tom Bob Sarah
Slide 30 / 206
SLIDE 11 If equals are added to equals, the whole are equal.
Euclid's Second Axiom
For example, if you and I each have the same amount of money, let's say $20, and we each earn the same additional amount, let's say $2, then we still each have the same total amount of money as each other, in this case $22.
Slide 31 / 206
If equals be subtracted from equals, the remainders are equal.
Euclid's Third Axiom
This is just like the second axiom. Come up with an example on your own. Look back at the second axiom if you need a hint.
Slide 32 / 206
Things which coincide with one another are equal to one another.
Euclid's Fourth Axiom
For example, if I lay two pieces of wood side by side and both ends and all the points in between line up, I would say they have equal lengths.
Slide 33 / 206
SLIDE 12 The whole is greater than the part.
Euclid's Fifth Axiom
For example, if an object is made up of more than one part, then the object has to be larger than any of those parts.
Slide 34 / 206
First Axiom: Things which are equal to the same thing are also equal to one another. Second Axiom: If equals are added to equals, the whole are equal. Third Axiom: If equals be subtracted from equals, the remainders are equal. Fourth Axiom: Things which coincide with one another are equal to one another. Fifth Axiom: The whole is greater than the part.
Euclid's Axioms (Common Understandings) Slide 35 / 206
Points and Lines
Return to Table
Slide 36 / 206
SLIDE 13
Definitions
Definitions are words or terms that have an agreed upon meaning; they cannot be derived or proven. The definitions used in geometry are idealizations, they do not physically exist. When we draw objects based on these definitions, that is just to help visualize them. However, imaginary geometric objects can be used to develop ideas that can then be made into real objects.
Slide 37 / 206 Points
A point is infinitely small. It cannot be divided into smaller parts. It is a location in space, without dimensions. It has no length, width or height. Definition 1: A point is that which has no part.
Slide 38 / 206 Points
Definition 1: A point is that which has no part. Look at this dot. Why can it not be considered a point? Discuss your answer with a partner.
Slide 39 / 206
SLIDE 14 Points
A point is represented by a dot. The dot drawn on a page has dimensions, but the point it represents does not. A point can be imagined, but not drawn. Only the position of the point is shown by the dot. Points are usually labeled with a capital letter (e.g. A, B, C).
A B C
Slide 40 / 206 Lines
A line is defined to have length, but no width or height. The line drawn on a page has width, but the idea of a line does not. Definition 2: A line is breadthless length. Lines can be thought of as an infinite number of points with no space between them.
Slide 41 / 206 Lines
A line consists of an infinite number of points laid side by side, so at either end of a line are points. These are called endpoints. Definition 3: The ends of a line are points. Even though this is how we correctly depict a line with endpoints, why is is not accurate?
Slide 42 / 206
SLIDE 15 Lines
Definition 4. A straight line is a line which lies evenly with the points on itself. In a straight line the points lie next to one another without bending
- r turning in any direction.
While a line can follow any path, in this course we will use the term "line" to mean a straight line, unless otherwise indicated.
Slide 43 / 206
First Postulate: To draw a line from any point to any point.
Lines
This postulate indicates that given any two points, it is possible to draw a line between them. Aside from letting us connect two points with a line, it also allows us to extend any line as far as we choose since points could be located at any point in space.
Slide 44 / 206 Lines
Second Postulate: To produce a finite straight line continuously in a straight line. This postulate indicates that the line drawn between any two points can be a straight line. This allows the use of a straight edge to draw lines. A straight edge is a ruler without markings. Note: Any object with a straight edge can be used.
Slide 45 / 206
SLIDE 16 Line Segments
Using these definitions and postulates we can first draw two points (the endpoints) and then draw a straight line between them using a straight edge. A line drawn in this way is called a line segment. It has finite length, a beginning and an end. At each end of the segment there is an endpoint, as shown below
A
B
endpoint endpoint
Slide 46 / 206 Naming Line Segments
For instance, and are different names for the same segment.
AB BA A line segment is named by its two endpoints. The order of the endpoints doesn't matter.
A
B
endpoint endpoint AB or BA
Slide 47 / 206
A straight line, which extends to infinity in both directions, can be created by extending a line segment in both directions. This is allowed by our definitions and postulates by imagining connecting each endpoint of the segment to other points that lie beyond it, in both directions.
Lines
Slide 48 / 206
SLIDE 17 A B In this example, line Segment AB is extended in both directions to create Line AB.
Lines
A
B
endpoint endpoint
Slide 49 / 206
DE A line is named by using any two points on it OR by using a single lower-case letter. Arrowheads in the symbol above the points in the name of the line show that the line continues without end in opposite directions.
Naming Lines
D F E a DF EF FE ED FD a Here are 7 valid names for this line. When using two points to name a line, their order doesn't matter since the line goes in both directions.
Slide 50 / 206
Give 7 different names for this line.
Example
U W V b Answer
Slide 51 / 206
SLIDE 18 Collinear points are points which fall on the same line. Which of these points are collinear with the drawn line?
Collinear Points
D F E a A B C Answer
Slide 52 / 206
Is it possible for any two points to not be collinear on at least
Come up with an answer at your table. Remember, only use facts to make your argument!
Collinear Points
Answer
Slide 53 / 206
1 How many points are needed to define a line?
Answer
Slide 54 / 206
SLIDE 19 2 Can there be two points which are not collinear
Yes No
Answer
Slide 55 / 206
3 Can there be three points which are not collinear
Yes No Answer
Slide 56 / 206
Is it possible for two different lines to intersect at more than one point?
Intersecting Lines
A good technique to prove whether this is possible is called either Argumentum ad absurdum
Reductio ad absurdum
Slide 57 / 206
SLIDE 20 Intersecting Lines
Argumentum ad absurdum
Reductio ad absurdum These are two Latin terms which refer to the same powerful approach, an indirect proof. First, you assume something is true. Then you see what logically follows from that assumption. If the conclusion is absurd, the assumption was false, and disproven.
Slide 58 / 206
Is it possible for two different lines to intersect at more than one point?
Intersecting Lines
Let's assume that two different lines can share more than one point and see where that leads us. Let's name the two points which are shared A and B. We could connect A and B with a line segment, since we can draw a line segment between any two points. That segment would overlap both our original lines between A and B, since they are all straight lines and all include A and B.
Slide 59 / 206 Intersecting Lines
We could then extend our Segment AB infinitely in both directions and our new Line AB would overlap our original two lines to infinity in both directions. If they share all the same points, they are the same lines, just with different names. But we assumed that the two original lines were different lines sharing two points.
Slide 60 / 206
SLIDE 21 Is it possible for two different lines to intersect at more than one point?
Intersecting Lines
But we have concluded that they are the same line, not different lines. It is impossible for them to be both different lines and the same lines. So, our assumption is proven false and the opposite assumption must be true. Two different lines cannot share two points.
Slide 61 / 206
Is it possible for two different lines to intersect at more than one point?
Intersecting Lines
Q T K R S
So, two different lines either: · Intersect at no points · Intersect at one point.
F E D C
Slide 62 / 206
4 What is the maximum number of points at which two distinct lines can intersect?
Answer
Slide 63 / 206
SLIDE 22 5 Which sets of points are collinear on the lines drawn in this diagram?
A C D B A A, D, B B C, D, B C A, D, C D none Answer
Slide 64 / 206
6 At which point, or points, do the drawn lines intersect?
A A and D B A and C C D D none A C D B Answer
Slide 65 / 206
Below, the segment AB is extended to infinity, beyond Point B, to create Ray AB.
Rays
A B
A
B
endpoint endpoint A Ray is created by extending a line segment to infinity in just one
- direction. It has a point at one end, its endpoint, and extends to
infinity at the other.
Slide 66 / 206
SLIDE 23 Naming Rays
When naming a ray the first letter is the point where the ray begins and the second is any other point on the ray. The order of the letters matters for rays, while it doesn't for lines. Why do you think the order of the letters matter for rays? A B A B Line AB or Line BA Ray AB
Slide 67 / 206 Naming Rays
Also, instead of the double-headed arrows which are used for lines, rays are indicated by a single-headed arrow. The arrow points from the endpoint of the ray to infinity. A B A B AB or BA AB
Slide 68 / 206 Naming Rays
Segment AB can be extended in either in either direction. We can extend it at B to get ray AB. Or, we can extend it at A to get Ray BA. A B AB A B A B BA
Slide 69 / 206
SLIDE 24 Rays AB and BA are NOT the same. What is the difference between them?
Naming Rays
A B AB A B BA
Slide 70 / 206
Below, suppose point C is between points A and B. Rays CA and CB are
Opposite rays are defined as being two rays with a common endpoint that point in opposite directions and form a straight line.
Opposite Rays
A B C
Slide 71 / 206
Recall: Since A, B, and C all lie on the same line, we know they are collinear points. Similarly, rays are also called collinear if they lie on the same line.
Collinear Rays
A B C
Slide 72 / 206
SLIDE 25
7 Name a point which is collinear with points G & H. A B C D E F G H
C D G A F H B E Answer
Slide 73 / 206
8 Name a point which is collinear with points D & A. A B C D E F G H
C D G A F H B E Answer
Slide 74 / 206
9 Name a point which is collinear with points D & E. A B C D E F G H
C D G A F H B E Answer
Slide 75 / 206
SLIDE 26 10 Name a point which is collinear with points C & G. A B C D E F G H
C D G A F H B E Answer
Slide 76 / 206
11 Name an opposite ray to Ray MN. A Ray MQ B Ray MO C Ray RO D Ray PR
O Q P M T R N S
Answer
Slide 77 / 206
12 Name an opposite ray to Ray PS.
A Ray MQ B Ray MO C Ray PO D Ray PR O Q P M T R N S Answer
Slide 78 / 206
SLIDE 27 13 Name an opposite ray to Ray PM.
A Ray MQ B Ray MO C Ray PO D Ray PR O Q P M T R N S Answer
Slide 79 / 206
14 Rays HE and HF are the same.
True False
D H g P G E F p
Answer
Slide 80 / 206
15 Rays HE and HP are the same.
True False
D H g P G E F p
Answer
Slide 81 / 206
SLIDE 28 16 Lines EH and EF are the same.
True False
D H g P G E F p
Answer
Slide 82 / 206
17 Line p contains just three points.
True False
D H g P G E F p
Answer
Slide 83 / 206
18 Points D, H, and E are collinear.
True False
D H g P G E F p
Answer
Slide 84 / 206
SLIDE 29 19 Points G, D, and H are collinear.
True False
D H g P G E F p
Answer
Slide 85 / 206
20 Are ray LJ and ray JL opposite rays?
Yes No J K
L
Answer
Slide 86 / 206
21 Which of the following are opposite rays?
A JK & LK B JK & LK C KJ & KL D JL & KL J K
L
Answer
Slide 87 / 206
SLIDE 30 22 Name the initial point of ray AC. A B C
A B
C
Answer
Slide 88 / 206
23 Name the initial point of ray BC. A B C
A B
C
Answer
Slide 89 / 206
Planes
Return to Table
Slide 90 / 206
SLIDE 31 Planes
A plane is a flat surface that has no thickness or height. It can extend infinitely in the directions of its length and breadth, just as the lines that lie on it may. But it has no height at all. Definition 5: A surface is that which has length and breadth only.
Slide 91 / 206 Planes
Recall that points which fall on the same line are called collinear points. With that in mind, what do you think points on the same plane are called?
Slide 92 / 206 Planes
Just as the ends of lines are points, the edges of planes are lines. Definition 6: The edges of a surface are lines.
Slide 93 / 206
SLIDE 32 Planes
This indicates that the surface of the plane is flat so that lines on the plane will lie flat on it. Thinking about the definitions of points and lines, exactly how flat do you think a plane is? Definition 7: A plane surface is a surface which lies evenly with the straight lines on itself.
Slide 94 / 206
As you figured out earlier, coplanar points are points which fall
Coplanar Points and Lines
All of the lines and points shown here are coplanar. D F E a A B C
Slide 95 / 206 Naming Planes
Also, it can be named by the single letter, "Plane R." Planes can be named by any three points that are not collinear. This plane can be named "Plane KMN," "Plane LKM," or "Plane KNL."
Slide 96 / 206
SLIDE 33 Coplanar Points
Coplanar points lie on the same plane. In this case, Points K, M, and L are coplanar and lie on the indicated plane.
Slide 97 / 206
While points O, K, and L do not lie on the indicated plane, they are coplanar with one another. Can you imagine a plane in which they are coplanar? Can you draw it on the image? What could be a name for that plane?
Coplanar Points Slide 98 / 206
Is it possible for any three points to not be coplanar with one another? Try and find 3 points
which are not coplanar.
Coplanar Points
Answer
Slide 99 / 206
SLIDE 34 24 How many points are needed to define a plane?
Answer
Slide 100 / 206
25 Can there be three points which are not coplanar
Yes No Answer
Slide 101 / 206
26 Can there be four points which are not coplaner
Yes No Answer
Slide 102 / 206
SLIDE 35 What would the intersection of two planes look like? Hint: the walls and ceiling of this room could represent planes.
Intersecting Planes
Answer
Slide 103 / 206
A B The intersection of these two planes is shown by Line AB.
Intersecting Planes
Try to imagine how two planes could intersect at a point, or in any
Slide 104 / 206 Various Planes Defined by 3 points
Imagine or shade in Plane BAW in the below drawing.
Slide 105 / 206
SLIDE 36
Various Planes Defined by 3 points
Plane BAW What are the 3 other ways you can name this same plane?
Slide 106 / 206 Various Planes Defined by 3 points
Imagine or shade in Plane AZW in the below drawing.
Slide 107 / 206 Various Planes Defined by 3 points
Plane AZW What are the 3 other ways you can name this same plane?
Slide 108 / 206
SLIDE 37 Various Planes Defined by 3 points
Draw Plane UYA in the below drawing.
Slide 109 / 206 Various Planes Defined by 3 points
Plane UYA What are the 3 other ways you can name this same plane?
Slide 110 / 206 Various Planes Defined by 3 points
Imagine or draw Plane ABU in the below drawing.
Slide 111 / 206
SLIDE 38
Various Planes Defined by 3 points
Plane ABU What are the 3 other ways you can name this same plane?
Slide 112 / 206
27 Name the point that is not in plane ABC. A B C D
A B C D Answer
Slide 113 / 206
28 Name the point that is not in plane DBC. A B C D
A B C D Answer
Slide 114 / 206
SLIDE 39
29 Name two points that are in both indicated planes. A B C D
A B C D Answer
Slide 115 / 206
30 Name two points that are not on Line BC. A B C D
A B C D Answer
Slide 116 / 206
31 Line BC does not contain point R. Are points R, B, and C collinear? Draw the situation if it helps.
Yes No Answer
Slide 117 / 206
SLIDE 40
32 Plane LMN does not contain point P. Are points P, M, and N coplanar?
Yes No Answer
Slide 118 / 206
33 Plane QRS contains line QV. Are points Q, R, S, and V coplanar? (Draw a picture)
Yes No Answer
Slide 119 / 206
34 Plane JKL does not contain line JN. Are points J, K, L, and N coplanar?
Yes No Answer
Slide 120 / 206
SLIDE 41
35 Line BA and line DB intersect at Point ____. A B C D E F G H
Answer
Slide 121 / 206
36 Which group of points are noncoplanar with points A, B, and F on the cube below.
A E, F, B, A B A, C, G, E C D, H, G, C D F, E, G, H Answer
Slide 122 / 206
37 Are lines EF and CD coplanar on the cube below?
Yes No Answer
Slide 123 / 206
SLIDE 42
38 Plane ABC and plane DCG intersect at _____?
A C B line DC C Line CG D they don't intersect Answer
Slide 124 / 206
39 Planes ABC, GCD, and EGC intersect at _____?
A line GC B point C C point A D line AC Answer
Slide 125 / 206
40 Name another point that is in the same plane as points E, G, and H. A B C D E F G H
Answer
Slide 126 / 206
SLIDE 43
41 Name a point that is coplanar with points E, F, and C. A B C D E F G H
Answer
Slide 127 / 206
42 Intersecting lines are __________ coplanar.
A Always B Sometimes C Never Answer
Slide 128 / 206
43 Two planes ____________ intersect at exactly one point.
A Always B Sometimes C Never Answer
Slide 129 / 206
SLIDE 44
44 A plane can __________ be drawn so that any three points are coplaner
A Always B Sometimes C Never Answer
Slide 130 / 206
45 A plane containing two points of a line __________ contains the entire line.
A Always B Sometimes C Never Answer
Slide 131 / 206
46 Four points are ____________ noncoplanar.
A Always B Sometimes C Never Answer
Slide 132 / 206
SLIDE 45 47 Two lines ________________ meet at more than
A Always B Sometimes C Never Answer
Slide 133 / 206
Congruence, Distance and Length
Return to Table
Slide 134 / 206
Two objects are congruent if they can be moved, by any combination of translation, rotation and reflection, so that every part of each object overlaps. This is the symbol for congruence: If a is congruent to b, this would be shown as below: which is read as "a is congruent to b."
a b
Congruence Slide 135 / 206
SLIDE 46
By this definition, it can be seen that all lines are congruent with one another. They are all infinitely long, so they have the same length. If they are rotated so that any two of their points overlap, all of their points will overlap.
Congruence Slide 136 / 206
Two objects are congruent if they can be moved, by translation, reflection, and/or rotation, so that every point of each object overlaps every point of the other object. There's no problem rotating line b to overlap line a.
Congruence
a b
Slide 137 / 206
And they are both infinitely long, so they have the same length. Therefore, they will overlap at every point once they are rotated to overlap at 2 points. They are congruent.
Congruence
a b
Slide 138 / 206
SLIDE 47 Would the same be true for any two rays?
Congruence
a b
Slide 139 / 206
Again, all rays are infinitely long, so they have the same length. And once their vertices and any other point on both rays
- verlap, all of their points will overlap.
All rays are congruent.
Congruence
a b
Slide 140 / 206
Would the same be true of all line segments?
Congruence
a b
Slide 141 / 206
SLIDE 48
If two line segments have different lengths, no matter how I move or rotate them, they will not overlap at every point. Only segments with the same length are congruent.
Congruence
a b
Slide 142 / 206
While distance and length are related terms, they are also different. At your table, come up with definitions of Distance and Length which show how they are related and how they are different.
Distance and Length Distance: Length: Slide 143 / 206
Distance is defined to be how far apart one point is from another. Length is defined to be the distance between the two ends of a line segment. Since every line segment has a point at each end, these are closely related concepts. To show congruence of line segments, they must show they have the same length.
Distance and Length Slide 144 / 206
SLIDE 49 1 2 3 4 5 6 7 8 9 10
A B C D E F Ruler Postulate: Any location along a number line can be paired with a matching number. This can be used to create a ruler in order to measure lengths and distances.
Distance and Length
Slide 145 / 206
1 2 3 4 5 6 7 8 9 10
A B C D E F For instance, we can indicate that on the below number line: Point C is located at the position of 0. Point E is located at +7.
Distance and Length Slide 146 / 206
We can say that points C and E are 7 apart since we have to move 7 units of measure to get from the location at 0 to that at +7. Also, we can construct line segment CE and note that it has a length of 7. So, two points which are 7 apart can be connected by a line segment of length 7. 1 2 3 4 5 6 7 8 9 10
A B C D E F
Distance and Length Slide 147 / 206
SLIDE 50 Any line segment which has a length of 7 will be congruent with CE, even if it needs to be rotated or moved to overlap it. All such segments have the same length regardless of orientation. So, segment CE and EC are congruent and have length 7.
Distance and Length
1 2 3 4 5 6 7 8 9 10
A B C D E F
Slide 148 / 206
What is the distance of the line below? Is that answer positive or negative?
Distance and Length
1 2 3 4 5 6 7 8 9 10
A B C D E F
Slide 149 / 206
All measures of distance and length are positive, regardless of the direction and orientation of the points with respect to one another or that of a line segment. Two points cannot be a negative distance apart. Nor can a line segment have a negative length.
Distance and Length
1 2 3 4 5 6 7 8 9 10
A B C D E F
Slide 150 / 206
SLIDE 51 You can imagine that each number on the number line is a step, and the distance between any two points is just how many steps you need to take to get from one to the other. Which direction you walk along the line doesn't change the distance. Distance is always a positive number. Do you remember a term we use in physics to describe a distance which has a direction and could have a negative value?
Distance
1 2 3 4 5 6 7 8 9 10
A B C D E F Answer
Slide 151 / 206
48 What is the location of point F?
1 2 3 4 5 6 7 8 9 10
A B C D E F Answer
Slide 152 / 206
49 What is the location of point A?
1 2 3 4 5 6 7 8 9 10
A B C D E F Answer
Slide 153 / 206
SLIDE 52 50 What is the distance from A to C?
1 2 3 4 5 6 7 8 9 10
A B C D E F Answer
Slide 154 / 206
51 What is the distance from B to E?
1 2 3 4 5 6 7 8 9 10
A B C D E F Answer
Slide 155 / 206
52 What is the distance from B to A?
1 2 3 4 5 6 7 8 9 10
A B C D E F Answer
Slide 156 / 206
SLIDE 53 Calculating Distance
Sometimes it is easier to calculate the distance between two points rather than count the steps between them. · First, subtract the locations of the two points · Then, take the absolute value of your answer, so that it is positive. Remember, distance is always positive. If you drive 100 miles, you use the same amount of energy regardless
- f which direction you drive...only how far you drive matters.
Slide 157 / 206 Calculating Distance
Let's calculate the distance between A and C. · First, note that A is at -7 and C is at 0 · Then, subtract those numbers: -7 - (0) = -7 [Always put the number being subtracted in parentheses to make sure to get its sign right.] · Then take the absolute value: the absolute value of -7 is 7. So the distance between A and C is 7. 1 2 3 4 5 6 7 8 9 10
A B C D E F
Slide 158 / 206 Calculating Distance
Let's do the same calculation, but this time let's reverse how we do the subtraction, let's subtract A from C. · First, let's note that A is at -7 and C is at 0 · Then, let's subtract those numbers: 0 - (-7) = +7 · Then take the absolute value: the absolute value of +7 is 7. So the distance between A and C is 7, calculated either way. 1 2 3 4 5 6 7 8 9 10
A B C D E F
Slide 159 / 206
SLIDE 54 53 What's the distance between A and F?
1 2 3 4 5 6 7 8 9 10
A B C D E F Answer
Slide 160 / 206
54 What's the distance between two points if
- ne is located at +125 and the other is
located at -350?
Answer
Slide 161 / 206
55 What's the distance between two points if
- ne is located at -540 and the other is
located at -180?
Answer
Slide 162 / 206
SLIDE 55 cm C E A B D F Find the measure of each segment in centimeters. a. b.
Example
= 8 - 2 = 6 cm = 1.5 cm
Slide 163 / 206
56 Find a segment that is 4 cm long.
A B C D cm C E A B D F Answer
Slide 164 / 206
57 Find a segment that is 6.5 cm long. A B C D cm C E A B D F Answer
Slide 165 / 206
SLIDE 56
58 Find a segment that is 3.5 cm long. A B C D cm C E A B D F Answer
Slide 166 / 206
59 Find a segment that is 2 cm long. A B C D cm C E A B D F Answer
Slide 167 / 206
60 Find a segment that is 5.5 cm long. A B C D cm C E A B D F Answer
Slide 168 / 206
SLIDE 57 61 If point F was placed at 3.5 cm on the ruler, how far from point E would it be?
A 5 cm B 4 cm C 3.5 cm D 4.5 cm cm C E A B D F Answer
Slide 169 / 206
AB BC AC
Segment Addition Postulate
If three points are on the same line, then one of them must be between the other two. The two shorter segments add to the larger, as shown below. C A B
Slide 170 / 206
AB BC AC
Adding Line Segments
If B is between A and C, then AB + BC = AC. Alternatively If AB + BC = AC, then B is between A and C. C A B
Slide 171 / 206
SLIDE 58 C A B D
E AB BC CD DE AE + + + =
Adding Line Segments
This works for any number of segments on a line.
Slide 172 / 206 Example
C A B D
E AB CD
= BC= 6 DE = 5 AE = 27 Given: BE CD Find: Answer
Slide 173 / 206
MK= 14x - 56 PM= 2x + 4 P lies between K and M on a line.
Example
Label the line and find x given that: PK = x + 17 Answer
Slide 174 / 206
SLIDE 59 Example
P, B, L, and M are collinear and are in the following order: a) P is between B and M b) L is between M and P Draw a diagram and solve for x, given: ML = 3x +16 PL = 2x +11 BM = 3x +140 PB = 3x + 13 Answer
Slide 175 / 206
62 What is the length of Segment AB?
Hint: always start these problems by placing the information you have into the diagram. C A B D E Answer
Slide 176 / 206
63 What is the length of Segment DE?
C A B D
E
Answer
Slide 177 / 206
SLIDE 60 64 What is the length of Segment CA?
C A B D
E
Answer
Slide 178 / 206
65 What is the length of Segment CE?
C A B D
E
Answer
Slide 179 / 206
66 What is the length of Segment CE?
C A B D
E
Answer
Slide 180 / 206
SLIDE 61 67 What is the length of Segment DA?
C A B D
E
Answer
Slide 181 / 206
68 What is the length of Segment BE?
C A B D
E
Answer
Slide 182 / 206
69 X, B, and Y are collinear points, with Y between
B and X. Place the points on the line and solve for x, given: BX = 6x + 151 XY = 15x - 7 BY = x - 12
Y X
B Answer
Slide 183 / 206
SLIDE 62 70 Q, X, and R are collinear points, with X between
R and Q. Draw a diagram and solve for x, given: XQ = 15x + 10 RQ = 2x + 131 XR = 7x +1
Q X R Answer
Slide 184 / 206
71 B, K, and V are collinear points, with K between V
and B. Draw a diagram and solve for x, given: KB = 5x BV = 15x + 125 KV = 4x +149
V K B Answer
Slide 185 / 206
Constructions and Loci
Return to Table
Slide 186 / 206
SLIDE 63 Introduction to Locus
In mathematics, a locus is defined to be the set of points which satisfy a given condition. Very often, we will set up a condition and solve for the locus of points which meet that condition. That can be done algebraically, but it can also be done with the use of drawing equipment such as a straight edge and compass.
Slide 187 / 206 The Circle as a Locus
One important example of a locus is that the set of points which is equidistant from any one point is a circle. The point from which they are equidistant is the center of the circle. The distance from the center, is the radius, r, of the circle. We will learn much more about circles later, but we need to learn a bit now so we can proceed with constructions. r
Slide 188 / 206 Euclid and Circles
Third Postulate: To describe a circle with any center and distance. This postulate says that we can draw a circle of any radius, placing its center where we choose.
Slide 189 / 206
SLIDE 64 Euclid and Circles
Definition 15: A circle is a plane figure contained by one line such that all the straight lines falling upon it from one point among those lying within the figure equal one another. The straight lines referenced here are the radii which are of equal length from the center to the points on the circle
Slide 190 / 206
Euclid and Circles
Definition 16: And the point is called the center of the circle. This says that the point that is equidistant from all of the points on a circle is the center of the circle.
Slide 191 / 206 Introduction to Constructions
In addition to a pencil, we will be using two tools to construct geometric figures a straight edge and a compass. A straight edge allows us to draw a straight line, which we are allowed to do between any two points. A compass allows us to draw a circle. Try the compass to the right. You can use the pencil to rotate the compass
Slide 192 / 206
SLIDE 65 Introduction to Constructions
center r circle The sharp point of a compass is placed at the center of the circle. The pencil then draws the circle. For constructions, we will just draw a small part of a circle, an arc. We do this to take advantage of the fact that every point on that arc is equidistant from the center.We can draw multiple arcs, if needed.
Slide 193 / 206 Try this!
1) Create a circle using the segment below. F E M
Teacher Notes
Slide 194 / 206
H G M
Try this!
2) Create a circle using the segment below.
Slide 195 / 206
SLIDE 66 Constructing Congruent Segments
Let's use these tools to create a line segment CD which is congruent with the given line segment AB. We will first do this with a straight edge and compass. B A
Slide 196 / 206 Constructing Congruent Segments
First, use your straight edge to draw a line which is longer than AB and includes Point C, such as Line a below. B A a C
Slide 197 / 206 Constructing Congruent Segments
Then, stretch your compass between points A and B. B A a C
Slide 198 / 206
SLIDE 67 Constructing Congruent Segments
The compass can now be used to draw an arc with any center with the radius of AB, how do you think we could use that to create a congruent segment on Line a with C as an endpoint? B A a C
Slide 199 / 206 Constructing Congruent Segments
Then, keeping the compass unchanged, place its point at C and make an arc through line a. All the points on that arc are a distance AB from C. The point where the arc intersects the line, is that distance from C and on the line. a C B A
Slide 200 / 206 Constructing Congruent Segments
Then, draw Point D at the intersection of the arc and line a. Point D is on the line at a distance of AB from C. a C B A D
Slide 201 / 206
SLIDE 68 Constructing Congruent Segments
Segment CD is congruent with segment AB, which was our
a C D B A
Slide 202 / 206 Try this!
3)Construct a congruent segment on the given line. L M N
Slide 203 / 206
I
J K
Try this!
4) Construct a congruent segment on the given line.
Slide 204 / 206
SLIDE 69
Click on the image below to watch a video demonstrating constructing congruent segments using Dynamic Geometric Software
Dynamic Geometric Software Slide 205 / 206 Slide 206 / 206
