Geo Twitter Data Collection and Visualization System Hideyuki Fujita Graduate School of Information Systems, University of Electro-Communications (Tokyo, Japan) Backgrounds Mobile social media generating valuable data for analyzing human

slide-1
SLIDE 1

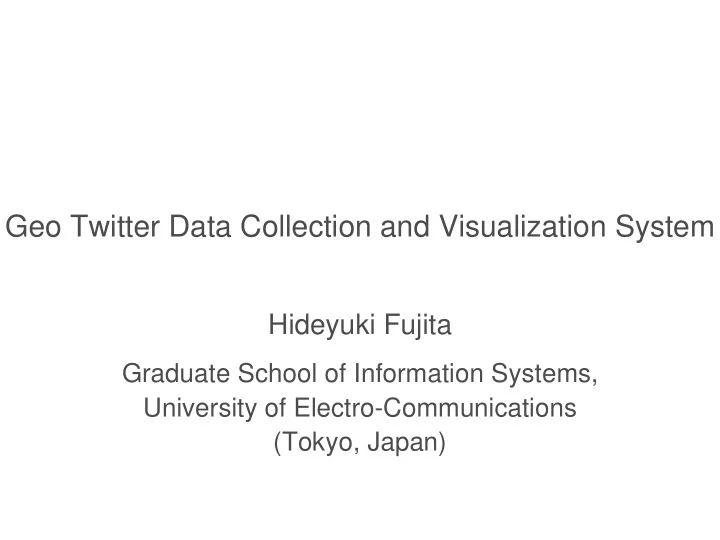

Geo Twitter Data Collection and Visualization System

Hideyuki Fujita

Graduate School of Information Systems, University of Electro-Communications (Tokyo, Japan)

slide-2
SLIDE 2

Backgrounds

Mobile social media

  • generating valuable data for analyzing human

behavior and events in the real world

  • (mobile use of) Facebook, Twitter, Instagram,

Flickr, Foursquare, etc. Twitter 500 million users 400 million tweets per day 0.77% geotagged (with the location coordinates) 64% posted from mobile devices

Report in July 2012 by Semiocast, inc

  • becoming mobile media
  • sharing realtime information including information

related to current location

slide-3
SLIDE 3
slide-4
SLIDE 4
slide-5
SLIDE 5
slide-6
SLIDE 6

Geo-Twitter Application: Related works

  • Interactive map application for situational awareness

MacEachren et al., 2011

  • Realtime mapping of local news

Sankaranarayanan et al.,2009

  • Realtime event detection and location / trajectory

prediction of earthquakes and typhoons

Sakaki et al.,2010

Key technologies

  • Event extraction from text
  • Natural language processing, machine learning
  • Spatial analysis
  • Location based data collection
slide-7
SLIDE 7

Twitter Data collection: Problem and Objective

Twitter API (Application Programing Interface)

  • Twitter's official service for providing sampling data

through HTTP communication.

  • easy to get small amount of data

Problem in collecting large amount of data

  • The amount of sampling data is small in

straightforward use of Twitter API.

  • Continuous collection of data costs much effort.
  • Having many researchers collecting the same data is

not efficient. Objective

  • Efficient data collection system for geo-tweet data
  • Data visualization system for geo-tweet data

Future plan

  • Data sharing system for researchers using geo-tweet

data

slide-8
SLIDE 8

Data collection method

Limitation of Twitter Search API

  • returns maximum 1,500 tweets under one search filter

with location and date-period Method

  • divide area into small areas (grid)
  • divide date-period into tweetID-periods

tweet ID: integer ID attached to all tweets in ascending sequence

area period

  • collect data within each divided area and period
  • aggregate collected data
slide-9
SLIDE 9

Evaluation

Area about 2×2 km around Tokyo Station Period 1 day

  • Num. of collected tweets

Common method using Streaming API 31,711 Common method using Search API 1,500 Proposed method 97,787

slide-10
SLIDE 10

Practical issues for collecting large area and long period

Access rate limitation to Search API per IP address

  • Connection is refused when the limit is exceeded.

Unstability of the API (best effort service)

  • Without explicit error message, the number of

tweets in Search API response often becomes much smaller than usual.

slide-11
SLIDE 11

Solutions for practical issues (1 of 2)

Data collection by distributed system

  • access the API from multiple servers with multiple

different IP addresses Pilot data collection for monitoring Twitter API status

  • continuously monitor the number of tweets

collected in a certain small grid cell to determine the status of the API

  • halt the data collection of the whole area when the

number of collected data in the pilot data collection is much smaller than usual (smaller than 10% of the average), restart the data collection when the API returns stable.

slide-12
SLIDE 12

Solutions for practical issues (2 of 2)

Re-collection of data that the system failed to collect

  • check posted date time of collected tweets of each

grid cell

  • If there are certain periods when tweets were not

collected, try to collect the data for those periods again in the grid cell Repeat request when receiving an explicit API error

slide-13
SLIDE 13

Distributed system for practical data collection

Master server (1 machine)

  • Pilot data collection for monitoring Twitter API

status

  • Getting and caching Date Boundary Tweet ID
  • Assigning collection areas and periods to data

collection servers Data collection servers (multiple machines)

  • Data collection within assigned area and period
  • Data re-collection
slide-14
SLIDE 14

Experiment and Result

Area about 20×20 km around central Tokyo Grid size about 2×2 km Period 2 weeks (from 25 July 2011 0:00 JST)

  • Num. of tweets 3,476,059
  • Num. of users

216,430

slide-15
SLIDE 15
slide-16
SLIDE 16
slide-17
SLIDE 17
slide-18
SLIDE 18

Daily variation (central Tokyo 20x20km)

20,000 40,000 60,000 80,000 100,000 120,000 140,000 160,000 180,000 200,000 Mon Tue Wed Thu Fri Sat Sun Mon Tue Wed Thu Fri Sat Sun

  • Num. of Tweets
  • Weekday > Weekend
slide-19
SLIDE 19

Daily variation (Odaiba area 2x2km, 1 day)

500 1,000 1,500 2,000 2,500 3,000 3,500 4,000 4,500 Mon Tue Wed Thu Fri Sat Sun Mon Tue Wed Thu Fri Sat Sun

  • Num. of Tweets
  • A popular shopping and amusement area
  • Weekend > Weekday
slide-20
SLIDE 20

Hourly variation (central Tokyo 20x20km, 2 days)

  • A small spike at around noon (lunch break?)
  • A large spike at midnight

2,000 4,000 6,000 8,000 10,000 12,000 14,000 2 4 6 8 10 12 14 16 18 20 22

  • Num. of tweets

hour

Largest (Thursday) Smallest (Sunday)

slide-21
SLIDE 21

Hourly variation (around Tokyo station 2x2km)

500 1,000 1,500 2,000 2,500 2 4 6 8 10 12 14 16 18 20 22

  • Num. of tweets

hour

  • Small spike around 4 AM corresponds to a small

earthquake.

slide-22
SLIDE 22

Number of geo-tweets per user

(central Tokyo 20x20km, 2 weeks)

  • Most users posted fewer than 4 geo-tweets in 2 weeks.

1 10 100 1,000 10,000 100,000 1 10 100 1,000 10,000 100,000

  • Num. of users
  • Num. of tweets
slide-23
SLIDE 23

Number of grid cells user posted geo-tweets

(central Tokyo 20x20km, 2 weeks)

  • More than half of the users posted geo-tweets in at least

two different cells.

  • One user posted geo-tweets in 56 different cells.

1 10 100 1,000 10,000 100,000 5 10 15 20 25 30 35 40 45 50 55

  • Num. of users
  • Num. of cells within which each user posted tweets
slide-24
SLIDE 24

Conclusion

  • Distributed data collection system for geo-tweet
  • collected several times more data than commonly

used methods

  • Spatio-temporal visualization system for geo-tweet

Future plan

  • Scaling up the system
  • enlarge the area for collecting geo-tweet data
  • Integrating realtime data collection system
  • Data sharing system for researchers using geo-tweet

data

slide-25
SLIDE 25
slide-26
SLIDE 26

Response of Twitter API (abstract)

Tweet text Tweet ID User ID Destination user ID (optional)

  • only for tweets posted as replies to others (with “@user”)

User profile (optional)

  • including location name input by the user

Location coordinates (optional)

  • only for tweets tagged with the location coordinates

(0.77%)

slide-27
SLIDE 27

Types of Twitter API

Streaming API

  • sends tweets continuously in realtime while

connected by an API client Search API

  • returns a set of tweets that match a specified query

when accessed by an API client To collect tweets within a specified area

  • Streaming API with location filter (geographic

coordinates of an area)

  • Search API with location and period (from and to

date) search filter

slide-28
SLIDE 28

Location information of Twitter

  • Not all the tweets have location information

Location coordinates (latitude, longitude)

  • attached only when the user opt in geotagging with

the location coordinates

  • mostly from devices with GPS / Wi-Fi positioning

systems

  • 0.77% of all tweets

Location name in user profile

  • input by the users. Fake, joke, wrong name
  • Search API extract only tweets with “correct” location

names

Location name in tweet text

  • extracted by Natural Language Processing technique
  • not high accuracy at this moment (less than 50%)
slide-29
SLIDE 29

Common method for collecting geo-tweet data continuously (1 of 2)

Caching data in realtime by connecting Streaming API with location filter Advantage

  • collecting realtime data

Disadvantage

  • The number of target tweets is relatively small.
  • cannot collect past data
slide-30
SLIDE 30

Common method for collecting geo-tweet data continuously (2 of 2)

Collecting data by accessing Search API at certain intervals with location and period search filter Advantage

  • The number of target tweets is relatively large.

Disadvantage

  • The search period is limited to the 5 days before

the current date.

  • impossible to collect all the tweets in areas where

the number of tweets per day is over 1,500

  • Search API Limitations:
  • The maximum number of tweets under one search

condition: 1,500

  • The minimum search area: 1×1 km
  • The minimum search period: 1 day
slide-31
SLIDE 31

Diffusion of Retweet

2011 the sum of 11 consecutive prime numbers. 2011 the sum of 11 consecutive prime numbers. Heavy rain warning issued for Tokyo. Heavy rain warning issued for Tokyo.
