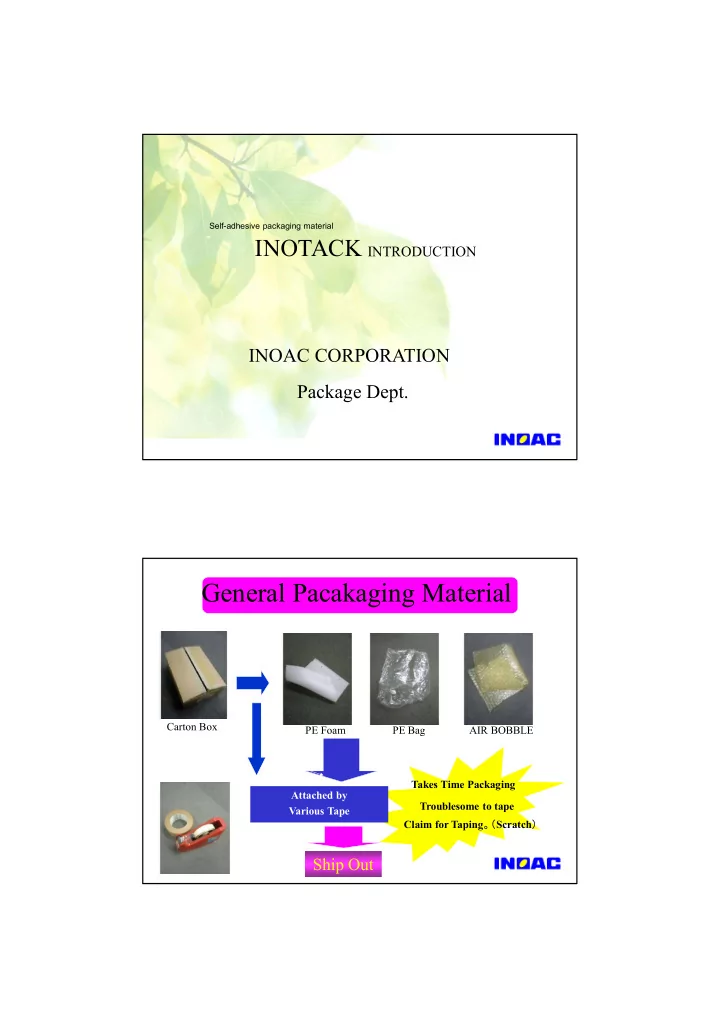

INOTACK INTRODUCTION

INOAC CORPORATION Package Dept.

Self-adhesive packaging material

General Pacakaging Material

PE Bag PE Foam AIR BOBBLE Attached by Various Tape Takes Time Packaging Troublesome to tape Claim for Taping。（Scratch） Carton Box

Ship Out

2

Merit of INOTACK

１．Without Tape and string, Cold Seal side attach together. ２． Various composite(Different Surface material) Type （Ex. Common, Piercing resistant, a half transparent. Etc. Type） ３．Possibly reduce Total Cost (Operation process reduction, labor cost etc). ４．Possibly better item quality assurance. (Less possible item damage

Function of INOTACK

１．Packaging ３．Protective cushion ４. Surface protection ２．Banding

3

Surface Material

Specification

＜Table 1＞

Foam

ポリプロピレンフォーム（ＰＰ１００ Exp）

Special adhesive

Self Cold Seal

Surface Material: Craft paper, Liner board, Film, Unwoven are availabl

１／１６“（1.6㎜） ３／３２”（2.4㎜）

Cold seal Foam Craft

NVL Type

Craft paper etc.

（Craft ７５g/㎡ ＮＶＬ－７５・ＰＥ クロス ＮVＬ－ＣＰ５０ etc）

Special Adhesive

Self Cold Seal

Without Foam ⇒ NVL

＜Table 2＞

Self Cold Seal Craft paper 商品

×

4

NVL -2

Craft Paper

（Craft Paper ５０g/㎡ ＮＶＬ－５０Ａ・ Craft Paper ７０g/㎡ ＮＶＬ－７０Ｃ 等）

ＷＡＸ Coating

ＷＡＸ Special Adhesive

Self Cold adhesive

＜Table 3＞ クラフト紙表面にＷＡＸを塗工する事 によって、クラフト紙の耐摩耗性を アップする事で、商品を守ります。

商品 WAX Coating Craft Self Adhesive

×

Corrugated Box

【Application and Merit】

１）Packaging

・Easy to cover/packaging without tape Point

ITEM CODE＜Ex：PC＃３０ 1/16”・PC100 3/32”OPP‐SC etc.＞

5

２）Banding

【Application Merit 】

・No Separator and No peeling Separator ・No Separator garbage

ITEM CODE＜Ex：PC030 1/16”NW‐2・PC025 1/16”PET. ect＞

Label application Banding for Wire Harness

・Bumper

【Application and Merit】

３）Surface Scratch Protection

・ Painting Plastic parts (Especial Automotive Exterior Parts etc.) ＜Application＞ ・Spoiler

ITEM Code＜Ex：NVL・ PC075 1/16”CPI etc.）

6

【Application and Merit】

４）Cushion

・ It is good cushion with 100 Expansion Polypropylene Foaming

５）Air-Tightness

・PP foam is Closed Cell which is excellent water resistance and humidity resistance ＜Closed Cell feature is good water reflection＞

【Application Graph per Industry】

分野別採用

Auto Furniture Housing OA Other

7

Fabrication

２）Slitting Min１５ｍｍ width and rewinding ３）Pressing Cut into various shape １）Cut Cut into desirable size ４）Printing (Craft Type)

【Frequent Question】

１．Roll Size：９１０㎜ etc.×２１０Ｍ（Please refer Catalog） ３．General Cost Idea （Against Carton box : 3x higher/ Against Air Bubble: 5 x Higher ） ４．It is a insulator, thus cause static ５．There is no anti-rust Time ６．Static Friction Coefficient ｔａｎθ＝６７゜ （Not Slippery） ７． Heat Resistance Temperature : It depends on type but cold seal adhesive start to get soften over 70C.

8

【Handling Caution】

１．Do not touch cold seal surface by hand.（It will bring adhesive bonding weaker by hand oil/sweat ２．Please do not attach machinery grease, Separator chemical, organic solvent over cold seal surface。 ５．Please do not Keep under high temperature, high humid. （No More than ７０℃） ３．Please do not expose cold seal surface（No direct Sun light) ４．Please do not get cold seal surface wet （but once it dries out, it can attach again)） ６．It tends not to attach together under law temperature （Please use more than and equal to 5C） Inotack adhesion may be weaken or not attach together due to above.

Handling Caution

１）Adhesive side is weak against ultra violet ray

• Face down foam-surface
• Keep in Dark

２）Adhesive migration

• Do not wrap Silver ・Copper directly
• Test/evaluation is required for PVC because plasticizer

influence PVC as well as unvulcanized Rubber

Keep Craft paper face up ク ラ フ ト 面 が 表 側

×
