FXPAL Interactive Search for TRECVID 2004 John Adcock, Matthew Cooper, Andreas Girgensohn, Lynn Wilcox Overview First time doing search 2 nd year of participation overall Emphasis on interface elements Rich visualization of

slide-1
SLIDE 1

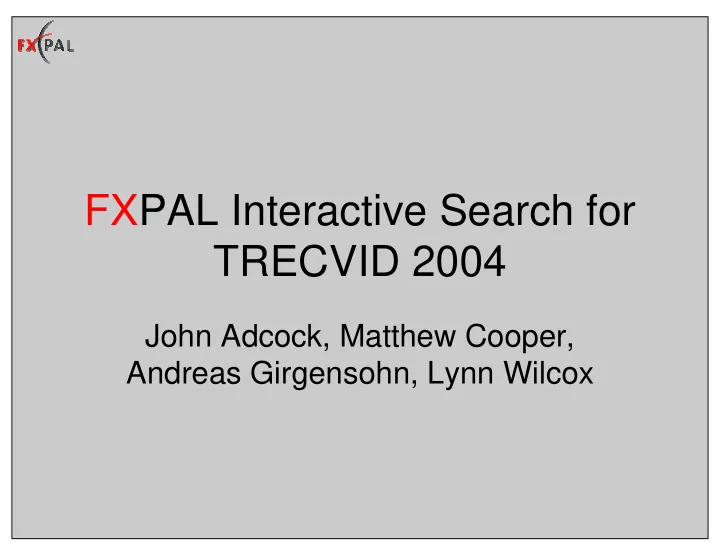

FXPAL Interactive Search for TRECVID 2004

John Adcock, Matthew Cooper, Andreas Girgensohn, Lynn Wilcox

slide-2
SLIDE 2

FX Palo alto Laboratory Inc @ trecvid 2004

2

Overview

  • First time doing search

– 2nd year of participation overall

  • Emphasis on interface elements

– Rich visualization of search results – Quick and easy exploration of results

  • Straightforward search engine

– Text search over ASR transcripts

  • Literal search with Lucene
  • Fuzzy search with LSS

– Keyframe search by image similarity

  • Color correlograms
slide-3
SLIDE 3

FX Palo alto Laboratory Inc @ trecvid 2004

3

Preprocessing

Unit of search retrieval is a “story”, but we couldn’t don’t have reference story segmentation for the test set

  • Group reference shots into “stories”

– Bootstrap an LSS with common shot boundaries and ASR – use similarity-matrix method to find “story” boundaries

  • Given new story boundaries

– Generate text indices for story and shots – Generate story-based LSS for search

slide-4
SLIDE 4

FX Palo alto Laboratory Inc @ trecvid 2004

4

LS Index (shots)

Preprocessing

ASR Common Shot Ref Bootstrap LSS (shots) Similarity Segmentation Story Segments LS Index (stories) Lucene Index (stories) Lucene Index (shots)

slide-5
SLIDE 5

FX Palo alto Laboratory Inc @ trecvid 2004

5

Search Engine

  • User specifies combination of:

– Text query

  • Literal query using Lucene or fuzzy query using LSS

– Image examples

  • Any keyframe in the interface can be dragged onto the image

example area

– Text/image weighting is static and equal – Max image similarity of shot propagated to story – Text similarity of story propagated to shot

  • Averaged with shot-based text similarity
slide-6
SLIDE 6

FX Palo alto Laboratory Inc @ trecvid 2004

6

Search Engine

Lucene Search LSS Search Query text Image Color Correlogram Search Query Images Combine Ranked Stories

Searcher

  • ption
slide-7
SLIDE 7

FX Palo alto Laboratory Inc @ trecvid 2004

7

Interface Elements

  • Stories summarized in keyframe “quads”
  • Navigate through stories to video timeline/shots
  • Transparent icon overlays

– Visited: grayed – Relevant: green – Irrelevant:red

  • Query-relevance shown with size and color
  • Hotkeys for most actions
  • Multi-select and drag and drop
slide-8
SLIDE 8

FX Palo alto Laboratory Inc @ trecvid 2004

8

Text query box Image query box Trecvid topic text Text search type Trecvid topic images Query results area Gray visited

  • verlay

Relevant shots area Media player and zoom area Video timeline Expanded shots area Excluded overlay Included overlay Selected story

slide-9
SLIDE 9

FX Palo alto Laboratory Inc @ trecvid 2004

9

Story Summary Quads

  • Query-dependent story summary

– Use 4 highest scoring shots in the story – Allocate space proportional to score

Story thumbnail Shot thumbnails

slide-10
SLIDE 10

FX Palo alto Laboratory Inc @ trecvid 2004

10

Building on searches

  • Find similar

– Use shot/story text for search

  • Add related

– Auto re-query with existing results

slide-11
SLIDE 11

FX Palo alto Laboratory Inc @ trecvid 2004

11

Expanded Story / Timeline Browsing

  • Selecting a story expands the

video at that point

– Clickable video timeline with relevancy shading – Clickable story quad timeline – Shot thumbs marked with relevancy – Overlay on shots marked (non)relevant – Mouse-overs zoom in the media player and tool-tip shows relevancy context – Double clicks play video in the media player

slide-12
SLIDE 12

FX Palo alto Laboratory Inc @ trecvid 2004

12

Experiments

  • 6 searchers answering 12 topics each in latin

square

– Pairs of orthogonal users grouped together

  • Each topic answered 3 times

– Searchers include 2 primary developers

  • 1 ended up in best and 1 in worst performing group
  • Each of the 3 complete searcher runs goes

through 3 “systems” or methods for filling out the shot list yielding 9 total submissions

slide-13
SLIDE 13

FX Palo alto Laboratory Inc @ trecvid 2004

13

System Types

  • Type 1:

re-issue user queries and weight results of each query by precision against the user-labeled shots

  • Type 2:

take text from all relevant shots and issue a single new LSS-based text query

  • Type 3:

take text from each relevant shot in turn for LSS-based query and apply query ranking as in system type 1

Shots marked as not-relevant excluded from system results Every system type preceded by bracketing the user- retrieved shots

slide-14
SLIDE 14

FX Palo alto Laboratory Inc @ trecvid 2004

14

Submissions

User IDed Shots Bracketed Shots System1 (Weighted) System2 (LSA1) System3 (LSA2) + +

slide-15
SLIDE 15

FX Palo alto Laboratory Inc @ trecvid 2004

15

Results

  • Ranks 3-6, 9-13 in overall MAP

– Strongly user dependent (user groups clump together) – Post-processing methods perform nearly same

0.05 0.1 0.15 0.2 0.25 0.3 0.35 0.4 I_A_1_AL_2_5 I_A_1_AL_1_4 I_A_1_AL_3_6 I_A_1_AL_1_7 I_A_1_AL_2_8 I_A_1_AL_3_9 I_A_1_AL_1_1 I_A_1_AL_2_2 I_A_1_AL_3_3 Submissions MAP

FXPal submissions Other contributors 2 3 1

slide-16
SLIDE 16

FX Palo alto Laboratory Inc @ trecvid 2004

16

User vs. System

0.05 0.1 0.15 0.2 0.25 0.3 0.35 MAP Group 1 Group 2 Group 3 User Group

System Summary

WEIGHTED LSA1 LSA2 Bracketed None

slide-17
SLIDE 17

FX Palo alto Laboratory Inc @ trecvid 2004

17

User vs. System in Overall

0.05 0.1 0.15 0.2 0.25 0.3 0.35 0.4

I_A_1_AL_2_5 I_A_1_AL_1_4 I_A_1_AL_3_6 fxpal_2_bracketed I_A_1_AL_1_7 I_A_1_AL_2_8 I_A_1_AL_3_9 I_A_1_AL_1_1 I_A_1_AL_2_2 I_A_1_AL_3_3 fxpal_2_users fxpal_1_bracketed fxpal_3_bracketed fxpal_3_users fxpal_1_users Submission

MAP

With bracketing User selected only Complete submission Other contributors

slide-18
SLIDE 18

FX Palo alto Laboratory Inc @ trecvid 2004

18

Performance by Question

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 people on steps or stairs pedestrians and vehicles bicycles rolling people moving a stretcher umbrellas fingers striking keyboard buildings on fire handheld weapon firing golf ball into the hole Bill Clinton tennis player contacting ball horses in motion people and dogs wheelchairs signs at a protest zooming in US Capitol dome Benjamin Netanyahu buildings with flood waters Henry Hyde Saddam Hussein. Sam Donaldson hockey rink Boris Yeltsin MAP Overall median FXPal average Overall max

slide-19
SLIDE 19

FX Palo alto Laboratory Inc @ trecvid 2004

19

Directions

  • More sophisticated:

– Story segmentation – Image similarity / video features

  • Simplify user interface for non power-users and

more typical search and re-use tasks

  • Handle multiple simultaneous media streams

– Presentation slides – Multi-camera capture
