slide-1

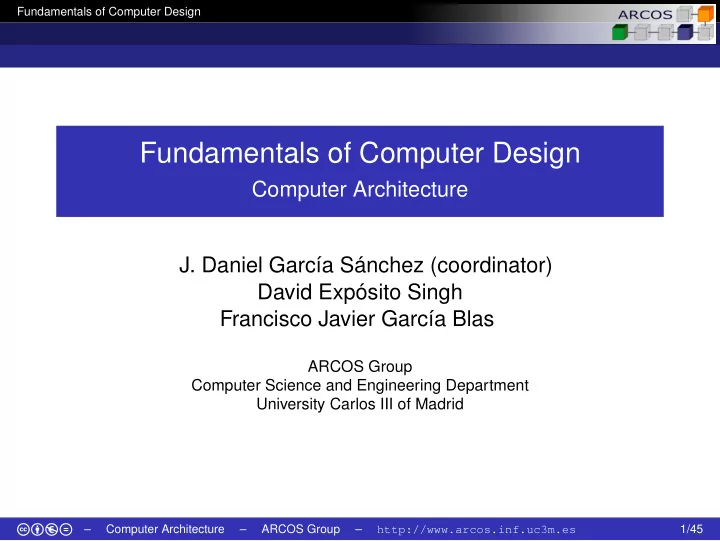

SLIDE 1

Fundamentals of Computer Design

Fundamentals of Computer Design

Computer Architecture

  • J. Daniel García Sánchez (coordinator)

David Expósito Singh Francisco Javier García Blas

ARCOS Group Computer Science and Engineering Department University Carlos III of Madrid

cbed

– Computer Architecture – ARCOS Group – http://www.arcos.inf.uc3m.es 1/45

slide-2
SLIDE 2

Fundamentals of Computer Design Introduction

1

Introduction

2

Historic perspective

3

Classification

4

Parallelism

5

Computer Architecture

6

Conclusion

cbed

– Computer Architecture – ARCOS Group – http://www.arcos.inf.uc3m.es 2/45

slide-3
SLIDE 3

Fundamentals of Computer Design Introduction

Computer Architecture

Source: http://commons. wikimedia.org/wiki/File: Amdahl_march_13_2008.jpg

The term architecture is used here to describe the attributes of a system as seen by the programmer, i.e., the conceptual structure and functional behavior, as distinct from the organization of the data flow and controls, the logical design, and the physical implementation.

Gene Amdahl et al. Architecture of the IBM System. IBM Journal of Research and Development Vol 8 (2) pp. 87-101. 1964.

cbed

– Computer Architecture – ARCOS Group – http://www.arcos.inf.uc3m.es 3/45

slide-4
SLIDE 4

Fundamentals of Computer Design Introduction

What is Computer Architecture?

Computer Architecture is the science and art of selecting and interconnecting hardware components to create computers that meet functional, performance and cost goals. WWW Computer Architecture Page. Computer architecture is not about using computers to design buildings. ¨ ⌣

cbed

– Computer Architecture – ARCOS Group – http://www.arcos.inf.uc3m.es 4/45

slide-5
SLIDE 5

Fundamentals of Computer Design Introduction

Why study Computer Architecture?

No computers ⇒ No Computer Engineers. To understand trends for next decade.

How will computers be in the future? What will they be able to do?

To understand computers limitations.

What can be done? What can’t be done? Where are the performance limitations?

cbed

– Computer Architecture – ARCOS Group – http://www.arcos.inf.uc3m.es 5/45

slide-6
SLIDE 6

Fundamentals of Computer Design Introduction

The Moore’s Law

Number of transistors per chip duplicated every N months.

With 12 <N <24. Gordon Moore, 1965.

Observations:

1 Obtained from experimental data → Empirical Law. 2 Still valid today. 3 It does not need to directly translate into performance

increases.

cbed

– Computer Architecture – ARCOS Group – http://www.arcos.inf.uc3m.es 6/45

slide-7
SLIDE 7

Fundamentals of Computer Design Introduction

Transistors per chip

Activity: Please, read the full article.

Source: The free lunch is over. Herb Sutter. http://www.gotw.ca/ publications/ concurrency-ddj.htm

cbed

– Computer Architecture – ARCOS Group – http://www.arcos.inf.uc3m.es 7/45

slide-8
SLIDE 8

Fundamentals of Computer Design Introduction

Effects of RISC emergence

Available capacity improvement.

A high-end microprocessor is more powerful than a supercomputer ten years before.

cbed

– Computer Architecture – ARCOS Group – http://www.arcos.inf.uc3m.es 8/45

slide-9
SLIDE 9

Fundamentals of Computer Design Introduction

Cost versus performance

The cost/performance improving ratio leads to new classes

  • f computers.

80’s: PC and workstations. 00’s:

Smart-phones and tablets. More large scale data centers with thousand of nodes giving a single system image.

cbed

– Computer Architecture – ARCOS Group – http://www.arcos.inf.uc3m.es 9/45

slide-10
SLIDE 10

Fundamentals of Computer Design Introduction

The RISC revolution

Continuous semiconductor improvement led to microprocessor based computers to become dominant.

Minicomputers disappear. Mainframes and supercomputers built as a collection of microprocessors.

Sustained increase in performance from 1986 to 2003:

52% per year.

No longer true!

cbed

– Computer Architecture – ARCOS Group – http://www.arcos.inf.uc3m.es 10/45

slide-11
SLIDE 11

Fundamentals of Computer Design Historic perspective

1

Introduction

2

Historic perspective

3

Classification

4

Parallelism

5

Computer Architecture

6

Conclusion

cbed

– Computer Architecture – ARCOS Group – http://www.arcos.inf.uc3m.es 11/45

slide-12
SLIDE 12

Fundamentals of Computer Design Historic perspective

First revolution: Microprocessor

The microprocessor revolution.

Generated from a single change. Enough transistors (25,000) in a single chip for a 16-bit processor. Advantages:

Faster: Less accesses out of the chip. Cheaper: All in one chip.

New market segments generated by the innovation.

Desktop computers, CD/DVD, laptops, video-game consoles, set-top-boxes, digital cameras, MP3, GPS, . . .

Impact on existing markets.

Supercomputers, mainframes, . . .

cbed

– Computer Architecture – ARCOS Group – http://www.arcos.inf.uc3m.es 12/45

slide-13
SLIDE 13

Fundamentals of Computer Design Historic perspective

First microprocessor

Intel 4004 (1971).

Application domain: Calculators. Technology: 10,000 nm. Data:

2300 transistors. 13 mm2 108 KHz 12 Volts

Features:

4-bits data. Data-path in one cycle.

cbed

– Computer Architecture – ARCOS Group – http://www.arcos.inf.uc3m.es 13/45

slide-14
SLIDE 14

Fundamentals of Computer Design Historic perspective

Second revolution

Extract implicit instruction-level parallelism (ILP).

Hardware has resources that can be used in parallel.

Elements:

Pipelining: Allowed increasing clock frequency. Caches: Needed to increase clock frequencies. Floating point: Integrated into the chip. Increasing pipeline depth and speculative branching. Multiple issue: superscalar architectures. Dynamic scheduling: Out-of-Order execution.

cbed

– Computer Architecture – ARCOS Group – http://www.arcos.inf.uc3m.es 14/45

slide-15
SLIDE 15

Fundamentals of Computer Design Historic perspective

Top single core processors

Intel Pentium 4 (2003).

Application domain: Desktop / Servers. Technology: 90 nm (1/100x).

Data:

55M transistors (20,000x). 101 mm2 (10x). 3.4 GHz (10,000x). 1.2 Volts (1/10x).

Features:

32/64-bit data (16x). Data path with 22 pipeline stages (later 31). 3-4 instructions per cycle (superscalar). Two level cache on chip. Data parallel instructions (SIMD). Hyper-threading.

cbed

– Computer Architecture – ARCOS Group – http://www.arcos.inf.uc3m.es 15/45

slide-16
SLIDE 16

Fundamentals of Computer Design Historic perspective

Third revolution

Explicitly support thread-level and data-level parallelism.

Hardware offers parallel resources and software specifies its use. Parallelism no longer hidden by hardware. Rationale: Diminishing returns from ILP .

Elements:

Vector instructions: Intel SSE. General support for multi-threaded applications.

cbed

– Computer Architecture – ARCOS Group – http://www.arcos.inf.uc3m.es 16/45

slide-17
SLIDE 17

Fundamentals of Computer Design Historic perspective

Multi-core processors

Intel Core i7 (2009).

Application: Desktop / Server. Technology: 45 nm (1/2x).

Data:

774M transistors (12x). 296 mm2 (3x). 3.2 GHz – 3.6 GHz (≈1x). 0.7 – 1.4 Volts (≈1x).

Features:

128-bit data (2x). Datapath with 14-stage pipeline (0.5x). 4 instructions per cycle (≈1x). Three level cache on chip. Data parallel instructions (SIMD). Hyper-threading. 4 cores (4x).

cbed

– Computer Architecture – ARCOS Group – http://www.arcos.inf.uc3m.es 17/45

slide-18
SLIDE 18

Fundamentals of Computer Design Historic perspective

Architecture trends

Instruction-Level Parallelism.

Parallel execution of instructions. Impossible to improve Instruction-Level parallelism (since 2003-2005). Hardware and compiler conspiration to hide details to programmer.

Programmer with very simplified view of hardware.

New models to improve performance.

Data-Level Parallelism (DLP). Thread-Level Parallelism (TLP). Request-Level Parallelism (RLP).

IMPORTANT: All of them require to re-structure applications to take advantage of promised performance increase.

cbed

– Computer Architecture – ARCOS Group – http://www.arcos.inf.uc3m.es 18/45

slide-19
SLIDE 19

Fundamentals of Computer Design Classification

1

Introduction

2

Historic perspective

3

Classification

4

Parallelism

5

Computer Architecture

6

Conclusion

cbed

– Computer Architecture – ARCOS Group – http://www.arcos.inf.uc3m.es 19/45

slide-20
SLIDE 20

Fundamentals of Computer Design Classification

Personal Mobile Devices

Wireless devices with multimedia UI.

Mobile devices, tablets, . . .

Price: $100 – $1000. Processor price: $10 – $100. Critical factors:

Cost. Energy. Media performance. Responsiveness.

cbed

– Computer Architecture – ARCOS Group – http://www.arcos.inf.uc3m.es 20/45

slide-21
SLIDE 21

Fundamentals of Computer Design Classification

Desktop

Designed to offer good performance to end-user.

From ultra-books to workstations. Since 2008 more than 50% are laptops.

Price: $300 – $2500. Processor price: $50 – $500. Critical factors:

Price-Performance. Energy. Graphics performance.

cbed

– Computer Architecture – ARCOS Group – http://www.arcos.inf.uc3m.es 21/45

slide-22
SLIDE 22

Fundamentals of Computer Design Classification

Servers

Used to run large scale applications and give service to multiple users simultaneously.

Growing since 80’s replacing mainframes.

Price: $5,000 – $10,000,000. Processor price: $200 – $2,000. Critical factors:

Throughput. Availability. Scalability. Energy.

cbed

– Computer Architecture – ARCOS Group – http://www.arcos.inf.uc3m.es 22/45

slide-23
SLIDE 23

Fundamentals of Computer Design Classification

Clusters / Warehouse Scale Computers (WSC)

A collection of computers connected through a LAN and acting as a larger computer.

Made much more popular by SaaS (Software as a Service) growth. Each node runs its own operating system. WSC → 10,000+ nodes.

Price: $100,000 – $200,000,000. Processor price: $50 – $250. Critical factors:

Price-Performance. Throughput. Energy proportionality.

cbed

– Computer Architecture – ARCOS Group – http://www.arcos.inf.uc3m.es 23/45

slide-24
SLIDE 24

Fundamentals of Computer Design Classification

Embedded

Computer within another system to run pre-established applications.

Dish-washer, video-game console, MP3, . . .

Processor price: $0.01 – $100. Critical factors:

Price. Energy. Application-specific performance.

cbed

– Computer Architecture – ARCOS Group – http://www.arcos.inf.uc3m.es 24/45

slide-25
SLIDE 25

Fundamentals of Computer Design Classification

Sales (2010)

Class Units Sold Portable Mobile Devices 1,800,000,000 Desktop 350,000,000 Servers 20,000,000 Embedded 19,000,000,000

cbed

– Computer Architecture – ARCOS Group – http://www.arcos.inf.uc3m.es 25/45

slide-26
SLIDE 26

Fundamentals of Computer Design Parallelism

1

Introduction

2

Historic perspective

3

Classification

4

Parallelism

5

Computer Architecture

6

Conclusion

cbed

– Computer Architecture – ARCOS Group – http://www.arcos.inf.uc3m.es 26/45

slide-27
SLIDE 27

Fundamentals of Computer Design Parallelism

The speed of a serial computer

A 1 TFLOP (1012 FLOPS) sequential machine:

Data must travel a certain distance (r) from memory to CPU. 1 data element per cycle ⇒ 1012 times per second ⇒ 10−12 s. per cycle. Data traveling at light speed: c = 3 · 108 m/s. r = 3 · 108 · 10−12 = 0.3mm

1 TB of data in 0.3 mm2 surface:

Each data to be stored in 3 Angmstroms (approx.)

The size of a small atom!

CONSEQUENCE: Sequential approach not feasible.

cbed

– Computer Architecture – ARCOS Group – http://www.arcos.inf.uc3m.es 27/45

slide-28
SLIDE 28

Fundamentals of Computer Design Parallelism

Parallelism Kinds

All computers have cost and energy restrictions. Parallelism emerges as main mechanism to design computers. Types of application parallelism:

Data parallelism: Same operation applied to many data. Task parallelism: Tasks operate independently and in parallel.

cbed

– Computer Architecture – ARCOS Group – http://www.arcos.inf.uc3m.es 28/45

slide-29
SLIDE 29

Fundamentals of Computer Design Parallelism

Hardware parallelism

ILP: Instruction-Level Parallelism.

Exploits data-parallelism with compiler help (pipeline, speculative execution, . . . ).

Vector architectures and GPUs.

Exploit data parallelism applying the same instruction to several data in parallel.

TLP: Thread-Level Parallelism.

Exploits data or task parallelism in highly coupled hardware. Allows inter-thread interactions.

RLP: Request-Level Parallelism.

Exploits parallelism among highly decoupled tasks.

cbed

– Computer Architecture – ARCOS Group – http://www.arcos.inf.uc3m.es 29/45

slide-30
SLIDE 30

Fundamentals of Computer Design Parallelism

Flynn Taxonomy (1966)

A classification of possible parallel architectures. SISD: Single Instruction / Single Data Stream.

Mono-processor. May use ILP techniques.

SIMD: Single Instruction / Multiple Data Stream.

Same instructions executed by different processors on distinct data items. Alternatives: Vector processors, multimedia extensions, and GPUs.

MISD: Multiple Instructions / Single Data Stream.

No known commercial implementation.

MIMD: Multiple Instructions / Multiple Data Stream.

Each processor operates on its own data items ⇒ Task Parallelism.

cbed

– Computer Architecture – ARCOS Group – http://www.arcos.inf.uc3m.es 30/45

slide-31
SLIDE 31

Fundamentals of Computer Design Parallelism

More about MIMD

Variety in MIMD architectures:

Highly coupled architectures.

TLP (Thread-Level Parallelism): Multi/Many-core architectures.

Weakly coupled architectures:

RLP (Request-Level Parallelism): Clusters and WSCs.

MIMD is:

More flexible and general than SIMD. More expensive than SIMD. Requires enough task granularity.

cbed

– Computer Architecture – ARCOS Group – http://www.arcos.inf.uc3m.es 31/45

slide-32
SLIDE 32

Fundamentals of Computer Design Computer Architecture

1

Introduction

2

Historic perspective

3

Classification

4

Parallelism

5

Computer Architecture

6

Conclusion

cbed

– Computer Architecture – ARCOS Group – http://www.arcos.inf.uc3m.es 32/45

slide-33
SLIDE 33

Fundamentals of Computer Design Computer Architecture

Architecture Views

Computer design is complex.

Determine important attributes. Maximize performance and energy efficiency with control

  • ver cost, power, and availability.

Different views on architecture design:

Instruction set design. Functional organization. Logic design. Implementation: Circuit design, packaging, cooling, . . . Integration with compilers, operating systems, . . .

cbed

– Computer Architecture – ARCOS Group – http://www.arcos.inf.uc3m.es 33/45

slide-34
SLIDE 34

Fundamentals of Computer Design Computer Architecture

ISA: Instruction Set Architecture

ISA: Part of the architecture which is visible to the programmer.

Available instructions. Registers number and type. Instructions format. Addressing modes. Exception conditions.

cbed

– Computer Architecture – ARCOS Group – http://www.arcos.inf.uc3m.es 34/45

slide-35
SLIDE 35

Fundamentals of Computer Design Computer Architecture

ISA Kinds

Almost every current ISA use general purpose registers. Popular versions:

Register-Memory ISA:

Many instructions may access main memory. e.g.: Intel 80x86.

Load-Store ISA:

Only load/store instructions can access main memory. Other instructions operate on registers. e.g.: ARM, MIPS.

Most recent ISAs are load-store.

cbed

– Computer Architecture – ARCOS Group – http://www.arcos.inf.uc3m.es 35/45

slide-36
SLIDE 36

Fundamentals of Computer Design Computer Architecture

Memory addressing

Types:

Byte addressing: Address identifies a byte within memory. Word addressing: Address identifies a word within memory.

Most popular addressing: Byte addressing. Variants:

All accesses must be aligned (e.g. MIPS). Aligned accesses are faster (e.g. 80x86).

cbed

– Computer Architecture – ARCOS Group – http://www.arcos.inf.uc3m.es 36/45

slide-37
SLIDE 37

Fundamentals of Computer Design Computer Architecture

Addressing modes

MIPS:

Register. Immediate. Relative to register.

80x86:

Register, immediate, relative to register. Absolute. Base register with displacement (2 registers). Base register with scaled index and displacement. . . .

cbed

– Computer Architecture – ARCOS Group – http://www.arcos.inf.uc3m.es 37/45

slide-38
SLIDE 38

Fundamentals of Computer Design Computer Architecture

Operand types and sizes

Integers:

8 bits (character). 16 bits (Unicode character). 32 bits (integer / word). 64 bits (long integer / double word).

Floating point:

32 bits (single precision). 64 bits (double precision). 80 bits (80x86 extended double precision).

cbed

– Computer Architecture – ARCOS Group – http://www.arcos.inf.uc3m.es 38/45

slide-39
SLIDE 39

Fundamentals of Computer Design Computer Architecture

Operations

Categories:

Data transfer, arithmetic, logic, control, and floating point.

MIPS:

Simple instructions, easy to implement in a pipeline (RISC).

80x86:

Many more instructions. Variable complexity.

cbed

– Computer Architecture – ARCOS Group – http://www.arcos.inf.uc3m.es 39/45

slide-40
SLIDE 40

Fundamentals of Computer Design Computer Architecture

Flow control instructions

Categories:

Conditional branching, jumps, procedure calls and returns.

MIPS:

PC-relative addressing. Conditions on register values. Procedure calls place return value in register.

80x86:

PC-relative addressing. Conditions on bits with condition codes. Procedure calls through stack.

cbed

– Computer Architecture – ARCOS Group – http://www.arcos.inf.uc3m.es 40/45

slide-41
SLIDE 41

Fundamentals of Computer Design Computer Architecture

Instruction coding

Fixed length

MIPS. All instructions are 32 bit. Simplified instruction decode.

Variable length

80x86. Length from 1 to 18 bytes. Reduces program size.

cbed

– Computer Architecture – ARCOS Group – http://www.arcos.inf.uc3m.es 41/45

slide-42
SLIDE 42

Fundamentals of Computer Design Conclusion

1

Introduction

2

Historic perspective

3

Classification

4

Parallelism

5

Computer Architecture

6

Conclusion

cbed

– Computer Architecture – ARCOS Group – http://www.arcos.inf.uc3m.es 42/45

slide-43
SLIDE 43

Fundamentals of Computer Design Conclusion

Summary

Moore’s law still alive.

But “The free lunch is over”.

New models improve performance (DLP, TLP, RLP) but require application restructuring. Diversity in computer classes with varied properties and requirements.

PMD, Desktop, Servers, WSC, Embedded.

Emerging architectures combining SIMD and MIMD. ISA is different from architecture.

cbed

– Computer Architecture – ARCOS Group – http://www.arcos.inf.uc3m.es 43/45

slide-44
SLIDE 44

Fundamentals of Computer Design Conclusion

References

Computer Architecture. A Quantitative Approach 5th Ed. Hennessy and Patterson. Sections 1.1, 1.2, and 1.3. The Free Lunch is over. Herb Sutter.

http://www.gotw.ca/publications/concurrency-ddj.htm

Welcome to the Jungle. Herb Sutter.

http://herbsutter.com/welcome-to-the-jungle/

cbed

– Computer Architecture – ARCOS Group – http://www.arcos.inf.uc3m.es 44/45

slide-45
SLIDE 45

Fundamentals of Computer Design Conclusion

Fundamentals of Computer Design

Computer Architecture

  • J. Daniel García Sánchez (coordinator)

David Expósito Singh Francisco Javier García Blas

ARCOS Group Computer Science and Engineering Department University Carlos III of Madrid

cbed

– Computer Architecture – ARCOS Group – http://www.arcos.inf.uc3m.es 45/45
