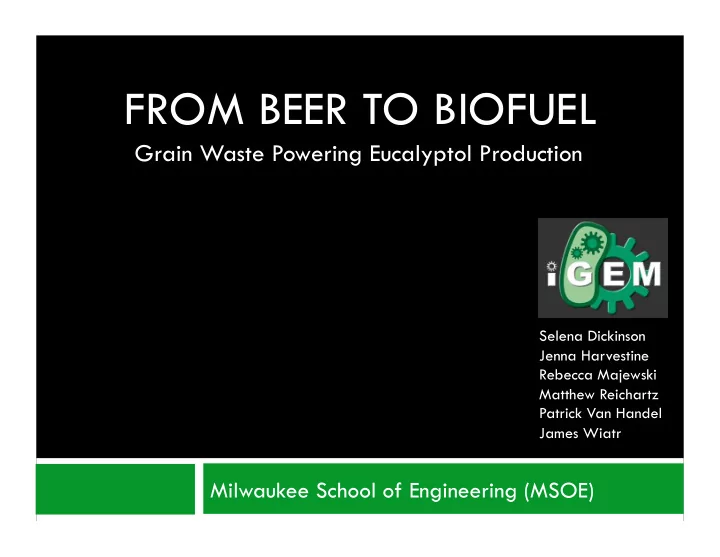

FROM BEER TO BIOFUEL Grain Waste Powering Eucalyptol Production Selena Dickinson Jenna Harvestine Rebecca Majewski Matthew Reichartz Patrick Van Handel James Wiatr Milwaukee School of Engineering (MSOE) Choosing a Project Wanted to

SLIDE 1

FROM BEER TO BIOFUEL

Milwaukee School of Engineering (MSOE)

Selena Dickinson Jenna Harvestine Rebecca Majewski Matthew Reichartz Patrick Van Handel James Wiatr

Grain Waste Powering Eucalyptol Production

SLIDE 2

Choosing a Project

 Wanted to produce a

rare fragrance

 Eucalyptus Oil

 Derived from boiling

bark from Eucalyptus trees

 Shortage susceptibility  90% Eucalyptol

www.eyeondna.com

SLIDE 3

Eucalyptol (1,8 Cineole)

 Potential to be a fuel

additive

 8:1 ratio eucalyptol to

gasoline

 I,8 Cineole

monoterpenoid

 All terpenoids made

from universal precursors

 DMAPP and IPP

meddic.jp

SLIDE 4

Mevalonate Pathway

 Non-Mevalonate

Pathway in E. coli

 Natural inhibition

 Mevalonate Pathway

 Yields more product  Eukaryotic  Certain parts of

pathway better from different organisms

SLIDE 5

Gene Pathway

Thiolase HMG-CoA synthase HMG-CoA reductase Mevalonate kinase Phospho- mevalonate kinase

Mevalonate pyrophosphate decarboxylase

IPP isomerase FPP synthase 1,8- cineole synthase

Enterococcus faecalis Streptococcus pnemoniae Streptococcus pnemoniae Arabidopsis thaliana Streptococcus pnemoniae

SLIDE 6

Spent Grain Waste

 Milwaukee’s beer waste  Composed of hemicellulose

 Breaks down further

 Co-utilization of sugars

important for 2nd Generation biofuels

 Diauxie

newyorkcorkreport.com

SLIDE 7

Gene Pathway

Thiolase HMG-CoA synthase HMG-CoA reductase Mevalonate kinase Phospho- mevalonate kinase

Mevalonate pyrophosphate decarboxylase

IPP isomerase FPP synthase 1,8- cineole synthase

Enterococcus faecalis Streptococcus pnemoniae Streptococcus pnemoniae Arabidopsis thaliana Streptococcus pnemoniae

Endoxylanase Xylosidase

Fibrobacter succinogenes Fusarium graminearum

SLIDE 8

Xylose

Initial growth on low glucose concentrations Lag as correct enzymes synthesized

E. coli are able to

grow on xylose

SLIDE 9

Eucalyptol

Lower eucalyptol concentrations lead to higher growth rates As eucalyptol becomes more concentrated, growth rate slows

SLIDE 10

Secreting Enzymes to Digest Grain Waste

 University of

Washington 2009 iGEM Team

 First Plasmid

 Gene of interest  Secretion tag

 Second Plasmid

 Pump Protein Protein

SLIDE 11

Final Project Design

Pump Pump Tag Tag xynC-A xyloA

Input Output

Bba_K849000 mvaS mvaK1 mvaK2 mvaD TPS-CIN

1 2 3

SLIDE 12

Treatment of Spent Grains

 Obtained spent grains  Treated with NaOH

 Isolated hemicellulose  Gives higher yield of

hemicellulose

 Vacuum filtration

SLIDE 13

Obtaining the Introduced Genes

 17 IDT Gene Blocks

 7 new genes  Plus 3 already present

in E. coli

 Gibson Assembly

 40 base pair overhang

 PCR with designed

primers

SLIDE 14

Assembling Parts

 All original genes

ligated into pSB1C3

 Transformation

produced little to no colonies

 Ligation potentially

problematic

 Must repeat steps to

ensure accuracy

SLIDE 15

Characterization

 Began assembling genes

into pSB1C3

 A promoter  A ribosome binding site

before the gene

 The original gene  A ribosome binding site

before GFP

 GFP  A terminator

 3A assembly proved to

be difficult

SLIDE 16

Kinetics

SLIDE 17

How much Eucalyptol would this produce?

Reactor Size Operating Cost Product Cost 10,000L $5 million/yr $2.41/kg Current Market Cost Profit at $5/ kg Payoff time $64/kg $5 million/yr 4 years

Fermentation Purification Extraction

SLIDE 18

Future Directions

 Characterize and

submit original BioBrick parts

 Finish assembly of final

system

 Test final system  Optimize/scale up

final system

SLIDE 19

Community Outreach

 Collaboration with

Wisconsin Lutheran College

 Week long summer

camp for high school students

 Daily labs, discussions,

and activities

SLIDE 20

Acknowledgements

 Baxter  MathWorks  New England BioLabs  Wisconsin Lutheran

College iGEM Team

 Lakefront Brewery  MSOE SuperMilage Team  Katarina Midelfort, Ph.D  Jung Lee, Ph.D  Faisal Shaikh, Ph.D  Gul Afshan, Ph.D  Julie LaRose  Victoria Pink  Lisa Kann

Thank you for your attention!

Milwaukee School of Engineering

SLIDE 21

Supplementary Slides

SLIDE 22

Three E. coli System

 Change hemicellulose

to xylose

 xynC-A and xyloA

 Secretion System

 Tag  Pump

 Mevalonate Pathway

 5 introduced genes  3 enzymes already

present

 1,8-Cineole Synthase

One Output E.coli Two Input E.coli

SLIDE 23

Terpenoid Synthesis in E. coli

 All terpenoids created from

same precursors

 IPP and DMAPP  1,8-cineole is a monoterpenoid

 Engineering: building blocks

 Adjust for variety of terpenoids

SLIDE 24

Output E. coli Design

 1,8 Cineole Synthase  HMG-CoA Reductase  Mevalonate

Pyrophosphate Decarboxylase

 HMG-CoA Synthase  Mevalonate Kinase  Phosphomevalonate

Kinase

pSB3K3 pSB6A1

SLIDE 25

Promoter/Terminator

 T7 Promoter

 Strong  High expression when

T7 polymerase present

 Double Terminator

 Most commonly used  Reliable

SLIDE 26

Primers

 Used to add the BioBrick

prefix/suffix

 Adding restriction sites

using PCR

 Melting points between

52-58˚C

 Ensured a GC Clamp

held the primers in place

2008.igem.org

SLIDE 27

Safety Information

 Project completed at

BSL1

 DNA synthesized from

rganisms from BSL2

 Completed training

course in Biosafety

 Obtained project

approval from local Biosafety group

SLIDE 28

Enzyme Kinetics

 Input Assumptions

 Maximum amount of

enzyme pumped into solution

 Steady state  Very low inhibitor

concentration

 Output Assumptions

 Maximum metabolic

utilization of xylose

 Eucalyptol was

properly excreted

 Growth is not inhibited

by eucalyptol
