Frac Sand Mining: Frac Sand 101 and DNR Regulations WTA MONROE COUNTY MAY 24, 2012 SAND MINING IN WISCONSIN IS NOT NEW Mining sand and Foundry nonmetallic Glass minerals in Water Filtration Wisconsin for Construction

slide-1
SLIDE 1

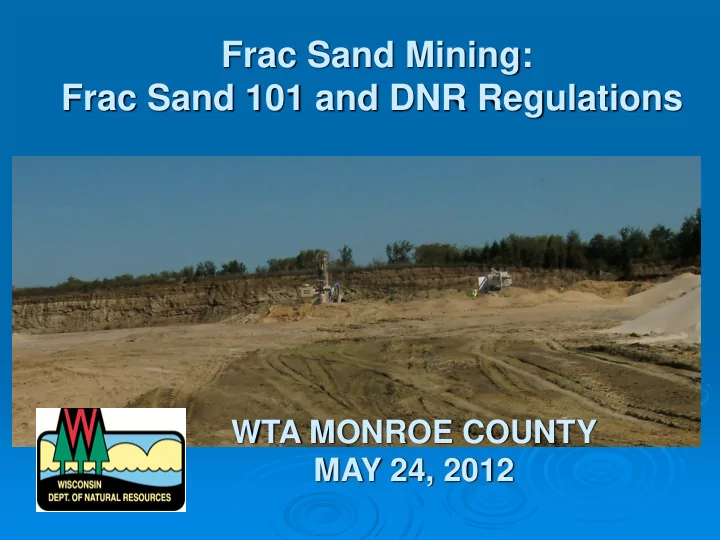

Frac Sand Mining: Frac Sand 101 and DNR Regulations

WTA MONROE COUNTY MAY 24, 2012

slide-2
SLIDE 2

SAND MINING IN WISCONSIN IS NOT NEW

Mining sand and

nonmetallic minerals in Wisconsin for

  • ver 100 years

All frac sand is

quartz sand

Foundry Glass Water Filtration Construction Sandblasting Road sand

slide-3
SLIDE 3
slide-4
SLIDE 4

WHAT’S NEW AND DIFFERENT?

Footprint of the new mines and plants Geographical concentration of the new

mines

Rate of mineral withdrawal Number of new mining and processing

plant proposals

slide-5
SLIDE 5
slide-6
SLIDE 6
slide-7
SLIDE 7
slide-8
SLIDE 8
slide-9
SLIDE 9

Clean, crystalline, almost pure silica sand Spheroid shape Desirable size gradations and consistency High crush resistance Usually close to the surface and easy to

mine

WHY HERE?

Wisconsin has sandstone deposits that are:

slide-10
SLIDE 10

THE GEOLOGIC STORY BEHIND THE WI SANDSTONE FORMATIONS

slide-11
SLIDE 11
slide-12
SLIDE 12
slide-13
SLIDE 13

FRAC SAND “BOOM” WHY NOW?

Technological advances Maximizes oil and gas yields Increasing worldwide demand for

petroleum products and gas

slide-14
SLIDE 14
slide-15
SLIDE 15
slide-16
SLIDE 16
slide-17
SLIDE 17

TYPICAL MINE TYPES

SURFACE DREDGING UNDERGROUND (MAIDEN ROCK AND

BAY CITY)

slide-18
SLIDE 18

Mining Operations

Remove topsoil and stockpile for

reclamation

Mine sand ( blasting or dredging ) Rough screening Washing sand to remove fines Sand then goes to drying or a stock

pile

Further screening Possible resin coating

T t (t i ll b il)

slide-19
SLIDE 19
slide-20
SLIDE 20
slide-21
SLIDE 21

BADGER MINING TAYLOR

Processing facilities

(physical processes incl. washing & screening/sorting.

Resin coating

facilities

Resin plant–coating of sand to add strength

slide-22
SLIDE 22

WISCONSIN DNR REGULATIONS

Air permits Stormwater permits High capacity well permits Wetland and waterway permits Endangered and threatened species

and archeological review

slide-23
SLIDE 23
slide-24
SLIDE 24
slide-25
SLIDE 25
slide-26
SLIDE 26
slide-27
SLIDE 27
slide-28
SLIDE 28

Karner Blue Documented Range in Wisconsin

slide-29
SLIDE 29
slide-30
SLIDE 30
slide-31
SLIDE 31
slide-32
SLIDE 32

COUNTY REGULATIONS

DNR Oversight Shoreland zoning and floodplain

regulations

Mine reclamation

slide-33
SLIDE 33
slide-34
SLIDE 34
slide-35
SLIDE 35
slide-36
SLIDE 36
slide-37
SLIDE 37
slide-38
SLIDE 38
slide-39
SLIDE 39
slide-40
SLIDE 40
slide-41
SLIDE 41
slide-42
SLIDE 42
slide-43
SLIDE 43
slide-44
SLIDE 44
slide-45
SLIDE 45
slide-46
SLIDE 46

ECONOMIC IMPACT

40-50 Jobs per processing plant 10-20 Jobs per mine 90% of new jobs are local hires $18-$20 per hour for equipment

  • perators

$20 per hour + for electricians,

engineers, geologists, managers, etc.

Secondary economic impacts

slide-47
SLIDE 47
slide-48
SLIDE 48

Thomas E. Woletz, P.E.

SENIOR MANAGER, SPECIAL PROJECTS COORDINATOR Wisconsin Department of Natural Resources

http://dnr.wi.gov/topic/mines/silica.html

phone: (715) 839-3756 fax: (715) 839-6076 e-mail: Thomas.Woletz@Wisconsin.gov
