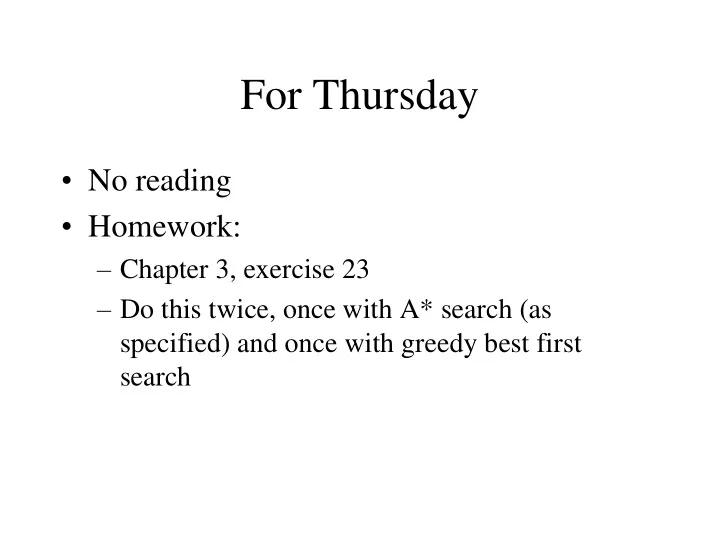

For Thursday

• No reading
• Homework:

– Chapter 3, exercise 23 – Do this twice, once with A* search (as specified) and once with greedy best first search

Program 1

• Any questions?

Discussion Assignment

Admissible Heuristic

• An admissible heuristic is one that never
• verestimates the cost to reach the goal.
• It is always less than or equal to the actual

cost.

• If we have such a heuristic, we can prove

that best first search using f(n) is both complete and optimal.

• A* Search

Focus on Total Path Cost

• Uniform cost search uses g(n) --the path

cost so far

• Greedy search uses h(n) --the estimated

path cost to the goal

• What we’d like to use instead is

f(n) = g(n) + h(n) to estimate the total path cost

Heuristics Don’t Solve It All

• NP-complete problems still have a worst-

case exponential time complexity

• Good heuristic function can:

– Find a solution for an average problem efficiently – Find a reasonably good (but not optimal) solution efficiently

8-Puzzle Heuristic Functions

• Number of tiles out of place
• Manhattan Distance
• Which is better?
• Effective branching factor

Inventing Heuristics

• Relax the problem
• Cost of solving a subproblem
• Learn weights for features of the problem

Local Search

• Works from the “current state”
• No focus on path
• Also useful for optimization problems

Local Search

• Advantages?
• Disadvantages?

Hill-Climbing

• Also called gradient descent
• Greedy local search
• Move from current state to a state with a

better overall value

• Issues:

– Local maxima – Ridges – Plateaux

Variations on Hill Climbing

• Stochastic hill climbing
• First-choice hill climbing
• Random-restart hill climbing

Evaluation of Hill Climbing

Simulated Annealing

• Similar to hill climbing, but--

– We select a random successor – If that successor improves things, we take it – If not, we may take it, based on a probability – Probability gradually goes down

Local Beam Search

• Variant of hill-climbing where multiple

states and successors are maintained

Genetic Algorithms

• Have a population of k states (or individuals)
• Have a fitness function that evaluates the

states

• Create new individuals by randomly selecting

pairs and mating them using a randomly selected crossover point.

• More fit individuals are selected with higher

probability.

• Apply random mutation.
• Keep top k individuals for next generation.

Game Playing in AI

• Long history
• Games are well-defined problems usually

considered to require intelligence to play well

• Introduces uncertainty (can’t know
• pponent’s moves in advance)

Games and Search

• Search spaces can be very large:
• Chess

– Branching factor: 35 – Depth: 50 moves per player – Search tree: 35100 nodes (~1040 legal positions)

• Humans don’t seem to do much explicit

search

• Good test domain for search methods and

pruning methods

Game Playing Problem

• Instance of general search problem
• States where game has ended are terminal states
• A utility function (or payoff function)

determines the value of the terminal states

• In 2 player games, MAX tries to maximize the

payoff and MIN is tries to minimize the payoff

• In the search tree, the first layer is a move by

MAX and the next a move by MIN, etc.

• Each layer is called a ply

Minimax Algorithm

• Method for determining the optimal move
• Generate the entire search tree
• Compute the utility of each node moving

upward in the tree as follows:

– At each MAX node, pick the move with maximum utility – At each MIN node, pick the move with minimum utility (assume opponent plays

• ptimally)

– At the root, the optimal move is determined

Recursive Minimax Algorithm

function Minimax-Decision(game) returns an operator for each op in Operators[game] do Value[op] <- Mimimax-Value(Apply(op, game),game) end return the op with the highest Value[op] function Minimax-Value(state,game) returns a utility value if Terminal-Test[game](state) then return Utility[game](state) else if MAX is to move in state then return highest Minimax-Value of Successors(state) else return lowest Minimax-Value of Successors(state)

Making Imperfect Decisions

• Generating the complete game tree is

intractable for most games

• Alternative:

– Cut off search – Apply some heuristic evaluation function to determine the quality of the nodes at the cutoff

Evaluation Functions

• Evaluation function needs to

– Agree with the utility function on terminal states – Be quick to evaluate – Accurately reflect chances of winning

• Example: material value of chess pieces
• Evaluation functions are usually weighted

linear functions

Cutting Off Search

• Search to uniform depth
• Use iterative deepening to search as deep as

time allows (anytime algorithm)

• Issues

– quiescence needed – horizon problem

Alpha-Beta Pruning

• Concept: Avoid looking at subtrees that

won’t affect the outcome

• Once a subtree is known to be worse than

the current best option, don’t consider it further

General Principle

• If a node has value n, but the player

considering moving to that node has a better choice either at the node’s parent or at some higher node in the tree, that node will never be chosen.

• Keep track of MAX’s best choice () and

MIN’s best choice () and prune any subtree as soon as it is known to be worse than the current  or  value

function Max-Value (state, game, , ) returns the minimax value of state if Cutoff-Test(state) then return Eval(state) for each s in Successors(state) do  <- Max(, Min-Value(s , game, , )) if  >=  then return  end return  function Min-Value(state, game, , ) returns the minimax value of state if Cutoff-Test(state) then return Eval(state) for each s in Successors(state) do  <- Min(,Max-Value(s , game, , )) if  <=  then return  end return 

Effectiveness

• Depends on the order in which siblings are

considered

• Optimal ordering would reduce nodes

considered from O(bd) to O(bd/2)--but that requires perfect knowledge

• Simple ordering heuristics can help quite a

bit
