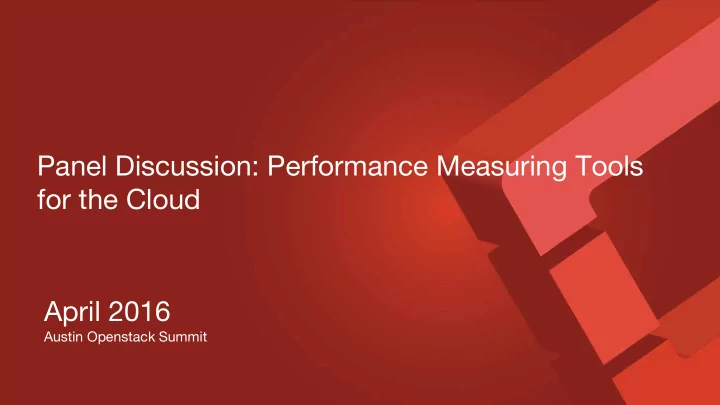

Panel Discussion: Performance Measuring Tools for the Cloud April 2016

Austin Openstack Summit

Panelists & Presenters

Panelists & Presenters

Yuting Wu AWCloud Nicholas Wakou Dell Das Kamhout Intel XiaoFei Wang AWCloud Douglas Shakshober Red Hat

https://www.openstack.org/summit/austin-2016/summit-schedule/events/7989

Agenda

Agenda

• Measuring the Cloud Using Rally & CloudBench
• Measuring the Cloud Using Rally & Dichotomy
• Performance Analysis by HAProxy
• Industry Standard Benchmarks

Measuring the Cloud Using Rally & CloudBench

Douglas Shakshober, Red Hat Inc.

Red Hat – OpenStack Cloud Benchmark Efforts

• Rally
• CPU loads - Linpack script: https://review.openstack.org/#/c/115439/
• Pros – Test Cloud provisioning and auto execution of workloads within cloud
• Cloud Bench
• CBtool: https://github.com/jtaleric/cbtool - added Netperf Cleint/Server
• Pros – Helps sync start of execution and completion
• SPECcloud
• Agreed upon Industry standard – add support for Fedora/CentOS/RHEL
• Cinder
• Ceph Benchmark Tool – CBT
• Perfkit
• Google general cloud benchmark harness

Rally – OSP Provisioning / ping

• Rally Pro’s
• Automate VM provisioning
• Monitor Nova success/failures
• Contributed Linpack CPU load
• Rally Cons
• Difficult to sync benchmarks
• VM cleanup scripts needed

Rally used for Linpack CPU Performance

(example - 256 VMs over 8 host 32/host)

OSP/ Network Performance

(Example Netperf VxLAN OVS using Mellanox 40 Gb networks)

• Cloud Bench harness
• Benchmark harness
• Sync up starting time for bench
• Run Client / Server
• Avoid VM to VM traffic on same host.
• Shaker
• distributed data-plane testing tool
• Multi-stream iperf benchmark

https://github.com/openstack/shaker

Red Hat FIO scale for Ceph Scaling

FIO 100 IOPs - R7.1 Rand 4k, 8 R7.1 Compute host, 8 R7.1 KVM guest/host up to 64VMs, 4 R6.6 Ceph 1.2.2 Host, 12core/24cpu, 48GB Mem , 12 disk/host – total of 48 OSDs)

• Cloud Bench harness
• Benchmark harness
• Sync up starting time for bench
• Add warm up period for BM steady

state

• Would like fio parallel option to

aggregate perf data

• CBT – Ceph Benchmark Tool
• https://github.com/ceph/cbt
• Test Seq/Rand I/O w/ FIO
• Range of transfers 4k-1m
• Queue Depth – 1-64
• Run on Bare Metal or KVM VMs.

20 40 60 80 100 120 Ephem Rand Write Ephem Rand Read Ceph Rand Write Ceph Rand Read

Average IOPs / Guest

8 Guest 16 Guest 32 Guest 64 Guest

Measuring the Cloud Using Rally & Dichotomy

XiaoFei Wang, AWCloud

What the Rally tool can do

• Benchmarking tool for OpenStack
• As a basic tool and Tempest for OpenStack CI/CD system
• Cloud verification and profiling tool
• Deployment tool for DevStack

The Rally and Dichotomy

• When profiling the cloud performance bottlenecks,

cannot quickly judge orders of magnitude. For example, a single Nova API can handle withstand the number of concurrent create instance.

• How to use the Dichotomy

How to apply The Rally in actual project

The Rally tool is used in a variety of ways. For example, CI with Jenkins, Production of cloud. Keystone, Nova, Cinder, Neutron, Glance , etc. That all component working in the HAProxy. The following is the actual result.

Performance Analysis by HAProxy

Yuting Wu, AWCloud

• HAProxy often used to load balance

each OpenStack API service.

• HAProxy collects many statistics and

information about traffic passing through in the log.

• By analyzing HAProxy log, we can

determine the performance bottleneck of OpenStack API service.

HAProxy Load-Balancing OpenStack API Services

Performance Analysis by HAProxy Log

# Example’s Value Name Custom log tag Short description 8 0/0/0/67/67

Tq/Tw/Tc/Tr/T t

%Tq %Tw %Tc %Tr %Tt

Tq: total time in milliseconds spent waiting for the client to send a full HTTP request, not counting data Tw: total time in milliseconds spent waiting in the various queues Tc: total time in milliseconds spent waiting for the connection to establish to the final server, including retries Tr: total time in milliseconds spent waiting for the server to send a full HTTP response, not counting data Tt: total time in milliseconds elapsed between the accept and the last close. It covers all possible processings

9 200

Status_code %st

HTTP status code returned to the client

10 2591

Bytes_read %B

total number of bytes transmitted to the client when the log is emitted

Performance Analysis by HAProxy Log (Continued)

# Example’s Value Name Custom log tag Short description 11

• -

captured_request_cookie captured_response _cookie

%cc %cs

captured_request_cookie: optional ”name=value” entry indicating that the client had this cookie in the request captured_response_cookie: optional ”name=value” entry indicating that the server has returned a cookie with its response

12

• - - -

termination_state cookie_status %tsc

termination_state: condition the session was in when the session ended cookie_status: status of cookie persistence

13 15/2/0/0/0 actconn/ feconn/ beconn/ srv_conn/ retries %ac %fc %bc %sc %rc

actconn: total number of concurrent connections on the process when the session was logged feconn: total number of concurrent connections on the frontend when the session was logged beconn: total number of concurrent connections handled by the backend when the session was logged srv_conn: total number of concurrent connections still active on the server when the session was logged retries: number of connection retries experienced by this session when trying to connect to the server

14 0/0 srv_queue/ backend_queue %sq/%bq

srv_queue: total number of requests which were processed before this one in the server queue Backend_queue: total number of requests which were processed before this one in the backend’s global queue

Industry Standard Benchmarks

Nicholas Wakou, Dell

Performance Consortia

21

Standard Performance Evaluation Corporation (www.spec.org) Transaction Processing Performance Council (www.tpc.org)

SPEC Cloud IaaS 2016 Benchmark

• Measures performance of Infrastructure-as-a-Service (IaaS)

Clouds.

• Measures both control and data plane
• Control: management operations, e.g., Instance provisioning time
• Data: virtualization, network performance, runtime performance
• Uses workloads that
• resemble “real” customer applications
• benchmarks the cloud, not the application
• Produces metrics (“elasticity”, “scalability”, “provisioning time”)

which allow comparison.

22

Benchmark and Workload Control

23

Cloud SUT Group of boxes represents an application instance.

. Benchmark Harness

Benchmark Harness. It comprises of Cloud Bench (CBTOOL) and baseline/elasticity drivers, and report generators. For white-box clouds the benchmark harness is

• utside the SUT. For black-box clouds, it can be in

the same location or campus.

YCSB Framework used by a common set of workloads for evaluating performance of different key- value and cloud serving stores. KMeans

• Hadoop-based CPU intensive

workload

• Chose Intel HiBench

implementation

SPEC Cloud Workloads

What is Measured

• Measures the number of AIs that can be loaded
• nto a Cluster before SLA violations occur.
• Measures the scalability and elasticity of the Cloud

under Test (CuT).

• Not a measure of Instance density
• SPEC Cloud workloads can individually be used to

stress the CuT:

• KMeans – CPU/Memory
• YCSB - IO

SPEC Cloud IaaS 2016 High Level Report Summary

26

Fair usage

A tester cannot selectively report benchmark metrics. Their reporting in product or marketing descriptions is governed by fair usage.
