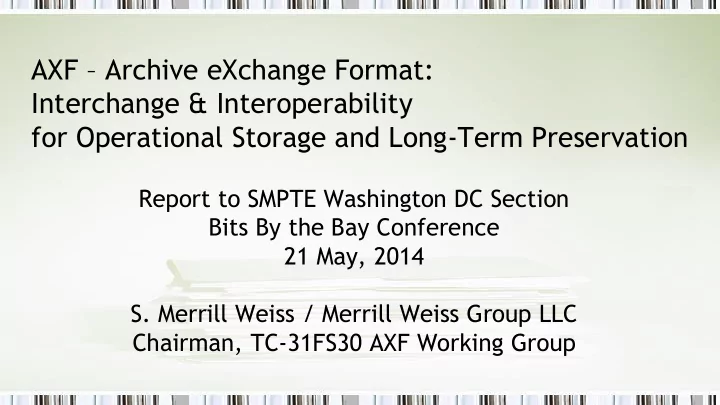

AXF – Archive eXchange Format: Interchange & Interoperability for Operational Storage and Long-Term Preservation

Report to SMPTE Washington DC Section Bits By the Bay Conference 21 May, 2014

  • S. Merrill Weiss / Merrill Weiss Group LLC

Chairman, TC-31FS30 AXF Working Group

slide-2
SLIDE 2
  • History

– Proprietary Systems

  • Formats on Media
  • Interface Protocols
  • Same System Type Required for Recovery
  • Media Migration Not Easy

– Danger of Orphaned Archives — If System Support Ended – High Costs of Implementation & Operation

  • Individualized System Integration Requirements
  • Transfer Costs Resulting from Inability to Interchange Media

Background

slide-3
SLIDE 3
  • User Requirements

– Movement of Material Between Different Archive Systems

  • Between Different Operations of Same Company
  • Between Companies
  • Retrieving Files & Metadata from Media Into Different Systems

– Flexibility in Changing Archive Management Vendors

  • No Loss of Data or Metadata When Changing Vendors
  • No Requirement for Native Use of Format

Objectives

slide-4
SLIDE 4
  • User Requirements – cont’d.

– Archive Investment Protection

  • Ability to Retrieve Files & Metadata In Absence of Creating System
  • Ability to Read Media Into Other Archive Systems
  • Ability to Retrieve Media Contents w/Simple Utility on Many OSs

– Automation Metadata Support

  • Inclusion of Metadata for Systems Interacting w/Archive Systems

– E.g., Traffic, Automation, Color Correction, Editing Systems

  • Allow Importing “Discovered” Items into Databases

Objectives

slide-5
SLIDE 5
  • Additional Requirements

– Providing Unlimited Storage Capability

  • File Size, Number of Files, Number of Media, etc.

– Providing an Implementation Strategy – Providing Support for All Types of Media – Current & Future – Providing for Storage on More Than One Medium – “Spanning” – Providing for Updates/Changes to Archive Objects over Time – Providing for Information Recovery from Damaged Media – Providing for File Exchange via Communications Channels

  • Enables Use of Cloud Storage

Objectives

slide-6
SLIDE 6
  • Underlying Assumption

– Same Type of Media Supported on Both Systems

  • Source of Medium & Recipient of Medium
  • Drives, Drivers, & Control Software

Objectives

slide-7
SLIDE 7
  • Large Existing Installed Base & Large Archive Inventory
  • Initially, Explicit Export & Import

– Export of Archive Objects to Media Specifically for Interchange – Importing of Archive Objects into Receiving Systems

  • By Translating to Native Formats of Receiving Systems
  • By Inclusion of Interchanged Objects in Databases
  • Later, Adoption of Format as Native in Archive Systems

– Eliminating Need for Separate Export/Import Steps – Permitting Direct Transfer of Media Between Systems

Implementation Strategy

slide-8
SLIDE 8
  • Data Recovery Utilities Available Through SMPTE

– To Be Contributed by WG Participants – For Wide Variety of Operating Systems – For All Media Types – Permitting Data Recovery without an Archive System – To Help Ensure Access to Archived Files & Associated Metadata

Implementation Strategy

slide-9
SLIDE 9
  • SMPTE ST 2034 Part 1 Written & In Ballot

– Result of Years of Work & Refinement – Uses XML Schema to Define Most Structures – Expected to Be Completed This Year

  • Part 2 Will Be Standard on Use of AXF Schema Upstream

– Providing Mechanism for Communicating Metadata to Archive Systems – Most Major Functions Defined – Writing of Document Begun

SMPTE Standard

slide-10
SLIDE 10
  • Steps Required to Ensure Long-Term Accessibility

– Valuable File-Based Assets Stored in Digital Archives in All Industries

  • Key Goals of the “Ideal Storage Format”

– Ensuring Long Term Accessibility

– Self-Describing Assets & Self-Describing Storage Media – Encapsulation to Maintain Important Metadata & File Relationships – Scalability for Any Number of Elements of Any Size & Type – Standardized Regardless of Storage Media Technology – Transportability & Compatibility between Systems – Preservation (OAIS) Features such as Fixity, Provenance, etc.

How Are Digital Assets Stored?

slide-11
SLIDE 11
  • TAR

– Tape ARchive Format (Originally from UNIX)

  • Has Been Around for Many Decades

– No Truly Universal TAR “Standard”

  • Rather, Many “Customized” Implementations

– TAR Is a Legacy Format

  • Cannot Support Many Core Functionalities Required in M&E Space

– TAR Misses Many of Storage Format Goals Outlined

Existing Storage Choices

slide-12
SLIDE 12
  • LTFS

– Linear Tape File System is Simple File System for Linear Data Tape – Makes Data Tapes Appear as “Removable Storage” – Currently No Standards Bodies Have Documented LTFS

  • Often Mistakenly Referred to as a “Standard”
  • Being Documented by Storage Networking Industries Association

– Considered By Itself, Has Some Significant Limitations

  • With Respect to Storage Format Goals Outlined

– By Itself, Is Very Useful for Physical “Transport” of Content

  • But Not for Long Term Storage or Preservation

– Why Not?

Existing Storage Format Choices

slide-13
SLIDE 13
  • LTFS cont’d.

– No Media Encapsulation

  • Relies on Simple Folder Hierarchies to Form

Important Asset Relationships

  • Lacks Context

– Does Not Scale Well

  • Due to Lack of Support for Spanning Across Storage Media

– A Significant Problem in M&E

– Only Supports Modern Data Tape Technologies

  • Is Not Applicable to Any Other Storage Technologies

Existing Storage Format Choices

slide-14
SLIDE 14
  • TAR & LTFS

– Neither Achieves 100% of Long-Term Storage & Preservation Goals

  • What other choices are there?
  • Caution: Following Detailed Descriptions Are Not

Adopted Yet

– Some Details Still May Change in Response to Ballot Inputs

Existing Storage Format Choices

slide-15
SLIDE 15
  • AXF – A File Collection “Wrapper”

– Essentially an Advanced ZIP – Can Encapsulate Any Number of Files of Any Type & Size

  • Brings Universal Transport & Interoperability to

Storage

– At Same Level as MXF Brings to Content

  • Designed to Support All Storage Technologies

– Now and into the Long-Term Future

  • IT‐Centric and Not Tied to Media Applications Alone
  • Being Standardized by SMPTE

AXF – Archive eXchange Format

slide-16
SLIDE 16
  • Considered within an IT System Stack

AXF Layered Context

AXF-Aware Application

Server/Storage Stack with AXF support

Archive eXchange Format (AXF), Including Internal File System Block Level Addressing File System Medium (without File System) Medium (with File System) Operating System – Hardware Abstraction Layer Driver Physical Drive

slide-17
SLIDE 17
  • Unlimited Storage Support

– Any Number of Files, Any Size of Files, Plus Media Spanning

  • Resilience to Media Damage and Corruption

– Redundancy in All Structures – Payload Independently Recoverable

  • Support for Media With & Without a File System

– Raw Data Tape, LTFS Data Tape, Spinning Disk, Flash Media, Optical Storage, Holographic Storage, & Anything in Future

  • Support for Any Operating System and/or File System

– Embedded File System Abstracts Underlying Systems

AXF Features

slide-18
SLIDE 18
  • Self Describing Objects & Self Describing Media

– Enable Simple Transport of Objects & Media between Systems

  • Object Versioning & Collection Support

– Support Complex Relationships between Objects – Support Additions, Updates, etc.

  • Support for All File Types – Not Just Media Files

– IT‐Centric Implementation

  • Based on Experience Handling Big Data in M&E

AXF Features

slide-19
SLIDE 19
  • Streaming & File-Based Asset Transport & Delivery

– Support for Streaming De‐Encapsulation – Support for In‐Path Checksums for Structures & Files – Support for Cloud Storage & Delivery Applications – Streaming Design Maximizes Transfer Speeds

  • To/from All Media Types

AXF Features

slide-20
SLIDE 20

What Is AXF?

Structured Unstructured Proprietary Open A A V V

Access Control

Provenance Fixity Context Reference

Universal Storage-Agnostic File System Metadata File Payload Ancillary Files Asset Components Preservation Elements File System AXF Object

slide-21
SLIDE 21

Storage Technology & File Systems

AXF Object Spinning Disk (NTFS, FAT , etc.) Solid State Disk (NTFS, FAT , etc.) Holographic (UDF , etc.) Blu-Ray (BDFS, UDF , etc.) Flash Media (NTFS, FAT , etc.) DVD (UDF , etc.) Data Tape (Block-Based, LTFS, etc.) Future Storage Technologies

slide-22
SLIDE 22

AXF on Storage Medium

AXF Medium Identifier

AXF Object 1 AXF Object 2 AXF Object N

…

AXF Object Header Metadata Container Metadata Container

File 1

AXF File Footer

File 2

AXF File Footer

File N

AXF File Footer AXF Object Footer

… …

Metadata Payload File Payload

slide-23
SLIDE 23
  • Binary Structure Containers Define Elements

Inside an AXF Object

slide-24
SLIDE 24
  • File Tree Acts as

Light-Weight File System

– Contained in Object Header & Footer – Identifies Payload Files, Locations, Sizes, & Other Characteristics

Inside an AXF Object (2)

slide-25
SLIDE 25

Spanned Sets

Medium 1 (Initial Medium of a Spanned Set)

Medium Identifier: Medium.UUID = Um1 Object Header: Object.UUID = Uo1 Fragment Footer: FragmentPairUUID = Uf1 FragmentNumber = 1 NextMediumUUID = Um2

Medium 2 (Intermediate Medium of a Spanned Set)

Medium Identifier: Medium.UUID = Um2 Object Header: Object.UUID = Uo1 Fragment Header: FragmentPairUUID = Uf1 FragmentNumber = 2 PreviousMediumUUID = Um1 Fragment Footer: FragmentPairUUID = Uf2 FragmentNumber = 2 NextMediumUUID = Um3 Medium Content Medium Content

Medium 3 (Final Medium of a Spanned Set)

Medium Identifier: Medium.UUID = Um3 Object Header: Object.UUID = Uo1 Fragment Header: FragmentPairUUID = Uf2 FragmentNumber = 3 PreviousMediumUUID = Um2 Medium Content Object Footer: Object.UUID = Uo1

slide-26
SLIDE 26

Collected Sets

Anchor Object (Initial Object of a Collected Set) Medium Identifier: Medium.UUID = Um1 Object Header: Object.UUID = Uo1 CollectedSetUUID = Uo1 SetSequence = 1 File: Video1 (processing=default) File: Audio1 (processing=default) File: Audio2 (processing=default) Object Footer: Object.UUID = Uo1 CollectedSetUUID = Uo1 CollectedSetSequence = 1 Subsequent Object (Final Object of a Collected Set) Medium Identifier: Medium.UUID = Um1 Object Header: Object.UUID = Uo2 CollectedSetUUID = Uo1 CollectedSetSequence = 2 Object Footer: Object.UUID = Uo2 CollectedSetUUID = Uo1 CollectedSetSequence = 2 File: Audio1 (processing=REPLACE) File: Audio2 (processing=DELETE) File: Closed Caption1 (processing=ADD)

Anchor Object + Subsequent Object(s) Compile per Instructions Product Object Processing Instructions: ADD REPLACE DELETE New Files Carried with ADD & REPLACE No Files Carried with DELETE

slide-27
SLIDE 27
  • Objects Scale to Any Size & Encapsulate Any Number of Files

– With Full Support for Media Spanning

  • No Need to Upgrade Existing Storage Infrastructures
  • Ensures Long-Term Compatibility & Resiliency

– With Self-Describing Features for Both AXF Objects & AXF Media

  • Overcomes All Technical, Operational, & Functional Limitations

– Of TAR & LTFS, Works Harmoniously with LTFS

  • An IT‐Centric Implementation Not Limited to Media Files Alone

– Supports Documents, Imaging Data, etc.

  • Satisfies All of Ideal Storage Format Goals Outlined

AXF Features Summary

slide-28
SLIDE 28

AXF – Archive eXchange Format: Interchange & Interoperability for Operational Storage and Long-Term Preservation

Report to SMPTE Washington DC Section Bits By the Bay Conference 21 May, 2014

  • S. Merrill Weiss / Merrill Weiss Group LLC

Chairman, TC-31FS30 AXF Working Group
