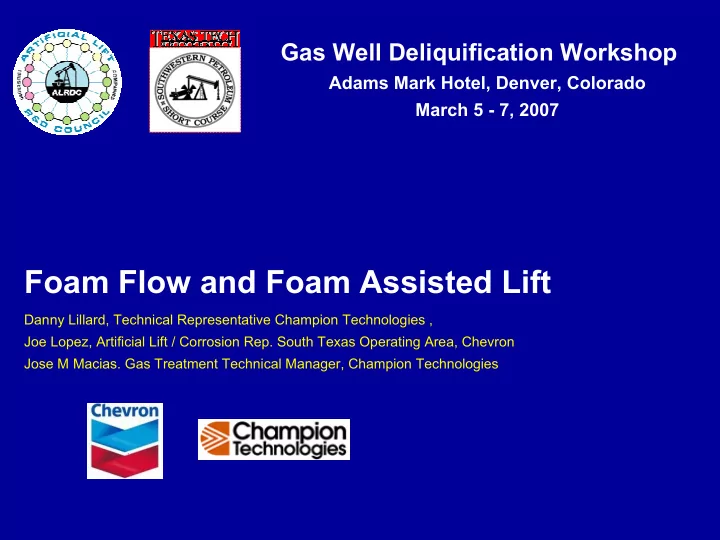

Foam Flow and Foam Assisted Lift

Danny Lillard, Technical Representative Champion Technologies , Joe Lopez, Artificial Lift / Corrosion Rep. South Texas Operating Area, Chevron Jose M Macias. Gas Treatment Technical Manager, Champion Technologies

• Mar. 5 - 7, 2007

2007 Gas Well Deliquification Workshop Denver, Colorado 2

Outline

• Foam Flow vs Fluid Flow
• Critical Rate Benchmark
• Foam Effect at Various Points Below Critical Rate
• Field Case Study Foam Effects At Various Points

Below Critical Rate

• Mar. 5 - 7, 2007

2007 Gas Well Deliquification Workshop Denver, Colorado 3

Foam Flow vs Fluid Flow

• Fluid Flow : Well defined flow regimes and

transitional velocity data established.

• Mar. 5 - 7, 2007

2007 Gas Well Deliquification Workshop Denver, Colorado 4

Foam Flow vs Fluid Flow

• Fluid Flow:

• Mar. 5 - 7, 2007

2007 Gas Well Deliquification Workshop Denver, Colorado 5

Foam Flow vs Fluid Flow

• Foam Flow :

– Laboratory data obtained from 20ft x 2.441 ID column. – Low Pressure (0-1.5 psig) flow rates up to 300Mscfd.

• Foam Flow Regimes:

– Column flow, slug flow and annular flow – Transitions occur at different points along the flow regime map boundaries.

• Mar. 5 - 7, 2007

2007 Gas Well Deliquification Workshop Denver, Colorado 6

Foam Flow vs Fluid Flow

• Foam Flow is predominantly slug flow with

variance in slug frequency and slug size.

– As gas velocity increases slug frequency increases. – As gas velocity increases slug size decreases.

• Mar. 5 - 7, 2007

2007 Gas Well Deliquification Workshop Denver, Colorado 7

Foam Flow vs Fluid Flow

• Mar. 5 - 7, 2007

2007 Gas Well Deliquification Workshop Denver, Colorado 8

Critical Rate Benchmark

• The use of the critical rate for a benchmark along

the flow regime maps has been used in the laboratory to describe fluid flow and foam flow behavior.

– Fluid Flow: As flow falls below critical then

• 1. Wispy Annular is observed
• 2. Churn flow is observed
• 3. Slug flow is observed
• 4. Bubble flow is observed

• Mar. 5 - 7, 2007

2007 Gas Well Deliquification Workshop Denver, Colorado 9

Critical Rate Benchmark

• The use of the critical rate for a benchmark along

the flow regime maps has been used in the laboratory to describe fluid flow and foam flow behavior.

– Foam Flow: As flow falls below critical then

• 1. Annular flow is observed
• 2. Slug flow (with varying slug size and frequency) is
• bserved
• 3. Column Flow is observed

– Foam flow shows the ability to generate vertical moving slugs 75% below the critical rate in laboratory testing thus it is expected to find some wells flowing at 75% below the critical rate in the field.

• Mar. 5 - 7, 2007

2007 Gas Well Deliquification Workshop Denver, Colorado 10

Critical Rate Benchmark

• Candidate wells may fall into several categories

benchmarked by critical rates.

• Wells significantly below critical rate are likely in (Fluid

Flow) slug or bubble flow and therefore more liquids are being retained in the well bore.

• An intermediate range below critical rate are wells in churn

and possible wispy annular flow

• Wells close to critical rate are wells in wispy annular flow.

* This indicates that several flow regimes can be happening through out the length of the tubing.

• Mar. 5 - 7, 2007

2007 Gas Well Deliquification Workshop Denver, Colorado 11

Foam Flow Below Critical Rates

– Foam flow does not change the transition velocities from one flow regime to another in liquid flow. – Foam flow generates a new flow regime map. – Foam flow allows for upward movement of fluids in a foamed state were fluids would be retained in the vertical tube in an un-foamed state.

• Mar. 5 - 7, 2007

2007 Gas Well Deliquification Workshop Denver, Colorado 12

Field Case Study

• Chevron South Texas Operating Areas Case

Study

– 30 Wells Analyzed – Modeled for flow (Critical Rate Benchmark) – Compared incremental gas from Benchmark The delivery method of foam application for these wells is continuous capillary injection.

• Mar. 5 - 7, 2007

2007 Gas Well Deliquification Workshop Denver, Colorado 13

% Below Critical Rate of Various Foam Assisted Wells

• 6.66
• 3.18
• 2.32

8.41 10.30 14.95 19.38 23.58 26.09 29.49 31.21 38.10 44.08 44.84 48.64 49.07 56.10 62.08 64.30 71.24 73.26 77.02 80.73 92.76

• 20.00

0.00 20.00 40.00 60.00 80.00 100.00

• Mar. 5 - 7, 2007

2007 Gas Well Deliquification Workshop Denver, Colorado 14

Increm ental Gas Vs Critical Rate

• 100.00

0.00 100.00 200.00 300.00 400.00 500.00 600.00

% Below Critical Rate % Incremental Gas

• Mar. 5 - 7, 2007

2007 Gas Well Deliquification Workshop Denver, Colorado 15

Critical Rate Comparison On Foam Assisted Lift Applications

• Wells are being foam assisted from 10% above

the critical rate to 80% below the critical rate.

• The incremental gas varies from well to well.
• No trend data has yet been observed based on

the incremental gas and % below critical rate.

• Mar. 5 - 7, 2007

2007 Gas Well Deliquification Workshop Denver, Colorado 16

Critical Rate Comparison On Foam Assisted Lift Applications

• Specific Examples:

– R Vidaurri# 20

• Before foam assisted lift producing at 80.65% below the

critical rate after foam assisted lift producing at 64.30% below critical rate.

– R Vidaurri# 29

• Before foam assisted lift producing at 88.00% below the

critical rate after foam assisted lift producing at 71.24% below critical rate.

• Mar. 5 - 7, 2007

2007 Gas Well Deliquification Workshop Denver, Colorado 17

Critical Rate Comparison On Foam Assisted Lift Applications

– Wells producing significantly below critical rate show benefit from foam. – Testing is underway to look at wells at or slightly above the critical rate for overall benefit from foam.

• Mar. 5 - 7, 2007

2007 Gas Well Deliquification Workshop Denver, Colorado 18

Conclusions:

• Foam assisted lift has been used successfully at

up to 80% below the critical rate.

• Foam Flow is dependent on flow regime

transition boundaries and has independent flow patterns.

• Main flow pattern is slug flow with varying

frequency and slug size.

• Mar. 5 - 7, 2007

2007 Gas Well Deliquification Workshop Denver, Colorado 19
