FM 1560 FROM FM 471 TO SH 16 OPEN HOUSE JANUARY 30, 2019 5:00 P.M. 7:00 P.M. Randall Fields Elementary School 9570 FM 1560 North San Antonio, TX 78254 The environmental review, consultation, and other actions required by applicable

slide-1

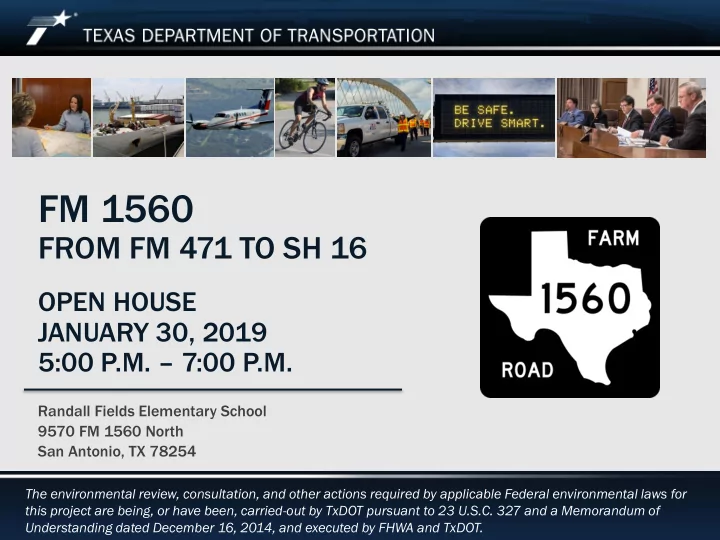

SLIDE 1

FM 1560 – Open House

The environmental review, consultation, and other actions required by applicable Federal environmental laws for this project are being, or have been, carried-out by TxDOT pursuant to 23 U.S.C. 327 and a Memorandum of Understanding dated December 16, 2014, and executed by FHWA and TxDOT.

FM 1560

FROM FM 471 TO SH 16

OPEN HOUSE JANUARY 30, 2019 5:00 P.M. – 7:00 P.M.

Randall Fields Elementary School 9570 FM 1560 North San Antonio, TX 78254

slide-2
SLIDE 2

FM 1560 – Open House

Welcome

2

Thank you for participating in the FM 1560 Open House. Feel free to come and go at your convenience.

Please plan to:

  • Watch the video presentation
  • View the project maps and schematics of the proposed

improvements

  • Visit with team members and ask questions
  • Share your comments
slide-3
SLIDE 3

FM 1560 – Open House

Project Location Map

3

slide-4
SLIDE 4

FM 1560 – Open House

Project Description

  • The FM 1560 project limits are from FM 471 to SH 16,

a distance of 5.2 miles

  • Expand FM 1560 from 2 lanes to 4 lanes.
  • Additional improvements include:
  • Continuous two-way left-turn lane
  • Raised medians at approaches to FM 471 and Galm/Shaenfield
  • Operational improvements at major intersections
  • Bicycle lanes
  • Sidewalks
  • Improvements to drainage

4

slide-5
SLIDE 5

FM 1560 – Open House

Proposed Improvements – Raised Medians

  • Raised medians are a curbed section that safely separates traffic

traveling in opposite directions.

  • Raised medians reduce traffic conflict points by eliminating
  • pposing left turns into and out of driveways.
  • Raised medians are proposed at two major intersections, shown

below in purple.

5

FM 1560 at FM 471 FM 1560 at Shaenfield/ Galm

slide-6
SLIDE 6

FM 1560 – Open House

Proposed Improvements –Why Raised Medians?

6

  • How do raised medians improve SAFETY?
  • A significant reduction in the number and severity of

crashes after installation of raised medians

  • Separate opposing traffic flows
  • Eliminate opposing left-turns at closely spaced driveways

and busy signalized intersections

slide-7
SLIDE 7

FM 1560 – Open House

Existing Typical Section

7

slide-8
SLIDE 8

FM 1560 – Open House

Proposed Typical Section

8

slide-9
SLIDE 9

FM 1560 – Open House

Traffic Trend - FM 1560

9

AVERAGE E ANNUAL DAILY TRAFFIC C (AADT) YEAR

142 % INCREA REASE BY 2043 2,250 10,06 ,069 12,7 ,743 13,96 ,966 18,7 ,716 33,80 ,803

  • 5,0

5,000 10 10,00 ,000 15 15,00 ,000 20 20,00 ,000 25 25,00 ,000 30 30,00 ,000 35 35,00 ,000 40 40,00 ,000 1990 2011 2015 2017 2023 2043 PROJECTED ACTUAL

slide-10
SLIDE 10

FM 1560 – Open House

Preliminary Environmental Findings:

Environmental Considerations

10

  • 26 +/- acres of land to acquire; no displacements anticipated
  • Historical property and park avoided
  • Water Pollution Abatement Plan is required to work on

Edwards Aquifer Recharge Zone

  • Project would include filters to treat runoff to TCEQ standards
slide-11
SLIDE 11

FM 1560 – Open House

Preliminary Environmental Findings (continued):

Environmental Considerations

11

  • USACE permits are required for work in Helotes and Culebra

Creeks and tributaries

  • No adverse effects to endangered species
  • Traffic noise analysis and coordination pending with Texas

Parks & Wildlife Department, Texas Historical Commission, and US Fish and Wildlife Service

slide-12
SLIDE 12

FM 1560 – Open House

Project Development Schedule

12

Begin Project Ho Host Open House

Incorporate Public Comments; Finalize Schematic & Env Document Host Public Hearing Anticipated Environ- mental Clearance ROW Acquisition and Utility Adjustments Final Design & Construction Phase

Summer mmer 2019 2021 – 2022 2022 Summer mmer 2017 TODAY Fall l 2019 Fall l 2019 2020 2020

  • Schedule is tentative and subject to change
slide-13
SLIDE 13

FM 1560 – Open House

Project Funding

13

Current Funds Available: (Federal/State/Bexar County): $32 Million

slide-14
SLIDE 14

FM 1560 – Open House

Public Comment Opportunities

14

Comme mment ntin ing g Opt ptio ions ns:

1. Fill out a comment card at the comment table. 2. Verbally give your comments to the court reporter tonight. 3. Email comments to: FM1560@ 560@jone jonesca carter.com .com 4. Mail comments to:

FM 1560 Improvemen ements ts c/o Nicolas

  • las Garcia,

ia, P.E. E. Jones es & C Carter er, , Inc. 4350 4350 Lockhill hill Selma lma Rd., , Ste.

  • e. 100

San Antonio

  • nio,

, Texas xas 78249 Deadline For Comments: Frid iday, , Febru ruar ary y 15, 2019

For more information, visit txdot.gov and search “FM 1560 from FM 471”

Thank ank you u for for your ur att ttendance! ndance!

slide-15
SLIDE 15

FM 1560 – Open House

Thank You

We e gr greatly eatly ap appre preciat ciate your ur att attendance endance an and d pa participation. ticipation. De Deadli adline ne for r co comments: mments: Februar ebruary y 15, 5, 20 2019
