Fibre to fabric Gary Robinson Wool industry consultant The transformation of raw wool to fabric Zegna Photograph courtesy of AWI. Some issues for wool processing The random limit to fibre control Controlling fibres in drafting Fibre

slide-1
SLIDE 1

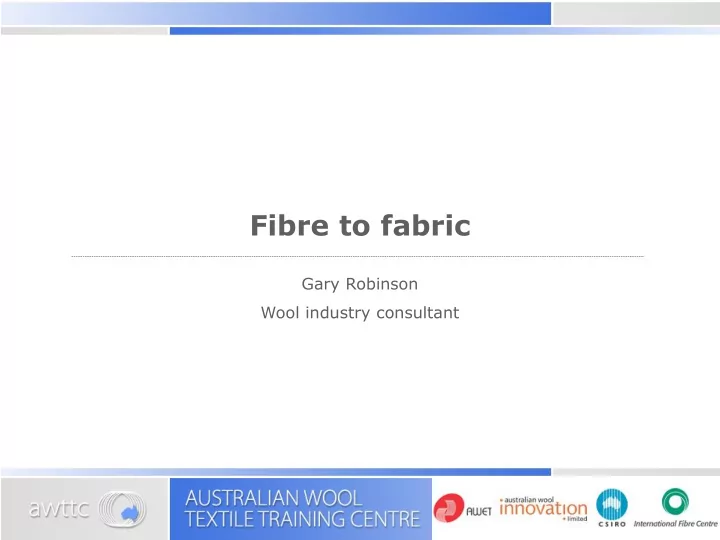

Fibre to fabric

Gary Robinson Wool industry consultant

slide-2
SLIDE 2

The transformation of raw wool to fabric

slide-3
SLIDE 3

Zegna

Photograph courtesy of AWI.

slide-4
SLIDE 4

Some issues for wool processing

  • The random limit to fibre control
  • Controlling fibres in drafting
  • Fibre entanglement
  • Fibre damage
slide-5
SLIDE 5

P IE C E / G AR M E NT D Y E I N G F I N IS H I N G K N I T T I N G W E A V I N G T W I S T I N G S P IN N I N G D RA W I N G S H RI N K P R O O F IN G TO P D Y E I N G CO M B I N G G I L L I N G C A R D IN G

WORSTED SYSTEM WOOLLEN SYSTEM

F IN IS H IN G P IE C E /G A R M E N T D Y E IN G K N IT T IN G W E A V IN G S P IN N IN G C A R D IN G LO O S E W O O L D Y E IN G C A R B O N IS IN G S C O U R IN G YA R N D Y E I N G YA R N D Y E I N G S C O U R I N G

slide-6
SLIDE 6

The woollen system

If it’s got two ends you can make a yarn from it. Inputs to the woollen system can include lambs wool, combed wool, dyed wool, carbonised wool, locks, crutchings, pulled rags, other animal fibres, vegetable fibres and feathers … anything with two ends.

slide-7
SLIDE 7

Principle of blending

  • Horizontal layers
  • Vertical cuts
  • Horizontal deposition
  • Mixing of wool
  • Greater uniformity of

blend

  • Ideal: all wool together
slide-8
SLIDE 8

Woollen carding

Source: Octir

slide-9
SLIDE 9

Woollen spinning scribbler section

Source: William Tatham Ltd

slide-10
SLIDE 10

Fibre flows in carding Swift

A/S Doffer Worker Stripper

slide-11
SLIDE 11

Woollen spinning Scotch feed web rotation

From scribbler To carder

Source: William Tatham Ltd.

slide-12
SLIDE 12

Woollen spinning Carder section with condenser

From scribbler section Delivery end Tape condenser

Source: William Tatham Ltd.

Cylinders Doffers

slide-13
SLIDE 13

Woollen card Delivery and condenser section

Source: William Tatham Ltd.

slide-14
SLIDE 14

Woollen spinning Condenser section

Source: William Tatham Ltd.

Tapes Rubbing mechanism

slide-15
SLIDE 15
slide-16
SLIDE 16

Woollen spinning Draft against twist

Source: Murata Machines Ltd.

slide-17
SLIDE 17

Ring spinning

Front drafting roller Yarn guide Balloon control ring Ring/traveller Spindle Bobbin

slide-18
SLIDE 18

The worsted system

slide-19
SLIDE 19

The TEAM 3 equation

H = 0.43L + 0.35 S + 1.38D – 0.15M – 0.45V – 0.59CVD – 0.32CVL + 21.8 H = Hauteur or mean fibre length in the top L = Staple Length D = Fibre Diameter M = %Midbreaks V = Vegetable Matter Content CVD = CV Diameter CV = CVLength

slide-20
SLIDE 20

Blending procedure for greasy wool

Selection across sale lots

slide-21
SLIDE 21

Bale breaker

Bales

slide-22
SLIDE 22

Opening of Australian wool

Brattice feed hopper Brattice feed hopper Double drum

  • pener

Weigh belt

slide-23
SLIDE 23

Scour

slide-24
SLIDE 24

Contaminants in raw wool

  • Wool wax

10%

  • Dirt

10%

  • Suint

5% Burr Seed and shive Hardheads

slide-25
SLIDE 25

Typical wool scour

  • 1. Spray box
  • 2. Dunkers
  • 3. Rakes
  • 4. Bowl level
  • 5. Wool transfer
  • 6. Squeeze
  • 7. Conveyor

False bottom

slide-26
SLIDE 26
slide-27
SLIDE 27
slide-28
SLIDE 28

scour rinse scour suint scour/ rinse scour scour rinse scour suint scour rinse Conventional desuint Siroscour alkali detergent

slide-29
SLIDE 29

Sirolan - SWIMS

Rinsing rinse water

wool wax

CF CF-B membrane Evaporation suint flowdown sludges strong flow Potassium fertiliser Recyclable sludge Clean wastewater

Recovery Loops Recovery Loop

Desuint Scouring

slide-30
SLIDE 30

Drum dryer

slide-31
SLIDE 31

Topmaking

Know specifications

  • f wool before

scouring Measure scoured wool moisture and residuals Apply lubricant and moisture Blending Transferred (on conveyer belt/ pneumatic system) to card hopper Feed from hopper to card Wool is carded (loose stock to sliver) Wool web condensed and coiled into cans Check sliver weight and moisture content Transport cans to gills

7b 9 8 6 7a 5 4 3 2 1

slide-32
SLIDE 32

Carding

slide-33
SLIDE 33

Worsted carding - the Thibeau CA7 card

8250 mm 2449 mm

slide-34
SLIDE 34

Worsted carding

slide-35
SLIDE 35

Gilling

slide-36
SLIDE 36

Gilling

Slivers in Sliver

  • ut
slide-37
SLIDE 37

Blending in gilling and combing

Gilling: 6 cans x 70 kg = 420 kg  4% lot Combing: 20 bobbins x 50 kg = 1000 kg  10% lot

slide-38
SLIDE 38

Combing

slide-39
SLIDE 39

The combing cycle

Top comb Feed gill Circular comb Withdrawal rollers Shovel plate Nipper jaws Apron

slide-40
SLIDE 40

Nep generation during topmaking

2000 4000 6000 8000 Card 1st Prep 2nd Prep 3rd Prep Comb 1st Draw Top

Topmaking Stage Neps (per 100g) 17.6 micron 22.7 micron

slide-41
SLIDE 41

The role of combing

Combed yarn Uncombed yarn

slide-42
SLIDE 42

Combing

  • The final filter can be set to selectively remove short fibre.
  • Removes majority of neps.
  • Removes majority of remaining VM.
  • Straightens/aligns fibres.
  • Adjustments critical to suit wool (diameter and length).
slide-43
SLIDE 43

Top making

  • Typically two post-comb gilling passages.
  • Improve sliver cohesion.
  • Improve sliver evenness (weight per unit length).
  • Randomise fibre ends.
  • Adjust moisture content.
  • Produce top – raw material for spinner.
slide-44
SLIDE 44

Topmaking as a blending process

Stage Doublings per stage Total doublings

Preparer gilling 6 6 Second gilling 6 36 Third gilling 6 216 Combing 20 4320 Finisher 1 6 25920 Finisher 2 (top) 6 155520

slide-45
SLIDE 45

Worsted spinning

slide-46
SLIDE 46

Worsted spinning

Tops arrive at spinner Test tops:

  • length
  • diameter
  • VM/nep

Decision made - blend with other tops, blend with

  • ther fibres, dye

tops Undyed tops, 1 or 2 gillings, 1 recombing plus 2 gillings Top dyeing - 1 or 2 gillings, 1 recombing plus 2 gillings Blended with synthetics gill plus recombing plus 2 gillings Drawing x 3 or 4 times Roving Spinning Steaming yarn 1 2 3 4.1 4.2 4.3 5 6 7 8

slide-47
SLIDE 47

Winding and clearing Twisting for warp Singles yarns for weft Steaming Yarn dyeing (optional) Package yarn 9 10.1 10.2 11 12 13

Worsted spinning

slide-48
SLIDE 48

Worsted spinning

slide-49
SLIDE 49

Worsted spinning Steaming and winding

slide-50
SLIDE 50

Yarn twisting

Assembly winding Two-for-one twisting

slide-51
SLIDE 51

Sirospun

slide-52
SLIDE 52

Solospun

Solospun rollers Weavable singles yarn

slide-53
SLIDE 53

Solospun – comparison with two-fold

slide-54
SLIDE 54

OE spinning layout Rieter system

slide-55
SLIDE 55

OE rotor and drive Rieter system

slide-56
SLIDE 56

Open-end characteristics

  • Very high twist insertion: ~ 200,000 min-1.
  • High production speed: 500 m/min.
  • High production rate: 10 g/min/station.
  • Yarn not as good as ring spun → used for sheeting, not high

quality fabrics.

  • Problem with yarn structure is the presence of ‘fasciated

fibres’ giving the yarn a ‘harsh’ hand.

slide-57
SLIDE 57

Murata Vortex Spinning Drafting and Twist Insertion

slide-58
SLIDE 58

Spinning system comparisons

  • Ring.
  • Open-end (OE).
  • Air Vortex and Air Jet (false twist process).

Spinning System Ring Long Ring Short Rotor MJS† MVS‡ Spindles (million) 16 166 7.6 0.25 0.26 Delivery (m/min) 20 20 250 300 400 World Prod Rate (tonnes/min) 6.4 66.4 38 1.5 2.1

† Murata Jet Spun ‡ Murata Vortex Spun

slide-59
SLIDE 59

Principles of weaving

slide-60
SLIDE 60

Weft insertion

Shuttle with pirn

Pirn: Yarn supply

slide-61
SLIDE 61

Weft insertion

Projectile – Sulzer system

slide-62
SLIDE 62

Weft insertion

Projectile

slide-63
SLIDE 63

Rapier system

Yarn transfer

slide-64
SLIDE 64

Weft insertion

Air-jet

Weft yarns Primary air jet

slide-65
SLIDE 65

Weft yarn supply

Weft yarns Weft yarn accumulators (6)

slide-66
SLIDE 66

Weaving speeds

slide-67
SLIDE 67

Finishing and Dyeing

Worsted Woollen

Crabbing Scouring Stentering Decatising Dyeing Shearing Scouring and milling Raising Dyeing Carbonising Stentering Decatising Cropping and/or Singeing

slide-68
SLIDE 68

Plain weft knit fabric

slide-69
SLIDE 69

Weft knit rib knit or 1x1 rib

slide-70
SLIDE 70

Circular knitting Warp knitting

slide-71
SLIDE 71

Finishing of knitwear

Worsted Woollen Mild scour Steam press with vacuum Mill Dyeing and easy-care treatment Dyeing Scour Steam press with vacuum

slide-72
SLIDE 72

The miracle of transformation

  • Many steps, often unique to wool.
  • Batch processes are common.
  • Productivity often relatively low.
  • Specification and measurement essential.
  • R&D important for product and process.
  • Wool fabrics are unique and highly desirable.
