Features, Regions, Gestures: Components of a Generic Gesture Recognition Engine Florian Echtler <echtler@in.tum.de> Andreas Butz Gudrun Klinker June 20th, 2010 Generic Gesture Recognition Architectural Overview difficult question:


slide-1

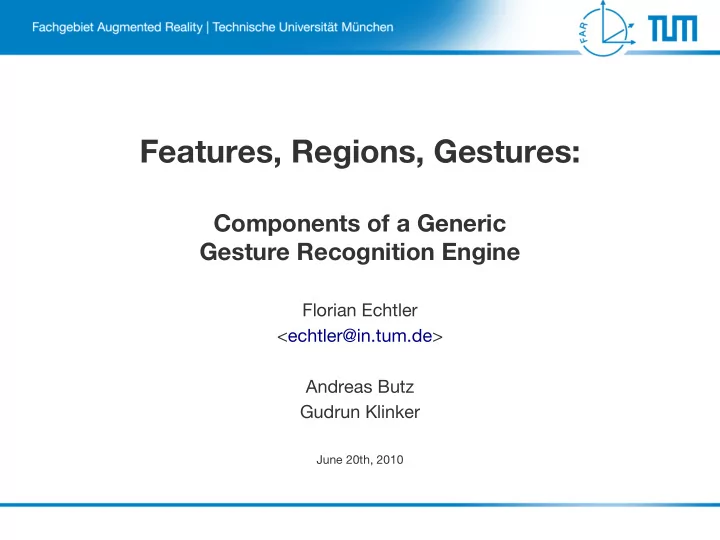

SLIDE 1

Features, Regions, Gestures:

Components of a Generic Gesture Recognition Engine

Florian Echtler <echtler@in.tum.de> Andreas Butz Gudrun Klinker

June 20th, 2010

slide-2
SLIDE 2

Features, Regions, Gestures – F. Echtler, A. Butz, G. Klinker - 20.6.2010 2

Generic Gesture Recognition

Architectural Overview

  • difficult question: what is a gesture?
  • answer within this context:

any motion(s) which a person executes in order to trigger a certain response

  • directly leads to the next question:

how can these motions be described?

  • current focus: planar input and output
  • extension to 3D entirely possible
slide-3
SLIDE 3

Features, Regions, Gestures – F. Echtler, A. Butz, G. Klinker - 20.6.2010 3

  • Features
  • simple geometric/numerical properties of motion data
  • e.g.: motion vector, relative rotation, travelled path ...
  • further specification through filters/boundary values
  • can take history of input blob(s) into account
  • Regions:
  • closed polygons, corners defined in screen coordinates
  • extension of „traditional“ WIMP-UI window objects
  • Gestures
  • sequences of features
  • pre-defined by capability description or customized by application
  • sent to application as asynchronous events

Generic Gesture Recognition

Abstract Description of Gestures

slide-4
SLIDE 4

Features, Regions, Gestures – F. Echtler, A. Butz, G. Klinker - 20.6.2010 4

Generic Gesture Recognition

Abstract Description of Gestures

Three core elements: Regions, Gestures, Features

slide-5
SLIDE 5

Features, Regions, Gestures – F. Echtler, A. Butz, G. Klinker - 20.6.2010 5

  • Motion – average motion vector
  • Rotation – rotation around center of mass
  • Scale – scaling w.r.t. center of mass
  • BlobCount – number of blobs inside region
  • BlobDimensions – describes equivalent ellipse
  • BlobOrientation – orientation according to main axis
  • BlobPosition – absolute position of blob
  • Path – recognize „shape-based“ gestures („$1 recognizer“)
  • BlobDelay – e.g. for „tap-and-hold“ gestures
  • BlobID – match specific object or user
  • BlobParent – match „parent“ object

Generic Gesture Recognition

List of Features

slide-6
SLIDE 6

Features, Regions, Gestures – F. Echtler, A. Butz, G. Klinker - 20.6.2010 6

Generic Gesture Recognition

Simple Example: Rotation

  • simple example: „rotate“ gesture
  • contains one feature: relative rotation
  • result value generated through...
  • multi-finger rotation or
  • bject rotation or
  • mouse wheel or ...
  • mapping is hardware-dependent
  • part of capability description

application doesn't have to care

slide-7
SLIDE 7

Features, Regions, Gestures – F. Echtler, A. Butz, G. Klinker - 20.6.2010 7

  • example: match 2-finger path gesture for specific user
  • Gesture HandRotate
  • Feature BlobParent: (parent == 42) && (type == user)
  • Feature Path: (path == (x,y)...) && (type == finger)
  • Feature BlobCount: (count == 0) && (type == finger)

Generic Gesture Recognition

Examples (continued)

slide-8
SLIDE 8

Features, Regions, Gestures – F. Echtler, A. Butz, G. Klinker - 20.6.2010 8

Generic Gesture Recognition

Summary

  • generic „motion matching“ engine
  • hardware-independent
  • gestures can be reconfigured (on-the-fly!)
  • approach towards standardization of...
  • ... hardware
  • ... interaction metaphors
  • ... libraries
  • speed up development/prototyping process

allow developers to focus on the interface itself

References: libTISCH - http://tisch.sf.net/. A Multitouch Software Architecture. F.Echtler, G.Klinker. NordiCHI 2008.

slide-9
SLIDE 9

Features, Regions, Gestures – F. Echtler, A. Butz, G. Klinker - 20.6.2010 9

Thank you for your attention.

Questions & comments are welcome!
