Fatigue: Fully Reversed Lecture 28 ME EN 372 Andrew Ning aning@byu.edu Outline Stress Concentrations Fully Reversed Load Examples Stress Concentrations Static stress concentrations Sec. 3-13, Tables A-15 K t = max 0 Purely

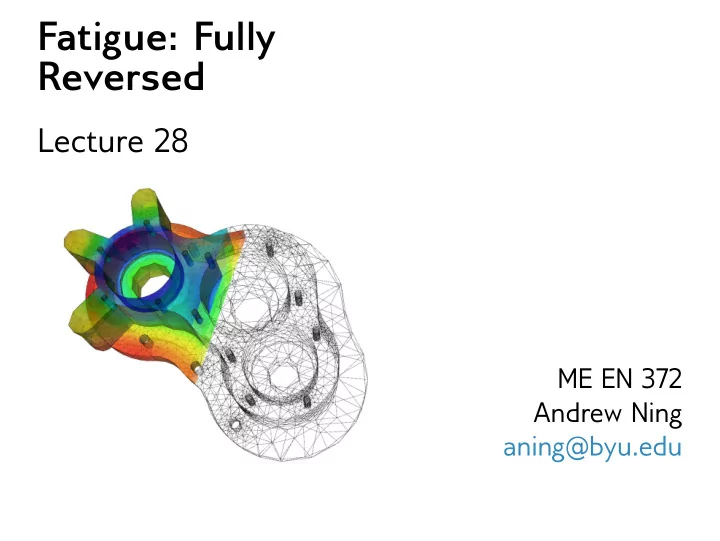

SLIDE 1

Fatigue: Fully Reversed

Lecture 28

ME EN 372 Andrew Ning aning@byu.edu

SLIDE 2

Outline

Stress Concentrations Fully Reversed Load Examples

SLIDE 3

Stress Concentrations

SLIDE 4

Static stress concentrations

Sec. 3-13, Tables A-15

Kt = σmax σ0 Purely geometric

SLIDE 5

Notch Sensitivity

q: Figs. 6-20 and 6-21. Eqns. 6-34 and 6-35 Based on material and geometry.

SLIDE 6

Fatigue stress-concentration factor

Kf = 1 + q(Kt − 1) similarly for shear stresses Kfs = 1 + qs(Kts − 1) Multiplier against nominal stress reversal (will discuss next)

SLIDE 7

Fully Reversed Load

SLIDE 8

time stress

Apply stress concentration factor to the reversed load.

SLIDE 9

S-N diagram

Fig. 6-10

SLIDE 10

Infinite Life If σrev ≤ Se ⇒ Infinite Life

SLIDE 11

Finite Life

Fatigue strength: Sf = aN b

SLIDE 12

Finite Life

Fatigue strength: Sf = aN b Safety factor in fatigue: nf = Sf σrev

SLIDE 13

Finite Life

Fatigue strength: Sf = aN b Safety factor in fatigue: nf = Sf σrev Number of cycles to failure: N = σrev a 1/b

SLIDE 14

How do we get a and b?

SLIDE 15

Examples

SLIDE 16

Example 1

Steel shaft in bending has ultimate strength of 690 MPa. Shaft has a 38 mm diameter section and a 32 mm section, connected by a radius with a fillet of 3 mm. Estimate Kf

SLIDE 17

Example 2

Same shaft has a fully corrected endurance limit of Se = 280 MPa. The fully reversed nominal stress in filet is σ = 260 MPa. Estimate number of cycles to failure.
