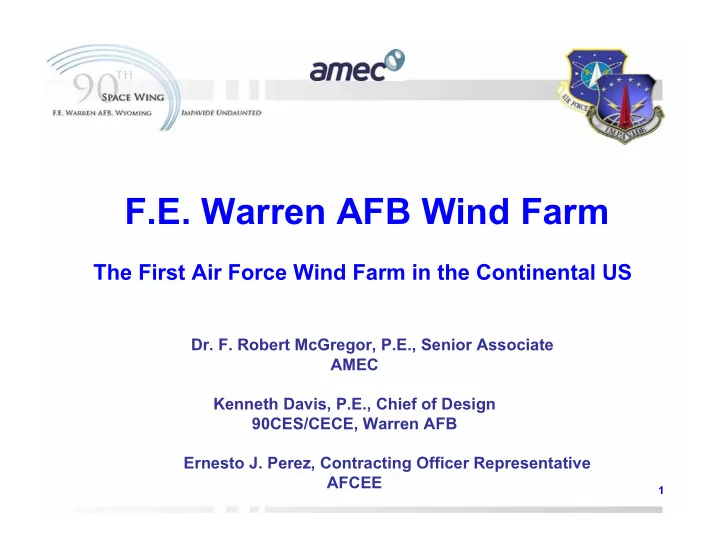

F.E. Warren AFB Wind Farm The First Air Force Wind Farm in the Continental US Dr. F. Robert McGregor, P.E., Senior Associate AMEC Kenneth Davis, P.E., Chief of Design 90CES/CECE, Warren AFB Ernesto J. Perez, Contracting Officer Representative


slide-1
SLIDE 1

1

F.E. Warren AFB Wind Farm

The First Air Force Wind Farm in the Continental US

  • Dr. F. Robert McGregor, P.E., Senior Associate

AMEC Kenneth Davis, P.E., Chief of Design 90CES/CECE, Warren AFB Ernesto J. Perez, Contracting Officer Representative AFCEE

slide-2
SLIDE 2

2

Project Summary

  • Capacity: 1.32 MW (two 660 kW

turbines)

  • Capital: 2.52 M (Energy Conservation

Investment Program (ECIP) Funds

  • O & M: $25,000/yr
  • Payback: 12 Years
  • Complies with Executive Order 12902

to use “renewable energy technologies”

slide-3
SLIDE 3

3

Keys to Success

Have a Vision

  • Energy Independence
  • Base Security
  • Economics
  • Green Energy

Know your Resource

  • Getting Started
  • Detailed Studies

Have a Good Team

  • Base
  • Outside Specialists

Know your Values and Limitations

  • Value of Power
  • Site Limitations

Celebrate Success

  • Photo Tour
slide-4
SLIDE 4

4

Know Your Resource

Getting Started

  • National Renewable Energy

Laboratory Maps

  • Wind Classifications
  • 4 to 5 (Good)
  • 5+ (Excellent)
slide-5
SLIDE 5

5

Know Your Resource

Detailed Studies

  • Amount of Power in the Wind
  • Wind Data Presentation and Analysis
  • Turbine Performance and Energy Production Estimates
slide-6
SLIDE 6

6

P = ½ x Da x Vw

3

Where: P = Power in Watts/m2 Da = Air Density in Kilograms/m3 V = Wind Velocity in m/s

The Power in the Wind: Cube of Wind Speed

slide-7
SLIDE 7

7

Wind Shear: Wind Speed vs. Height above Ground Level

slide-8
SLIDE 8

8

Warren AFB #2 Wind Data

10 20 30 40 50 60 70

4-Jan-02 14-Jan-02 24-Jan-02 3-Feb-02 13-Feb-02 23-Feb-02 5-Mar-02 15-Mar-02

Date Wind Speed (m/s)

Wind Speed vs. Time

slide-9
SLIDE 9

9

ECHO 01 WIND SPEED DISTRIBUTION (WEIBULL CURVE) - APRIL 01

0.05 0.1 0.15 0.2 0.25

0-3 mph 3-6 mph 6-9 mph 9-12 mph 12-15 mph 15-18 mph 18-21 mph 21-24 mph 24-27 mph 27-30 mph 30-33 mph 33-36 mph 36-39 mph 40+ mph

Wind Speed Probability

Wind Speed Frequency Distribution

slide-10
SLIDE 10

10

0.05 0.1 0.15 0.2 0.25 0-3 mph 3-6 mph 6-9 mph 9-12 mph 12-15 mph 15-18 mph 18-21 mph 21-24 mph 24-27 mph 27-30 mph 30-33 mph 33-36 mph 36-39 mph 40+ mph

X

Frequency Distribution Power in the Wind

Wind Power Density Function

0.000 5.000 10.000 15.000 20.000 25.000

0-3 mph 3-6 mph 6-9 mph 9-12 mph 12-15 mph 15-18 mph 18-21 mph 21-24 mph 24-27 mph 27-30 mph 30-33 mph 33-36 mph 36-39 mph 40+ mph

WIND SPEED

P O W E R D E N S IT Y(W /m

2)

=

slide-11
SLIDE 11

11

0.000 5.000 10.000 15.000 20.000 25.000

0-3 mph 3-6 mph 6-9 mph 9-12 mph 12-15 mph 15-18 mph 18-21 mph 21-24 mph 24-27 mph 27-30 mph 30-33 mph 33-36 mph 36-39 mph 40+ mph

WIND SPEED

P O W E R D E N S IT Y (W /m

2)

Wind Power Density Function

slide-12
SLIDE 12

12

Wind Direction: “Wind Rose”

S N E W

SW SE NE NW

Site Number: 0115 Start Date: 2002-03-01 End Date: 2002-04-30

.14 .14 .12 .10 .11 .15 .18 .15 .18 .16 .10 .10 .11 .12 .12 .11

Percent of Total Wind Energy Percent of Total Time Inner circle = 0% Outer circle = 40% Outer numbers are averaged TIs for that sector

slide-13
SLIDE 13

13

Diurnal Wind Speed

Diurnal Wind Speed Pattern

Hours Wind Speed in MPH

5 10 15 20 25 30 35 40 45 50 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 Site Number: 0115 Start Date: 2002-03-01 End Date: 2002-03-31

slide-14
SLIDE 14

14

Wind Resource Evaluation

Site 0115 20M Met Tower Dec 2002 Site 6015 50M Met Tower Dec 2003 ON LOAN FROM WAPA 1 ANEMOMETER – 20M 1 WIND VANE – 20M IN SERVICE DEC 2002 PROVIDED BY DoD-WIDE RENEWABLES ENERGY ASSESSMENT PROGRAM 2 ANEMOMETERS – 50M 1 ANEMOMETER – 40M 1 ANEMOMETER – 30M 1 WIND VANE – 50M 1 WIND VANE – 37M IN SERVICE DEC 2003

slide-15
SLIDE 15

15

0.0 1.0 2.0 3.0 4.0 5.0 6.0 7.0 8.0 9.0 10.0 Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec Wind Speed (m/s) Airport 10m LT Airport 10m LT 50m WS (m/s) y = 1.3251x + 0.4413 R2 = 0.8665 0.0 5.0 10.0 15.0 20.0 25.0 0.0 2.0 4.0 6.0 8.0 10.0 12.0 14.0 16.0

Airport 10m (m/s) Site WS (m/s)

Correlation with Long Term Airport Wind Data

slide-16
SLIDE 16

16

Pt/Po (Pt/P 0 ) = (1/2) (1 - (v 2 / v 1 ) 2 ) (1 + (v 2 / v 1 ))

Wind Turbine Performance

= Power extracted / Power in the wind (Theoretical maximum = 0.59)

slide-17
SLIDE 17

17

Wind Turbine Performance

Turbine “Power Curve”

slide-18
SLIDE 18

18

Wind Power Chart for Vestas 660

0.0 100.0 200.0 300.0 400.0 500.0 600.0 700.0 800.0 900.0 1000.0 1 3 5 7 9 11 13 15 17 19 21 23 25 27

Wind Speed m/s KW

Total KW for 1735 m2 Vestas 660 (advertised)

Wind Turbine Performance

Turbine Output

Power in the wind Turbine Output

slide-19
SLIDE 19

19

Capacity Factor:

Estimated Production / 100% Production of Installed Capacity = 4400 MWh / 11,563 MWh = 0.38 or 38% (Good) > 40% Very Good > 45% Best

Wind Turbine Performance

slide-20
SLIDE 20

20

Wind Turbine Performance

slide-21
SLIDE 21

21

Have a Good Team

  • Base and Outside Specialists
  • Licensing evaluation and strategy
  • Environmental impact

assessment

  • Liaison with electric utility
  • Planning approvals and permits
  • Public involvement program

planning and implementation

  • Site design and layout
  • Site optimization
  • Civil works design
  • Site identification and

assessment

  • Evaluation of wind resource
  • Electrical grid integration and

connection

  • Land use and availability
  • Site assessment and due

diligence

  • Negotiation with land owners
  • Site access
  • Financial evaluation
  • Planning and environmental

approvals

slide-22
SLIDE 22

22

Have a Good Team

  • Base and Outside Specialists
  • Site supervision
  • Installation and commissioning
  • Operation and maintenance
  • Monitor and report performance
  • Perform routine maintenance
  • Fault diagnosis and repair
  • Liaison with utilities and high

voltage switching

  • Billing for energy produced
  • Regulatory compliance
  • Electrical design
  • Investment structure
  • Develop financing options
  • Revenue projections
  • Financial evaluation
  • Negotiate power purchase

agreements

  • Arrange financing
  • Construction Management
  • Procure equipment
slide-23
SLIDE 23

23

  • Design: AFSPC open-end contract

Have a Good Team

  • Outside Specialists

with Idaho National Engineering and Environmental Laboratory (INEEL)

  • Construction Contract: procurement

via AFCEE WERC, Request for Information Approach – “ timely selection of most suitable contractor due to successful past performance on wind turbine construction”

  • Construction Contract: AMEC Earth &

Environmental, Inc.

slide-24
SLIDE 24

24

Know Your Values and Limitations

  • Value of Power

Consume on Base: $0.050 to $0.150 per kWh Sell Excess to Grid: $0.015 to $0.030 per kWh

  • Site Limitations

Minimum Distance from Centerlines of Runways Outside of Glide Path

slide-25
SLIDE 25

25

Warren Wind Turbines Photo Tour

West Tower Location East Tower Location

slide-26
SLIDE 26

26

Warren Wind Turbines Photo Tour

slide-27
SLIDE 27

27

Warren Wind Turbines Photo Tour

slide-28
SLIDE 28

28

Warren Wind Turbines Photo Tour

slide-29
SLIDE 29

29

Warren Wind Turbines Photo Tour

slide-30
SLIDE 30

30

Warren Wind Turbines Photo Tour

slide-31
SLIDE 31

31

Warren Wind Turbines Photo Tour

slide-32
SLIDE 32

32

Warren Wind Turbines Photo Tour

slide-33
SLIDE 33

33

Warren Wind Turbines Photo Tour

slide-34
SLIDE 34

34

Warren Wind Turbines Photo Tour

slide-35
SLIDE 35

35

Warren Wind Turbines Photo Tour

slide-36
SLIDE 36

36

Warren Wind Turbines Photo Tour

slide-37
SLIDE 37

37

Warren Wind Turbines Photo Tour

slide-38
SLIDE 38

38

Warren Wind Turbines Photo Tour

slide-39
SLIDE 39

39

Warren Wind Turbines Photo Tour

slide-40
SLIDE 40

40

Warren Wind Turbines Photo Tour

slide-41
SLIDE 41

41

Warren Wind Turbines Photo Tour

slide-42
SLIDE 42

42

Warren Wind Turbines Photo Tour

slide-43
SLIDE 43

43

Warren Wind Turbines Photo Tour

slide-44
SLIDE 44

44

Warren Wind Turbines Photo Tour

slide-45
SLIDE 45

45

Warren Wind Turbines Photo Tour

slide-46
SLIDE 46

46

Warren Wind Turbines Photo Tour

slide-47
SLIDE 47

47

Warren Wind Turbines Photo Tour

slide-48
SLIDE 48

48

Warren Wind Turbines Photo Tour

slide-49
SLIDE 49

49

Warren Wind Turbines Photo Tour

slide-50
SLIDE 50

50

Warren Wind Turbines Photo Tour

slide-51
SLIDE 51

51

Warren Wind Turbines Photo Tour

slide-52
SLIDE 52

52

Warren Wind Turbines Photo Tour

slide-53
SLIDE 53

53

Warren Wind Turbines Photo Tour

slide-54
SLIDE 54

54

Warren Wind Turbines Photo Tour

slide-55
SLIDE 55

55

Vestas V47 Turbine Specifications:

  • Nameplate Rating

660 kW

  • Rotor Diameter

154 ft = (47m)

  • Tower Height

164 ft = (50m)

  • Swept Rotor Area

18,765 sq ft = (1,735m2)

  • Cut-in Wind Speed

9 mph

  • Cut-out Wind Speed

55.9mph

  • Rotational Speed

28.5 rpm

  • Est. kWh Generated

for 2 turbines 4.4 million kWh/Yr

  • CO2 Offset (Yearly)

6.7 million lbs (3,344 tons)

  • Annual Energy Provided

522 Homes

Economics:

  • Project Cost

$2.52 million

  • Payback period

12 years

  • Lifetime Operational Savings

$3 million

  • Savings to Investment Ratio

1.19

slide-56
SLIDE 56

56

slide-57
SLIDE 57

57

DISCUSSION

  • Dr. F. Robert McGregor, P.E., Senior Associate

AMEC 303-935-6505 Kenneth Davis, P.E., Chief of Design 90CES/CECE, Warren AFB 307-773-5091 Ernesto J. Perez, Contracting Officer Representative AFCEE 307-773-3468
