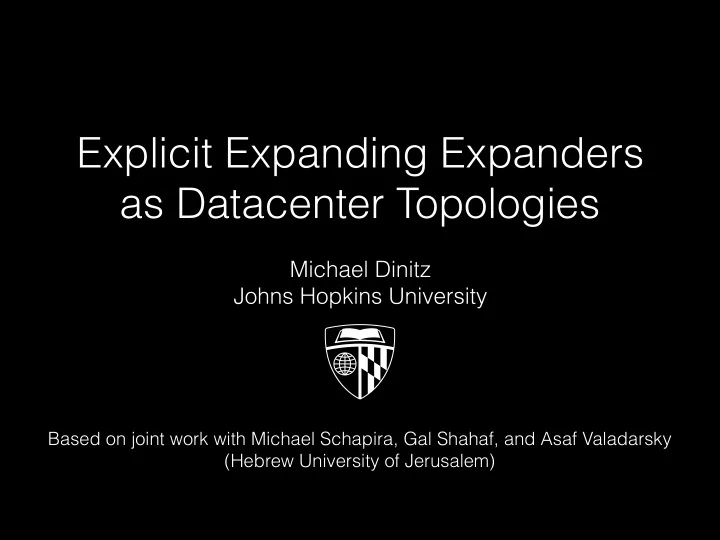

Explicit Expanding Expanders as Datacenter Topologies

Michael Dinitz Johns Hopkins University

Based on joint work with Michael Schapira, Gal Shahaf, and Asaf Valadarsky (Hebrew University of Jerusalem)

slide-2
SLIDE 2

Outline

  • Question: how should we wire datacenters?
  • Expanders!
  • 1. Background on expanders as networks
  • 2. Can we build expanders with additional

properties to ease adoption (incremental expansion)?

  • 3. Can other approaches (degree-diameter graphs)

be viewed as just other expanders?

slide-3
SLIDE 3

Expander Graphs as Network Topologies

slide-4
SLIDE 4

Datacenter Topologies

  • What is the “right” topology? Many competing

proposals!

  • Surprising result [Jellyfish: Singla et al, NSDI ’12]:
  • Random graphs outperform all of them, on almost every metric!
  • And have other nice properties (incremental expansion)
  • Practical?
  • Can we get the benefits of random graphs without

randomness?

  • Why are random graphs good? They’re expanders!
slide-5
SLIDE 5

Expander Graphs

slide-6
SLIDE 6
  • Expanders: never get “trapped” in

a subset of vertices

Expander Graphs

slide-7
SLIDE 7
  • Expanders: never get “trapped” in

a subset of vertices

Expander Graphs

G X

slide-8
SLIDE 8
  • Expanders: never get “trapped” in

a subset of vertices

  • Edge expansion:

Expander Graphs

G X

h(G) = min

X⊂V :|X|≤n/2

|E(X, V \ X)| |X|

slide-9
SLIDE 9
  • Expanders: never get “trapped” in

a subset of vertices

  • Edge expansion:
  • Expander: d-regular graph with

expansion Ω(d)

Expander Graphs

G X

h(G) = min

X⊂V :|X|≤n/2

|E(X, V \ X)| |X|

slide-10
SLIDE 10

Expanders: History

  • Widely studied in graph theory / theoretical CS
  • Many, many applications (mostly complexity

theory)

  • Random graphs are (w.h.p) very good expanders
  • Surprisingly difficult to construct expanders

deterministically

slide-11
SLIDE 11

Data Centers

  • Lots of traffic between nodes
  • In a bad topology, might get “stuck”
  • Problem if lots of traffic from one

section to the rest, not much capacity

  • Lots of traffic everywhere, so traffic

proportional to # vertices

  • Really: want large (edge) expansion!
  • Regular graph (# ports at switches)
slide-12
SLIDE 12

Throughput

  • Given graph G and traffic demand matrix T,

throughput is amount we need to scale down all demands to make feasible

  • Max concurrent flow
  • Important special case: T is all 1’s (all-to-all traffic)
  • Not the only metric for network quality, but an

important one

slide-13
SLIDE 13

Throughput: Theory

  • Thm: If T is all-to-all, then any expander has

throughput within O(log d) of the best possible d- regular graph.

  • Thm: For any T, any expander has throughput

within O(log n) of the best possible d-regular graph (for that T).

  • Thm: For any d-regular graph G, there is some T

and d-regular graph G* such that G* has throughput Ω(log n) more than G.

slide-14
SLIDE 14

Throughput: Theory

  • Thm: If T is all-to-all, then any expander has

throughput within O(log d) of the best possible d- regular graph.

  • Thm: For any T, any expander has throughput

within O(log n) of the best possible d-regular graph (for that T).

  • Thm: For any d-regular graph G, there is some T

and d-regular graph G* such that G* has throughput Ω(log n) more than G.

slide-15
SLIDE 15

Incremental Expansion

Explicit Expanding Expanders. Michael Dinitz, Michael Schapira, Asaf Valadarsky. ESA ‘15

slide-16
SLIDE 16

Incremental Expansion

  • So let’s use expanders for our data centers!
  • Data centers grow regularly: more servers and racks

purchased and added

  • Don’t want to completely rewire network every time!
  • Expander on n nodes should have approximately same

edge set as expander on n+1 nodes

slide-17
SLIDE 17

Random [Jellyfish NSDI’12]

slide-18
SLIDE 18

Random [Jellyfish NSDI’12]

  • Construct expanders randomly
  • To add node: choose random d/2

matching, remove, connect to new node

slide-19
SLIDE 19

Random [Jellyfish NSDI’12]

  • Construct expanders randomly
  • To add node: choose random d/2

matching, remove, connect to new node

slide-20
SLIDE 20

Random [Jellyfish NSDI’12]

  • Construct expanders randomly
  • To add node: choose random d/2

matching, remove, connect to new node

slide-21
SLIDE 21

Random [Jellyfish NSDI’12]

  • Construct expanders randomly
  • To add node: choose random d/2

matching, remove, connect to new node

slide-22
SLIDE 22

Random [Jellyfish NSDI’12]

  • Construct expanders randomly
  • To add node: choose random d/2

matching, remove, connect to new node

slide-23
SLIDE 23

Random [Jellyfish NSDI’12]

  • Construct expanders randomly
  • To add node: choose random d/2

matching, remove, connect to new node

slide-24
SLIDE 24

Random [Jellyfish NSDI’12]

  • Construct expanders randomly
  • To add node: choose random d/2

matching, remove, connect to new node

slide-25
SLIDE 25

Random [Jellyfish NSDI’12]

  • Construct expanders randomly
  • To add node: choose random d/2

matching, remove, connect to new node

slide-26
SLIDE 26

Random [Jellyfish NSDI’12]

  • Construct expanders randomly
  • To add node: choose random d/2

matching, remove, connect to new node

slide-27
SLIDE 27

Random [Jellyfish NSDI’12]

  • Construct expanders randomly
  • To add node: choose random d/2

matching, remove, connect to new node

slide-28
SLIDE 28

Random [Jellyfish NSDI’12]

  • Construct expanders randomly
  • To add node: choose random d/2

matching, remove, connect to new node

  • Works great in simulation — only

theory for uniform random regular graphs (Bollobas)

slide-29
SLIDE 29

Random [Jellyfish NSDI’12]

  • Construct expanders randomly
  • To add node: choose random d/2

matching, remove, connect to new node

  • Works great in simulation — only

theory for uniform random regular graphs (Bollobas)

  • Will companies actually use random datacenters?
  • Can we get same guarantees with deterministic

constructions?

slide-30
SLIDE 30

Expanding Expanders

slide-31
SLIDE 31

Expanding Expanders

  • Two problems with using existing

deterministic expanders as data centers

  • 1. Need to exist for all n (not just primes,

powers of 2, etc.)

  • 2. Need to handle incremental

expansion

slide-32
SLIDE 32

Expanding Expanders

  • Two problems with using existing

deterministic expanders as data centers

  • 1. Need to exist for all n (not just primes,

powers of 2, etc.)

  • 2. Need to handle incremental

expansion

Gn

slide-33
SLIDE 33

Expanding Expanders

  • Two problems with using existing

deterministic expanders as data centers

  • 1. Need to exist for all n (not just primes,

powers of 2, etc.)

  • 2. Need to handle incremental

expansion

Gn

slide-34
SLIDE 34

Expanding Expanders

  • Two problems with using existing

deterministic expanders as data centers

  • 1. Need to exist for all n (not just primes,

powers of 2, etc.)

  • 2. Need to handle incremental

expansion

Gn

slide-35
SLIDE 35

Expanding Expanders

  • Two problems with using existing

deterministic expanders as data centers

  • 1. Need to exist for all n (not just primes,

powers of 2, etc.)

  • 2. Need to handle incremental

expansion

Gn

slide-36
SLIDE 36

Expanding Expanders

  • Two problems with using existing

deterministic expanders as data centers

  • 1. Need to exist for all n (not just primes,

powers of 2, etc.)

  • 2. Need to handle incremental

expansion

  • Goal: infinite series of d-regular graphs

Gd+1, Gd+2, Gd+3, … where:

  • 1. Gi has i nodes
  • 2. Each Gi has large edge expansion

(approx. d/2)

  • 3. Few edge changes to get from Gi to

Gi+1 (approx. 3d/2)

Gn

slide-37
SLIDE 37

Explicit Expanding Expanders

Main Result: graphs Gi where:

  • Gi has i nodes
  • Expansion approx. d/3
  • At most 5d/2 edge changes from Gi to Gi+1
slide-38
SLIDE 38

Explicit Expanding Expanders

  • Still room for improvement!
  • Technicality: use multiple edges / edge weights

Main Result: graphs Gi where:

  • Gi has i nodes
  • Expansion approx. d/3
  • At most 5d/2 edge changes from Gi to Gi+1
slide-39
SLIDE 39

2-Lifts

slide-40
SLIDE 40

2-Lifts

  • Main tool: 2-Lifts [Bilu-Linial]
  • 2-Lift of G: double every vertex,

replace edge by matching

slide-41
SLIDE 41

2-Lifts

  • Main tool: 2-Lifts [Bilu-Linial]
  • 2-Lift of G: double every vertex,

replace edge by matching

slide-42
SLIDE 42

2-Lifts

  • Main tool: 2-Lifts [Bilu-Linial]
  • 2-Lift of G: double every vertex,

replace edge by matching

slide-43
SLIDE 43

2-Lifts

  • Main tool: 2-Lifts [Bilu-Linial]
  • 2-Lift of G: double every vertex,

replace edge by matching

slide-44
SLIDE 44

2-Lifts

  • Main tool: 2-Lifts [Bilu-Linial]
  • 2-Lift of G: double every vertex,

replace edge by matching

slide-45
SLIDE 45

2-Lifts

  • Main tool: 2-Lifts [Bilu-Linial]
  • 2-Lift of G: double every vertex,

replace edge by matching

slide-46
SLIDE 46

2-Lifts

  • Main tool: 2-Lifts [Bilu-Linial]
  • 2-Lift of G: double every vertex,

replace edge by matching

  • Two options for each matching,

so 2|E| possible 2-lifts

slide-47
SLIDE 47

2-Lifts

  • Main tool: 2-Lifts [Bilu-Linial]
  • 2-Lift of G: double every vertex,

replace edge by matching

  • Two options for each matching,

so 2|E| possible 2-lifts

  • Thm [BL]: If G an expander,

random matchings gives good expander w.h.p.

  • Can be derandomized!
slide-48
SLIDE 48

Our Approach

slide-49
SLIDE 49

Our Approach

  • “Split” each node one at a time,

rather than all at once

  • Start with d/2-regular expander,

weights 2

slide-50
SLIDE 50

Our Approach

  • “Split” each node one at a time,

rather than all at once

  • Start with d/2-regular expander,

weights 2

slide-51
SLIDE 51

Our Approach

  • “Split” each node one at a time,

rather than all at once

  • Start with d/2-regular expander,

weights 2

  • Inserting new node: split currently

unsplit node

slide-52
SLIDE 52

Our Approach

  • “Split” each node one at a time,

rather than all at once

  • Start with d/2-regular expander,

weights 2

  • Inserting new node: split currently

unsplit node

slide-53
SLIDE 53

Our Approach

  • “Split” each node one at a time,

rather than all at once

  • Start with d/2-regular expander,

weights 2

  • Inserting new node: split currently

unsplit node

slide-54
SLIDE 54

Our Approach

  • “Split” each node one at a time,

rather than all at once

  • Start with d/2-regular expander,

weights 2

  • Inserting new node: split currently

unsplit node

slide-55
SLIDE 55

Our Approach

  • “Split” each node one at a time,

rather than all at once

  • Start with d/2-regular expander,

weights 2

  • Inserting new node: split currently

unsplit node

d/2

slide-56
SLIDE 56

Our Approach

  • “Split” each node one at a time,

rather than all at once

  • Start with d/2-regular expander,

weights 2

  • Inserting new node: split currently

unsplit node

  • Unsplit neighbors: replace weight 2

edge with two weight 1 edges

d/2

slide-57
SLIDE 57

Our Approach

  • “Split” each node one at a time,

rather than all at once

  • Start with d/2-regular expander,

weights 2

  • Inserting new node: split currently

unsplit node

  • Unsplit neighbors: replace weight 2

edge with two weight 1 edges

d/2

slide-58
SLIDE 58

Our Approach

  • “Split” each node one at a time,

rather than all at once

  • Start with d/2-regular expander,

weights 2

  • Inserting new node: split currently

unsplit node

  • Unsplit neighbors: replace weight 2

edge with two weight 1 edges

d/2

slide-59
SLIDE 59

Our Approach

  • “Split” each node one at a time,

rather than all at once

  • Start with d/2-regular expander,

weights 2

  • Inserting new node: split currently

unsplit node

  • Unsplit neighbors: replace weight 2

edge with two weight 1 edges

d/2 d/2 - 1

slide-60
SLIDE 60

Our Approach

  • “Split” each node one at a time,

rather than all at once

  • Start with d/2-regular expander,

weights 2

  • Inserting new node: split currently

unsplit node

  • Unsplit neighbors: replace weight 2

edge with two weight 1 edges

d/2 d/2 - 1 d/2 - 1

slide-61
SLIDE 61

Our Approach

  • “Split” each node one at a time,

rather than all at once

  • Start with d/2-regular expander,

weights 2

  • Inserting new node: split currently

unsplit node

  • Unsplit neighbors: replace weight 2

edge with two weight 1 edges

  • Split neighbors: replace two weight 1

edges with matching of weight 2 edges

d/2 d/2 - 1 d/2 - 1

slide-62
SLIDE 62

Our Approach

  • “Split” each node one at a time,

rather than all at once

  • Start with d/2-regular expander,

weights 2

  • Inserting new node: split currently

unsplit node

  • Unsplit neighbors: replace weight 2

edge with two weight 1 edges

  • Split neighbors: replace two weight 1

edges with matching of weight 2 edges

  • Nice property: after all nodes split,

have precisely next BL expander

d/2 d/2 - 1 d/2 - 1

slide-63
SLIDE 63

Analysis: Edge Changes

  • Split u into u, u’:
  • Unsplit neighbor v: one edge
  • f weight 2 → 2 edges of

weight 1. Cost 2

  • Split neighbors v, v’: two

edges of weight 1 → two edges of weight 2, decrease {v, v’} by 1. Cost 5.

  • Add {u,u’} of weight (# unsplit

neighbors)

u v v u u’ v’ u u’ v v’ u v k k-1

slide-64
SLIDE 64

Analysis: Edge Changes

  • Split u into u, u’:
  • Unsplit neighbor v: one edge
  • f weight 2 → 2 edges of

weight 1. Cost 2

  • Split neighbors v, v’: two

edges of weight 1 → two edges of weight 2, decrease {v, v’} by 1. Cost 5.

  • Add {u,u’} of weight (# unsplit

neighbors)

u v v u u’ v’ u u’ v v’ u v k k-1

Total cost: 3*(unsplit neighbors) + 5*(split neighbors) Know 2*(unsplit) + 2*(split) = d

slide-65
SLIDE 65

Future Cuts

  • Cut (A, B)

A B S(A) S(B) U(A) U(B)

Split Unsplit

slide-66
SLIDE 66

Future Cuts

  • Cut (A, B)

A B S(A) S(B) U(A) U(B) F(A) F(B) F(S(A)) F(S(B)) F(U(A)) F(U(B))

Split Unsplit

  • Future cut (F(A), F(B)) of next BL expander:
  • F(S(･)) = S(･)
  • F(U(･)) = U(･) and splits of U(･)
slide-67
SLIDE 67

Easy expansion

A B S(A) S(B) U(A) U(B) F(A) F(B) F(S(A)) F(S(B)) F(U(A)) F(U(B))

slide-68
SLIDE 68

Easy expansion

  • Know that w(F(A), F(B)) large (≈(d/2) |F(A)|) — argue that w(A, B) close to it

A B S(A) S(B) U(A) U(B) F(A) F(B) F(S(A)) F(S(B)) F(U(A)) F(U(B))

slide-69
SLIDE 69

Easy expansion

  • Know that w(F(A), F(B)) large (≈(d/2) |F(A)|) — argue that w(A, B) close to it
  • 2 * w(U(A), U(B)) = w(F(U(A), F(U(B)))

A B S(A) S(B) U(A) U(B) F(A) F(B) F(S(A)) F(S(B)) F(U(A)) F(U(B))

slide-70
SLIDE 70

Easy expansion

  • Know that w(F(A), F(B)) large (≈(d/2) |F(A)|) — argue that w(A, B) close to it
  • 2 * w(U(A), U(B)) = w(F(U(A), F(U(B)))
  • w(S(A), S(B)) = w(F(S(A)), F(S(B)))

A B S(A) S(B) U(A) U(B) F(A) F(B) F(S(A)) F(S(B)) F(U(A)) F(U(B))

slide-71
SLIDE 71

Easy expansion

  • Know that w(F(A), F(B)) large (≈(d/2) |F(A)|) — argue that w(A, B) close to it
  • 2 * w(U(A), U(B)) = w(F(U(A), F(U(B)))
  • w(S(A), S(B)) = w(F(S(A)), F(S(B)))
  • 2 * w(S(A), U(B)) = w(F(S(A)), F(U(B)))

A B S(A) S(B) U(A) U(B) F(A) F(B) F(S(A)) F(S(B)) F(U(A)) F(U(B))

slide-72
SLIDE 72

Easy expansion

  • Know that w(F(A), F(B)) large (≈(d/2) |F(A)|) — argue that w(A, B) close to it
  • 2 * w(U(A), U(B)) = w(F(U(A), F(U(B)))
  • w(S(A), S(B)) = w(F(S(A)), F(S(B)))
  • 2 * w(S(A), U(B)) = w(F(S(A)), F(U(B)))

A B S(A) S(B) U(A) U(B) F(A) F(B) F(S(A)) F(S(B)) F(U(A)) F(U(B)) Half the weight, so at least half the expansion (d/4)!

slide-73
SLIDE 73

Real expansion

  • Use fact that fewer vertices than in future cut
  • Combine with Expander Mixing Lemma, get

expansion d/3

  • Need to use strong spectral expansion
  • Fact: there are graphs in sequence with 𝝁2 ≈ d/2, so

cannot get expansion bound directly from Cheeger

slide-74
SLIDE 74

Conclusion (Part II)

  • Can get good incremental expansion by

incrementally 2-lifting

  • Can even do this to any starting expander
  • Many open questions
  • Tight or improved bounds?
  • Heterogeneous nodes? Edges?
slide-75
SLIDE 75

Degree-Diameter Graphs as Expanders

Large Fixed-Diameter Graphs are Good Expanders. Michael Dinitz, Michael Schapira, Gal Shahaf. arXiv ‘17

slide-76
SLIDE 76

Different Intuitions

  • Expanders
  • Good because data can’t get “bottlenecked” anywhere
  • Ensure this by making cuts “large”
  • Alternative
  • Long paths are wasteful: flow of size 𝛽 uses (length × 𝛽)

total capacity

  • So minimize distances: try to make diameter small
slide-77
SLIDE 77

Degree-Diameter Graphs

slide-78
SLIDE 78

Degree-Diameter Graphs

  • Three parameters: size n, degree d, diameter k
  • What are the extremal graphs?
  • Fix d, k. What is largest possible value of n?
  • “Degree/Diameter problem”
slide-79
SLIDE 79

Degree-Diameter Graphs

  • Three parameters: size n, degree d, diameter k
  • What are the extremal graphs?
  • Fix d, k. What is largest possible value of n?
  • “Degree/Diameter problem”
  • “Intuitively, the best known degree-diameter topologies should

support a large number of servers with high network bandwidth and low cost (small degree)... Thus, we propose the best- known degree-diameter graphs as a benchmark for comparison.” — Singla et al, NSDI ’12

  • Slim Fly [Besta-Hoefler, SC ’14]: Uses near-optimal degree-diameter

graphs for k=2 (MMS graphs) and k=3 (BDF and Delorme graphs)

slide-80
SLIDE 80

Informal Result

  • So what are the “best” datacenter topologies?
  • Optimal expanders (Ramanujan graphs)? Or optimal degree-

diameter graphs (Moore graphs)?

  • Similar performance in simulation (degree-diameter graphs

slightly worse)

slide-81
SLIDE 81

Informal Result

  • So what are the “best” datacenter topologies?
  • Optimal expanders (Ramanujan graphs)? Or optimal degree-

diameter graphs (Moore graphs)?

  • Similar performance in simulation (degree-diameter graphs

slightly worse)

Informal result: Any sufficiently good degree- diameter graph is a good expander!

slide-82
SLIDE 82

Informal Result

  • So what are the “best” datacenter topologies?
  • Optimal expanders (Ramanujan graphs)? Or optimal degree-

diameter graphs (Moore graphs)?

  • Similar performance in simulation (degree-diameter graphs

slightly worse)

Informal result: Any sufficiently good degree- diameter graph is a good expander!

  • So finding good degree-diameter graphs involves

finding good expanders

  • Expanders already very good — just use them
slide-83
SLIDE 83

Moore Bound

  • Fix d, k. Obvious upper bound on n:

1 d d(d-1) d(d-1)2

slide-84
SLIDE 84

Moore Bound

  • Fix d, k. Obvious upper bound on n:

1 d d(d-1) d(d-1)2

Moore bound:

µd,k = 1 + d + d(d − 1) + d(d − 1)2 + · · · + d(d − 1)k−1 = 1 + d

k−1

X

i=0

(d − 1)i

slide-85
SLIDE 85

Moore Bound

  • Fix d, k. Obvious upper bound on n:

1 d d(d-1) d(d-1)2

Moore bound:

  • Not achievable in general
  • Lots of work by graph theorists
  • Can get arbitrarily close (as n gets

large) for k = 2, 3, 5

µd,k = 1 + d + d(d − 1) + d(d − 1)2 + · · · + d(d − 1)k−1 = 1 + d

k−1

X

i=0

(d − 1)i

slide-86
SLIDE 86

Formal Results

  • Algebraic / spectral expansion: 𝝁(G) = second

largest eigenvalue of adj. matrix

  • Cheeger inequality: h(G) ≥ (d-𝝁(G))/2
slide-87
SLIDE 87

Formal Results

  • Algebraic / spectral expansion: 𝝁(G) = second

largest eigenvalue of adj. matrix

  • Cheeger inequality: h(G) ≥ (d-𝝁(G))/2

Theorem: Any graph with degree d, diameter k, and n ≥ (1-ε) μd,k has 𝝁(G) ≤ O(ε1/k) d Theorem: Any graph with degree d, diameter k, and n ≥ μd,k - O(dk/2) has 𝝁(G) = O(d1/2)

slide-88
SLIDE 88

Techniques

  • Connection to Geronimus Polynomials
  • Formal polynomials Pt(x), where Pt(A) is matrix giving #

“irreducible walks” of length t

Theorem: Let G be graph with degree d, diameter k, and size n. Then for every nontrivial eigenvalue λ,

  • k

X

t=0

Pt(λ)

  • ≤ µd,k − n
slide-89
SLIDE 89

Conclusion (Part III)

  • Expanders and degree/diameter graphs two different

proposals, from different intuitions

  • But and good degree/diameter graph is a good

expander!

  • Suggests that good performance of degree/diameter graphs because
  • f good expansion
  • Expanders easier to construct: just use a good expander
  • Open questions:
  • What is true relationship? No reason to think our bounds tight
  • Moore bound possibly weak: is an optimal degree/diameter graph a

good expander even if not close to Moore?

slide-90
SLIDE 90

Thanks!
