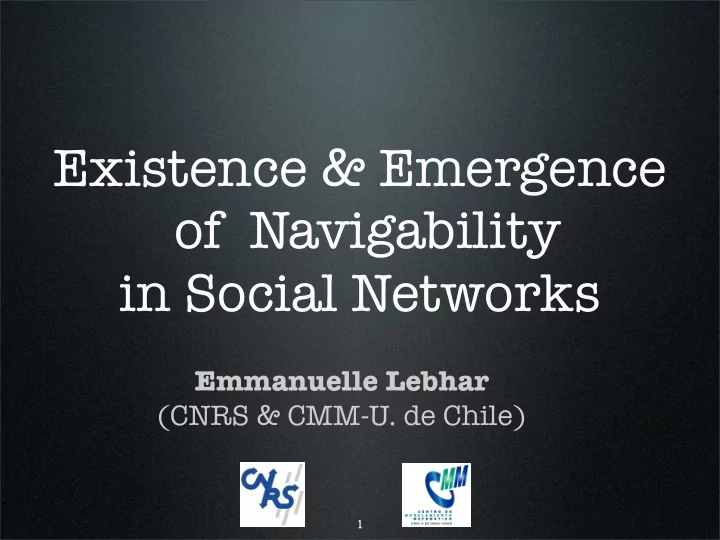

Existence & Emergence of Navigability in Social Networks - - PowerPoint PPT Presentation

Existence & Emergence

• f Navigability

in Social Networks

Emmanuelle Lebhar (CNRS & CMM-U. de Chile)

1

1- Social networks

2

Social networks

Networks of human beings interactions.

High school dating Co-authorship in Physics

3

Social networks

Networks of human beings interactions.

Disease spreading through human contacts Blogs network

4

Social networks

• Billions of nodes.
• Network built “spontaneously”, no map.
• Recently: huge increase of available

data! (emails, Facebook, blogs)

5

Social networks

• Billions of nodes.
• Network built “spontaneously”, no map.
• Recently: huge increase of available

data! (emails, Facebook, blogs)

5

Specific properties common to

• ther “complex networks”:

(Internet, electricity, proteins..)

Social networks

• Billions of nodes.
• Network built “spontaneously”, no map.
• Recently: huge increase of available

data! (emails, Facebook, blogs)

5

Specific properties common to

• ther “complex networks”:

(Internet, electricity, proteins..)

➡High clustering

Social networks

• Billions of nodes.
• Network built “spontaneously”, no map.
• Recently: huge increase of available

data! (emails, Facebook, blogs)

5

Specific properties common to

• ther “complex networks”:

(Internet, electricity, proteins..)

➡Power law degree

distribution

➡High clustering

Social networks

• Billions of nodes.
• Network built “spontaneously”, no map.
• Recently: huge increase of available

data! (emails, Facebook, blogs)

5

Specific properties common to

• ther “complex networks”:

(Internet, electricity, proteins..)

➡Small diameter ➡Power law degree

distribution

➡High clustering

The small world effect

• Very short paths exists.
• People are able to discover them locally.

=Navigability

• M. Smith

Farmer Wyoming

• M. SMOOTH

Physician Boston

Milgram 1967

6

“6 degrees of separation”

2- Random models

7

Static random models

• Why random? To reflect human

behaviors...

8

Static random models

• Why random? To reflect human

behaviors...

8

• First model: Erdös-Rényi random

graph.

Static random models

• Why random? To reflect human

behaviors...

8

• First model: Erdös-Rényi random

graph. Probability p that two people know each other.

Static random models

• Why random? To reflect human

behaviors...

8

• First model: Erdös-Rényi random

graph. Probability p that two people know each other.

n=#nodes p

Static random models

• Why random? To reflect human

behaviors...

8

• First model: Erdös-Rényi random

graph. Probability p that two people know each other.

If p> (log n)/n, diameter ≤ log n. n=#nodes p

Why a small diameter?

• Expected degree of a random node u: np.

9

p

u

Why a small diameter?

• Expected degree of a random node u: np.

9

p

• (very roughly) # of k-neighbors: (np)k

u

Why a small diameter?

• Expected degree of a random node u: np.

9

p

• (very roughly) # of k-neighbors: (np)k

u

• Distance k to reach all nodes: ln(np).

Why a small diameter?

• Expected degree of a random node u: np.

9

• True result: log(n)/log(<d>) as soon as

<d>=np>1.

p

• (very roughly) # of k-neighbors: (np)k

u

• Distance k to reach all nodes: ln(np).

Static random models

Main features of Erdös-Rényi random graph:

• Poisson degree distribution.
• Exponential neighborhood growth.

10

Static random models

Main features of Erdös-Rényi random graph:

• Poisson degree distribution.
• Exponential neighborhood growth.

10

• Consequences on virus spreading models.

Static random models

Main features of Erdös-Rényi random graph:

• Poisson degree distribution.
• Exponential neighborhood growth.

10

• Consequences on virus spreading models.
• But uniform random graph turned out

to be very far from real observations!

Importance of random models accuracy

11

• Q°: when do we reach the epidemic state?

Importance of random models accuracy

Virus spread: if there is a threshold of

infection to reach before the epidemy, we can try to slow down the spread not to reach it.

11

• Q°: when do we reach the epidemic state?

Importance of random models accuracy

Virus spread: if there is a threshold of

infection to reach before the epidemy, we can try to slow down the spread not to reach it.

11

• Q°: when do we reach the epidemic state?
• Network with Poisson degree

distribution: threshold exists.

Importance of random models accuracy

Virus spread: if there is a threshold of

infection to reach before the epidemy, we can try to slow down the spread not to reach it.

11

• Q°: when do we reach the epidemic state?
• Network with Poisson degree

distribution: threshold exists.

• Network with power-law degree distrib°

with exponent in [2,3] (i.e. like real): threshold=0.

Uniform random graphs

• No clustering: friends of friends not

well connected.

12

Uniform random graphs

• No clustering: friends of friends not

well connected.

• It makes sense! No reason why since the

distribution is uniform.

12

Uniform random graphs

• No clustering: friends of friends not

well connected.

• It makes sense! No reason why since the

distribution is uniform.

• Small world navigation does not work:

12

Uniform random graphs

• No clustering: friends of friends not

well connected.

• It makes sense! No reason why since the

distribution is uniform.

• Small world navigation does not work:

Pr( reach √n - ball around target) ≤ 1/√n

➡ at least √n expected path length.

12

Static random models

13

• Mixing randomization and regularity:

Watts & Strogatz 1999.

Static random models

13

• Mixing randomization and regularity:
• Ok for clustering.

Watts & Strogatz 1999.

Static random models

13

• Mixing randomization and regularity:
• Ok for clustering.
• But still not navigable (unifrom distribution
• ver distances).

Watts & Strogatz 1999.

v u

Pr(u→v)∝1/|u-v|2

Modeling navigability

Kleinberg model of augmented graphs [2000]:

14

v u

• 2-dim grid: distances globally known.

Pr(u→v)∝1/|u-v|2

Modeling navigability

Kleinberg model of augmented graphs [2000]:

14

v u

• 2-dim grid: distances globally known.
• Extra random shortcuts: private links

(e.g. friends).

Pr(u→v)∝1/|u-v|2

Modeling navigability

Kleinberg model of augmented graphs [2000]:

14

v u

Pr(u→v)∝1/|u-v|s

Modeling navigability

Kleinberg model of augmented graphs [2000]:

15

v u

Pr(u→v)∝1/|u-v|s

Theorem [K00]

Modeling navigability

Kleinberg model of augmented graphs [2000]:

15

v u

• s=2: greedy routing reaches any node

in O(log2n) steps.

Pr(u→v)∝1/|u-v|s

Theorem [K00]

Modeling navigability

Kleinberg model of augmented graphs [2000]:

15

v u

• s=2: greedy routing reaches any node

in O(log2n) steps.

• s≠2: greedy takes at least Ω(nc) steps.

Pr(u→v)∝1/|u-v|s

Theorem [K00]

Modeling navigability

Kleinberg model of augmented graphs [2000]:

15

Navigability in Kleinberg model

A routing algorithm is claimed decentralized if:

• 1. it knows all links of the mesh,
• 2. it discovers locally the extra random links.

16

Navigability in Kleinberg model

A routing algorithm is claimed decentralized if:

• 1. it knows all links of the mesh,
• 2. it discovers locally the extra random links.

➡ Greedy routing computes paths of expected

length O(log2n) between any pair in this model.

16

Navigability : Structural properties

17

Augmented graph (H,φ) :

Augmented graph models

18

Augmented graph (H,φ) : ➡ H= base graph , globally known

Augmented graph models

18

Augmented graph (H,φ) : ➡ H= base graph , globally known

➡ φ = augmented links distribution

Augmented graph models

18

Augmented graph (H,φ) : ➡ H= base graph , globally known

➡ φ = augmented links distribution

φu(v) = probability that v is the long range contact of u.

Augmented graph models

18

Augmented graph models

19

Augmented graph models

• Bounded growth graphs [Duchon et al. 05]

19

Augmented graph models

• Bounded treewidth graphs [Fraigniaud 05]
• Bounded growth graphs [Duchon et al. 05]

19

Augmented graph models

• Bounded treewidth graphs [Fraigniaud 05]
• Bounded growth graphs [Duchon et al. 05]
• Bounded doubling dimension metrics [Slivkins

05]

19

Augmented graph models

• Graphs excluding a fixed minor

[Abraham&Gavoille 06]

• Bounded treewidth graphs [Fraigniaud 05]
• Bounded growth graphs [Duchon et al. 05]
• Bounded doubling dimension metrics [Slivkins

05]

19

Augmented graph models

• Graphs excluding a fixed minor

[Abraham&Gavoille 06]

• Bounded treewidth graphs [Fraigniaud 05]
• Bounded growth graphs [Duchon et al. 05]
• Bounded doubling dimension metrics [Slivkins

05] But for some graphs, greedy paths are of length at least Ω(n1/√log n) for any augmentation. [Fraigniaud,L.,Lotker 06]

19

Augmented graph models

• Density based augmentations: [Kleinberg 00,

Kleinberg 01, Duchon et al. 05, Slivkins 05]

20

Augmented graph models

• Density based augmentations: [Kleinberg 00,

Kleinberg 01, Duchon et al. 05, Slivkins 05]

If H is of bounded growth

i.e. Bu(2R)≤c.Bu(R) for all node u and radius R

20

Augmented graph models

• Density based augmentations: [Kleinberg 00,

Kleinberg 01, Duchon et al. 05, Slivkins 05]

If H is of bounded growth

i.e. Bu(2R)≤c.Bu(R) for all node u and radius R

and if φ is density based

i.e. φu(v) proportional to 1/Bu( dist(u,v) )

20

Augmented graph models

• Density based augmentations: [Kleinberg 00,

Kleinberg 01, Duchon et al. 05, Slivkins 05]

If H is of bounded growth

i.e. Bu(2R)≤c.Bu(R) for all node u and radius R

and if φ is density based

i.e. φu(v) proportional to 1/Bu( dist(u,v) )

Then H is navigable

i.e. greedy routing computes polylog(n) paths knowing only H.

20

Augmented graph models

• Density based augmentations

21

Augmented graph models

• Density based augmentations

u v

Bu(d(u,v))

small probability

21

Augmented graph models

• Density based augmentations

u v

Bu(d(u,v))

small probability u v

Bu(d(u,v))

big probability

21

Augmented graph models

• Density based augmentations

u v

Bu(d(u,v))

small probability u v

Bu(d(u,v))

big probability Liben-Nowell et al 05 : it fits observations on electronic social networks.

21

• Navigability:

Dynamic properties

22

Question

• Harmonic augmentation 1/x is crucial.

23

Question

• Harmonic augmentation 1/x is crucial.
• But : natural spontaneous networks.

23

Question

• Harmonic augmentation 1/x is crucial.
• But : natural spontaneous networks.
• How does it emerge?

23

Question

• Harmonic augmentation 1/x is crucial.
• But : natural spontaneous networks.
• How does it emerge?

We look for a natural dynamic process arising the shortcuts that produces navigability. (e.g. 1-harmonic distribution on the ring.)

23

Previous attempts

[Clauset & Moore 2003]

• Hypothesis: shortcuts comes from

successive searches.

24

Previous attempts

[Clauset & Moore 2003]

• Hypothesis: shortcuts comes from

successive searches.

new hyperlink: bookmark

• u stops after t steps (random) and rewire its

link.

24

Previous attempts

[Clauset & Moore 2003]

• Hypothesis: shortcuts comes from

successive searches.

Threshold of frustration hyperlink

• u tries to route greedily towards v (random).

new hyperlink: bookmark

• u stops after t steps (random) and rewire its

link.

24

Previous attempts

25

Previous attempts

• Simulation results:

convergence to the harmonic distribution and short greedy routes.

0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 0.6 0.65 0.7 0.75 0.8 0.85 0.9 0.95 1 initial exponent, 0 rewired exponent, rewired =75 =150 =300 =500

25

Previous attempts

• No analytical result: complex

dependencies of the shortcuts.

• Simulation results:

convergence to the harmonic distribution and short greedy routes.

0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 0.6 0.65 0.7 0.75 0.8 0.85 0.9 0.95 1 initial exponent, 0 rewired exponent, rewired =75 =150 =300 =500

25

Previous attempts

[Clarke & Sandberg 2006]

• Same hypothesis: shortcuts comes

from successive searches.

26

Previous attempts

[Clarke & Sandberg 2006]

• Same hypothesis: shortcuts comes

from successive searches.

• u computes a greedy path P to v (random).

26

Previous attempts

[Clarke & Sandberg 2006]

• Same hypothesis: shortcuts comes

from successive searches.

• each node of P rewires its link to v with

probability p.

• u computes a greedy path P to v (random).

26

Previous attempts

[Clarke & Sandberg 2006]

• Same hypothesis: shortcuts comes

from successive searches.

• each node of P rewires its link to v with

probability p.

• u computes a greedy path P to v (random).
• Simulation results: short greedy routes.
• Analytical results: convergence to the

harmonic distribution.

26

Our approach

• A different hypothesis :
• 1. Links comes from people who met once.
• 2. Links tend to be forgotten with time.

27

[Chaintreau, Fraigniaud, L. 08]

Our approach

• A different hypothesis :
• 1. Links comes from people who met once.
• 2. Links tend to be forgotten with time.
• Our process can be fully analyzed.

27

[Chaintreau, Fraigniaud, L. 08]

Move and Forget process

Zk

28

Move and Forget process

Zk Individuals: token moving

• n the grid.

28

Move and Forget process

Zk Individuals: token moving

• n the grid.

28

Move and Forget process

Zk Each token moves independently according to a random walk.

29

Move and Forget process

Zk Each token moves independently according to a random walk.

29

Move and Forget process

Zk Each token moves independently according to a random walk.

29

Move and Forget process

Zk Each token moves independently according to a random walk.

29

Move and Forget process

Zk Each token moves independently according to a random walk.

29

Move and Forget process

Zk Each token drags the head of a shortcut rooted at its departure position.

30

Move and Forget process

But after some time, we forget people.

31

Move and Forget process

But after some time, we forget people. How sad.

31

Move and Forget process

Forgetting mechanism:

• In each step, if our link is of age a,

we forget it with probability ∝ 1/a.

But after some time, we forget people.

31

Move and Forget process

Forgetting mechanism:

• In each step, if our link is of age a,

we forget it with probability ∝ 1/a.

But after some time, we forget people. I.e. : there is less chance to forget your very

• ld friend than the one met at the bar

yesterday.

31

Move and Forget process

Zk When a link is forgotten, it is rewired to its departure and a new token is launched.

32

Move and Forget process

Zk When a link is forgotten, it is rewired to its departure and a new token is launched.

32

Move and Forget process

Zk When a link is forgotten, it is rewired to its departure and a new token is launched.

33

Move and Forget process

Zk When a link is forgotten, it is rewired to its departure and a new token is launched.

33

More precisely

• At time t, the long range contact of

u is (x1(t),x2 (t),...,xk(t)).

34

More precisely

• At time t, the long range contact of

u is (x1(t),x2 (t),...,xk(t)).

• It is forgotten with probability ∝ 1/a

(a=the time since it has been launched).

34

More precisely

• At time t, the long range contact of

u is (x1(t),x2 (t),...,xk(t)).

• It is forgotten with probability ∝ 1/a

(a=the time since it has been launched).

• If it survives, for all i:

xi(t+1)= xi(t)+1 with probability 1/2 xi(t+1)= xi(t)-1 with probability 1/2

34

More precisely

• At time t, the long range contact of

u is (x1(t),x2 (t),...,xk(t)).

• It is forgotten with probability ∝ 1/a

(a=the time since it has been launched).

• If it survives, for all i:

xi(t+1)= xi(t)+1 with probability 1/2 xi(t+1)= xi(t)-1 with probability 1/2

• Otherwise, (x1(t+1),..., xk(t+1))=u.

34

M&F convergence

• If Φ(i) is the forget probability

distribution, the process converges iff:

Σa Πa

i=1(1-Φ(i)) is finite.

35

M&F convergence

• If Φ(i) is the forget probability

distribution, the process converges iff:

Σa Πa

i=1(1-Φ(i)) is finite.

Pr(to be of age a)

35

M&F convergence

• If Φ(i) is the forget probability

distribution, the process converges iff:

Σa Πa

i=1(1-Φ(i)) is finite.

Pr(to be of age a)

• f(d)= probability for a shortcut to be of

35

M&F convergence

• If Φ(i) is the forget probability

distribution, the process converges iff:

Σa Πa

i=1(1-Φ(i)) is finite.

Pr(to be of age a)

• f(d)= probability for a shortcut to be of

f(d)= Σa≥0 π(a) . Pr{|(x1(a), x2(a), ..., xk

35

M&F convergence

• If Φ(i) is the forget probability

distribution, the process converges iff:

Σa Πa

i=1(1-Φ(i)) is finite.

Pr(to be of age a)

• f(d)= probability for a shortcut to be of

f(d)= Σa≥0 π(a) . Pr{|(x1(a), x2(a), ..., xk Pr(to be of age a in stationary state)

35

M&F convergence

Theorem [CFL08]: If Φ is1-harmonic, then in stationary state:

c ||d||k ·ln1+ε||d|| ≤ f(d) ≤ c′lnk/2||d|| ||d||k ·ln1+ε||d||

36

M&F convergence

Theorem [CFL08]: If Φ is1-harmonic, then in stationary state:

c ||d||k ·ln1+ε||d|| ≤ f(d) ≤ c′lnk/2||d|| ||d||k ·ln1+ε||d||

The process converges to the k-harmonic distribution in Zk.

36

Intuition

Expected translation of a random walk after t steps=√t.

37

Intuition

⇒At age << d2, exponentially small probability to be of length d. Expected translation of a random walk after t steps=√t.

37

Intuition

⇒At age << d2, exponentially small probability to be of length d. Expected translation of a random walk after t steps=√t. For large age a, probability to be of length d ∝ (1/√a)k

37

Intuition

⇒At age << d2, exponentially small probability to be of length d. Expected translation of a random walk after t steps=√t. For large age a, probability to be of length d ∝ (1/√a)k ⇒f(d)= Σa≤d2 0.(1/a) + Σa≥d2 (1/√a)k.(1/a) π(a) π(a)

37

Intuition

⇒At age << d2, exponentially small probability to be of length d. Expected translation of a random walk after t steps=√t. For large age a, probability to be of length d ∝ (1/√a)k =∫d2 1/tk/2+1 dt = 1/dk. ⇒f(d)= Σa≤d2 0.(1/a) + Σa≥d2 (1/√a)k.(1/a) π(a) π(a)

37

Navigability

Theorem [CFL08]:

In Zk augmented by the shortcuts of M&F at stationary state, greedy routing computes paths of O(log2+εD) hops on expectation between any pair at distance D.

38

Navigability

Theorem [CFL08]:

In Zk augmented by the shortcuts of M&F at stationary state, greedy routing computes paths of O(log2+εD) hops on expectation between any pair at distance D.

u v

x/2 x/2

38

Navigability

Theorem [CFL08]:

In Zk augmented by the shortcuts of M&F at stationary state, greedy routing computes paths of O(log2+εD) hops on expectation between any pair at distance D.

u v

x/2 x/2

Ω((x/2)k) nodes

38

Navigability

Theorem [CFL08]:

In Zk augmented by the shortcuts of M&F at stationary state, greedy routing computes paths of O(log2+εD) hops on expectation between any pair at distance D.

u v

x/2 x/2

Ω((x/2)k) nodes

Pr ≥ 1/(xk log1+εx)

38

Navigability

Theorem [CFL08]:

In Zk augmented by the shortcuts of M&F at stationary state, greedy routing computes paths of O(log2+εD) hops on expectation between any pair at distance D.

u v

x/2 x/2

Ω((x/2)k) nodes

Pr ≥ 1/(xk log1+εx)

⇒Pr ≥ 1/(log1+εx)

to get twice closer.

38

Perspectives

39

Random models for large networks

• Random mechanisms:
• 1. To reflect irrational human behaviors.
• 2. To reflect unexpected failures.
• 3. To deal with untractability of billions

nodes networks.

40

Random models for large networks

• But:
• 1. Individuals are not uniformly random
• 2. Try to match random mechanism with

social behaviors.

41

Random models for large networks

• But:
• 1. Individuals are not uniformly random
• 2. Try to match random mechanism with

social behaviors.

41

• Another way of looking at it: game

theory.

Game theory & social networks

• Most of the results come from research

in economics.

42

Game theory & social networks

• Most of the results come from research

in economics.

42

• Ex: co-authorship models based on

amount of time players are willing to pay.

Game theory & social networks

• Most of the results come from research

in economics.

42

• Ex: co-authorship models based on

amount of time players are willing to pay.

• Most of the results in economics are

based on very small networks (because

• f experiments or model objective)

Conclusion

• Underlying social network dynamics

produce specific efficient structures.

43

• Unable to produce efficient networks

from scratch, locally.

• Question still widely open: no structural

characterization.
