SLIDE 1

Network Architectures and Services, Georg Carle Faculty of Informatics Technische Universität München, Germany

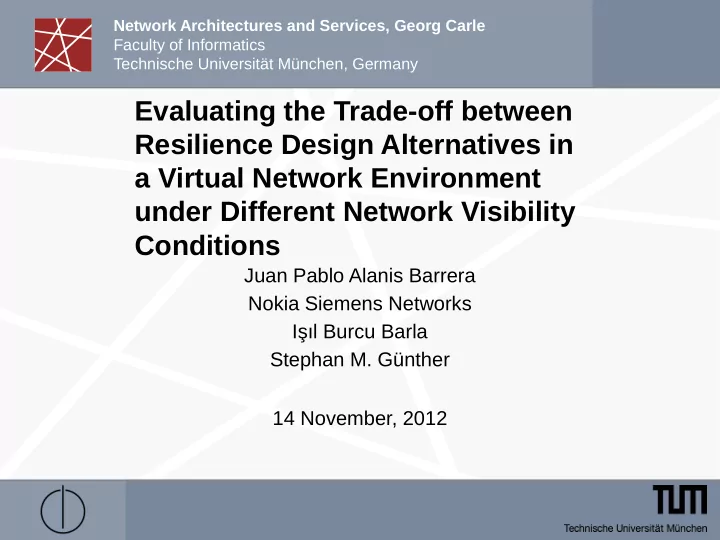

Evaluating the Trade-off between Resilience Design Alternatives in a Virtual Network Environment under Different Network Visibility Conditions

Juan Pablo Alanis Barrera Nokia Siemens Networks Işıl Burcu Barla Stephan M. Günther 14 November, 2012

slide-2
SLIDE 2

Juan Pablo Alanis Evaluating the trade-off btw resilience design alternatives in a VNE under different net. visibility conditions

2

Thesis Objective

 Design an indicator to determine at which layer the resilience provisioning should be carried out.  Evaluate the performance of the metric under different visibility conditions.  Find out the trade off between the resilience design models.

slide-3
SLIDE 3

Juan Pablo Alanis Evaluating the trade-off btw resilience design alternatives in a VNE under different net. visibility conditions

3

Agenda

 Introduction to Network Virtualization

  • Network Virtualization business roles
  • Resilience Models

 Network Robustness indicators

  • Algebraic Connectivity

 Methodology

  • “Hiding Bandwidth” metric
  • “QoS Differentiation” metric
  • Virtual Network Simulator tool
  • Example of visibility conditions

 Result Analysis and Evaluation  Conclusion

slide-4
SLIDE 4

Juan Pablo Alanis Evaluating the trade-off btw resilience design alternatives in a VNE under different net. visibility conditions

4

Introduction to Network Virtualization  What is Network Virtualization?

  • “Technique for isolating computational and network

resources through virtualization to allocate them to a logical (virtual) network for accommodating multiple independent virtual networks.” [1]

 Benefits

  • Operating isolated network slices on diverse physical

infrastructures.

  • Enabling diverse network architectures to operate on

shared physical substrates.

  • Providing flexibility of adding and managing service-

tailored networks.

[1] Akiro Nakao, “Network Virtualization as Foundation for Enabling New Network Architectures and Applications”, IEICE TRANS. COMMUN., VOL.E93-B, NO.3, MARCH 2010.

slide-5
SLIDE 5

Juan Pablo Alanis Evaluating the trade-off btw resilience design alternatives in a VNE under different net. visibility conditions

5

Network Virtualization Business Roles

VNO1

PIP 1 PIP 2 Mappin g Virtual node Virtual link Physical node Physical link VNet 1 VNet 2 Virtual Network Operator (VNO)

  • Requests a virtual topology
  • Operates the virtual topology
  • Provides connectivity

Physical Infrastructure Provider (PIP)

  • Possesses physical resources
  • Virtualizes physical resources
  • Lease resources to VNO’s
slide-6
SLIDE 6

Juan Pablo Alanis Evaluating the trade-off btw resilience design alternatives in a VNE under different net. visibility conditions

6

Resilience Models

 There are two fundamental resilience models: the PIP-Resilience and the VNO-Resilience.  PIP resilience:

  • The PIP is on charge of the resilience on the physical

infrastructure

  • Each virtual path is mapped in 2 disjoint physical paths
  • Ideally, the VNO is unaware of rerouting and failures

 VNO resilience:

  • The VNO is responsible of resilience
  • The working and protection path have to be physically

disjoint

  • The VNO reroutes the traffic in case of failures.
slide-7
SLIDE 7

Juan Pablo Alanis Evaluating the trade-off btw resilience design alternatives in a VNE under different net. visibility conditions

7

Network Robustness Indicators

 The edge connectivity η(G) of a connected graph G is the smallest number of edges whose removal disconnects G.  The vertex connectivity ν(G) of a connected graph G is the minimum number of vertices whose removal disconnects G.  The algebraic connectivity λ2(G) is defined as the second smallest eigenvalue from the Laplacian Matrix.

A D B C E = 1.38 = 2 = 2

slide-8
SLIDE 8

Juan Pablo Alanis Evaluating the trade-off btw resilience design alternatives in a VNE under different net. visibility conditions

8

Algebraic Connectivity

 The algebraic connectivity λ2(G) is defined as the second smallest eigenvalue from the Laplacian Matrix L(G). Where G is graph G=(V,E).  L(G) is calculated as L = D - L.  λ2(G) is a non-decreasing function of the number of links with the same set of nodes.

2

2 D = 2 2 2

  • 1
  • 1
  • 1
  • 1

A =

  • 1
  • 1
  • 1
  • 1
  • 1
  • 1
slide-9
SLIDE 9

Juan Pablo Alanis Evaluating the trade-off btw resilience design alternatives in a VNE under different net. visibility conditions

9

Methodology

 There is a fixed number of PIPs that provide the infrastructure to the VNO.  Each PIP has the exact same set of nodes.  The set of edges between PIPs may be different.  In each PIP physical substrate, a maximum initial load is set, that ranges from 40% to 60%.  “Hiding Bandwidth” metric

  • The hiding factor h is the percentage of the link

bandwidth that is hidden by the PIP to the VNO due to resilience purposes.

  • The value of h ranges from 40% to 60% of the total

link bandwidth.

slide-10
SLIDE 10

Juan Pablo Alanis Evaluating the trade-off btw resilience design alternatives in a VNE under different net. visibility conditions

10

Methodology

 “Hiding Bandwidth” cont’d

  • The set of visible resources to the VNO is defined as
  • For this metric a threshold is set to measure the effect
  • f the hidden bandwidth.
  • The gain of the metric is calculated as follows:
slide-11
SLIDE 11

Juan Pablo Alanis Evaluating the trade-off btw resilience design alternatives in a VNE under different net. visibility conditions

11

Methodology

 “QoS Differentiation” metric

  • Three client memberships are defined C = {bronze, silver,

gold}.

  • Depending on the VNO membership and the link load, the

visibility of the link is modified to the VNO:

  • If a link load is less than 30%, it is shown to all clients.
  • If the link load is larger than 30% and less than 70%, it is only

shown to silver and gold clients.

  • If a link load is larger than 70%, it is only shown to gold clients.
  • The gain of the metric is calculated as follows:
slide-12
SLIDE 12

Juan Pablo Alanis Evaluating the trade-off btw resilience design alternatives in a VNE under different net. visibility conditions

12

Methodology  Virtual Network Simulator tool

  • In order to obtain a benchmark of the metrics’

performance, the metric gain is compared against the

  • utput of the Resilience designs of the Virtual Network

Simulator tool presented in [2].

  • The VNet resilience designs are modeled as MILPs

with an objective function of delay minimization.

  • The VNet delay is the sum of the observed delay of the

services running on the VNet.

  • The simulator also provides the cost of the VNet, which

is defined as follows: VNet cost = (fixed + variable) for VLinks + (fixed + variable) for VNodes

[2] I. B. Barla, D. A. Schupke and G. Carle , “Resilient Virtual Network Design for End-To-End Cloud Services”, IFIP Networking 2012, Prague, May 2012.

slide-13
SLIDE 13

Juan Pablo Alanis Evaluating the trade-off btw resilience design alternatives in a VNE under different net. visibility conditions

13

Example of Visibility Conditions

 Scenario: service differentiation

  • Visibility conditions:
  • Link load < 30%: visible to all clients
  • Link load > 30% & < 70%: only visible to

silver and gold clients

  • Link load > 70%: only visible to gold clients
  • VNO 1 membership: bronze

VNO1

PIP 1 PIP 2 VNet 1

A B C D A B C D B A C

  • PIP1 C-D link load is 50%
  • The load of links from PIP2

C-D & A-C are 60% =>NO SURVIVABLE MAPPING IN EACH PIP ALONE. BASED ON THIS VISIBILITY CONDITIONS SOLUTION: Acquire resources for both PIP‘s Overlapping PIP‘s

slide-14
SLIDE 14

Juan Pablo Alanis Evaluating the trade-off btw resilience design alternatives in a VNE under different net. visibility conditions

14

Result Analysis and Evaluation

 Different network sets used in the simulations

slide-15
SLIDE 15

Juan Pablo Alanis Evaluating the trade-off btw resilience design alternatives in a VNE under different net. visibility conditions

15

Result Analysis and Evaluation

 This work uses the following as a proof of concept:

  • 1 PIP, 1 VNO and no hidden information: the virtual

simulator output ratio is equal to 1.

  • ˆ 1 PIP, 1 VNO and hidden information: the virtual

simulator output ratio is less than or equal to 1.

  • ˆ n PIPs, 1 VNO and no hidden information: the virtual

simulator output ratio is higher than or equal to 1.

 Network simulator values used for the simulations.

  • Total capacity on a physical links: uniform of 100 Gbps
  • Bandwidth amount requested per service demand:

uniform for all services.

  • Setup cost for link and nodes: proportional to the link

length.

slide-16
SLIDE 16

Juan Pablo Alanis Evaluating the trade-off btw resilience design alternatives in a VNE under different net. visibility conditions

16

Results Analysis and Evaluation

 Results 7-node sparse set for Hiding Bandwidth metric  Break even point observed several times  Abrupt change of the simulator ratio seen due to the hidden information.

slide-17
SLIDE 17

Juan Pablo Alanis Evaluating the trade-off btw resilience design alternatives in a VNE under different net. visibility conditions

17

Results Analysis and Evaluation

 Results 7-node mesh set for Hiding Bandwidth metric  The hidden bandwidth does not affect in the same proportion in comparison with the 7-node sparse set.

slide-18
SLIDE 18

Juan Pablo Alanis Evaluating the trade-off btw resilience design alternatives in a VNE under different net. visibility conditions

18

Results Analysis and Evaluation

 Results 15-node sparse set for Hiding Bandwidth metric  Smoother change of the simulator ratio in comparison with the 7-node sparse set.  Break even point observed with high values of hidden bandwidth

slide-19
SLIDE 19

Juan Pablo Alanis Evaluating the trade-off btw resilience design alternatives in a VNE under different net. visibility conditions

19

Results Analysis and Evaluation

 Results 15-node mesh set for Hiding Bandwidth metric  Break even point observed with high values of hidden bandwidth  Smaller ratios in comparison with the 15-node sparse set. As a result

  • f the similar size of the edge sets in the PIP and in the VNO.
slide-20
SLIDE 20

Juan Pablo Alanis Evaluating the trade-off btw resilience design alternatives in a VNE under different net. visibility conditions

20

Results Analysis and Evaluation

 Results 7-node sparse set for QoS Differentiation metric  Break even point observed only for bronze membership.  The maximum initial load values do not affect the silver and gold memberships

slide-21
SLIDE 21

Juan Pablo Alanis Evaluating the trade-off btw resilience design alternatives in a VNE under different net. visibility conditions

21

Results Analysis and Evaluation

 Results 7-node mesh set for QoS Differentiation metric  Simulator output ratios equal to 1 implies that the maximum experienced delay for the services is similar in both resilience models. However, the VNet cost differs: 977 in the VNO layer and 1102 in the PIP layer.

slide-22
SLIDE 22

Juan Pablo Alanis Evaluating the trade-off btw resilience design alternatives in a VNE under different net. visibility conditions

22

Results Analysis and Evaluation

 Results 15-node mesh set for QoS Differentiation metric  Maximum initial load ranges from 40% to 70%.  As the initial load increases, the experienced delays for the services at the VNO layer increases too.

slide-23
SLIDE 23

Juan Pablo Alanis Evaluating the trade-off btw resilience design alternatives in a VNE under different net. visibility conditions

23

Results Analysis and Evaluation

 Service’s Bandwidth request variation for 15-node sparse set.

 As the bandwidth of the services increases, it is more complicated to the VNO-Resilience model to allocate them as the hidden bandwidth increases.

slide-24
SLIDE 24

Juan Pablo Alanis Evaluating the trade-off btw resilience design alternatives in a VNE under different net. visibility conditions

24

Conclusion

 The metrics‘ performace shows correctly at which layer the resilience provisioning should be carried

  • ut, based on the optimization objective.

 The metric provides a quick and efficient insight at which layer the resilience should be realized.  For the simulator ratios equal to 1, it is necessary to look into another network parameter to determine at which layer is more convinient.  For the same set of networks, it can be said that the metric gain with a higher value implies a lower experienced delay for the services at the VNO layer.

slide-25
SLIDE 25

Juan Pablo Alanis Evaluating the trade-off btw resilience design alternatives in a VNE under different net. visibility conditions

25

Questions

Thank You for Your Attention Questions?
