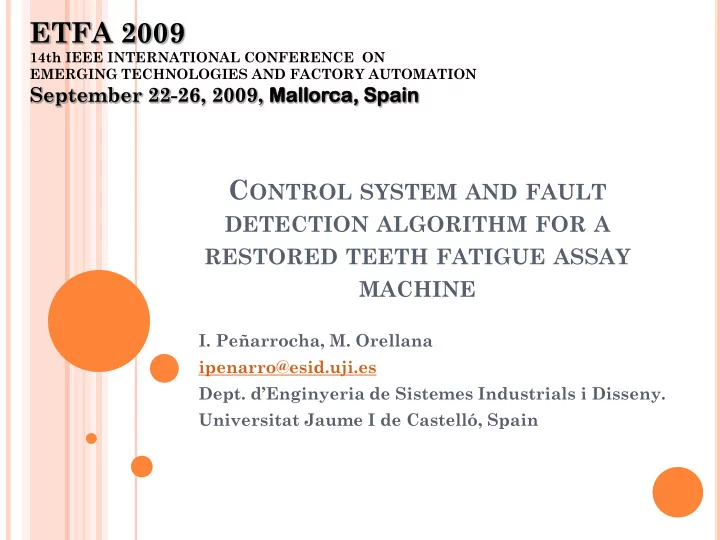

ETFA 2009 14th IEEE INTERNATIONAL CONFERENCE ON EMERGING TECHNOLOGIES AND FACTORY AUTOMATION September 22-26, 2009, Mallor lorca, ca, Spain C ONTROL SYSTEM AND FAULT DETECTION ALGORITHM FOR A RESTORED TEETH FATIGUE ASSAY MACHINE I.

slide-1
SLIDE 1

ETFA 2009

14th IEEE INTERNATIONAL CONFERENCE ON EMERGING TECHNOLOGIES AND FACTORY AUTOMATION

September 22-26, 2009, Mallor lorca, ca, Spain

CONTROL SYSTEM AND FAULT

DETECTION ALGORITHM FOR A RESTORED TEETH FATIGUE ASSAY MACHINE

  • I. Peñarrocha, M. Orellana

ipenarro@esid.uji.es

  • Dept. d’Enginyeria de Sistemes Industrials i Disseny.

Universitat Jaume I de Castelló, Spain

slide-2
SLIDE 2

SUMMARY

 Introduction  Machine requirements  Machine and control system description  Machine operation  Fault detection algorithm  Experimental results  Conclusions

2

ETFA 2009, September 22-26, 2009, Mall

llor

  • rca, Spain

in

slide-3
SLIDE 3

INTRODUCTION

 Necessities for dental restorations in Dentistry field  Optimal design of the restored teeth  Posts of different material and geometry  Tested with time-varying forces  Knowing which component fails first

3 ETFA 2009, September 22-26, 2009, Mall llor

  • rca, Spain

in

post root stump crown adhesive

slide-4
SLIDE 4

MACHINE REQUIREMENTS

 Test different posts (material and geometry) of

restored teeth

 Emulate the mastication forces  Application of time-varying forces  Number of mastication cycles before the failure of the

tooth

 Fault detection  Knowing which component fails first  Automatic stop of forces application

4 ETFA 2009, September 22-26, 2009, Mall llor

  • rca, Spain

in

slide-5
SLIDE 5

FATIGUE ASSAY MACHINE DESCRIPTION

5 ETFA 2009, September 22-26, 2009, Mall llor

  • rca, Spain

in

slide-6
SLIDE 6

CONTROL SYSTEM DESCRIPTION

6 ETFA 2009, September 22-26, 2009, Mall llor

  • rca, Spain

in

slide-7
SLIDE 7

MACHINE OPERATION

 Force calibration:  Torque reference (uk) vs. Measured force (Fk)

7 ETFA 2009, September 22-26, 2009, Mall llor

  • rca, Spain

in

slide-8
SLIDE 8

MACHINE OPERATION

 Specimen fatigue assay  From required force (Fk) to Torque reference (uk)  Measured position (yk) depends on the fault (fk)

8 ETFA 2009, September 22-26, 2009, Mall llor

  • rca, Spain

in

slide-9
SLIDE 9

FAULT DETECTION ALGORITHM

 Model-based fault detection  Noisy model:  Prediction model:  Prediction error:  Expected (fault free) prediction error:

 This error can be bounded during the identification process

 Fault detection algorithm:

 Failure occurs with probability of 99.74% if

9 ETFA 2009, September 22-26, 2009, Mall llor

  • rca, Spain

in

slide-10
SLIDE 10

FAULT DETECTION ALGORITHM

 Identification of the prediction model:  LTV model

10 ETFA 2009, September 22-26, 2009, Mall llor

  • rca, Spain

in

slide-11
SLIDE 11

FAULT DETECTION ALGORITHM

 Prediction error

11 ETFA 2009, September 22-26, 2009, Mall llor

  • rca, Spain

in

slide-12
SLIDE 12

FAULT DETECTION ALGORITHM

 FDA:  RLS  Adaptive

threshold

12 ETFA 2009, September 22-26, 2009, Mall llor

  • rca, Spain

in

slide-13
SLIDE 13

FAULT DETECTION ALGORITHM

 Tuning process  Forgetting factor:

 As big as possible to detect slow changes on the process  Bigh enough to avoid changes on the parameters due to faults

 Filter pole used to approximate :

 Big enough to approximate properly  Small enough to initiate the application

 False alarm ratio related parameter:

 Small enough to detect the faults as fast as possible  Big enough to avoid false alarms

13 ETFA 2009, September 22-26, 2009, Mall llor

  • rca, Spain

in

slide-14
SLIDE 14

EXPERIMENTAL RESULTS

 Prediction error and threshold

14 ETFA 2009, September 22-26, 2009, Mall llor

  • rca, Spain

in

slide-15
SLIDE 15

EXPERIMENTAL RESULTS

 Tooth failure

15 ETFA 2009, September 22-26, 2009, Mall llor

  • rca, Spain

in

slide-16
SLIDE 16

CONCLUSIONS

 Developement of a fatigue assay machine for studying

the dynamical behaviour of restored teeth

 The control system has been described  The machine operation has been described  The fault detection algorithm has been addressed  The tunning process has been carried out  Experimental results have been discussed

16 ETFA 2009, September 22-26, 2009, Mall llor

  • rca, Spain

in

slide-17
SLIDE 17

ETFA 2009

14th IEEE INTERNATIONAL CONFERENCE ON EMERGING TECHNOLOGIES AND FACTORY AUTOMATION

September 22-26, 2009, Mallor lorca, ca, Spain

CONTROL SYSTEM AND FAULT

DETECTION ALGORITHM FOR A RESTORED TEETH FATIGUE ASSAY MACHINE

  • I. Peñarrocha, M. Orellana

ipenarro@esid.uji.es

  • Dept. d’Enginyeria de Sistemes Industrials i Disseny.

Universitat Jaume I de Castelló, Spain
