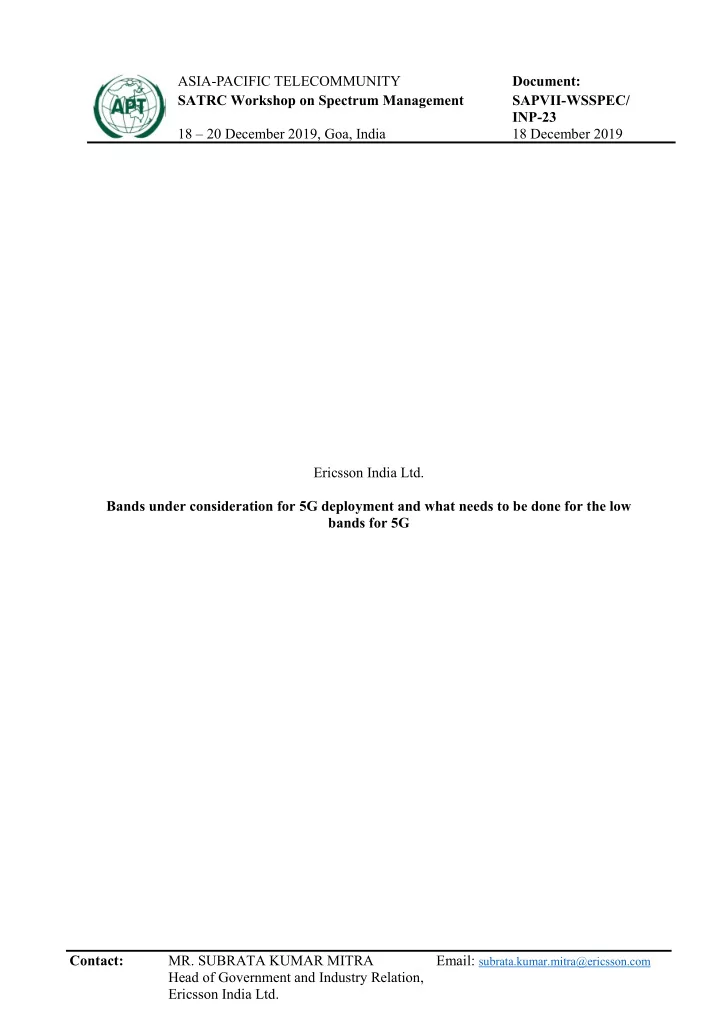

ASIA-PACIFIC TELECOMMUNITY Document: SATRC Workshop on Spectrum Management SAPVII-WSSPEC/ INP-23 18 20 December 2019, Goa, India 18 December 2019 Ericsson India Ltd. Bands under consideration for 5G deployment and what needs to be done

SLIDE 1

Contact:

MR. SUBRATA KUMAR MITRA

Head of Government and Industry Relation, Ericsson India Ltd. Email: subrata.kumar.mitra@ericsson.com ASIA-PACIFIC TELECOMMUNITY Document: SATRC Workshop on Spectrum Management SAPVII-WSSPEC/ INP-23 18 – 20 December 2019, Goa, India 18 December 2019 Ericsson India Ltd. Bands under consideration for 5G deployment and what needs to be done for the low bands for 5G

SLIDE 2

Ericsson Internal | 2018-02-21

Bands under consideration for 5G deployment and what needs to be done for the low bands for 5G

SATRC

Goa, India, 2019-12-19

— Subrata Mitra, Ericsson India — Sendil Devar, Ericsson India — Håkan Ohlsén, Ericsson Group Function

SLIDE 3

Ericsson Internal | 2018-02-21

78 commercial 5G agreements

First with commercial 5G live networks in 4 continents

T-Mobile Verizon Vodafone UK Sprint AT&T Swisscom Telstra SK Telecom STC Etisalat KT Batelco

Live Live Live Live Live

24

Live

Live networks

Live Live Live

Vodafone Spain DiGi Romania Live

Live

Live Live

TIM Italy Live Vodafone Germany

Live

Ooredoo

Live

Vodafone Ireland

Live

Elisa

Live

LG U+

Live

O2 UK Live eir

Live

Optus

Live

Orange Romania Live * As of Nov 2019

5G smartphone/device and 5G subscription offered Network operates on licensed frequency bands (not test licenses) 5G solution (RAN or 5G EPC / 5G Core) in the whole or in part of the live network

SLIDE 4

Ericsson Internal | 2018-02-21

In 2025 there will be 2.6 billion 5G subscriptions 13m

5G subscriptions expected end of 2019

50

service providers around the world have switched on 5G0

5G networks forecast to carry nearly half of the world’s mobile data traffic in 2025

160EB

total traffic predicted to reach 160 exabytes per month in 2025

2.6 bn

SLIDE 5

Ericsson Internal | 2018-02-21

Early 5G in six bands in three ranges

low-bands600 MHz and 700 MHz

for wide area coverage and deep indoor extended coverage

mid-bands 3300 – 4200 MHz and 4400 – 5000 MHz

for compromise for both very high capacity and excellent coverage

high-bands 24.25 – 29.5 GHz and 37.0 – 43.5 GHz

for the extremely high data rates, FWA and hot-spots coverage and very low latency

For the full 5G experience and capabilities requires spectrum in three frequency ranges already in the initial phase

SLIDE 6

Ericsson Internal | 2018-02-21

5G is driving a large verity of advanced use case for multiple of domains

Critical machine type communication

Industrial applications
Traffic safety and control
Remote manufacturing

Massive machine type communication — Smart meters — Tracking — Fleet management — IoT Enhanced mobile broadband

Internet/applications
VR/AR
UHD Video
New smartphones

Fixed wireless access

Stationary and portable
Enterprises
Home
Replacing fiber access

Platform for addressing industry and society transformations Cost effective delivery of increased data traffic

SLIDE 7

Ericsson Internal | 2018-02-21

Dual-mode 5G Cloud Core LTE-NR Spectrum sharing Carrier aggregation

LTE NR

CA Pure mmW CA 2G-4G 5G Dual-mode 5G Cloud Core

Networks: Key Portfolio Differentiators 25%

Increased 5G midband user coverage

27%

Increased 5G network capacity

SLIDE 8

Ericsson Internal | 2018-02-21

— Very good outdoor coverage — Indoor coverage in low-loss buildings near sites — Many major streets and squares above 400Mbps

London 26GHz coverage

Downlink

75% of outdoor users above 500Mbps 20% of indoor users above 500Mbps

Note: indoor users on all floors, but map shows top floor users

SLIDE 9

Ericsson Internal | 2018-02-21

— Very good outdoor coverage — Indoor coverage in low-loss buildings near sites — Interworking of 0.8 – 26GHz — Many major streets and squares above 1Gbps

London 0.8, 2.6, 3.5GHz, 26GHz coverage

Downlink

~75% of outdoor users above 1Gbps 12% of indoor users above 1Gbps

Note: indoor users on all floors, but map shows top floor users

SLIDE 10

Ericsson Internal | 2018-02-21

3GPP NR Bands

— All essential 3GPP LTE bands are now also NR bands (28 bands) — First mmWave band for 5G implementation is 28 GHz band — Two major mmWave ranges specified; 24.25-29.5 GHz and 37-43.5 GHz

Relevant to initial 5G introduction in many countries (including Tokyo 2020 Olympics)

5G/NR - Operating in Frequency Range 1 Band Identifier Frequencies [MHz] BW [MHz]

n1 IMT Core Band 1920 - 1980 / 2110 - 2170 5 - 20 n2 PCS 1900 1850 - 1910 / 1930 - 1990 5 - 20 n3 1800 1710 - 1785 / 1805 - 1880 5 - 30 n5 850 824 - 849 / 869 - 894 5 - 20 n7 IMT Extension 2500 - 2570 / 2620 - 2690 5 - 20 n8 900 880 - 915 / 925 - 960 5 - 20 n12 US 700 Low er A,B,C 699 - 716 / 729 - 746 5 - 15 n14 US 700 Upper D 788 - 798 / 758 - 768 5 - 10 n18 850 (Japan #4) 815 - 830 / 860 - 875 5 - 15 n20 CEPT 800 832 - 862 / 791 - 821 5 - 20 n25 PCS 1900 G 1850 - 1915 / 1930 - 1995 5 - 20 n28 APT 700 703 - 748 / 758 - 803 5 - 20 n30 LTE WCS 2305 - 2315 / 2350 - 2360 5 - 10 n34 TDD 2000 Upper 2010 - 2025 5 - 15 n38 IMT Extension Gap 2570 - 2620 5 - 20 n39 China TDD 1900 1880 - 1920 5 - 40 n40 TDD 2300 2300 - 2400 5 - 80 n41 TDD 2600 2496 - 2690 10 - 100 n48 US CBRS 3500 3550 - 3700 5 - 100 n50 TDD L-band 1432 - 1517 5 - 80 n51 TDD L-band, local 1427 - 1432 i5 n65 2 GHz LTE 1920 - 2010 / 2110 - 2200 5 - 20 n66 AWS Extension 1710 - 1780 / 2110 - 2200 5 - 40 n70 AWS-3/4 1695 - 1710 / 1995 - 2020 5 - 25 n71 US 600 663 - 698 / 617 - 652 5 - 20 n74 FDD L-band 1427 - 1470 / 1475 - 1518 5 - 20 n75 Extended SDL L-band N/A / 1432 - 1517 5 - 20 n76 Extended SDL L-band, local N/A / 1427 - 1432 i5

5G/NR - Operating in Frequency Range 1 Band Frequencies [MHz] BW [MHz] Duplex mode

n77 3300 - 4200 10 - 100 TDD n78 3300 - 3800 10 - 100 TDD n79 4400 - 5000 40 - 100 TDD n80 1710 - 1785 / N/A 5 - 30 SUL n81 880 - 915 / N/A 5 - 20 SUL n82 832 - 862 / N/A 5 - 20 SUL n83 703 - 748 / N/A 5 - 20 SUL n84 1920 - 1980 / N/A 5 - 20 SUL n86 1710 - 1780 / N/A 5 - 40 SUL n90 2496 - 2690 10 - 100 TDD

5G/NR - Operating in Frequency Range 2 Band Frequencies [GHz] BW [MHz] Duplex mode

n257 26.5 - 29.5 50 - 400 TDD n258 24.25 - 27.5 50 - 400 TDD n259 39.5 - 43.5 50 - 400 TDD n260 37.0 - 40.0 50 - 400 TDD n261 27.5 - 28.35 50 - 400 TDD

SLIDE 11

Ericsson Internal | 2018-02-21

Global 5G spectrum developments and timing

Africa

24.25 27.5 66 71 37.0 43.5 3600 3300 700 2020 2019 >2020 Tentative Commercial

perations

Early focus areas 3400 3800 24.25 29.5 2496 4400 5000 43.5

2300 2500

Latin America

3400 3800 24.25 28.35 43.5 37.0 27.5 600 1427 2400 66 71 2690 3600 3800 3300 3400

Arab Region

24.25 27.5 26.5 43.5 40.5 1427 1518 4200 700

European Union

24.25 27.5 43.5 40.5 26.5 66 71

low-bands (MHz) mid-bands (MHz) high-bands (GHz)

For further consideration

6 – 24 GHz

India

3600 3300 24.5 29.5 37.5 40.5 700 600 39.5 42.5 3400 3800 4200

China

3600 3300 4400 4500 4900 4800 24.5 27.5 37 42.5 2515 2675 3400 5000

Japan

700 (in parts) 3400 3600 4900 29.1 29.5

(4G)

4100 4500 4600 4800

(4G)

private local use

27.0 28.2 700

Switzerland

24.25 27.5 43.5 40.5 26.5 66 71 3400 3800 3400 3700 27.0 28.2 700

Australia

(4G)

Korea

26.5 28.9

(4G)

700 3400 3700

4200

USA

600 3550 3700 4200 3100 2496 2690 28.35 37.6 40 47.2 48.2 24.25 24.45 24.75 25.25 50.4 51.4 42 42.5 25.25 27.5 66 71 37 700 1518

2690

2500 2690

UAE

3400 3800 700 Unlicensed

600

SLIDE 12

Ericsson Internal | 2018-02-21

ITU WRC-19 19

Sharm el-Sheikh, Egypt

WRC-19 was the largest WRC ever with about 3500 participants Around 150 countries represented At the peak of the WRC it was almost 100 meetings sessions per day

ITU Radiocommunication Assembly (RA-19) was held October 21 – 25, concluding the study period 2015 – 2019 WRC-19 between October 28 – November 22, modified and updated the Radio Regulations (treaty) The first Conference Preparatory Meeting for WRC-23 (CPM23/1) on November 25-26, prepared for the next study period

SLIDE 13

Ericsson Internal | 2018-02-21

ITU WRCs

Terms of Reference Responsible for modifications of Radio Regulations — Internationally binding regulations (treaty) — Spectrum and usage conditions Held once every 4th year — Ericsson participated in national delegations, and — Perform preparatory technical work and studies The agenda is decided for future WRCs — WRC-19 decided for WRC-23 and WRC-27 WRCs designate uses of spectrum allocations — Opportunities for future 5G users

Spectrum is “oxygen” to 5G

SLIDE 14

Ericsson Internal | 2018-02-21

Global Identification to 5G (IMT) allocations in the Radio Regulations

24.25 - 27.5 GHz

eventually the entire band may become available in most countries, a total amount of 3.25 gigahertz

37.0 – 43.5 GHz

the entire frequency range will not be implemented in most countries/regions, around 3 GHz is expected to be available in general

66.0 – 71.0 GHz

global identification to IMT except possibly in some countries in Americas – also pushed for unlicensed use for RLAN (Wi-Fi) In total, more than

11 gigahertz

is thus available in most countries may be used for eMBB, cMTC (including IIoT) etc

SLIDE 15

Ericsson Internal | 2018-02-21

Identification to 5G (IMT)

Country footnotes in the Radio Regulations

45.5 – 47.0 GHz

more than 60 countries, representing all three regions, a majority in Africa

47.2 – 48.2 GHz

all countries in Americas and with additional country footnotes for countries in Africa, Europe and Middle East and Asia-Pacific, almost 100 countries in total

additional countries wanted to join the footnote, but was objected by some few countries these bands both have primary mobile allocations, therefore any country can implement 5G when they so wish ecosystem will initially be developed based

n countries in the footnotes

SLIDE 16

Ericsson Internal | 2018-02-21

Candidate bands not identified to 5G (IMT)

31.4 – 32.6 GHz range is secured for continued use for backhaul systems 47.0 – 47.2 GHz too small for 5G 48.2 – 50.2 GHz limited support from countries 50.4 – 52.6 GHz passive satellite service on both sides limits possible use 71.0 – 76.0 / 81.0 – 86.0 GHz range is secured for continued use for backhaul systems

Way out

SLIDE 17

Ericsson Internal | 2018-02-21

Technical conditions for use of IMT/5G

Protection of adjacent bands used by EESS(passive) - in force January 1, 2021

Unwanted emissions into 23.6 – 24.0 GHz

For stations put into use before September 1, 2027

33 dBW/200MHz for base stations
29 dBW/200MHz for mobile stations

For stations put into use after September 1, 2027

39 dBW/200MHz for base stations
35 dBW/200 MHz for mobile stations

Unwanted emission into 36.0 – 37.0 GHz

43 dBW/MHz and −23 dBW/GHz (obligatory)
30 dBW/GHz (recommended)

37.0 – 43.5 GHz band 24.25 – 27.5 GHz band

SLIDE 18

Ericsson Internal | 2018-02-21

Summary & Way Forward

✓ Mid-bands 3300-3800 and 4500-4600/4800-4990 MHz gain momentum - in live ecosystem and from interest in WRC-19 ✓ The 28 GHz band is the first mmWave band for 5G implementation ongoing ✓ Mid-bands 3800-4200 MHz and 5925/6425-7125 MHz achieves increased interest ✓ IMT identification in WRC-19 in the mmWave ranges; 26 GHz, 40 GHz, 47 GHz and 66 GHz – in total 17.25 GHz for IMT ✓ Sufficient protection for EESS in bands adjacent to IMT was agreed during the WRC-19 of ITU Radio Regulations international treaty document to be the following (coming into force by January 1, 2021); ▪ for unwanted emissions into the 23.6 – 24.0 GHz band the values are; -33 dBW/200MHz for base stations, and -29 dBW/200MHz for mobile stations; and ▪ for unwanted emission into the 36.0 – 37.0 GHz band the values are; -43 dBW/MHz and −23 dBW/GHz
