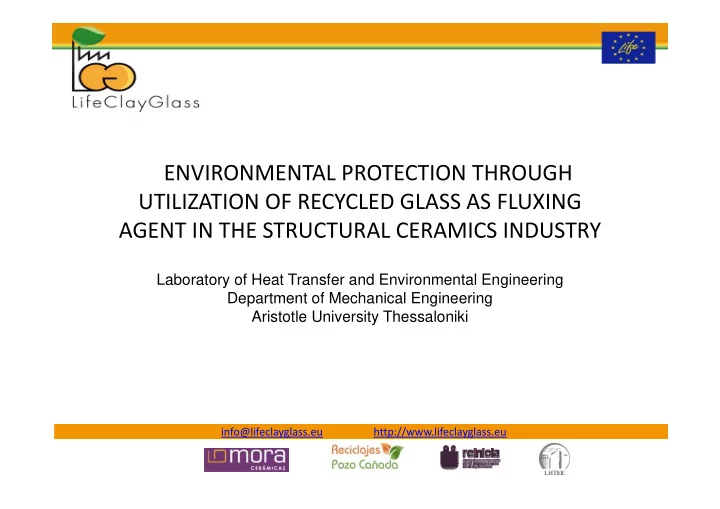

ENVIRONMENTAL PROTECTION THROUGH UTILIZATION OF RECYCLED GLASS AS FLUXING AGENT IN THE STRUCTURAL CERAMICS INDUSTRY Laboratory of Heat Transfer and Environmental Engineering Department of Mechanical Engineering Aristotle University Thessaloniki

slide-1
SLIDE 1

info@lifeclayglass.eu http://www.lifeclayglass.eu info@lifeclayglass.eu http://www.lifeclayglass.eu

ENVIRONMENTAL PROTECTION THROUGH UTILIZATION OF RECYCLED GLASS AS FLUXING AGENT IN THE STRUCTURAL CERAMICS INDUSTRY

info@lifeclayglass.eu http://www.lifeclayglass.eu

Laboratory of Heat Transfer and Environmental Engineering Department of Mechanical Engineering Aristotle University Thessaloniki

slide-2
SLIDE 2

info@lifeclayglass.eu http://www.lifeclayglass.eu

Laboratory of Heat Transfer and Environmental Engineering (LHTEE)

http://aix.meng.auth.g r/lhtee/index.html

slide-3
SLIDE 3

info@lifeclayglass.eu http://www.lifeclayglass.eu info@lifeclayglass.eu http://www.lifeclayglass.eu info@lifeclayglass.eu http://www.lifeclayglass.eu

  • Introduction to the LIFE Clayglass project,
  • EU glass sector overview ,
  • Waste avoidance, separate collection of recyclables, sorting of

recyclables (paper, glass, metal, plastic, etc.),

  • Principles of waste management (e.g. EU approach),
  • Polluter and producer pays principle,
  • Precautionary principle,
  • Waste hierarchy,
  • Concept from cradle to grave
slide-4
SLIDE 4

info@lifeclayglass.eu http://www.lifeclayglass.eu info@lifeclayglass.eu http://www.lifeclayglass.eu info@lifeclayglass.eu http://www.lifeclayglass.eu

EU glass sector overview

  • The EU is the world's biggest producer of glass with a market

share of around one third of total world production.

  • In 2012, the sector employed 100 thousand people.

The glass sector covers

  • container glass (60% of output in tonnage, but about 54% in

terms of value);

  • flat glass (about 30% in both tonnage and value);
  • domestic glass, special glass, and reinforcement glass fibres.
slide-5
SLIDE 5

info@lifeclayglass.eu http://www.lifeclayglass.eu info@lifeclayglass.eu http://www.lifeclayglass.eu info@lifeclayglass.eu http://www.lifeclayglass.eu

Why the ceramic industry is important

  • Employment ‐ in 2012, the sector employed 100 thousand people;
  • Link to other sectors ‐ the industry is interlinked with other sectors such

as construction,automotive, domestic, and leisure. Challenges faced by the glass industry

  • Crisis ‐ glass production in the EU was severely impacted by the economic
  • crisis. Germany is the EU’s biggest producer (one‐fifth of the volume

produced), followed by France, Spain, Italy, and the United Kingdom.

  • Trade ‐ the main challenges include competition, downstream bargaining

power, energy prices and a lack of security of supply, substitution by other products, non‐EU country trade barriers, and the counterfeiting of European designs.

slide-6
SLIDE 6

info@lifeclayglass.eu http://www.lifeclayglass.eu info@lifeclayglass.eu http://www.lifeclayglass.eu info@lifeclayglass.eu http://www.lifeclayglass.eu

Competitiveness and innovation in the EU glass industry

  • Competitiveness – the EU glass industry is represented by large EU‐based
  • companies. The production process is energy intensive and the

manufacturers have to face high start‐up costs and tied distribution channels.

  • Innovation – process research and development has resulted in

improvements to energy savings and environmental protection, a switch from fossil to non‐fossil energy, and glass fibre substituting metals and wood through composites.

  • Export and import ‐ about 80% of the glass produced is traded within the EU.
  • Trade barriers – non‐EU countries with strong glass production have been

introducing non‐tariff trade barriers such as compulsory testing and certification schemes.

slide-7
SLIDE 7

info@lifeclayglass.eu http://www.lifeclayglass.eu info@lifeclayglass.eu http://www.lifeclayglass.eu info@lifeclayglass.eu http://www.lifeclayglass.eu

Sustainability of the EU glass industry

  • Energy efficiency ‐ glass production processes are energy intensive and the

industry aims to decrease its energy consumption.

  • Waste ‐ process waste is usually recycled back to the furnace, but for quality

reasons, there is a limit on the amount that can be recycled in sectors such as flat glass and glass fibre.

  • Recycling ‐ one of the principal issues for the container glass industry is
  • recycling. Glass packaging is infinitely recyclable and this can positively affect its

popularity.

  • Emissions ‐ are covered by the Industrial Emissions Directive (IED) and in

the best available techniques reference document BREF (4 MB) adopted by the Commission in December 2001. It is now under revision.

  • Legislation ‐ the industry falls under the Directives on emissions

trading, IED, REACH , packaging and packaging waste, end‐of‐life vehicles, and restrictions on hazardous substances.

slide-8
SLIDE 8

info@lifeclayglass.eu http://www.lifeclayglass.eu

From a linear econom y …

slide-9
SLIDE 9

info@lifeclayglass.eu http://www.lifeclayglass.eu

… to a circular econom y

slide-10
SLIDE 10

info@lifeclayglass.eu http://www.lifeclayglass.eu

Circular, Zero Waste, Economy

Natural Resources & Resource Industries

  • Air
  • Water
  • Land & Minerals
  • Energy
  • Biological

Industrial Processes, Distribution & Product Use Waste & Pollution Environmental Industry

slide-11
SLIDE 11

info@lifeclayglass.eu http://www.lifeclayglass.eu

Raw materials for the ceramics industry The most important raw material for the ceramics industry, clay, is a sedimentary mineral. There are usually three types of clay used in ceramics: illites, kaolinites (mainly) and at a less extent smectites. Like any mineral, this is also a non‐renewable natural resource therefore deposits at some point will run out. On the other hand, glass is a material that is being used in several industrial processes and products, which has a very complex problem when it comes to its recovery, recycling or reuse.

slide-12
SLIDE 12

info@lifeclayglass.eu http://www.lifeclayglass.eu info@lifeclayglass.eu http://www.lifeclayglass.eu

(new) Technology and characteristics

  • Basic manufacturing steps are the same.
  • The ceramic mix is differentiated since shredded glass

is added

  • The final product characteristics (mainly water

absorption and mechanics resistance) are achieved at lower temperatures.

  • The European standards are met by the new product
slide-13
SLIDE 13

info@lifeclayglass.eu http://www.lifeclayglass.eu info@lifeclayglass.eu http://www.lifeclayglass.eu

  • The results obtained from the introduction of glass are satisfactory both

aesthetically and technologically.

  • For obtaining good results you need to work with fractions of less than 63

microns.

  • The higher the amount of added glass, the greater is the possible decrease
  • f firing temperature
  • For temperatures below 950 ° C, the impact of glass is very limited and

probably not profitable.

(new) Technology and characteristics

slide-14
SLIDE 14

info@lifeclayglass.eu http://www.lifeclayglass.eu

Characteristics of the materials used for testing

Sources of recovered glass that were used are:

  • Waste of Electric and Electronic Equipment (WEEE): Cathode Ray Tubes (CRT)

and screen glass.

  • Glass originating from end of life vehicles.
  • Glass mixed in the municipal solid waste (MSW) and/or Packaging glass and

packaging waste

slide-15
SLIDE 15

info@lifeclayglass.eu http://www.lifeclayglass.eu

METHODOLOGY

  • To characterize clays the following analysis has been done:

– Mineralogical analysis by x‐ray diffraction (RXD) – Chemical analysis by x‐ray fluorescence (RXF) – Dilatometry – Heating microscopy.

  • X‐ray diffraction was used to analyze the mineralogy of clays,

and x‐ray fluorescence was used to analyze the chemical composition clays and glasses in solid samples. The dilatometry and heating microscopy was done in a optic dilatometer MISURA 3.

slide-16
SLIDE 16

info@lifeclayglass.eu http://www.lifeclayglass.eu

Diffractograms

slide-17
SLIDE 17

info@lifeclayglass.eu http://www.lifeclayglass.eu

Dilatometric curve and heating microscopy

slide-18
SLIDE 18

info@lifeclayglass.eu http://www.lifeclayglass.eu

Environmental benefits

  • Depending on the sources used for the

estimation of the consumption the natural gas saving in consumption by ton of products manufactured, when the firing temperature is reduced by 150 oC (from 1250 oC to 1100 oC) is between 10 to 30%. For a medium size plant this means a carbon hydroxide emission reduction between 1800 and 4500 tons of CO2/year.

slide-19
SLIDE 19

info@lifeclayglass.eu http://www.lifeclayglass.eu

Conclusions

  • The use of reclaimed glass, especially from diverse

sources, is a priority for achieving the recycling goals set by the European Commission.

  • Adding reclaimed glass as flux in the structural

ceramics industrial process had as result a reduction in energy consumption

  • CO2 emissions were reduced
  • Production cost was reduced due to the replacement
  • f clay ‐ used as raw material ‐ with reclaimed glass
slide-20
SLIDE 20

info@lifeclayglass.eu http://www.lifeclayglass.eu

AKNOWLEDGEMENTS

The presentation was developed in the frame of the project titled “Adaptation of the structural ceramics industry to climate change by applying recycled glass as flux” (LIFE CLAYGLASS LIFE12/ENV/ES/000156) which is funded by the LIFE financial instrument of the European Community.

slide-21
SLIDE 21

info@lifeclayglass.eu http://www.lifeclayglass.eu

Thank you very much for your attention!
