ENGR/CS 101 CS Session Lecture 1 Introduction sheet Course and session webpages http://csserver.evansville.edu/~hwang/f10-courses/engrcs101.html http://csserver.evansville.edu/~hwang/f10-courses/engrcs101/cs.html Lecture 1

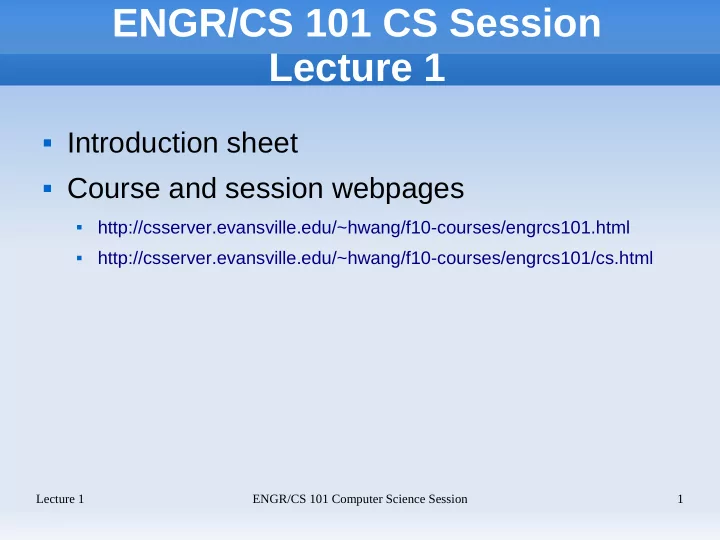

SLIDE 1

Lecture 1 ENGR/CS 101 Computer Science Session 1

ENGR/CS 101 CS Session Lecture 1

 Introduction sheet  Course and session webpages



http://csserver.evansville.edu/~hwang/f10-courses/engrcs101.html



http://csserver.evansville.edu/~hwang/f10-courses/engrcs101/cs.html

SLIDE 2

Lecture 1 ENGR/CS 101 Computer Science Session 2

Outline

 Software life cycle  Problem: How to send a secret message?  Codes and ciphers  Substitution ciphers

SLIDE 3

Lecture 1 ENGR/CS 101 Computer Science Session 3

Software Life Cycle

 Specification of the problem/task  Design of a solution  Implementation (coding) of the solution  Analysis of the solution  Testing and debugging  Maintenance and evolution of the system  Obsolescence

SLIDE 4

Lecture 1 ENGR/CS 101 Computer Science Session 4

Problem: How to send a secret message?

 Steganography ("concealed writing"): science

f sending concealed messages. Includes

physical concealment like invisible ink, microdots...

 Cryptography ("hidden writing"): how to

bscure message so it cannot be read even if
intercepted. Use codes and ciphers.

SLIDE 5

Lecture 1 ENGR/CS 101 Computer Science Session 5

Codes and Ciphers

 Code: whole words or phrases replaced by a

word, letter, or a number. Like an alien language; uses translation code book.

 Cipher: individual letters are replaced by other

letters or symbols.

 Plaintext: message in normal language  Ciphertext: message in secret form

SLIDE 6

Lecture 1 ENGR/CS 101 Computer Science Session 6

Ciphers

 Transposition cipher: rearrange letters of

message.

 Scytale: strip of writing material wrapped around a

dowel; write message across dowel.

 Block: arrange message into a block, rewrite

vertical lines

 Substitution cipher: replace letters with other

letters

SLIDE 7

Lecture 1 ENGR/CS 101 Computer Science Session 7

Cipher = Algorithm + Key

 Algorithm: a series of well-defined steps that

can be followed as a procedure.

 Key: auxiliary information used by an algorithm.

Different keys produce different ciphers using the same algorithm.

SLIDE 8

Lecture 1 ENGR/CS 101 Computer Science Session 8

Caesar Shift Cipher

 Algorithm: substitute a letter with the letter n

places to the right

 Key: number of letter to shift. E.g. 8 (A -> I)

gives:

A B C D E F G H I J K L M I J K L M N O P Q R S T U N O P Q R S T U V W X Y Z V W X Y Z A B C D E F G H

SLIDE 9

Lecture 1 ENGR/CS 101 Computer Science Session 9

In-class Exercise

 Practice enciphering and deciphering using

Caesar shift cipher

SLIDE 10

Lecture 1 ENGR/CS 101 Computer Science Session 10

What if the key is unknown?

 How many possible keys are there for the

Caesar Shift Cipher?

 25. Small enough that we could try each one in

a short amount of time.

 Suppose we allow any letter to be substituted

by any other letter? How many possible keys are there for this cipher?

 26! = 403 291 461 126 605 635 484 000 000.

Over 400 million billion billion.

SLIDE 11

Lecture 1 ENGR/CS 101 Computer Science Session 11

400 million billion billion

 Just how big is this number?  6.5 billion people on Earth; 31 million seconds

in a year. If everyone on Earth checked one key per second, ...

 It still would take around 2 billion years to

check them all!

SLIDE 12

Lecture 1 ENGR/CS 101 Computer Science Session 12

A better way to decipher

 English letter

frequency: E, T, A, O, ...

 Common words:

"the", "and", ...

 Single/double

letter words: "I", "a", "to", "of", ...

 Repeated letters  Context

SLIDE 13

Lecture 1 ENGR/CS 101 Computer Science Session 13

Polyalphabetic Ciphers

 Make cipher harder to break by using multiple

substitution alphabets

 Vigenere cipher: key is a "word", algorithm is to

use key letters to change Caesar cipher shift key for each letter of plaintext. E.g. key = "LION", encipher first letter with key A->L, encipher second letter with key A->I, etc.

SLIDE 14

Lecture 1 ENGR/CS 101 Computer Science Session 14

Enigma Machine

 Random cipher represented

using a code wheel. Originally 3 code wheels, later 5 wheels

 Instead of always starting with

same letter on wheel as A, just encipher the current letter of plaintext with the next letter on wheel

 Add a plugboard to further
