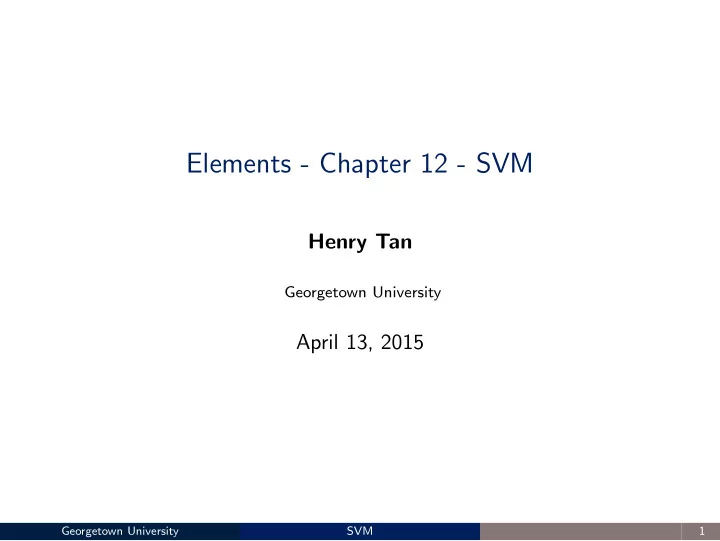

Elements - Chapter 12 - SVM Henry Tan Georgetown University April - - PowerPoint PPT Presentation

Elements - Chapter 12 - SVM

Henry Tan

Georgetown University

April 13, 2015

Georgetown University SVM 1

Introduction to Support Vector Machines

General Idea

We want to be able to classify inputs into one of 2 classes. It’s all about how you phrase the question, not how you solve it.

First Steps - Support Vector Classification

Solve a linearly separable problem (no overlap) using linear programming. Separating hyperplane must be a “flat” space.

Extend to SVM

Solve non-separable case by allowing some slack in the constraints. Non-linear separation using basis expansion and Kernel functions

Georgetown University SVM 2

Support Vectors - Linear, Fully Separable

Georgetown University SVM 3

Hyperplane Separation

Training data - N pairs (x1, y1)...(xN, yN) p dimensions - xi ∈ Rp Class - yi ∈ {−1, 1} {x : f (x) = xTβ + β0 = 0} (12.1) ||β|| = 1 and some constant β0 A straight line in 2D, a flat plane in 3D...

Note: Equation numbering follows Elements print 10 pdf

Georgetown University SVM 4

Hyperplane Separation 2

f (x) = xTβ + β0 gives the signed distance from point x to the hyperplane.

Classification Rule

Given the parameters of a hyperplane β, β0 we can plug in any observation xi and get which ‘side’ of the plane it is on. G(x) = sign[xTβ + β0] (12.2)

Georgetown University SVM 5

Hyperplane Separation 3

f (x) = xTβ + β0 gives the signed distance from point x to the hyperplane. Since we assume that the classes are linearly separable, we know that there must exist a separating hyperplane, i.e., ∃f (x) = xTβ + β0 such that yif (xi) > 0 ∀i

Optimisation problem

Find the hyperplane with the largest margin M between training points max

β,β0,||β||=1M

(12.3) subject to yi(xT

i β + β0) ≥ M, i = 1, ..., N

Georgetown University SVM 6

Hyperplanes for Non-Separable Case

Question

Grace What is the intuition/physical meanings of using the slack variables?

Georgetown University SVM 7

Hyperplanes for Non-Separable Case

For Non-Separable Classes

Allow some points to be on the wrong side of the margin. Define slack variables ξ = (ξ1, ..., ξN) yi(xT

i β + β0) ≥ M(1 − ξi)

∀i (12.6) Some observations are allowed to be on the wrong side of the margin, but we still attempt to maximize the margin.

Georgetown University SVM 8

Hyperplanes for Non-Separable Case 2

More Constraints

Slack must be positive - ξi ≥ 0 Total slack is bound by some constant -

N

• i=1

ξi ≤ k If ξi > 1, that training sample is considered misclassified in the solution

Note

There is another way to introduce the slack but it leads to a nonconvex problem (I’m not too sure why).

Georgetown University SVM 9

Hyperplanes for Non-Separable Case 3

The norm constraint on β can be dropped and M set to 1/||β|| to get the equivalent formulation min||β|| subject to yi(xT

i β + β0) ≥ 1 − ξi

∀i (12.7) and ξi ≥ 0,

• ξi ≤ constant

We can see that correctly classified points far from the boundary, i.e. yi(xT

i β + β0) = yif (xi) > 1, do not matter in the constraints and

therefore do not affect the solution.

Georgetown University SVM 10

Lagrange and his equations

Questions

Yifang Could you walk us through the Lagrange function reduction, from 12.9 to 12.17? Sicong I am not clear about the Lagrange function in section 12.2, can you make some detail illustrations to it? Yuankai What is Lagrange function and how is it used in margin-based methods?

Georgetown University SVM 11

Lagrange and his equations

Questions

Yifang Could you walk us through the Lagrange function reduction, from 12.9 to 12.17? Sicong I am not clear about the Lagrange function in section 12.2, can you make some detail illustrations to it? Yuankai What is Lagrange function and how is it used in margin-based methods?

Disclaimer

I don’t properly know Lagrange functions and the duals and all that. The following is what I could figure out in the last few days.

Georgetown University SVM 11

A Detour - The Lagrange Function

1

Minimum distance to travel from M→P→C Note that the gradient of the ellipse at the solution is the same as the gradient of P at the solution.

1Source -

http://www.slimy.com/~steuard/teaching/tutorials/Lagrange.html

Georgetown University SVM 12

The Lagrange Function - Lagrange Multipliers2

Consider the following problem - minimize f (x, y) = x2 + y2 subject to the constraint g(x, y) = x + y − 2 = 0

1Readings - http://www.cs.cmu.edu/~ggordon/lp.pdf Georgetown University SVM 13

The Lagrange Function - Lagrange Multipliers 2

Gradient of the objective function is a multiple of the gradient of the constraint. This can be re-stated as a set of simultaneous equations g(x, y) = 0 ← From Original Constraint ∇f (x, y) = α∇g(x, y) ← New α is called the Lagrange multiplier.

Georgetown University SVM 14

The Lagrange Function

The Lagrangian

This can be restated in a compact form as the Lagrangian L L(x, y, α) = f (x, y) + αg(x, y) where the equations are ∇L = 0

Multiple Constraints → Multiple (Independent) Lagrange multipliers

Minimize f (x) with constraints gi(x) = 0 for 1 ≤ i ≤ N yields the Lagrangian - L(x, α) = f (x) +

• 1≤i≤N

αigi(x) with lagrange multipliers α = (α1, ..., αN)

Georgetown University SVM 15

The Lagrange Function - Inequality Constraints

Theorem: Solution is at a Saddle Point

The solution, if it exists, is one where the Lagrangian cannot be decreased further by changing the original variables, or increased by changing the multipliers.

Inequality Constraints?

Previously, all the constraints were equalities. To deal with the constraint gi(x) ≥ 0, we set pi ≤ 0

• r gi(x) ≤ 0 → pi ≥ 0.

This follows from the above theorem.

Georgetown University SVM 16

Back onto linear SVM - The Lagrangian

Reformulating 12.7

The previous equation can be converted into the following form min

β,β0

1 2||β||2 + C

N

• i=1

ξi (12.8) subject to ξi ≥ 0, yi(xT

i β + β0) ≥ 1 − ξi

∀i

Intuition

Previously, we had the constraint ξi ≤ constant. Small ||β||2 → large margin. This means that more slack is required. Instead of bounding the total slack by a constant,12.8 minimizes ||β||2, i.e., maximises the margin, while minimizing the slack.

Georgetown University SVM 17

The Lagrangian Primal Form of SVM

General Form

min f (x) with constraints gi(x) = 0 for 1 ≤ i ≤ N yields the Lagrangian - L(x, α) = f (x) +

• 1≤i≤N

αigi(x)

Original SVM Optimization Problem

min

β,β0 1 2||β||2 + C N

• i=1

ξi subject to ξi ≥ 0, yi(xT

i β + β0) ≥ 1 − ξi

∀i yields the lagrangian LP = 1 2||β||2 +C

N

• i=1

ξi −

N

• i=1

αi[yi(xT

i β +β0)−(1−ξi)]− N

• i=1

µiξi (12.9) with lagrangian multipliers αi, µi for 1 ≤ i ≤ N.

Georgetown University SVM 18

SVM Lagrangian Breakdown

Previously

Note that from earlier, the Lagrangian is mainly a compact representation and what we actually want to solve is ∇L = 0. These yield - ∂Lp ∂β = 0 = β −

N

• i=1

αiyixi (12.10) ∂Lp ∂β0 = 0 =

N

• i=1

αiyi (12.11) ∂Lp ξi = 0 = C − µi − αi ∀i (12.12) And positivity constraints αi, µi, ξi ≥ 0 from previous constraints, or because the previous constraints were inequalities.

Georgetown University SVM 19

SVM Lagrangian Breakdown - Wolfe Dual

Substituting the previous equations into the Lagrangian yields the Wolfe Dual objective function. β =

N

• i=1

αiyixi, 0 =

N

• i=1

αiyi, αi = C − µi ∀i Detailed workings done on the board if necessary

LP = 1 2||β||2 + C

N

• i=1

ξi −

N

• i=1

αi[yi(xT

i β + β0) − (1 − ξi)] − N

• i=1

µiξi (12.9) 1 2||β||2 = 1 2

N

• i=1

N

• j=1

αiαjyiyjxT

i xj

C

N

• i=1

ξi −

N

• i=1

µiξi =

N

• i=1

αiξi −

N

• i=1

αi[yi(xT

i β + β0) − (1 − ξi)] = − N

• i=1

N

• j=1

αiαjyiyjxT

i xj − N

• i=1

αiξi +

N

• i=1

αi

Georgetown University SVM 20

SVM Lagrangian Breakdown - Wolfe Dual 2

Putting the pieces together

Simply adding it up yields- LD =

N

• i=1

αi − 1 2

N

• i=1

N

• i=j

αiαjyiyjxT

i xj

This also provides a lower bound to the objective function. However, why it yields the Wolfe Dual, or that it provides a lower bound I do not know.

Georgetown University SVM 21

SVM Lagrangian Breakdown - Karush-Kuhn-Tucker

Question

Jiyun Why the Karush-Kuhn-Tucker conditions includes the constraints 12.14-12.16? Grace What are the intuition/physical meanings of the KKT conditions (formulas 12.14-12.16)?

Georgetown University SVM 22

SVM Lagrangian Breakdown - Karush-Kuhn-Tucker3

Karush-Kuhn-Tucker

The KKT conditions are necessary conditions for a solution in non-linear programming to be optimal. Equations 12.10-12.12 - stationarity (solution is at stationary point) Equations 12.14 and 12.15 - Complementary Slackness Equation 12.16 is for primal feasibility - Original constraint must still hold αi[yi(xT

i β + β0) − (1 − ξi)] = 0

(12.14) µiξi = 0 (12.15) yi(xT

i β + β0) − (1 − ξi) ≥ 0

(12.16) for i = 1, ..., N

3Readings - https://www.cs.cmu.edu/~ggordon/10725-F12/slides/16-kkt.pdf Georgetown University SVM 23

SVM Lagrangian Breakdown - KKT

Complementary Slackness Intuition

The primal and dual problems are related in their variables and constraints. If a variable in the primal is non-zero, then the constraint must be binding in the dual.

Georgetown University SVM 24

SVM Lagrangian

Looking back

Equation 12.10 already gives us the form for ˆ β =

N

• i=1

ˆ αiyixi Since we have constraint 12.14, for non-zero αi , constraint 12.16 must be an equality αi[yi(xT

i β + β0) − (1 − ξi)] = 0

(12.14) yi(xT

i β + β0) − (1 − ξi) ≥ 0

(12.16) for i = 1, ..., N

Support Vectors

The observations where this is true - yif (x) = 1 − ξi for ξi ≥ 0 can only hold for observations on the margin,i.e., ξi = 0, or past it. β0 can be solved by using any of these observations. An average of all the solutions is used.

Georgetown University SVM 25

SVM Lagrangian

Finale

Maximizing the dual is a simpler convex quadratic programming problem than the primal and can be solved with standard techniques.

Georgetown University SVM 26

SVM Kernel Functions

Questions

Yuankai Can you explain what is kernel in section 12.3? Sicong What is the role of the kernel in SVM? And what about the eigen expansion of a kernel?

Questions - Kernel Trick

Sicong It seems that SVM can perform non-linear classification by something called the ”kernel trick”. Can you introduce a little bit about it in your presentation? Jiyun Can we explain in detail how does SVM work on non-linear separable data? Tavish In section 12.3, the text mentions that for SVM a linear boundary function is calculated on training data and then translated to non-linear boundaries in the

• riginal space. Why is this statement valid and how are the functions translated?

Yifang On page 423, it says We can represent the optimization problem (12.9) and its solution in a special way that only involves the input features via inner products. We do this directly for the transformed feature vectors h(xi). I do not understand why they could do this directly for the transformed feature vectors?

Georgetown University SVM 27

Kernels - Basis Functions

What is basis expansion?

Select a set of basis functions hm(x) for m = 1, ..., M and fit using the previous method described on h(xi) = (h1(xi), ..., hM(xi)) instead of on xi. These functions can be any arbitrary function (in the general case; SVM trickery will be covered in the following slides).

Support Vector Machine

Support Vector Machine classification uses an extension of the previously described support vector classification and specific sets of basis functions to classify using larger, potentially infinite, spaces.

Georgetown University SVM 28

Basis Expansion Example - Non-linearly separable

Consider the toy example shown below. As demonstrated, any straight line will have huge training error.

Georgetown University SVM 29

Basis Expansion Example - Curved separation

A good separator will be some curved function, which we are not allowed in the linear program.

Georgetown University SVM 30

Basis Expansion Example - Choosing proper bases

Let h(x, y) = (h1(x, y), h2(x, y)) and h1(x, y) = x, h2(x, y) = y − x2

Georgetown University SVM 31

Kernel Trickery

As seen previously on...

We saw from the Lagrangian section, that the Lagrangian Dual, which we solve, looks like- LD =

N

• i=1

αi − 1

2 N

• i=1

N

• i=j

αiαjyiyj h(x)|h(xi) and the solution function is of the form - f (x) = h(x)Tβ + β0 =

N

• i=1

αiyi h(x)|h(xi) where the bra-ket notation is another way of writing the inner product.

Georgetown University SVM 32

Kernel Trickery 2

A Kernel

Solving both only requires the inner product of the mapped features and not actually computing the h(x) transformations. This inner product over the transformed space is called the kernel function. A specific choice of kernel implies a specific set of transformations. K(x, x′) = h(x), h(x′) (12.21)

Popular Kernels

dth-Degree polynomial: K(x, x′) = (1 + x, x′)d Radial Basis: K(x, x′) = exp(−γ||x − x′||2) Neural Network: K(x, x′) = tanh(κ1 x, x′ + κ2)

Georgetown University SVM 33

Kernel Trickery Example

2nd-Degree polynomial

The equations below show that for a 2nd-degree polynomial (with inputs X1, X2) can be simplified and for a given set of transformation functions h(x), yield the form for the Kernel. K(X, Y ) = (1 + X|Y )2 = 1 + 2X1Y1 + 2X2Y2 + (X1Y1)2 + (X2Y2)2 + 2X1Y1X2Y2 Define - h1(X) = 1, h2(X) = √ 2X1, h3(X) = √ 2X2 h4(X) = X 2

1 , h5(X) = X 2 2 , h6(X) =

√ 2X1X2 This simplifies the Kernel function K(X, Y ) = h(X), h(Y ) as desired. Therefore, at least for these popular functions, the computation of the kernel is simply the computation of a simple function over the original untransformed observations.

Georgetown University SVM 34

The Tuning Parameter C

Larger C will discourage large ξi since errors will have more impact relative to ||β|| on the value of the objective function. This may lead to overfitting (complicated, wiggly boundaries). Smaller C encourages smaller ||β||, i.e., a larger margin and smoother boundary. C is also known as the regularization parameter.

Georgetown University SVM 35

SVM as a Penalization Method

Question

JiYun - SVM’s loss function seems like a reward function to me. Can we map SVM’s solution to a gradient algorithm? Formulating an optimisation problem for the hyperplane with a loss function can give the same solution as the original SVM equation.

Intuitively

The objective function is increased when an observation is on the wrong side of the margin, i.e., is a support vector. For observations which are past the margin, they have no effect on the objective function. min

β0,β N

• i=1

[1 − yif (xi)]+ + λ 2 ||β||2 (12.25)

Georgetown University SVM 36

Function Estimation/Reproducing Kernel Hilbert Spaces

Questions

Sicong SiCong - What is the role of the kernel in SVM? And what about the eigen expansion of a kernel? YiFang In equation 12.26, what is δm? the Dirac function?

Georgetown University SVM 37

Function Estimation/Reproducing Kernel Hilbert Spaces

More Kernel Trickery

As mentioned previously, using specific Kernel functions allow for high-order basis expansion hm without having to calculate hm. This is possible simply by taking any positive definite kernel K and considering its eigen-expansion in some function space - K(x, x′) = h(x), h(x′) =

∞

• m=1

φm(x)φm(x′)δm where h(x) = √δmφm(x) and δm is the coefficient of expansion.

Georgetown University SVM 38

Curse of Dimensionality

Questions

Brandon In Section 12.3.4, the authors argue that knowing a priori which features to discount is uninteresting because it makes statistical learning easier in general, but knowing which SVM algorithm to use seems roughly equivalent? Will Bruto and Mars always do well against noise or were the results problem specific? Tavish With respect to curse of dimensionality, when is it a good idea to use SVM? And from an application perspective, what sort of data characteristics/required outcomes make using SVM as the first option for classification?

Georgetown University SVM 39

Manages the Curse of Dimensionality?

No, not quite

While SVMs can effectively perform basis expansions to an infinite number

• f dimensions, they cannot easily select dimensions to concentrate on.

Via Previous Example

As shown in the 2nd degree polynomial Kernel example, the basis functions for that Kernel are fixed and weighted very specifically. To specifically answer the questions - selecting the Kernel to use is a good start, but if you don’t know which Kernel to use, or even how to represent the Kernel you want, you have to make do with a similar one. I’d say SVM is always a good start due to its high dimensionality, or if you think the distribution of data matches the basis functions.

Georgetown University SVM 40

Error Curves - Question

Question

Brandon - I’m having trouble understanding Figure 12.6. Can you point

• ut the interesting features?

γ ← coefficient in the exponent of the radial basis function C ← - the regularisation/cost parameter.

Georgetown University SVM 41

Skipping - Path Algorithm

Question

Grace - can you explain in more details on section 12.3.5. It is related to SVM ranker.

Unfortunately

Didn’t understand it. It seems to be a way to vary C, since C is so important in properly tuning the model. C can be chosen via cross-validation, or by using the path algorithm described. Unsure of the connection to a ranking algorithm.

Georgetown University SVM 42

SVM and Regression

Linear Version

f (x) = xTβ + β0 We want to estimate β (as usual). Consider minimizing the equation H(β, β0) =

N

• i=1

V (yi − f (xi)) + λ 2 ||β||2 (12.37) where Vǫ(r) =

• 0,

if |r| < ǫ, |r| − ǫ,

• therwise

(12.38)

Georgetown University SVM 43

SVM and Regression 2

As with SVM, this equation has a term which increases as points cross the margin (it is also large for terms far on the right side of the margin).

Note

I don’t know how to derive the following equations.

Georgetown University SVM 44

SVM and Regression 3

If ˆ β, ˆ β0 minimize H then the solution functions are - ˆ β =

N

• i=1

(ˆ α∗

i − ˆ

αi)xi (12.39) ˆ f (x) =

N

• i=1

(ˆ α∗

i x|xi + β0

(12.40) where ˆ αi, ˆ α∗

i are positive and solve the quadratic programming problem

min

αi,α∗

i

ǫ

N

• i=1

(α∗

i + αi) − N

• i=1

yi(α∗

i − αi) + 1

2

N

• i=1

(α∗

i − αi)(α∗ i′ − αi′) xi, xi′

subject to 0 ≤ αi, α∗

i ≤ 1/λ N

• i=1

(α∗

i − αi) = 0

(12.41) αiα∗

i = 0

Georgetown University SVM 45

SVM and Regression 4

Important Points

Similar to earlier, the solution ˆ f (x) depends only on the inner product between inputs. Due to the constraints, typically some of the values (ˆ α∗

i − ˆ

αi) are non-zero. Only these contribute to the solution function → support vectors. λ is the traditional regularisation parameter, previously C.

Georgetown University SVM 46

Multiclass Classification

Perform pairwise classification of a sample and select the dominating class.

Georgetown University SVM 47
