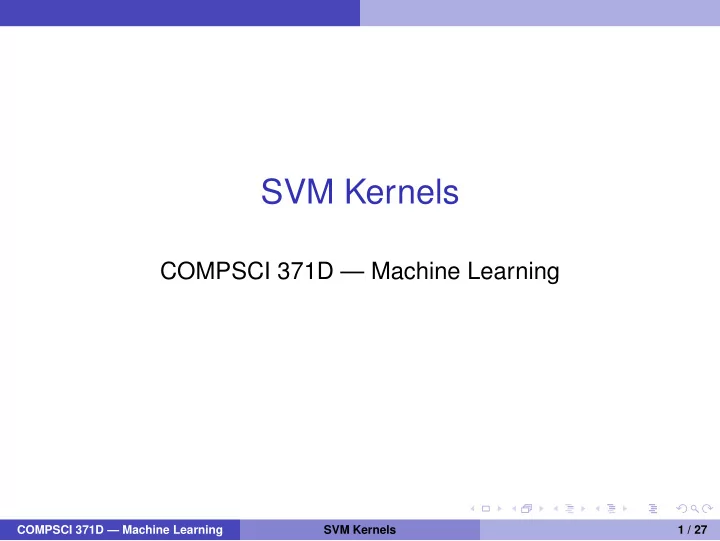

SVM Kernels

COMPSCI 371D — Machine Learning

COMPSCI 371D — Machine Learning SVM Kernels 1 / 27

Outline

1 Linear Separability and Feature Augmentation 2 Sample Complexity 3 Computational Complexity 4 Kernels and Nonlinear SVMs 5 Mercer’s Conditions 6 Gaussian Kernels and Support Vectors

COMPSCI 371D — Machine Learning SVM Kernels 2 / 27

Linear Separability and Feature Augmentation

Data Representations

• Linear separability is a property of the data in a given

representation

• A set that is not linearly separable. Boundary x2 = x2

1

COMPSCI 371D — Machine Learning SVM Kernels 3 / 27

Linear Separability and Feature Augmentation

Feature Transformations

• x = (x1, x2) → z = (z1, z2) = (x2

1, x2)

• Now it is! Boundary z2 = z1

COMPSCI 371D — Machine Learning SVM Kernels 4 / 27

Linear Separability and Feature Augmentation

Feature Augmentation

• Feature transformation:

x = (x1, x2) → z = (z1, z2) = (x2

1, x2)

• Problem: We don’t know the boundary!
• We cannot guess the correct transformation
• Feature augmentation:

x = (x1, x2) → z = (z1, z2, z3) = (x1, x2, x2

1)

• Why is this better?
• Add many features in the hope that some combination will

help

COMPSCI 371D — Machine Learning SVM Kernels 5 / 27

Linear Separability and Feature Augmentation

Not Really Just a Hope!

• Add all monomials of x1, x2 up to some degree k
• Example: k = 3 ⇒ d′ =

d+k

d

• =

2+3

2

• = 10 monomials

z = (1 , x1 , x2 , x2

1 , x1x2 , x2 2 , x3 1 , x2 1x2 , x1x2 2 , x3 2)

• From Taylor’s theorem, we know that with k high enough we

can approximate any hypersurface by a linear combination

• f the features in z
• Issue 1: Sample complexity: More dimensions, more

training data (remember the curse)

• Issue 2: Computational complexity: More features, more

work

• With SVMs, we can address both issues

COMPSCI 371D — Machine Learning SVM Kernels 6 / 27

Sample Complexity

A Detour into Sample Complexity

• The more training samples we have, the better we

generalize

• With a larger N, the set T represents the model p(x, y)

better

• How to formalize this notion?
• Introduce a number ǫ that measures how far from optimal a

classifier is

• The smaller ǫ we want to be, the bigger N needs to be
• Easier to think about: the bigger 1/ǫ (“exactitude”), the

bigger N

• The rate of growth of N(1/ǫ) is the sample complexity, more
• r less
• Removing “more or less” requires care

COMPSCI 371D — Machine Learning SVM Kernels 7 / 27

Sample Complexity

Various Risks Involved

• We train a classifier on set T, by picking the best h ∈ H:

ˆ h = ERMT(H) ∈ arg minh∈H LT(h)

• Empirical risk actually achieved by ˆ

h: LT(ˆ h) = LT(H) = minh∈H LT(h)

• When we deploy ˆ

h we want its statistical risk to be small Lp(ˆ h) = Ep[ℓ(y, ˆ h(x))] We can get some idea of Lp(ˆ h) by testing ˆ h

• Typically, Lp(ˆ

h) > LT(ˆ h)

• More importantly: How small can Lp(ˆ

h) conceivably be?

• Lp(ˆ

h) is typically bigger than Lp(H) = minh∈H Lp(h)

COMPSCI 371D — Machine Learning SVM Kernels 8 / 27

Sample Complexity

Risk Summary

• Empirical training risk LT(ˆ

h) is just a means to an end

• That’s what we minimize for training. Ignore that
• Statistical risk achieved by ˆ

h: Lp(ˆ h)

• Smallest statistical risk over all h ∈ H: Lp(H) = minh∈H Lp(h)
• Obviously Lp(ˆ

h) ≥ Lp(H) (by definition of the latter)

• Typically, Lp(ˆ

h)>Lp(H). Why?

• Because T is a poor proxy for p(x, y)
• Also, often Lp(H) > 0. Why?
• Because H may not contain a perfect h
• Example: Linear classifier for a non linearly-separable

problem

COMPSCI 371D — Machine Learning SVM Kernels 9 / 27

Sample Complexity

Sample Complexity

• Typically, Lp(ˆ

h) > Lp(H) ≥ 0

• Best we can do is Lp(ˆ

h) = Lp(H) + ǫ with small ǫ > 0

• High performance (large 1/ǫ) requires lots of data (large N)
• Sample complexity measures

how fast N needs to grow as 1/ǫ grows

• It is the rate of growth of N(1/ǫ)
• Problem: T is random, so even a huge N might give poor

performance once in a while if we have bad luck (“statistical fluke”)

• We cannot guarantee that a large N yields a small ǫ
• We can guarantee that this happens with high probability

COMPSCI 371D — Machine Learning SVM Kernels 10 / 27

Sample Complexity

Sample Complexity, Cont’d

• We can only give a probabilistic guarantee:
• Given probability 0 < δ < 1 (think of this as “small”), we can

guarantee that if N is large enough then the probability that Lp(ˆ h) ≥ Lp(H) + ǫ is less than δ: P[Lp(ˆ h) ≥ Lp(H) + ǫ] ≤ δ

• The sample complexity for hypothesis space H is the

function NH(ǫ, δ) that gives the smallest N for which this bound holds, regardless of model p(x, y)

• Tall order: Typically, we can only give asymptotic bounds for

NH(ǫ, δ)

COMPSCI 371D — Machine Learning SVM Kernels 11 / 27

Sample Complexity

Sample Complexity for Linear Classifiers and SVMs

• For a binary linear classifier, the sample complexity is

Ω d + log(1/δ) ǫ

• Grows linearly with d, the dimensionality of X, and 1/ǫ
• Not too bad, this is why linear classifiers are so successful
• SVMs with bounded data space X do even better
• “Bounded:” Contained in a hypersphere of finite radius
• For SVMs with bounded X, the sample complexity is

independent of d. No curse!

• We can augment features to our heart’s content

COMPSCI 371D — Machine Learning SVM Kernels 12 / 27

Computational Complexity

What About Computational Complexity?

• Remember our plan: Go from x = (x1, x2) to

z = (1 , x1 , x2 , x2

1 , x1x2 , x2 2 , x3 1 , x2 1x2 , x1x2 2 , x3 2)

in order to make the data separable

• Can we do this without paying the computational cost?
• Yes, with SVMs

COMPSCI 371D — Machine Learning SVM Kernels 13 / 27

Computational Complexity

SVMs and the Representer Theorem

• Recall the formulation of SVM training: Minimize

f(w, ξ) = 1 2w2 + γ

N

• n=1

ξn . with constraints yn(wTxn + b) − 1 + ξn ≥ ξn ≥ 0 .

• Representer theorem:

w =

n∈A(w,b) αnynxn

w2 = wTw =

• m∈A(w,b)
• n∈A(w,b)

αmαnymynxT

mxn

COMPSCI 371D — Machine Learning SVM Kernels 14 / 27

Kernels and Nonlinear SVMs

Using the Representer Theorem

• Representer theorem:

w =

n∈A(w,b) αnynxn

• In the constraint yn(wTxn + b) − 1 + ξn ≥ 0 we have

wTxn =

• m∈A(w,b)

αmymxT

mxn

• Summary: x appears in an inner product, never alone:

min

w,b,ξ

1 2

• m∈A(u)
• n∈A(u)

αmαnymynxT

mxn + C N

• n=1

ξn

subject to the constraints

yn  

m∈A(u)

αmymxT

mxn + b

  − 1 + ξn ≥ ξn ≥

COMPSCI 371D — Machine Learning SVM Kernels 15 / 27

Kernels and Nonlinear SVMs

The Kernel

• Augment x ∈ Rd to ϕ(x) ∈ Rd′, with d′ ≫ d (typically)

min

w,b,ξ

1 2

• m∈A(u)
• n∈A(u)

αmαnymynϕ(xm)Tϕ(xn) + C

N

• n=1

ξn

subject to the constraints

yn  

m∈A(u)

αmymϕ(xm)Tϕ(xn) + b   − 1 + ξn ≥ ξn ≥ 0 .

• The value K(xm, xn)

def

= ϕ(xm)Tϕ(xn) is a number

• The optimization algorithm needs to know only K(xm, xn),

not ϕ(xn). K is called a kernel

COMPSCI 371D — Machine Learning SVM Kernels 16 / 27

Kernels and Nonlinear SVMs

Decision Rule

• Same holds for the decision rule:

ˆ y = h(x) = sign(wTx + b) becomes ˆ y = h(x) = sign  

• m∈A(w,b)

αmymxT

mx + b

  because of the representer theorem w =

n∈A(w,b) αnynxn

and therefore, after feature augmentation, ˆ y = h(x) = sign  

• m∈A(w,b)

αmymϕ(xm)Tϕ(x) + b  

COMPSCI 371D — Machine Learning SVM Kernels 17 / 27

Kernels and Nonlinear SVMs

Kernel Idea 1

• Start with some ϕ(x) and use the kernel to save

computation

• Example: ϕ(x) =

(1 , x1 , x2 , x2

1 , x1x2 , x2 2 , x3 1 , x2 1x2 , x1x2 2 , x3 2)

• Don’t know how to simplify. Try this: ϕ(x) =

(1 , √ 3x1 , √ 3x2 , √ 3x2

1 ,

√ 6x1x2 , √ 3x2

2 , x3 1 ,

√ 3x2

1x2 ,

√ 3x1x2

2 , x3 2)

• Can show (see notes) that

K(x, z) = ϕ(x)Tϕ(z) = (xTz + 1)3

• Something similar works for any d and k
• 4 products and 2 sums instead of 10 products and 9 sums
• Meager savings, but grows exponentially with d and k, as

we know

COMPSCI 371D — Machine Learning SVM Kernels 18 / 27

Kernels and Nonlinear SVMs

Much Better Kernel Idea 2

• Just come up with K(x, z) without knowing the

corresponding ϕ(x)

• Not just any K. Must behave like an inner product
• For instance, xTz = zTx and (xTz)2 ≤ x2 z2

(symmetry and Cauchy-Schwartz), so we need at least K(x, z) = K(z, x) and K 2(x, z) ≤ K(x, x) K(z, z)

• These conditions are necessary, but they are not sufficient
• Fortunately, there is a theory for this

COMPSCI 371D — Machine Learning SVM Kernels 19 / 27

Mercer’s Conditions

Mercer Conditions

• K(x, z) : Rd × Rd → R is a kernel function if there exists ϕ

for which K(x, z) = ϕ(x)Tϕ(z)

• Finite case: Given xn ∈ Rd for n = 1, . . . , N (as in T), a

symmetric function K(x, z) is a kernel function on that set iff the N × N matrix A = [K(xi, xj)] is positive semi-definite

• Problem: We would like to know if K(x, z) is a kernel for any

T, or even for x we have not yet seen

• Infinite case: K(x, z) is a kernel function iff

for every f : Rd → R s.t. ´ R

d f(x) dx is finite,

´ R

d×R d K(x, z) f(x) f(z) dx dz ≥ 0

• Immediate extension of positive-definiteness to the

continuous case

COMPSCI 371D — Machine Learning SVM Kernels 20 / 27

Mercer’s Conditions

The “Kernel Trick”

• There is a theory for checking the Mercer conditions

algorithmically (eigenfunctions instead of eigenvectors)

• There is a calculus for how to build new kernel functions
• A whole cottage industry tailors kernels to problems
• This is rather tricky. However, the Gaussian kernel is very

popular K(x, z) = e− x−z2

σ2

• A measure of similarity between x and z
• Gaussian kernels are also called Radial Basis Functions

COMPSCI 371D — Machine Learning SVM Kernels 21 / 27

Gaussian Kernels and Support Vectors

Kernels and Support Vectors

• Recall: Decision rule for SVM is h(x) = sign(wTϕ(x) + b)

(in transformed space, where the SVM is linear)

• The separating hyper-plane is wTϕ(x) + b = 0
• From representer theorem, w =

n αnynϕ(xn)

where the sum is over support vectors only

• Therefore the separating hyperplane is
• n αnynϕ(xn)Tϕ(x) + b = 0
• That is,

n αnynK(xn, x) + b = 0

• xn and x are in the original space
• This equation describes the decision boundary induced in

the original space

COMPSCI 371D — Machine Learning SVM Kernels 22 / 27

Gaussian Kernels and Support Vectors

The “Kernel Trick:” Summary, Part 1

• In a linear SVM, feature vectors x always

show up in inner products: xT

mxn or xT n x

• If features are augmented, x → ϕ(x), also ϕ(x) always

shows up in inner products: ϕ(xm)Tϕ(xn) or ϕ(xn)Tϕ(x)

• Define a kernel K(x, x′) such that there exists an (often

unknown) mapping ϕ() for which K(x, x′) = ϕ(x)Tϕ(x′)

• We always work with K(x, x′) without ever involving ϕ(x) or

ϕ(x′) (which are large, possibly infinite)

• We avoid the computational cost of feature augmentation

COMPSCI 371D — Machine Learning SVM Kernels 23 / 27

Gaussian Kernels and Support Vectors

The “Kernel Trick:” Summary, Part 2

• Given K(x, x′) to there exists a mapping ϕ() for which

K(x, x′) = ϕ(x)Tϕ(x′) iff K satisfies the Mercer condition: For every f : Rd → R s.t. ´ R

d f(x) dx is finite,

´ R

d×R d K(x, z) f(x) f(z) dx dz ≥ 0

• This condition can be verified through eigenfunction

computations

• Important examples: The Radial Basis Function (RBF)

K(x, x′) = e− x−x′2

σ2

is a kernel

• What does the decision boundary look like now?

COMPSCI 371D — Machine Learning SVM Kernels 24 / 27

Gaussian Kernels and Support Vectors

Gaussian Kernels and Support Vectors

• The decision boundary in the original space is
• n αnynK(xn, x) + b = 0

where the sum is over support vectors

• For RBF SVMs,

n αnyne− x−xn2

σ2

= −b

• Simple geometric interpretation

COMPSCI 371D — Machine Learning SVM Kernels 25 / 27

Gaussian Kernels and Support Vectors

Classification

http://mldemos.b4silio.com

COMPSCI 371D — Machine Learning SVM Kernels 26 / 27

Gaussian Kernels and Support Vectors

Regression

http://mldemos.b4silio.com

COMPSCI 371D — Machine Learning SVM Kernels 27 / 27
