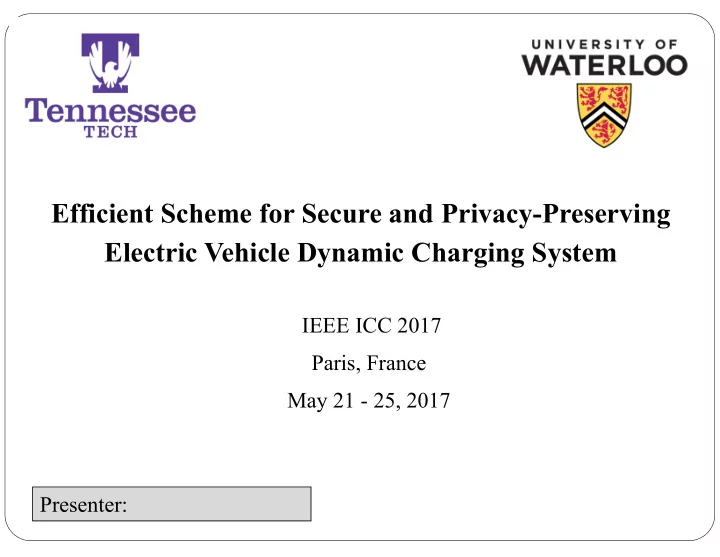

Efficient Scheme for Secure and Privacy-Preserving Electric Vehicle Dynamic Charging System

IEEE ICC 2017 Paris, France May 21 - 25, 2017 Presenter:

Outline

• I ntroduction
• Proposed Scheme
• Evaluations
• Conclusion

W hat is EV Dynam ic Charging?

• The dynamic charging technology will enable Electric Vehicles (EVs) to

charge their batteries while moving.

• Charging pads are placed on the roads to charge the EVs through the

magnetic induction.

• Dynamic charging can can help the EVs that drive for long distances.

1

charging pads

Challenges:

• Security

 Authentication and secure payment

• Privacy

 No entity should know the location of the drivers

• Efficiency  Cost-effective pads have limited computational power
• Scalability  Large number of EVs and Pads.
• Short contact tim e between the EVs and pads

Problem Form ulation

2

To propose a scheme which can address all these challenges.

Our Objective

• The dynamic charging system should communicate with the EVs to only

charge authorized vehicles and ensure payment integrity.

Outline

• Introduction
• Proposed Schem e
• Evaluations
• Conclusion

Netw ork Model

3

Exchanged Messages

4

1 . Anonym ous Coin Purchase

5

IDi  identity of the User TS  Time stamp be (gx)  blinded coin PBS(be (gx), date)  Partial Blind Signature on coin gx, date, sigB(gx, date)  Un-blinded Anonymous Coin

2 . Charging Request and paym ent

gx gy, Ek(gy, gx), 𝜏C Ek(gy, gx, date, SigB(gx, date)) Ek1(gx, date, SigB(gx, date)) Valid/Invalid Coin Ek(Seed token)

EVi CSP Bank

6

Steps 1 -3 : Key Establishment and Authentication Steps 4 -5 : Coin Verification Step 6 : Sending Token

3 . Efficient Hierarchical Authentication

7

• EV should authenticate itself first to the CSP and then to RSU and

then to charging pads.

• In each level, the EV uses the secrets obtained from the previous

level.

1 . Efficient Key Generation and Distribution:

𝜷1,1 𝜷1,2 𝜷1,nr-1 𝜷1,nr

H( )

𝜷n,nr

RSU2 EV1 Hk( ) RSU1

H( )

RSUnr

𝜷2,1 𝜷2,2 𝜷2,nr-1 𝜷2,nr

H( )

EV2

H( )

𝜷n-1,1 𝜷n-1,2 𝜷n-1,nr-1 𝜷n-1,nr

EVn-1

Hk( )

𝜷n,1 𝜷n,2 𝜷n,nr-1

H( )

EVn

H( ) H( )

𝜸n,nr 𝜸1,2 𝜸1,nr-1 𝜸1,nr

H( )

RSU2 EV1 Hk( ) RSU1

H( )

RSUnr

𝜸2,1 𝜸2,2 𝜸2,nr-1 𝜸2,nr

H( )

EV2

H( )

𝜸n-1,1 𝜸n-1,2 𝜸n-1,nr-1 𝜸n-1,nr

EVn-1

𝜸n,1 𝜸n,2 𝜸n,nr-1

H( )

EVn

H( ) H( )

𝜸1,1

Hk( ) Hk( )

H( )

Token Generation matrix-1 b/w CSP & RSUs Token Generation matrix-2 b/w CSP & RSUs

8

• CSP shares a group secret key with all RSUs.
• This key is used to distribute the seeds 𝛽n,nr and β1,1

for generating two token matrices.

𝜸1,j 𝜷1,j

⊕

𝜷1,j ⊕ 𝜸1,j 𝜸2,j 𝜷2,j 𝜷2,j ⊕ 𝜸2,j 𝜸n-1,j 𝜷n-1,j 𝜷n-1,j ⊕ 𝜸n-1,j 𝜸n,j 𝜷n,j 𝜷n,j ⊕ 𝜸n,j

9

Calculation of shared keys by RSUs:

• After computing its two sets of tokens, each RSU should compute the

shared keys with the CSP by XORing corresponding two elements in the columns.

10

Calculation of shared keys betw een EV and RSU by an EV:

• When an EV authenticates itself to the CSP, it received two seed tokens

(βi,1 and 𝛽i,nr) in the last step of charging request.

• EV uses 𝛽i,nr as seed for one hash chain

βi,1 as seed for another hash chain

• XORing corresponding two elements in two hash chains will give the

shared keys.

i,10

H( )

i,5 i,6 i,10

H( )

i,5 i,6 i,7

H( )

i,6

H( )

Partial Charging:

11

• One coin can be enough to charge from a certain number of pads.
• Our scheme can be used to limit the number of RSUs’ pads an EV can

charge from by limiting the number of keys the EV can calculate.

2 . Authentication at RSU and CP

EVi RSUj Challenge: ri Ack: H (αi,j ⊕ βi,j || ri || 1) Response: H (αi,j ⊕ βi,j || ri)

12

• Challenge/response authentication to prove the knowledge of secret

keys.

• If the EV is authenticated by RSU, it sends a token to EV which will

be used to compute the shared keys with the pads.

• We use the same idea to authenticate EV at RSUs’ charging pads.

Outline

• Introduction
• Proposed Scheme
• Evaluations
• Conclusion

• In order to evaluate the computation overhead, we used Crypto++

5.6.2 library to measure the computation time of the cryptographic

• perations used in our scheme.
• In our measurements, we used a 900MHz speed processor.

Entities Storage Overhead Computation Overhead E.V (nr 20) + (np 20) bytes 0.167 𝝂sec + 0.125 𝝂sec Charging Pads n 20 bytes (n -1) (np -1) 0.0418𝝂sec + 0.0418 𝝂sec RSU n 20 bytes 2 (n -1) (nr -1) 0.0418𝝂sec + 0.23 𝝂sec + 0.0418 𝝂sec CSP 2 n 20 bytes 2 (n -1) (nr -1) 0.0418𝝂sec + 0.23 𝝂sec

13

Evaluations

Outline

• Introduction
• Proposed Scheme
• Evaluations
• Conclusion

• In this paper, we have proposed an efficient secure and privacy

preserving scheme for Dynamic Charging System.

• Proposed scheme can secure the prepaid payment while offering full

anonymity to EV drivers.

• Proposed an efficient technique to compute and share a large number
• f secret keys.
• Developed an efficient hierarchical authentication scheme that uses

efficient cryptosystems like hashing and Exclusive-OR operations.

• Our measurements have demonstrated that the proposed scheme is

efficient and scalable.

14
