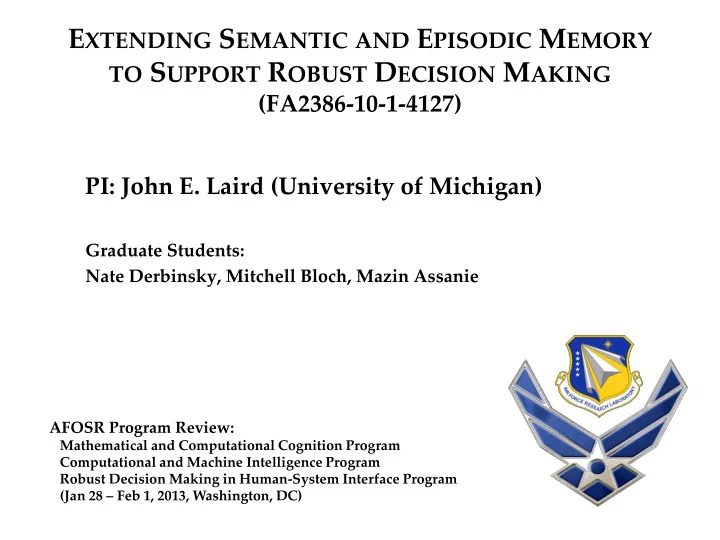

SLIDE 1

EXTENDING SEMANTIC AND EPISODIC MEMORY

TO SUPPORT ROBUST DECISION MAKING

(FA2386-10-1-4127) PI: John E. Laird (University of Michigan)

Graduate Students: Nate Derbinsky, Mitchell Bloch, Mazin Assanie

AFOSR Program Review:

Mathematical and Computational Cognition Program Computational and Machine Intelligence Program Robust Decision Making in Human-System Interface Program (Jan 28 – Feb 1, 2013, Washington, DC)

SLIDE 2

EXTENDING SEMANTIC AND EPISODIC MEMORY (JOHN LAIRD)

Objective: DoD Benefit: Technical Approach: Budget:

Actual/ Planned $K

FY11 $99 FY12 $195 FY13 $205 $158 $165 $176

Annual Progress Report Submitted? Y Y N Project End Date: June 29, 2013

Develop algorithms that support effective, general, and scalable long-term memory:

1. Effective: retrieves useful knowledge
2. General: effective across a variety of tasks
3. Scalable: supports large amounts of

knowledge and long agent lifetimes: manageable growth in memory and computational requirements 1. Analyze multiple tasks and domains to determine exploitable regularities. 2. Develop algorithms that exploit those regularities. 3. Embed within a general cognitive architecture. 4. Perform formal analyses and empirical evaluations across multiple domains. Develop science and technology to support:

Intelligent knowledge-rich autonomous

systems that have long-term existence, such as autonomous vehicles (ONR, DARPA: ACTUV).

Large-scale, long-term cognitive models

(AFRL)

2

SLIDE 3

LIST OF PROJECT GOALS

1. Episodic memory (experiential & contextualized)

– Expand functionality – Improve efficiency of storage (memory) and retrieval (time)

2. Semantic memory (context independent)

– Enhance retrieval – Automatic generalization

3. Cognitive capabilities that leverage episodic and semantic memory functionality

– Reusing prior experience, noticing familiar situations, …

4. Evaluate on real world domains 5. Extended Goal

– Competence-preserving selective retention across multiple memories

3

SLIDE 4

PROGRESS TOWARDS GOALS

1. Episodic memory

– Expand functionality (recognition)

[AAAI 2012b]

– Improve efficiency of storage (memory) and retrieval (time)

Exploits temporal contiguity, structural regularity, high cue structural selectivity, high

temporal selectivity, low cue feature co-occurrence

For many different cues and many different tasks, no significant slowdown with

experience: runs for days of real time (tens of millions of episodes), faster than real time.

[ICCBR 2009; BRIMS 2011; AAMAS 2012]

2. Semantic memory

– Enhance retrieval

Evaluated multiple bias functions: conclude base-level (exponential) activation works best
Developed efficient approximate algorithm that maintains high (>90%) validity

– 30-100x fast as prior retrieval algorithms (non base-level activation) (for 3x larger data set) – sub linear slowdown as memory size increases

Exploits small node outdegree, high selectivity, not low co-occurrence of cue features.
[ICCM 2010; AISB 2011; AAAI 2011]
Current research: how to use context – collaboration with Braden Phillips, University of

Adelaide on special purpose hardware to support spreading activation in semantic memory

– Automatic generalization

Current research: Leverage data maintained for episodic memory

4

SLIDE 5

PROGRESS TOWARDS GOALS

3. Cognitive capabilities that leverage episodic and semantic memory functionality

– Episodic memory

Seven distinct capabilities: recognition, prospective memory, virtual sensing, action modeling, …
[BRIMS 2011; ACS 2011b; AAAI 2012a]

– Semantic memory

Support reconstruction of forgotten working memory
[ACS 2011; ICCM 2012a]

4. Evaluate on real world domains

– Episodic memory

Multiple domains including mobile robotics, games, planning problems, linguistics
[BRIMS 2011; AAAI 2012a]

– Semantic memory

Word sense disambiguation, mobile robotics
[ICCM 2010; BRIMS 2011; AAAI 2011]

5. Competence preserving retention/forgetting

– Working memory

Automatic management of working memory to improve the scalability of episodic memory, utilizing semantic

memory

[ACS 2011; ICCM 2012b; Cog Sys 2013]]

– Procedural memory

Automatic management or procedural memory using same algorithms as in working-memory management
[ICCM 2012b; Cog Sys 2013]

5

SLIDE 6

NEW GOALS

Dynamic determination of value-functions for reinforcement learning to

support robust decision making.

– [ACS 2012; AAAI submitted]

6

SLIDE 7

OVERVIEW

Goal:

– Online learning and decision making in novel domains with very large state spaces. – No a priori knowledge of which features are most important

Approach:

– Reinforcement learning with adaptive value function determination using hierarchical tile coding – Only online, incremental methods need apply!

Hypothesis:

– Will lead to more robust decision making and learning

ver small changes to environment and task

7

SLIDE 8

REINFORCEMENT LEARNING FOR ACTION SELECTION

Choose action based on the expected (Q) value stored in a value

function

– Value function maps from situation-action to expected value.

Value function updated based on reward received and expected future

reward (Q Learning: off policy)

Page 8

State: S1 Perception & Internal Structures Value Function (si, aj) → qij State: S2 a1 a2 a3 a3 a4 a5 Reward (s2, a4)

SLIDE 9

VALUE-FUNCTION FOR LARGE STATE SPACES

(si, aj) → qij
si = (f1, f2, f3, f4, f5, f6, … fn)
Usually only a subset of features are relevant
If include irrelevant features, slow learning
If don’t include relevant features, suboptimal asymptotic

performance

How get the best of both?
First step: hierarchical tile coding (Sutton & Barto, 1998)
Initial results for propositional representations in Puddle World

and Mountain Car

9

SLIDE 10

PUDDLE WORLD

10

SLIDE 11

PUDDLE WORLD

11

2x2 4x4 8x8 Q-value for (si, aj) = ∑ (sit, aj) [as opposed average] More abstract tilings (2x2) gets more updates, which form the baseline for subtilings Update is distributed across all tiles that contribute to Q-value

Explored variety of distributions: 1/sqrt(updates), even, 1/updates, …

SLIDE 12

12

100000
90000
80000
70000
60000
50000
40000
30000
20000
10000

50 100 150 200 Cumulative Reward/Episodes Actions (thousands)

Puddle World: Single Level Tilings

4x4 8x8 16x16 32x32 64x64

SLIDE 13

13

7000
6000
5000
4000
3000
2000
1000

10 20 30 40 50 Cumulative Reward/Episodes Actions (thousands)

Puddle World: Single Level Tilings Expanded

4x4 8x8 16x16

SLIDE 14

14

7000
6000
5000
4000
3000
2000
1000

10 20 30 40 50 Cumulative Reward/Episodes Actins (thousands)

Puddle World: Includes Static Hierarchical Tiling 1-64

4x4 8x8 16x16 1-64 static

SLIDE 15

MOUNTAIN CAR

15

SLIDE 16

16

7000
6000
5000
4000
3000
2000
1000

100 200 300 400 500 600 700 800 900 1000 Cumulative Reward/Episodes Actions (thousands)

Mountain Car: Static Tilings

16x16 32x32 64x64 128x128 256x256

SLIDE 17

17

7000
6000
5000
4000
3000
2000
1000

10 20 30 40 50 60 70 80 90 100 Cumulative Reward/Episodes Actions (thousands)

Mountain Car: Static Tilings Expanded

16x16 32x32 64x64 128x128 256x256

SLIDE 18

18

7000
6000
5000
4000
3000
2000
1000

10 20 30 40 50 60 70 80 90 100 Cumulative Reward/Episodes Actions (thousands)

Mountain Car: Includes Static Hierarchical Tiling

16x16 32x32 64x64 128x128 256x256 1-256 static

SLIDE 19

WHY DOES

HIERARCHICAL TILING WORK?

Abstract Q values serve as starting point

for learning more specific Q values so they require less learning

Exploits a locality assumption –

– There is continuity in the mapping from feature space to Q values at multiple levels of refinement

19

SLIDE 20

FOR LARGE STATE SPACES, HOW

AVOID HUGE MEMORY COSTS?

Hypothesis: non uniform tiling is sufficient
How do this incrementally and online?
Split a tile if mean Cumulative Absolute Bellman Error

(CABE) is half a standard deviation above the mean

– CABE is stored proportionally to the credit assignment and the learning rate. – The mean and standard deviations for CABE are tracked 100% incrementally at low computational cost

Incremental and online algorithm

20

SLIDE 21

PUDDLE WORLD

21

2x2 4x4 8x8

4x4 8x8 2x2

1x1

SLIDE 22

ANALYSIS AND EXPECTED RESULTS

Might lose performance because takes

time to “grow” the tiling.

Might gain performance because not

wasting updates on useless details.

Expect many fewer “active” Q values

22

SLIDE 23

23

10000 20000 30000 40000 50000 60000

2000
1800
1600
1400
1200
1000
800
600
400
200

2 4 6 8 10 12 14 16 18 20 Q values Cumulative Reward/Episodes Actions (thousands)

Puddle World: Static Hierarchical Tiling Reward and Memory Usage

Reward: 1-64 static Memory: 1-64 static

SLIDE 24

24

10000 20000 30000 40000 50000 60000

2000
1800
1600
1400
1200
1000
800
600
400
200

2 4 6 8 10 12 14 16 18 20 Q values Cumulative Reward/Episodes Actions (thousands)

Puddle World: Static and Dynamic Hierarchical Tiling Reward and Memory Usage

Reward 1-64 static Reward 1-64 dynamic Memory: 1-64 static Memory: 1-64 dynamic

SLIDE 25

25

10000 20000 30000 40000 50000 60000

2000
1800
1600
1400
1200
1000
800
600
400
200

2 4 6 8 10 12 14 16 18 20 Q values Cumulative Reward/Episodes Actions (thousands)

Puddle World: Static and Dynamic Hierarchical Tiling Reward and Memory Usage

Reward 1-64 static Reward 1-64 dynamic Memory: 1-64 static Memory: 1-64 dynamic

Dynamic memory is 9% of static at 10,000 actions

SLIDE 26

26

SLIDE 27

27

Tile decomposition for move(north) 10K actions

SLIDE 28

28

Tile decomposition for move(south) 10K actions

SLIDE 29

29

50000 100000 150000 200000 250000 300000 350000 400000

4000
3500
3000
2500
2000
1500
1000
500

10 20 30 40 50 60 70 80 90 100 Q Values Cumulative Reward/Episodes Actions (thousands)

Mountain Car: Even Credit Assignment

Reward: 1x256 static Reward: 1x256 dynamic Memory: 1x256 static Memory: 1x256 dynamic

SLIDE 30

30

50000 100000 150000 200000 250000 300000 350000 400000

4000
3500
3000
2500
2000
1500
1000
500

10 20 30 40 50 60 70 80 90 100 Q Values Cumulative Reward/Episodes Actions (thousands)

Mountain Car: Inverse Log Credit Assignment

Reward: 1-256 static Reward: 1-256 dynamic Memory: 1-256 static Memory: 1-256 dynamic

SLIDE 31

31

50000 100000 150000 200000 250000 300000 350000 400000

4000
3500
3000
2500
2000
1500
1000
500

10 20 30 40 50 60 70 80 90 100 Q Values Cumulative Reward/Episodes Actions (thousands)

Mountain Car: Inverse Log Credit Assignment

Reward: 1-256 static Reward: 1-256 dynamic Memory: 1-256 static Memory: 1-256 dynamic Dynamic memory is 6% of static at 50,000 actions

SLIDE 32

32

Tile decomposition for move(right): 50K

SLIDE 33

33

Tile decomposition for move(right): 1,000K

SLIDE 34

34

Tile decomposition for move(left): 50K

SLIDE 35

35

Tile decomposition for move(left): 1,000K

SLIDE 36

36

Tile decomposition for move(idle): 50K

SLIDE 37

37

Tile decomposition for move(idle): 1,000K

SLIDE 38

RELATED WORK

(McCallum, 1996) Reinforcement Learning with Selective Perception and Hidden State

Not strict hierarchies, but similar motivation for relational representations.

Two levels with independent updating and no adaptive splitting

(Taylor & Stone, 2005) Behavior Transfer for Value-Function-Based Reinforcement Learning
(Zheng, Luo & Lv, 2006) Control Double Inverted Pendulum by Reinforcement Learning with Double CMAC

Network

(Grzes, 2010) Improving Exploration in Reinforcement Learning through Domain Knowledge and Parameter

Analysis

Maintain data on the fringe of the hierarchy

(Munos & Moore, 1999) Variable Resolution Discretization in Optimal Control

Splits periodically; Maintains a fringe of the hierarchy and splits top 'f'% of the cells to minimize the Stand_Dev of influence and variance; No time-based online performance data; requires action model

(Whiteson, Taylor, & Stone, 2007) Adaptive Tile Coding for Value Function Approximation

Splits when Bellman error for any has not decreased in N steps; Maintains the fringe of the hierarchy and splits which maximally reduces Bellman error value, or maximally improves the policy

38

SLIDE 39

39

3000
2500
2000
1500
1000
500

10 20 30 40 50 60 70 80 90 100 Cumulative Reward/Episodes Actions (Thousands)

Whiteston Policy and Value Results Compared to Our Results

Whiteson Value-based splitting Whiteson Policy-based splitting Our static hierarchy Our dynamic hierarchy

SLIDE 40

ROBUSTNESS

“A characteristic describing a model's, test's or system's ability to effectively perform while its variables or assumptions are altered.” Puddle World

1. Change position of goal 2. Change the size of the puddles 3. Increase stochasticity of actions

Mountain Car

1. Change the force of actions

Hypotheses

– Hierarchical tiling should be robust for small changes – Incremental tiling should have similar performance

40

SLIDE 41

CHANGES IN GOAL POSITION

41 1 2 3 4

SLIDE 42

42

5000
4000
3000
2000
1000
