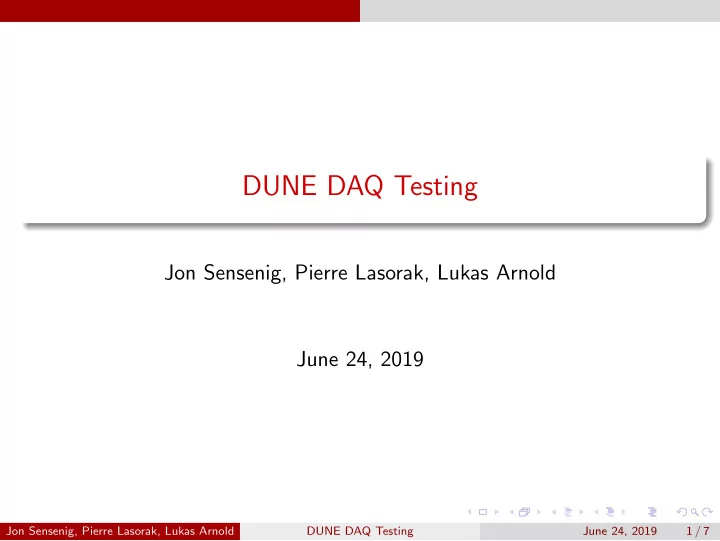

DUNE DAQ Testing

Jon Sensenig, Pierre Lasorak, Lukas Arnold June 24, 2019

Jon Sensenig, Pierre Lasorak, Lukas Arnold DUNE DAQ Testing June 24, 2019 1 / 7

Parts of testing

Hit sender Is working Memory throughput measurements Latency measurements Software trigger Test of software trigger Trigger candidate board reader Latency measurements MLT → DFO Inclusion of trigger fragment Module level trigger → DFO chain Merging process. . .

Jon Sensenig, Pierre Lasorak, Lukas Arnold DUNE DAQ Testing June 24, 2019 2 / 7

Hit sender Pierre Lasorak

Jon Sensenig, Pierre Lasorak, Lukas Arnold DUNE DAQ Testing June 24, 2019 3 / 7

Hit sending (aka hit finder) BR status

• CPU Hit sender BR “works”:
• Receives and sends hits via PTMP.
• Follows closely the rates from the hit finder algorithm.
• Sends artdaq fragments when requested:
• Managed to run with fragment issued from PTMP serialisation.
• Didn’t decode the hits as it requires a bit of shuffling with

dependencies of dunetpc.

• CPU hit sender BR + Felix BR + Hit finding process have a

very high memory throughput.

• Cannot cope with all the links enabled, works well with ≲ 4

links.

• Leads to missing fragments.
• ZCU102 hit sender BR:
• BR code similar to the python script used for testing the

ZCU102.

• Integrated in the RC (partition 4).

Time [sec] Time [sec] TP rates [Hz] (link 509)

Hit sender BR latency

• Latency of the BR seems to be < 1 sec.
• Latency = now - hit creation time.

Hit sender BR future

• Short term:
• Makes sure the decoder works with PTMP serialisation, decide whether this is

the preferred option (I think it is).

• Test ZCU reader.
• Medium term:
• Investigate the RAM throughput.
• Implement hit sending BR “replay”, which allows testing downstream without

real reading.

• Long term:
• Save all the hits to offline (c.f. DAQ requirements)? “Prescale” version of that?

Software trigger Jon Sensenig

Jon Sensenig, Pierre Lasorak, Lukas Arnold DUNE DAQ Testing June 24, 2019 4 / 7

Things as they currently stand.

• Fig. Credit: Philip Rodrigues

1

Recent Work

• Modified MLT BR to stand in for the Trigger Candidate + Module Level Trigger

BRs and reads in the trigger primitives.

○ For clarity, no windowing or sorting done here

• Note, previous setup ran with 1 to 2 Felix links.
• Added Trigger Candidate BR (with TP windowing and TPSet sorting) and

previously SWTrigger BR became the Module Level Trigger (MLT)

• Looked at TP rate of channels, ignored high rate. Helped a bit on one link.

2

3

All 10 Felix BRs running in both cases. Latency between TPset creation time time and now

• Left: No Hit-sending BRs running
• Right: All 10 Hit-sending BRs running
• Related to the high memory throughput of “CPU hit sender BR + Felix BR + Hit finding

process”mentioned in Pierre’s slides

Upcoming

• Merging the SWTrigger code with the latest DFO version and test.
• Important to have latencies fixed from hit-finding/sending so we can start

looking at trigger candidates.

• Next test period we will focus on testing the actual trigger candidate

algorithms at the Candidate Level Trigger (CLT) and MLT.

4

MLT→DFO

Implemented TriggerFragment Count Part ID Sources Start time Time span Module ID TBD Submodule ID TBD

Jon Sensenig, Pierre Lasorak, Lukas Arnold DUNE DAQ Testing June 24, 2019 5 / 7

Outlook

Process information through the dataflow chain Merge with the CLT (Candidate-level Trigger) Tests on next DAQ testing period Include Physics trigger on MLT level

Jon Sensenig, Pierre Lasorak, Lukas Arnold DUNE DAQ Testing June 24, 2019 6 / 7

Dataflow tests

→ Kurt’s talk
