Drainage Services Department Research & Development Forum 2016 Large Scale Application of Photovoltaic Panels CC Ngan, Senior Manager New Energy CLP Holdings Agenda Photovoltaic overview Price trends Global installed capacity

SLIDE 1

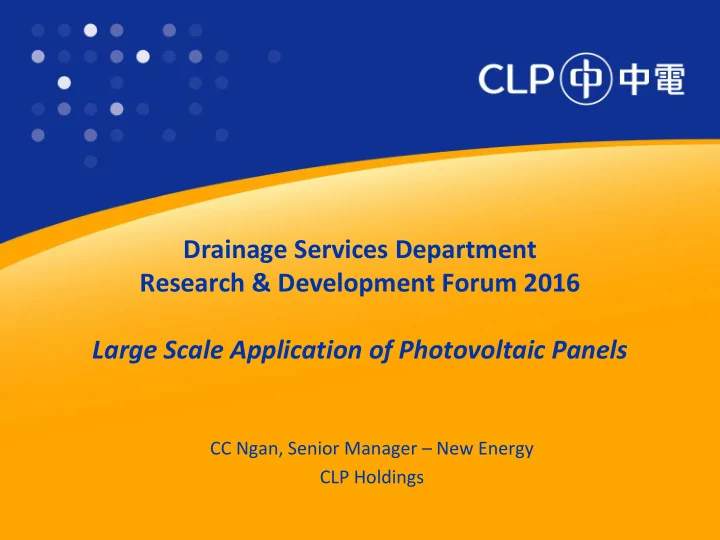

Drainage Services Department Research & Development Forum 2016 Large Scale Application of Photovoltaic Panels

CC Ngan, Senior Manager – New Energy CLP Holdings

SLIDE 2

Co/BG/Unit 2

Agenda

Photovoltaic overview
Price trends
Global installed capacity
Technology trends
A large scale solar photovoltaic power plant
The 101
The “scale”
Typical development process
Seeing is believing!

SLIDE 3

Co/BG/Unit 3

Market trends – Module price and capacity

SLIDE 4

Co/BG/Unit 4

Market trends – Module price in last 5 years

~ 60% price drop in the past 5 years (Source: Bloomberg New Energy Finance - BNEF)

SLIDE 5

Co/BG/Unit 5

Market trends – Total cost for different systems

USA PV system price (GTM Research) USA utility PV system price breakdowns (GTM Research)

SLIDE 6

Co/BG/Unit 6

Market trends – Cost outlook for utility scale system

Utility PV system price breakdowns (BNEF)

SLIDE 7

Co/BG/Unit 7

Market trends – Global capacity

Source: Fraunhofer ISE

SLIDE 8

Co/BG/Unit 8

Market trends – Capacity by country

SLIDE 9

Co/BG/Unit 9

Market trends – Outlook on capacity

Source: BNEF

SLIDE 10

Co/BG/Unit 10

Market trends – Solar tariff

SLIDE 11

Co/BG/Unit 11

Market trends - Penetration

SLIDE 12

Co/BG/Unit 12

Market trends – Utility capacities

SLIDE 13

Co/BG/Unit 13

Technology trends – Market share

Source: Fraunhofer ISE

SLIDE 14

Co/BG/Unit 14

Technology trends – Production share

Source: Fraunhofer ISE

SLIDE 15

Co/BG/Unit 15

Technology trends – Cell and module efficiency

Source: Fraunhofer ISE

SLIDE 16

Co/BG/Unit 16

Technology trends – Commercialized modules

Source: Fraunhofer ISE

SLIDE 17

Co/BG/Unit 17

Technology trends – Top 10 suppliers

Source: Renewable Energy World

SLIDE 18

Co/BG/Unit 18

PV power plant 101 – As simple as …

Grid PV string PV arrays Inverter Step up transformer Main transformer DC AC

System efficiency (Performance Ratio or PR) = kWh to grid / (Plane of array irradiance x module efficiency)

SLIDE 19

Co/BG/Unit 19

Figures from a large scale PV power plant A typical 50MW dc solar PV power plant could have

~200,000 PV modules
~10,000 strings
~ 600 dc combiner boxes
~ 50 x 1MW inverters/inverter houses and step up transformers
~ 3000 tons of steel structure
Up to 50,000 foundations
~ 90km of power cables
~ 90 hectares of land
~100,000 man-days to completion
…

SLIDE 20

Co/BG/Unit 20

Technology trends – System efficiency

SLIDE 21

Co/BG/Unit 21

Development process

Land
Permits and quota
Grid connection
Electricity sales

contract

Solar resources and

energy yield

Design
Financing
Procurement
QC & delivery

management

Construction
Acceptance
Operation &

maintenance

Performance

monitoring

SLIDE 22

Co/BG/Unit 22

Land issues

SLIDE 23

Co/BG/Unit 23

Solar resources and energy yield assessment

SLIDE 24

Co/BG/Unit 24

Quality control and delivery management

SLIDE 25

Co/BG/Unit 25

Quality control and delivery management

SLIDE 26

Co/BG/Unit 26

Performance monitoring

SLIDE 27

Co/BG/Unit 27

Utility scale solar projects

picks up in less than 10 years because of regulatory support,

price reduction and market maturity

achieves low cost from economics of scale
electrically simple but the volume needs attention
unique challenges include footprint, resources intermittence,

quality control and performance monitoring

benefits HK in terms of knowledge/skills and equipment

supplies Conclusion
