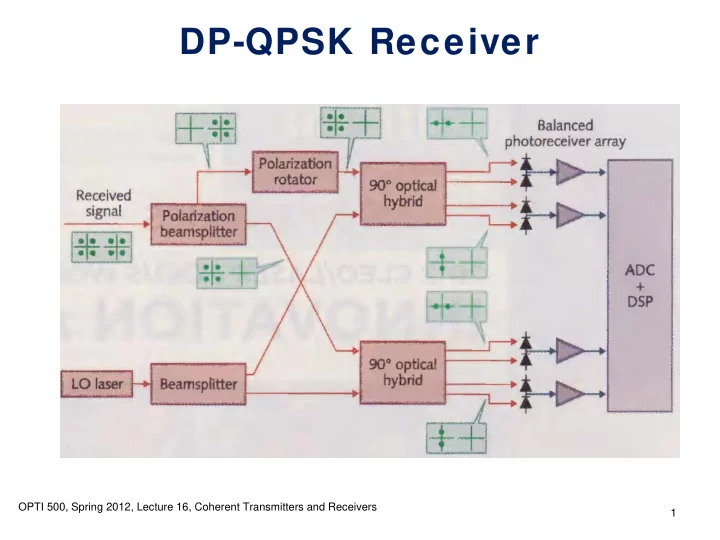

DP-QPSK Receiver

OPTI 500, Spring 2012, Lecture 16, Coherent Transmitters and Receivers

slide-2

SLIDE 2

2

Discovery Semiconductor – Coherent Transmitter

OPTI 500, Spring 2012, Lecture 16, Coherent Transmitters and Receivers

slide-3

SLIDE 3

3

Discovery Semiconductor – Coherent Receiver

OPTI 500, Spring 2012, Lecture 16, Coherent Transmitters and Receivers

slide-4

SLIDE 4

Optical Component Integration

OPTI 500, Spring 2012, Lecture 16, Coherent Transmitters and Receivers

slide-5

SLIDE 5

5

Cisco CP-DQPSK Transponder Card

OPTI 500, Spring 2012, Lecture 16, Coherent Transmitters and Receivers

CP-DQPSK = Coherent-detected Polarization-multiplexed Differential Quadrature Phase-Shift Keying

Supported Transport Protocols Standard & Enhanced Forward Error Correction Multi-Source Agreement
