DORADO MICROSTRIP FERRITE DEVICES PRESENATION SLIDE: 1 OUTLINE Product overview Customers benefits and competitive advantage Technology description Applications SLIDE: 2 PRODUCT OVERVIEW Frequency ranges: 2 to 65 GHz

SLIDE 1

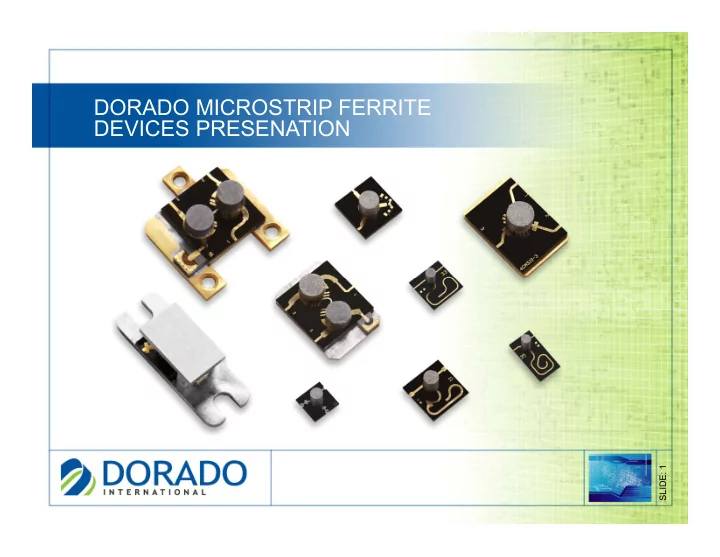

DORADO MICROSTRIP FERRITE DEVICES PRESENATION

SLIDE: 1

SLIDE 2

SLIDE: 2

OUTLINE

Product overview
Customer’s benefits and

competitive advantage

Technology description
Applications

SLIDE 3

SLIDE: 3

PRODUCT OVERVIEW

Frequency ranges: 2 to 65 GHz
Types: Substrate, Carrier, SMT
Package: Single junction,

multiple junctions

SLIDE 4

SLIDE: 4

CUSTOMER’S BENEFITS & COMPETITIVE ADVANTAGE

High performance
Frequency up to 65 GHz
Small package/low mass
Flexible technology, rich design portfolio
Extensive program heritage
Competitive price
Lead free and ROHS compliant

SLIDE 5

SLIDE: 5

TECHNOLOGY DESCRIPTION

Metal Carrier

SLIDE 6

SLIDE: 5

TECHNOLOGY DESCRIPTION

Ferrite Plate with thin film metallization

SLIDE 7

SLIDE: 5

TECHNOLOGY DESCRIPTION

Termination

SLIDE 8

SLIDE: 5

TECHNOLOGY DESCRIPTION

Magnet

SLIDE 9

SLIDE: 6

CUSTOMIZATION OF THE MICROSTRIP FERRITE DEVICES

Input/output port locations

SLIDE 10

SLIDE: 6

CUSTOMIZATION OF THE MICROSTRIP FERRITE DEVICES

Input/output port locations
Physical dimensions

SLIDE 11

SLIDE: 6

CUSTOMIZATION OF THE MICROSTRIP FERRITE DEVICES

Input/output port locations
Physical dimensions
Electrical specifications

SLIDE 12

SLIDE: 7

SLIDE 13

SLIDE: 8

MILITARY APPLICATIONS

Multiple Junction Devices

provide a high isolation between ports

SLIDE 14

SLIDE: 8

MILITARY APPLICATIONS

Multiple Junction Devices

provide a high isolation between ports

Assemblies

integrated on Ferrite Substrate Devices

SLIDE 15

SLIDE: 9

COMMERCIAL APPLICATIONS

Production capacity –

up to 10,000 pieces per month

Large inventory of standard parts
Indoor thin film facility provides good lead

time for custom design devices

Complete frequency range from 2 to 64 GHz
Flexible technology, rich design portfolio
Lead free and ROHS compliant

SLIDE 16

SLIDE: 10

SPACE APPLICATIONS

Magnetically shielded
Broadband
High performance

SLIDE 17

SLIDE: 11

INTEGRATED ASSEMBLIES

Dorado specializes in design and

manufacture of integrated assemblies

Integrated assemblies may include

Ferrite devices, switches, hybrids, limiters, couplers, filters

SLIDE 18

SLIDE: 12

SURFACE MOUNT ISOLATORS & CIRCULATORS

Ideal for WiFi applications
Low profile, low mass
Designed for pick & place reflow

automated assembly

Lead free and RHOS

compliant

Frequency up to 40GHz

SLIDE 19

SLIDE: 13

PRODUCTION FACILITY

Ceramic grinding facility
Thin film facility
Tuning and testing area
