DOMAIN PRINCIPAL GROUP 1 Project Manager Ben Deagan Background Project installation of new sprinkler systems into 30 existing facilities across Australia Timeframe staged delivery of 30 projects over a 10 month period Delivery

SLIDE 1

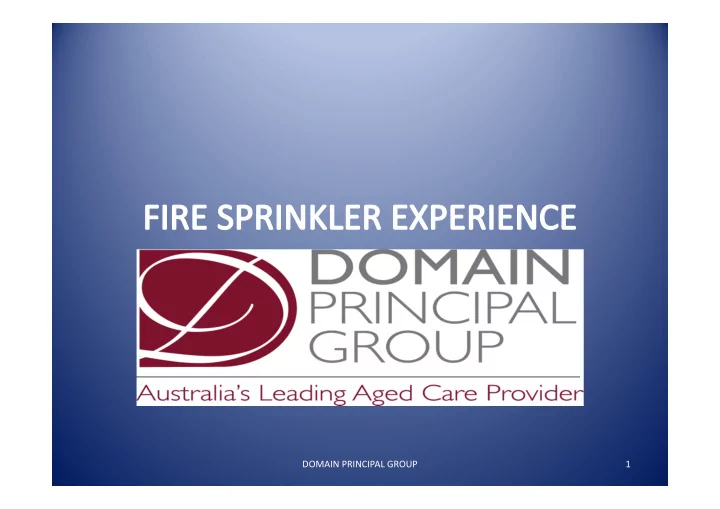

DOMAIN PRINCIPAL GROUP 1

SLIDE 2

Project Manager – Ben Deagan Background Project – installation of new sprinkler systems into 30 existing facilities across Australia Timeframe – staged delivery of 30 projects over a 10 month period Delivery Approach – Design & Construct Head Contractor – delivered by a single national fire services contractor The Journey

DOMAIN PRINCIPAL GROUP 2

SLIDE 3

STEP 1 – ESTABLISHMENT PHASE

DOMAIN PRINCIPAL GROUP 3

SLIDE 4

Background Data (Building Details)

As-built drawings (existing building plans)
Hazardous material audit/report
Water pressure inquiry
Electrical audit/report
Operating constraints

Management Approach

Internal Project Manager
External Project Manager

DOMAIN PRINCIPAL GROUP 4

SLIDE 5

STEP 2 – CONCEPT PHASE

DOMAIN PRINCIPAL GROUP 5

SLIDE 6

Develop Project Brief

Principal Project Requirements (PPR)

Delivery Approach

Design & Construct (D&C) delivery approach
Detailed Design, Tender & Construction delivery approach

DOMAIN PRINCIPAL GROUP 6

SLIDE 7

STEP 3 – TENDER/DESIGN PHASE

DOMAIN PRINCIPAL GROUP 7

SLIDE 8

Finalise D&C Brief Prepare the tender package which will include but not be limited to:

Standard tender documentation
Principal Project Requirement document
Background data
Modified AS4902-2000 contract

Tender & Appoint D&C Contractor

Develop tender list (based on capacity & experience)
Evaluate and appoint head contractor (staged appointment)
Commence detailed design

Council Approval (Authority Approval)

Complying Development Certificate (CDC)
Development Application (DA)

DOMAIN PRINCIPAL GROUP 8

SLIDE 9

EXAMPLE DESIGN DOCUMENTATION

DOMAIN PRINCIPAL GROUP 9

SLIDE 10

STEP 4 – CONSTRUCTION & COMMISSIONING PHASE

DOMAIN PRINCIPAL GROUP 10

SLIDE 11

Site Induction

Facility induction
Establishment of head contractor safety plan & site specific induction
Establishment of delivery/storage/work areas
Communication lines
Contractor police checks are in place
Procedures for notifying Facility Managers of key works that will affect the

day to day operation of the facility

Programming & planning of works
OHS spotter

Commence Construction

Typical timeframes

DOMAIN PRINCIPAL GROUP 11 Small Facility 1,200sqm 2,500sqm 6 to 8 Weeks Medium Facility 2,500sqm 4,500sqm 8 to 12 Weeks Large Facility 4,500sqm 6,500sqm 12 to 14 Weeks

SLIDE 12

EXAMPLE STAGING PLAN

DOMAIN PRINCIPAL GROUP 12

SLIDE 13

TYPICAL SPRINKLER PIPE INSTALLATION

DOMAIN PRINCIPAL GROUP 13

SLIDE 14

TYPICAL FLEXIBLE PIPEWORK INSTALLATION

DOMAIN PRINCIPAL GROUP 14

SLIDE 15

TYPICAL SPRINKLER CONTROL VALVE SET

DOMAIN PRINCIPAL GROUP 15

SLIDE 16

STEP 4 – CONSTRUCTION & COMMISSIONING PHASE (Continue)

Completion of Installation

Commissioning & training
Authority approval
O&M Manuals
Defects liability period
Implement maintenance schedule

DOMAIN PRINCIPAL GROUP 16

SLIDE 17

KEY LEARNINGS

Head Contractor

Selection process for the head contractor
Robust PPR document
The type of agreement (contract) to be utilised

Design Phase

Design and location of the sprinkler control valve set
Drainage points for the sprinkler control valve set and test points
Locations of exposed sprinkler pipe-work (internal external)
Location of sprinkler heads within the entry under-awnings
Location of manholes for accessing the ceiling void areas
In-ground works (maintaining access to the facility for emergencies)

Construction Phase

Facility Orientation
Communication Lines
OHS Spotter
Planning of the onsite works

DOMAIN PRINCIPAL GROUP 17
