Distributed Optimization of CNNs and RNNs GTC 2015 William Chan williamchan.ca williamchan@cmu.edu March 19, 2015 Outline 1. Motivation 2. Distributed ASGD 3. CNNs 4. RNNs 5. Conclusion Carnegie Mellon University 2 Motivation Why

SLIDE 1

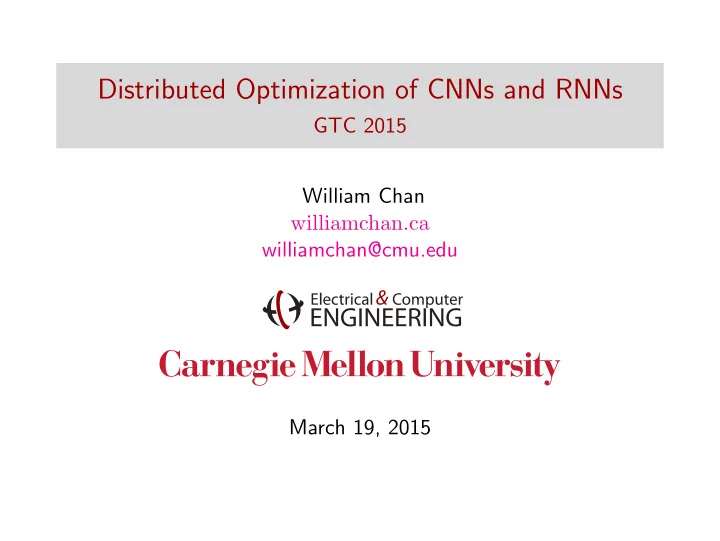

Distributed Optimization of CNNs and RNNs

GTC 2015 William Chan williamchan.ca williamchan@cmu.edu March 19, 2015

SLIDE 2

Outline

1. Motivation
2. Distributed ASGD
3. CNNs
4. RNNs
5. Conclusion

Carnegie Mellon University 2

SLIDE 3

Motivation

◮ Why need distributed training?

Carnegie Mellon University 3

SLIDE 4

Motivation

◮ More data → better models ◮ More data → longer training times

Example: Baidu Deep Speech

◮ Synthetic training data generated from overlapping noise ◮ Synthetic training data → unlimited training data

Carnegie Mellon University 4

SLIDE 5

Motivation

◮ Complex models (e.g., CNNs and RNNs) better than simple

models (DNNs)

◮ Complex models → longer training times

Example: GoogLeNet

◮ 22 layers deep CNN

Carnegie Mellon University 5

SLIDE 6

GoogLeNet

input Conv 7x7+2(S) MaxPool 3x3+2(S) LocalRespNorm Conv 1x1+1(V) Conv 3x3+1(S) LocalRespNorm MaxPool 3x3+2(S) Conv 1x1+1(S) Conv 1x1+1(S) Conv 1x1+1(S) MaxPool 3x3+1(S) DepthConcat Conv 3x3+1(S) Conv 5x5+1(S) Conv 1x1+1(S) Conv 1x1+1(S) Conv 1x1+1(S) Conv 1x1+1(S) MaxPool 3x3+1(S) DepthConcat Conv 3x3+1(S) Conv 5x5+1(S) Conv 1x1+1(S) MaxPool 3x3+2(S) Conv 1x1+1(S) Conv 1x1+1(S) Conv 1x1+1(S) MaxPool 3x3+1(S) DepthConcat Conv 3x3+1(S) Conv 5x5+1(S) Conv 1x1+1(S) Conv 1x1+1(S) Conv 1x1+1(S) Conv 1x1+1(S) MaxPool 3x3+1(S) AveragePool 5x5+3(V) DepthConcat Conv 3x3+1(S) Conv 5x5+1(S) Conv 1x1+1(S) Conv 1x1+1(S) Conv 1x1+1(S) Conv 1x1+1(S) MaxPool 3x3+1(S) DepthConcat Conv 3x3+1(S) Conv 5x5+1(S) Conv 1x1+1(S) Conv 1x1+1(S) Conv 1x1+1(S) Conv 1x1+1(S) MaxPool 3x3+1(S) DepthConcat Conv 3x3+1(S) Conv 5x5+1(S) Conv 1x1+1(S) Conv 1x1+1(S) Conv 1x1+1(S) Conv 1x1+1(S) MaxPool 3x3+1(S) AveragePool 5x5+3(V) DepthConcat Conv 3x3+1(S) Conv 5x5+1(S) Conv 1x1+1(S) MaxPool 3x3+2(S) Conv 1x1+1(S) Conv 1x1+1(S) Conv 1x1+1(S) MaxPool 3x3+1(S) DepthConcat Conv 3x3+1(S) Conv 5x5+1(S) Conv 1x1+1(S) Conv 1x1+1(S) Conv 1x1+1(S) Conv 1x1+1(S) MaxPool 3x3+1(S) DepthConcat Conv 3x3+1(S) Conv 5x5+1(S) Conv 1x1+1(S) AveragePool 7x7+1(V) FC Conv 1x1+1(S) FC FC SoftmaxActivation softmax0 Conv 1x1+1(S) FC FC SoftmaxActivation softmax1 SoftmaxActivation softmax2

Figure 3: GoogLeNet network with all the bells and whistles 7

Carnegie Mellon University 6

SLIDE 7

Distributed Asynchronous Stochastic Gradient Descent

◮ Google Cats, DistBelief, 32 000 CPU cores and more...

Figure 1: Google showed we can apply ASGD with Deep Learning.

Carnegie Mellon University 7

SLIDE 8

Distributed Asynchronous Stochastic Gradient Descent

◮ CPUs are expensive ◮ PhD students are poor : ( ◮ Let us use GPUs!

Carnegie Mellon University 8

SLIDE 9

Distributed Asynchronous Stochastic Gradient Descent

Stochastic Gradient Descent: θ = θ − η∇θ (1) Distributed Asynchronous Stochastic Gradient Descent: θ = θ − η∇θi (2)

Carnegie Mellon University 9

SLIDE 10

Distributed Asynchronous Stochastic Gradient Descent

CMU SPEECH3:

◮ x1 GPU Master Parameter Server ◮ xN GPU ASGD Shards

Carnegie Mellon University 10

SLIDE 11

Distributed Asynchronous Stochastic Gradient Descent

Parameter Server SGD Shard SGD Shard PCIE DMA Independent SGD GPU shards, synchronization with the parameter server is done via PCIE DMA bypassing the CPU

Figure 2: CMU SPEECH3 GPU ASGD.

Carnegie Mellon University 11

SLIDE 12

Distributed Asynchronous Stochastic Gradient Descent

SPEECH3 ASGD Shard ↔ Parameter Server Sync:

◮ Compute a minibatch (e.g., 128). ◮ If Parameter Server is free, sync. ◮ Else compute another minibatch. ◮ Easy to implement, < 300 lines of code. ◮ Works surprisingly well.

Carnegie Mellon University 12

SLIDE 13

Distributed Asynchronous Stochastic Gradient Descent

Minor tricks:

◮ Momentum / Gradient Projection on Parameter Server ◮ Gradient Decay on Parameter Server ◮ Tunable max distance limit between Parameter Server and

Shard.

Carnegie Mellon University 13

SLIDE 14

CNNs

Convolutional Neural Networks (CNNs)

◮ Computer Vision ◮ Automatic Speech Recognition ◮ CNNs are typically ≈ 5% relative Word Error Rate (WER)

better than DNNs

Carnegie Mellon University 14

SLIDE 15

CNNs

Time Spectrum 2D Convolution Max Pooling Fully Connected Posteriors 2D Convolution Fully Connected

Figure 3: CNN for Acoustic Modelling.

Carnegie Mellon University 15

SLIDE 16

CNNs

5 10 15 20 Time (Hours) 30 35 40 45 50 Test Frame Accuracy

SGD Baseline 2x 3x 4x 5x

Test Frame Accuracy vs. Time

Figure 4: SGD vs ASGD.

Carnegie Mellon University 16

SLIDE 17

CNNs

Workers 40% FA 43% FA 44% FA 1 5:50 (100%) 14:36 (100%) 19:29 (100%) 2 3:36 (81.0%) 8:59 (81.3%) 11:58 (81.4%) 3 2:48 (69.4%) 5:59 (81.3%) 7:58 (81.5%) 4 2:05 (70.0%) 4:28 (81.7%) 6:32 (74.6%) 5 1:40 (70.0%) 3:49 (76.5%) 5:43 (68.2%)

Table 1: Time (hh:mm) and scaling efficiency (in brackets) comparison for convergence to 40%, 43% and 44% Frame Accuracy (FA).

Carnegie Mellon University 17

SLIDE 18

RNNs

Recurrent Neural Networks (RNNs)

◮ Machine Translation ◮ Automatic Speech Recognition ◮ RNNs are typically ≈ 5-10% relative WER better than DNNs

Minor Tricks:

◮ Long Short Term Memory (LSTM) ◮ Cell activation clipping

Carnegie Mellon University 18

SLIDE 19

RNNs DNN RNN

Figure 5: DNN vs. RNN.

Carnegie Mellon University 19

SLIDE 20

RNNs

Workers 46.5% FA 47.5% FA 48.5% FA 1 1:51 (100%) 3:42 (100%) 7:41 (100%) 2 1:00 (92.5%) 2:00 (92.5%) 3:01 (128%) 5

1:15 (122%)

Table 2: Time (hh:mm) and scaling efficiency (in brackets) comparison for convergence to 46.5%, 47.5% and 48.5% Frame Accuracy (FA).

◮ RNNs seem to really like distributed training!

Carnegie Mellon University 20

SLIDE 21

RNNs

Workers WER Time 1 3.95 18:37 2 4.11 8:04 5 4.06 5:24

Table 3: WERs.

◮ No (major) difference in WER!

Carnegie Mellon University 21

SLIDE 22

Conclusion

◮ Distributed ASGD on GPU, easy to implement! ◮ Speed up your training! ◮ Minor difference in loss against SGD baseline!

Carnegie Mellon University 22
