Enabling Grids for E-sciencE Distributed Key Management For Sensitive Data Joni Hahkala (HIP), John White (HIP), kos Frohner (CERN) and Kalle Happonen (HIP) ISGC'10, Taipei, Taiwan www.eu-egee.org EGEE-III INFSO- EGEE and gLite are

SLIDE 1

EGEE-III INFSO- RI-222667

Enabling Grids for E-sciencE

www.eu-egee.org

EGEE and gLite are registered trademarks

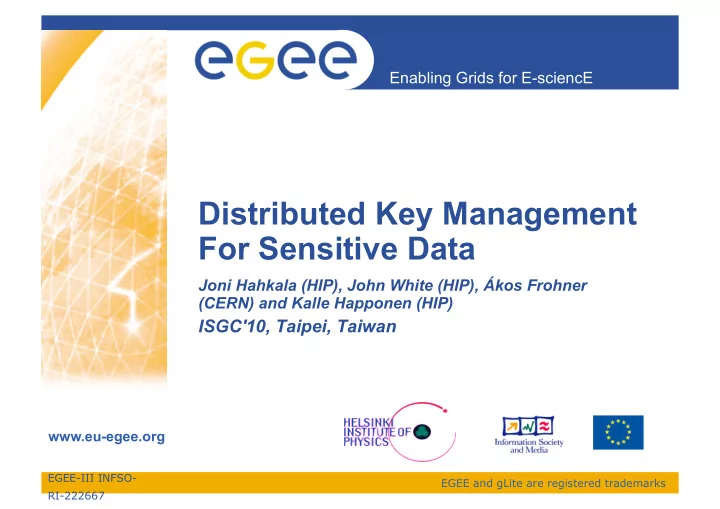

Distributed Key Management For Sensitive Data

Joni Hahkala (HIP), John White (HIP), Ákos Frohner (CERN) and Kalle Happonen (HIP)

ISGC'10, Taipei, Taiwan

SLIDE 2

Enabling Grids for E-sciencE

EGEE-III INFSO-RI-222667 ISGC'10, Taipei, March 9th, 2010 2

Outline

Background
Hydra
Hydra in medical data management
Status

SLIDE 3

Enabling Grids for E-sciencE

EGEE-III INFSO-RI-222667 ISGC'10, Taipei, March 9th, 2010 3

Background

In some fields data security is imperative

– Medical data – Financial data – Personal data

For example in Medical field the patient data should be

– Anonymized – Encrypted

In storage and during transfer

– And access to both the files and metadata should be tightly controlled

SLIDE 4

Enabling Grids for E-sciencE

EGEE-III INFSO-RI-222667 ISGC'10, Taipei, March 9th, 2010 4

Encryption

Encryption gives more freedom

– Unauthorized access to the file is not catastrophic

Provided there is strong encryption
But how to encrypt?
Decryption should be possible

– by only the owner – by a group defined by file level granularity

Authentication certificates are not good

– Renewed each year → files lost – Revoked or pass-phrase lost → files lost – No group access

Symmetric keys are hard to manage

– Big number of keys to manage if high granularity needed – User managed keys would easily lead to lost keys and thus files

SLIDE 5

Enabling Grids for E-sciencE

EGEE-III INFSO-RI-222667 ISGC'10, Taipei, March 9th, 2010 5

Key management

Central key storage is not so good

– All eggs in one basket – Rogue sysadmin could access every file

Distributed key storage is better

– Secret is shared, not enough to hack one server – Many sysadmins would have to cooperate to access the keys

SLIDE 6

Enabling Grids for E-sciencE

EGEE-III INFSO-RI-222667 ISGC'10, Taipei, March 9th, 2010 6

Hydra

SLIDE 7

Enabling Grids for E-sciencE

EGEE-III INFSO-RI-222667 ISGC'10, Taipei, March 9th, 2010 7

Hydra

Distributed key storage
Based on Shamir's Secret Sharing Scheme

– (k,n) threshold scheme

Have to know k parts out of n to reconstruct the key
k-1 parts don't reveal any information of the secret

– k-1 degree polynomial with n points calculated

Need k points to reconstruct the polynomial

– Mathematically proven that k-1 parts don't help in finding the key

Information theoretic security
Fault tolerant

– Only k out of n servers need to be up and running – For example (3, 5) configuration

2 servers may be down
Need to crack 3 servers to get the key

SLIDE 8

Enabling Grids for E-sciencE

EGEE-III INFSO-RI-222667 ISGC'10, Taipei, March 9th, 2010 8

Hydra (2)

A key per file
Distributed to n preferably geographically and

managerially separated servers

Access to each key controlled with access control list

– Access for only owner or list of users – Access to list of groups (VOMS)

Not solution to everything

– Vulnerable to credential compromise

Proxies in many places
Secure token service could help

– Files need to be used

WN will have access when computing, thus compromise there

reveals the contents

SLIDE 9

Enabling Grids for E-sciencE

EGEE-III INFSO-RI-222667 ISGC'10, Taipei, March 9th, 2010 9

Storing file with Hydra

1. Generate key
2. Encrypt
3. Split key
4. Store parts to Hydra servers
5. Store file
6. (Store key ID to metadata

catalog)

SLIDE 10

Enabling Grids for E-sciencE

EGEE-III INFSO-RI-222667 ISGC'10, Taipei, March 9th, 2010 10

Hydra in mediacal data mgmt

In EGEE the Hydra is integrated with the data

management tools to produce Medical Data Manager (MDM)

Medical data comes from DICOM servers

– Digital Imaging and Communications in Medicine (DICOM) – Standard for medical image and metadata format – Designed for hospital internal use – Should not be exposed to outside

DICOM to DPM trigger

– Automatic encryption on the fly – Registration of metadata to metadata catalog and file info to LFC – Storage of key pieces into hydra using LFC GUID – Files registered to DPM as “nearline” need to be staged – Once fetched from DICOM DPM serves them normally

Anonymized and encrypted during fetch

SLIDE 11

Enabling Grids for E-sciencE

EGEE-III INFSO-RI-222667 ISGC'10, Taipei, March 9th, 2010 11

Register DICOM files to Grid

SLIDE 12

Enabling Grids for E-sciencE

EGEE-III INFSO-RI-222667 ISGC'10, Taipei, March 9th, 2010 12

Access DICOM file

SLIDE 13

Enabling Grids for E-sciencE

EGEE-III INFSO-RI-222667 ISGC'10, Taipei, March 9th, 2010 13

Status

EGEE provides support

– Mainly bug fixing and implementing feature requests

Service and clients implemented

– Integrated clients for users – Trigger to register DICOM files – Recall daemon to access DICOM files

In use or being evaluated in medical research projects
Current version has some deployment bugs
New version entering certification

– To get it into official gLite distribution

Future work depends on feature requests from users!

https://twiki.cern.ch/twiki/bin/view/EGEE/DMEDS
