5/24/2013 RC1 RC2 Leukemia: Genealogy of Disclosure: Pathology Practice: Old Diseases New Expectations Nothing to disclose Kathryn Foucar, MD Henry Moon Lecture: UCSF Annual kfoucar@salud.unm.edu Conference May 2013 2 How to

slide-1
SLIDE 1

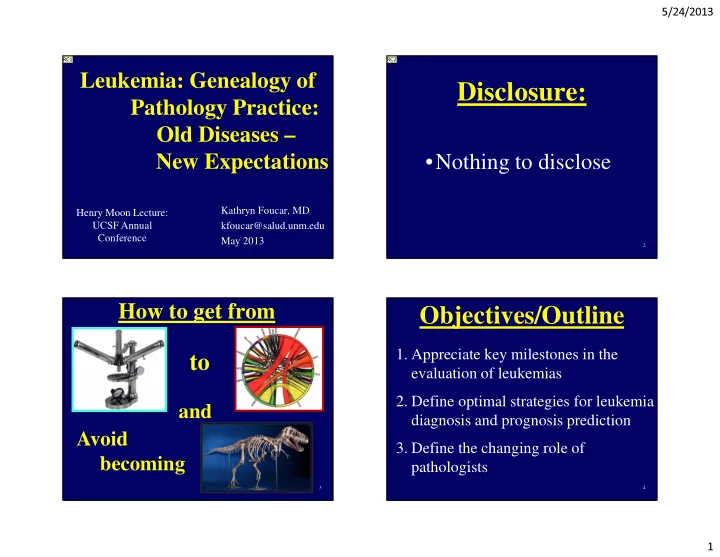

5/24/2013 1

Leukemia: Genealogy of Pathology Practice: Old Diseases – New Expectations

Kathryn Foucar, MD kfoucar@salud.unm.edu May 2013 Henry Moon Lecture: UCSF Annual Conference

RC1

Disclosure:

  • Nothing to disclose

2 RC2

How to get from

3

to

and Avoid becoming

Objectives/Outline

  • 1. Appreciate key milestones in the

evaluation of leukemias

  • 2. Define optimal strategies for leukemia

diagnosis and prognosis prediction

  • 3. Define the changing role of

pathologists

4

slide-2
SLIDE 2

Slide 1 RC1 2/25/13 - RC Revisions:

  • 1. Check popins on slide 2
  • 2. Move slides 9&10 on pg 2 to page 1 after slide 3
  • 3. delete slide 7 popins
  • 4. add new slide "Who was right", with popins, after slide 10
  • 5. rename slide 22 "Case"
  • 6. Delete titles on images slides 23 &24
  • 7. Add text to legend on slide 24
  • 8. Change title and delete text on slide 25
  • 9. Add slide titled "Diagnosis?"
  • 10. Add slide titled "CML in Stable Phase"
  • 11. Revise original slide 31
  • 12. Add text to legend of original slide 33
  • 13. Add slide titled "Diagnosis?"
  • 14. Add slide titled "Myeloid Neoplasms"
  • 15. Delete original slide #41
  • 16. Update original slide #56
  • 17. Delete original slide #62
  • 18. Change title on original slide #66 (Now last slide)

Check slide numbers, font,pop-ins, and color of all slides Submit: 2.25.13 3.1.13 Revisions Slide #9 Remove text Slide #11 Check popins - good Slide #26 Remove text and center remaining text Slide #28 Add "L1" in italics Slide #36 remove letter "C" Total number of slides 69 Send electronically to KF 3.1.13 REVISIONS: UCSF requirements: add disclosure to 2nd slide

slide-3
SLIDE 3

Slide 1 (Continued) re-checked numbering rc: 3.8.13

Raquel R. Calderon, 3/8/2013

Slide 2 RC2

Raquel R. Calderon, 3/8/2013

slide-4
SLIDE 4

5/24/2013 2

Milestones in CML

  • 1845 First description of CML (Virchow, Bennett)
  • 1960 Philadelphia chromosome reported by conventional

cytogenetics in pt. with CML (Nowell, Hungerford)

  • 1973 Exchange of genetic material between chromosomes

9 and 22 in CML (Rowley)

  • 1982-85 BCR-ABL1 fusion gene and protein in CML

(Baltimore, Witte, others)

  • 1987-1998 STI-571 targeted therapy and clinical trials
  • 2001 Imatinib FDA-approved

5

1845

6

Battle between Bennett and Virchow

Hepatosplenomegaly Clinico-pathologic correlation

Courtesy H. Sayar

7

Autopsy

Gross Exam:

Earliest diagnostic tool in leukemia diagnosis E.g. Blood thick like gruel; massive enlargement of spleen and liver

8

slide-5
SLIDE 5

5/24/2013 3 Clinico-Pathologic Correlation Blood: Buffy Coat CML: WBC > 900,000

WBC’s

9

Early Multi-head scope

10

Unstained

130 years ago 150 years ago

11

Who was right?

A.Bennett

  • B. Virchow -
  • C. Neither

D.Both

12

infection leukemia

slide-6
SLIDE 6

5/24/2013 4

MPO

Acute myeloid leukemia Morphology/Cytochemistry

13

>130 yrs > 100 yrs

1960

14

Nowell and Hungerford

Philadelphia Chromosome

Ph1: first cytogenetic abnormal linked to neoplasm (1960)

Karyotype from 1976

15 16

Courtesy J. Anastasi

1973

slide-7
SLIDE 7

5/24/2013 5

17

Courtesy J. Anastasi

David Baltimore, 1980’s

1980’s; different groups

Ph1: reciprocal translocation BCR-ABL1 fusion gene 1982-1985

Translocation results in constitutive tyrosine kinase activity CML

18

Source: Kalidas, et al. NEJM 2001; 286:895-898

Leukemogenic Effects of Constitutive Non- Receptor Tyrosine Kinase Activation

19

Source: Kalidas, et al. NEJM 2001;286:895-898

Therapy to Block Tyrosine Kinase Activity (1987-1998 )

20

slide-8
SLIDE 8

5/24/2013 6

CML Disease Course: Pre-Imatinib

Chronic phase 3-7 years Accelerated phase < 2 years Blast phase < 1 year

  • Disease progression inevitable

(rare exceptions)

  • Linked to additional cytogenetic

abnormalities (clonal evolution)

21

CML: Impact of Imatinib

  • High rates of complete cytogenetic remission

(95% in patients with stable phase CML; estimated > 50% 10-yr survival)

  • Improved progression-free survival
  • All patients achieving major molecular

response alive at 5 years

  • Imatinib-resistance more common in patients

in accelerated phase at presentation (additional mutations)

  • Imatinib not curative

22

2001-Present

Blast-Phase in CML: 1983-present

Source: Hehlmann, R. How I treat CML blast crisis. Blood 2012;120:737.

55-yr-old female swimmer with new onset fatigue CBC: WBC 349,000

24

Case

slide-9
SLIDE 9

5/24/2013 7

60b05

Blood

25

59b04

Bone marrow core; mega size

60b09

26

Cytogenetics

Karyotype:

46,XX,t(9;22)(q34;q11.2)[20]

27

Diagnosis?

  • A. CML in stable phase
  • B. CML in accelerated phase
  • C. CML in blast phase

28

slide-10
SLIDE 10

5/24/2013 8

CML in Stable Phase

  • Complete cytogenetic

response to imatinib

  • Ongoing therapy with regular

quantitative BCR-ABL1 assessment

29

CML: Accelerated Phase

32-year-old female with splenomegaly and leukocytosis (negative history)

CBC: WBC 24,300, Hgb 8.4, Hct 28%, Plt 701,000 BM: Dry tap

30

CML:AP 10% blasts, 20% basos, anemia

31

CML:AP blast, baso, mega fragment, anemia

32

slide-11
SLIDE 11

5/24/2013 9

CML: accelerated phase, fibrosis

33

CML:AP sheets, hypolobated megakaryocytes

34

CML: Accelerated Phase

  • Increase in blasts (< 20%)
  • Cytopenias/dysplasia
  • Increase in basophils
  • Additional cytogenetic

abnormalities

  • Imatinib resistance

35

New Approach to Myeloproliferative Neoplasms

1st breakthrough: Delineation of mechanism of BCR-ABL1- related leukemias 1st step: CML vs “non-CML” Rx: Imatinib for BCR-ABL-1-related disease

36

slide-12
SLIDE 12

5/24/2013 10

New Approach to MPN

2nd breakthrough: Identification of activating (gain of function) mutation of JAK2 resulting in constitutive tyrosine kinase activity in majority of other MPN (PV, ET, PMF)

37

Janus Kinases in Cytokine Signal Transduction

Source: Goldman, J. NEJM 352;17,2005

Receptor tyrosine kinase negative transmembrane receptors include EPO, TPO, G-CSF receptors

38

JAK 2 Mutations in MPN

  • Acquired point mutation in JAK2 (9p) results in

constitutive cytoplasmic tyrosine kinase activity, confers to HP precursor cells: – growth factor independence – other proliferative/survival advantages

  • V617F (phenylalanine substituted for valine from

G T transversion)

  • > 80% PV, > 50% ET, > 50% CIMF (PMF)

Sources: Nature, Cancer Cell, NEJM, Lancet 2005

39

Why Does Excess, Unregulated Cell Production Occur? CML

Ph1 t(9;22) results in BCR-ABL1 fusion gene with constitutive tyrosine kinase activity

40

Other MPN

Point mutation in regulatory region of JAK2 results in constitutive tyrosine kinase activity

slide-13
SLIDE 13

5/24/2013 11

41

Erythrocytosis, thrombocytosis, JAK2+

74 yr-old female Hgb 17 Hct 51% Plt 950,000

42

BM aspirate: ↑ cell, ↑ megakaryocytes

74 yr-old female Hgb 17 Hct 51% Plt 950,000

43

BM biopsy: ↑ megs, dilated sinuses, EMH

74 yr-old female Hgb 17 Hct 51% Plt 950,000

Diagnosis?

  • A. Essential thrombocythemia
  • B. Polycythemia vera
  • C. Cellular phase of primary

myelofibrosis

44

slide-14
SLIDE 14

5/24/2013 12

45

  • 59a36

BM: hyperlobulated megas; Bld: ↑ ↑ plts

Essential Thrombocythemia

1.7 million plts

Myeloid Neoplasms

  • > 50 categories
  • Blast percentage
  • Many other features
  • MDS, MPN, MDS/MPN,

AML

46

Comparison of blood features

MDS MPN AML

47

MDS CML AML

Comparison of bone marrow features

48

slide-15
SLIDE 15

5/24/2013 13

Established Techniques HP Dx

  • Morphology (cytochemical stains)
  • Immunohistochemistry (>100 antibodies)
  • Flow cytometric IP

All are complementary and somewhat

  • verlapping modalities to determine

lineage and stage of maturation.

49 50

AML, Auer rod Morphology: >100yrs

Acute myeloid leukemia

Immunophenotype: 30yrs

51

CD 34

AML: Morphologic and IP Subclassifications

  • Pathologists very good at applying

criteria

  • Morphologic subclassification does

not predict outcome (Exception - APL)

52

slide-16
SLIDE 16

5/24/2013 14

53

AML: Morphologic Classification*

*Source: J Clin Oncol 21:256, 2003

Years from Start of Therapy

AML: Cytogenetic Prognostic Groups*

Favorable: t(8;21), t(15;17), inv(16), t(16;16), other Intermediate: Normal karyotype, +8, -4, +6 Poor:

  • 5/del(5q) , -7/del(7q) , t(11q23),
  • ther, complex karyotype (≥ 3

abnormalities)

54 55

AML: Overall Survival by Karyotype*

Years from Start of Therapy

*Source: J Clin Oncol 21:256, 2003

P < 0.0001

Molecular Genetic Testing

  • Highly relevant prognostic

information

  • Determination of clonality
  • Progressive integration into primary

diagnosis

  • Potential to replace “established”

diagnostic techniques

56

slide-17
SLIDE 17

5/24/2013 15

AML Classification: Biologic Groups

2001 2008 AML with recurrent genetic abnormalities 4 types 9 types t(1;22), NPM1, CEBPA, inv(3), t(6;9) AML with MDS- related changes AML after MDS AML after MDS, MDS/MPN AML with multi. dysplasia AML with MDS karyotypes Therapy-related AML Alkylating Agent Topo II inhibitor T-AML, MDS, MPN T-AML with balanced tx

57

AML: Overall Survival

Source: Grimwade, Hematology 2009

59

AML: Class I and Class II Mutations

Class I Mutations (Proliferation) Class II Mutations (Impaired differentiation) FLT3 PML-RARA KIT RUNX1-RUNX1T1 RAS CBFB-MYH11 PTPN11 MLL fusions

60

slide-18
SLIDE 18

5/24/2013 16

61

Source: NEJM 366(12):1079-89, 2012

400 cases; patients <60 massive parallel sequencing

Acute Myeloid Leukemia

62

Source: Patel, et al. NEJM 366:1079, 2012

Gene Overall Frequency (%) FLT3 (ITD, TKD) 37 (30, 7) NPM1 29 DNMT3A 23 NRAS 10 CEBPA 9 TET2 8 WT1 8 IDH2 8 IDH1 7 KIT 6 RUNX1 5 MLL-PTD 5 ASXL1 3 PHF6 3

A Total Cohort

63

Source: Patel, et al. NEJM 366:1079, 2012

64

Source: NEJM 366(12):1079-89, 2012

slide-19
SLIDE 19

5/24/2013 17

65

Source: NEJM 366(12):1079-89, 2012

66

New Focus

  • n

Prediction Therapy-Related Leukemia ‡ :

Extrinsic events: Type of therapy, combination therapy (with radiation), total dosage, dosing regimen (genotoxic stress) Intrinsic events: Patient’s genetic makeup; genes involved in DNA repair, genes involved in drug metabolism

‡ Rund, et al. Leukemia 19;1919, 2005.

67

Role Change

  • Dramatic change in the role of the

pathologist

  • Old days: Confirm diagnosis of advanced

disease

  • Current: Predict development of disease,

early detection, identify minimal residual disease, predict response to specific therapy, predict risk of drug toxicity

  • Still: Maintain Morph/IP skillset

68

slide-20
SLIDE 20

5/24/2013 18

Practice Changes

  • More rapid implementation of more

complex technology into “routine” practice

  • Whole new array of diagnostic

pitfalls, more rigid specimen requirements, more splitting up (subspecialization) of diagnostic work-up

69

New Challenges

  • Stay “state of the art” but be “evidence-

based”

  • Pathology must take the lead in test

selection and development, reporting, and integration

  • Pathologist must be leaders in cost-

effective testing strategies

  • A higher level of expertise will be

required for routine practice

70
